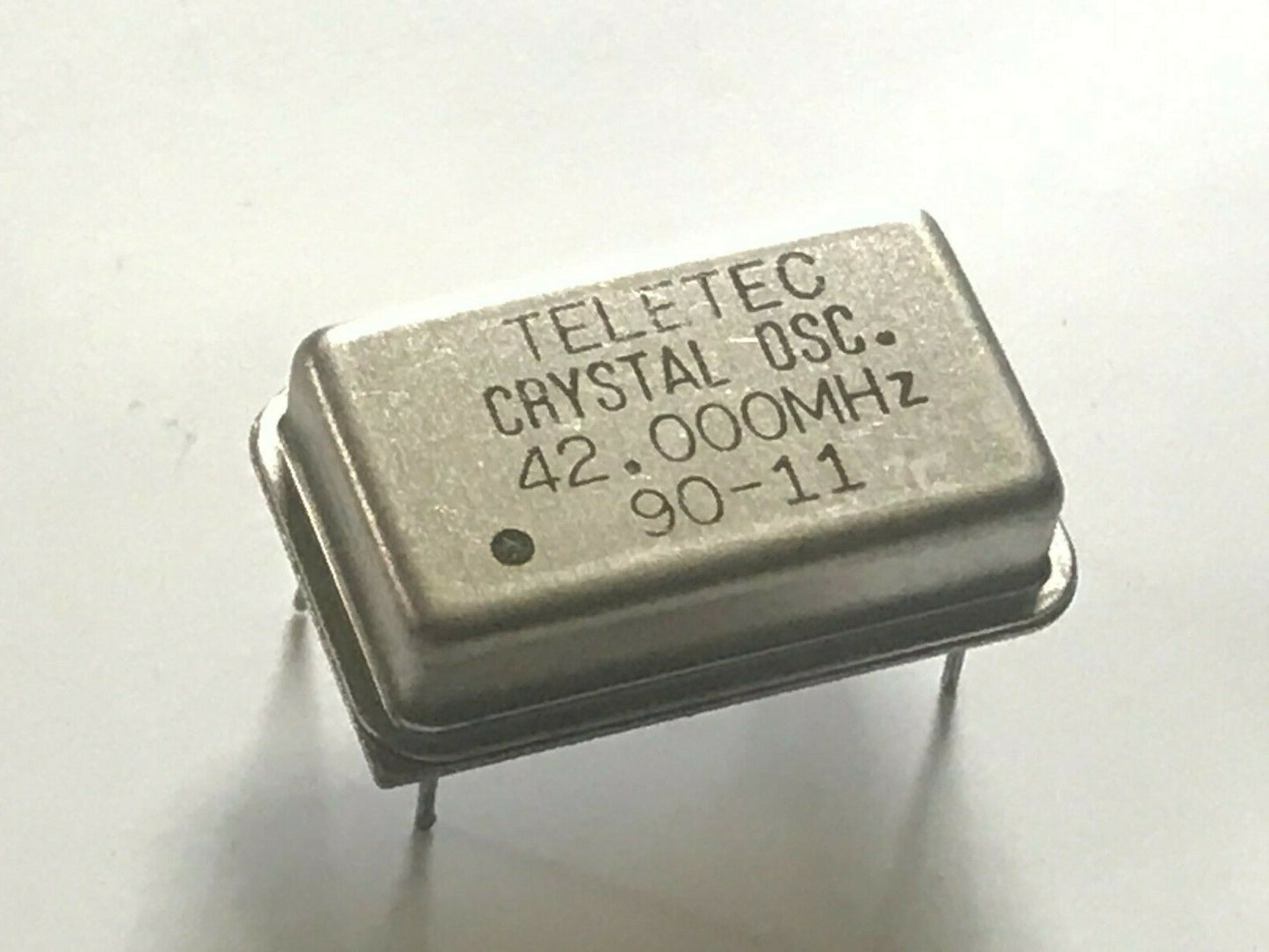

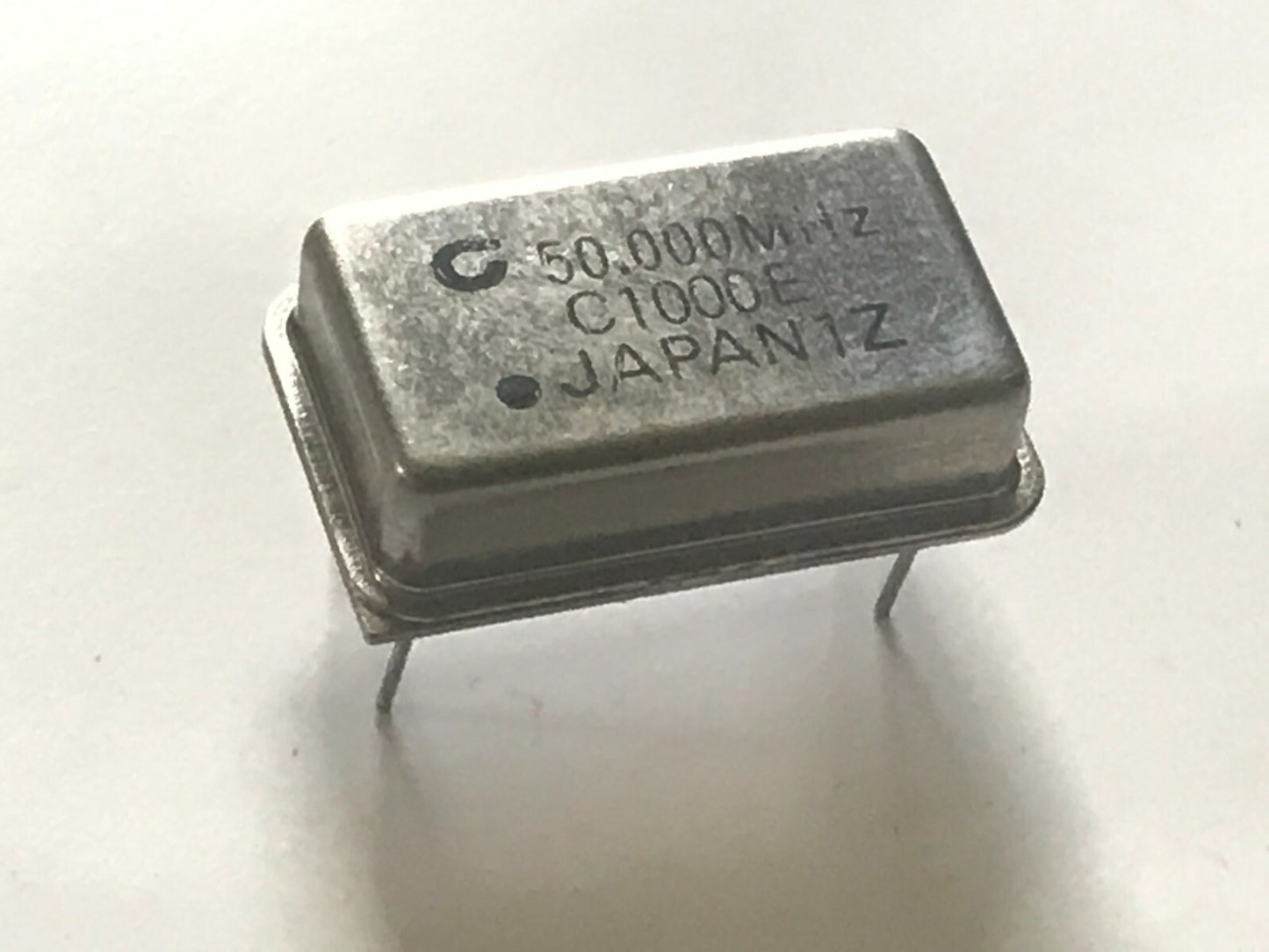

XTAL CRYSTAL OSCILLATOR 4 PIN 14 PIN DIL SIZE OLD STYLE ALL FREQUENCIES faa13

XTAL CRYSTAL OSCILLATOR 4 PIN 14 PIN DIL SIZE OLD STYLE ALL FREQUENCIES faa13

£8.00
£8.00
Sale Sold out
Taxes included.
Oscillator Frequency

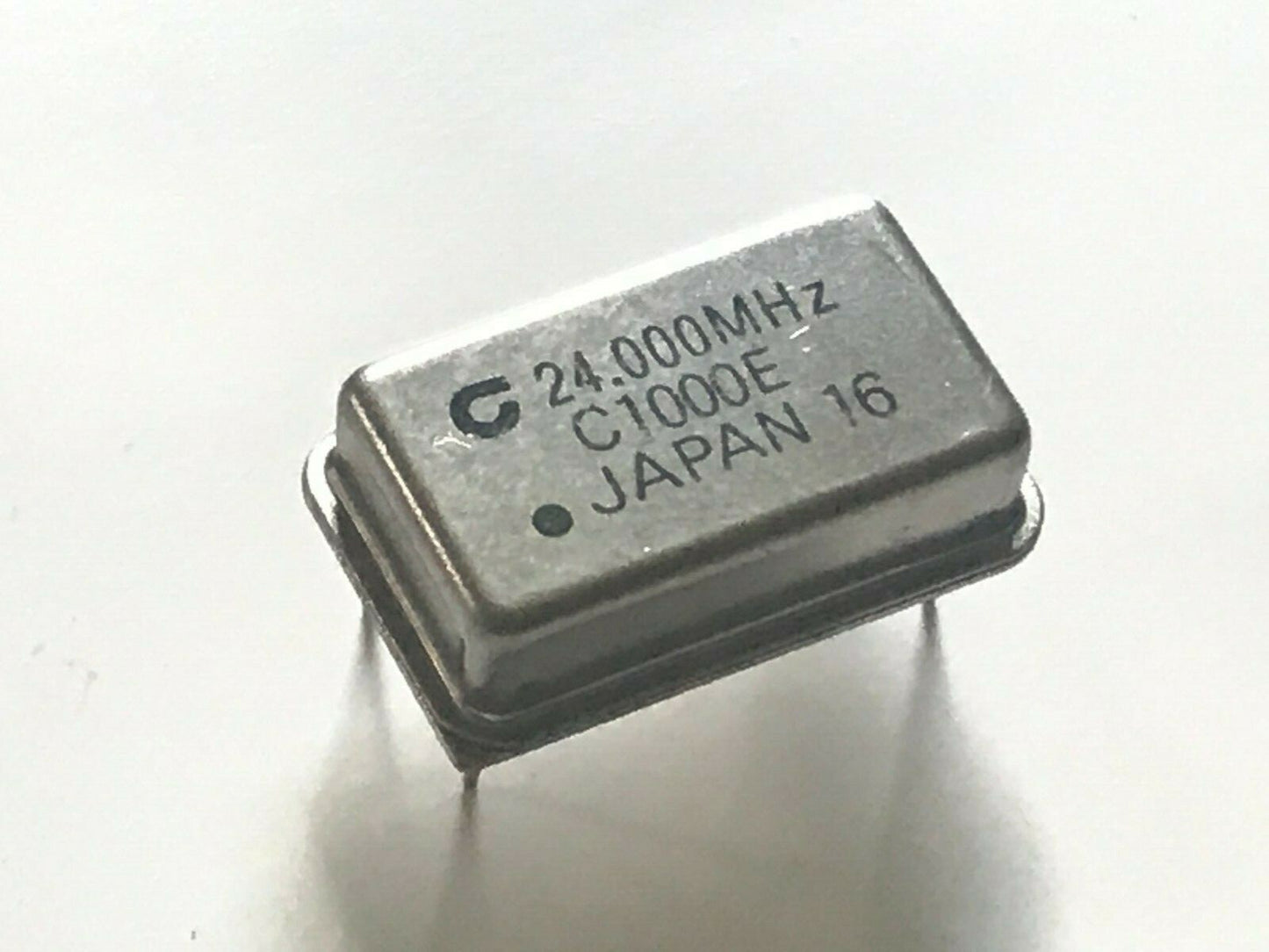

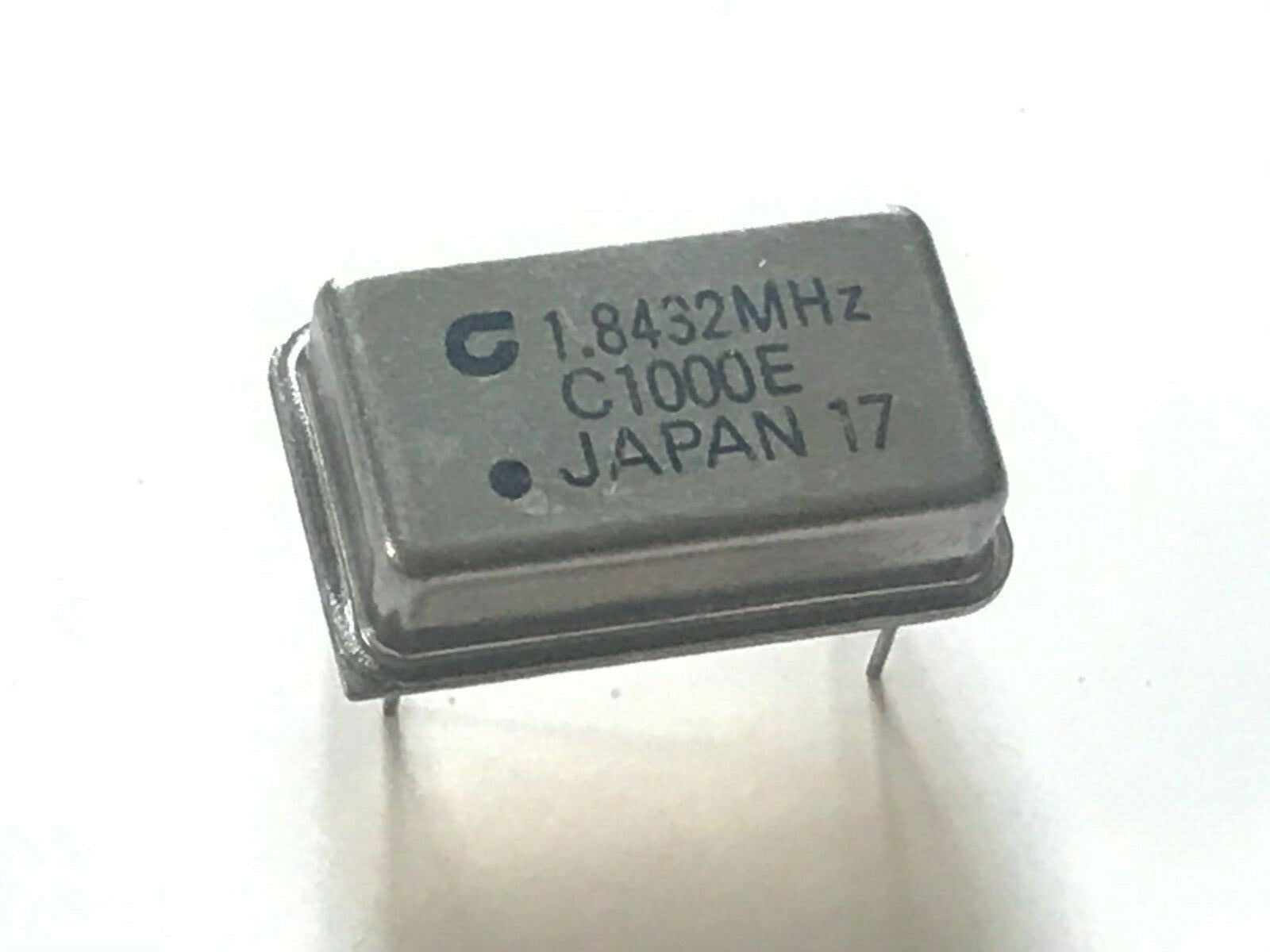

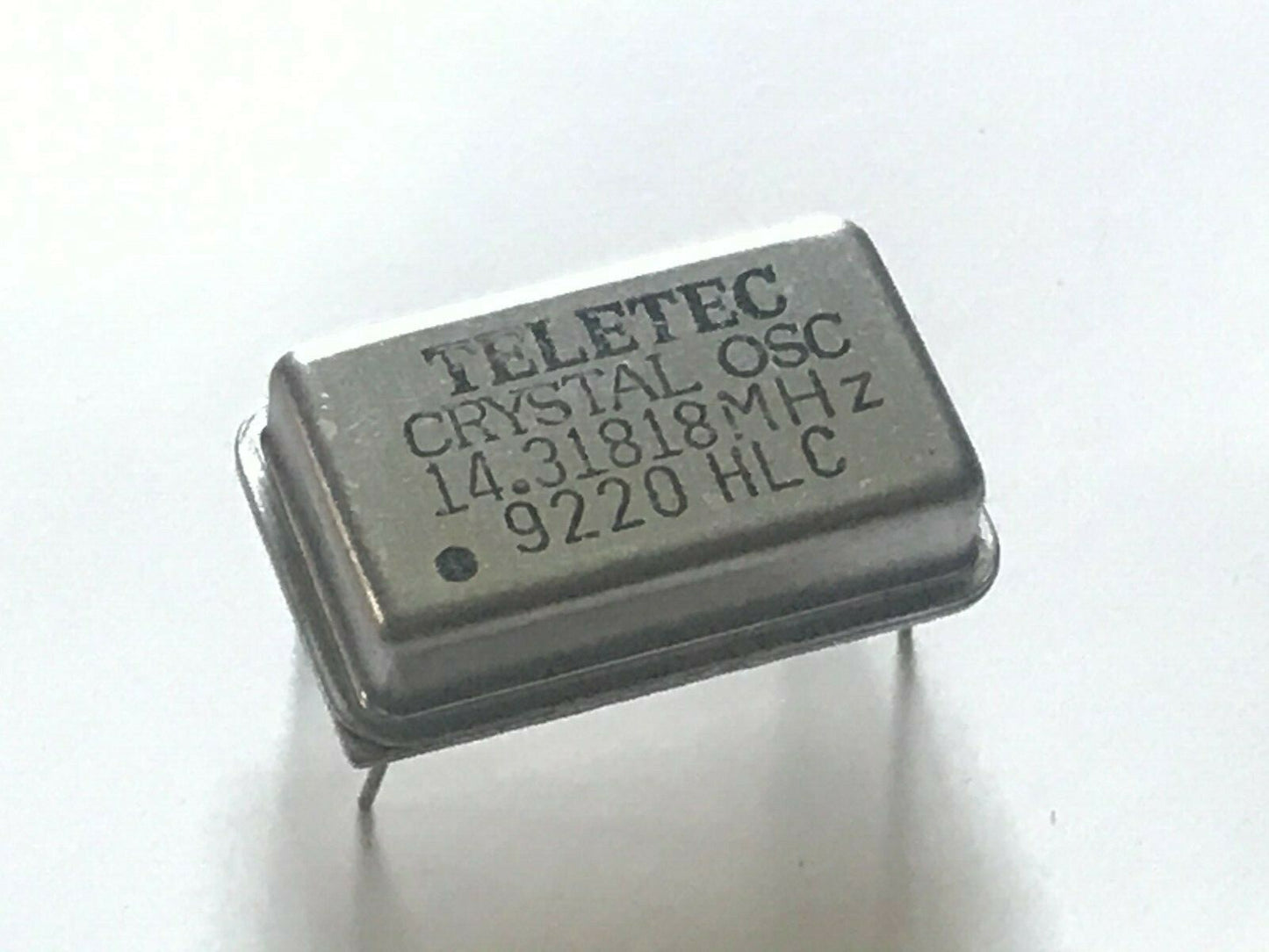

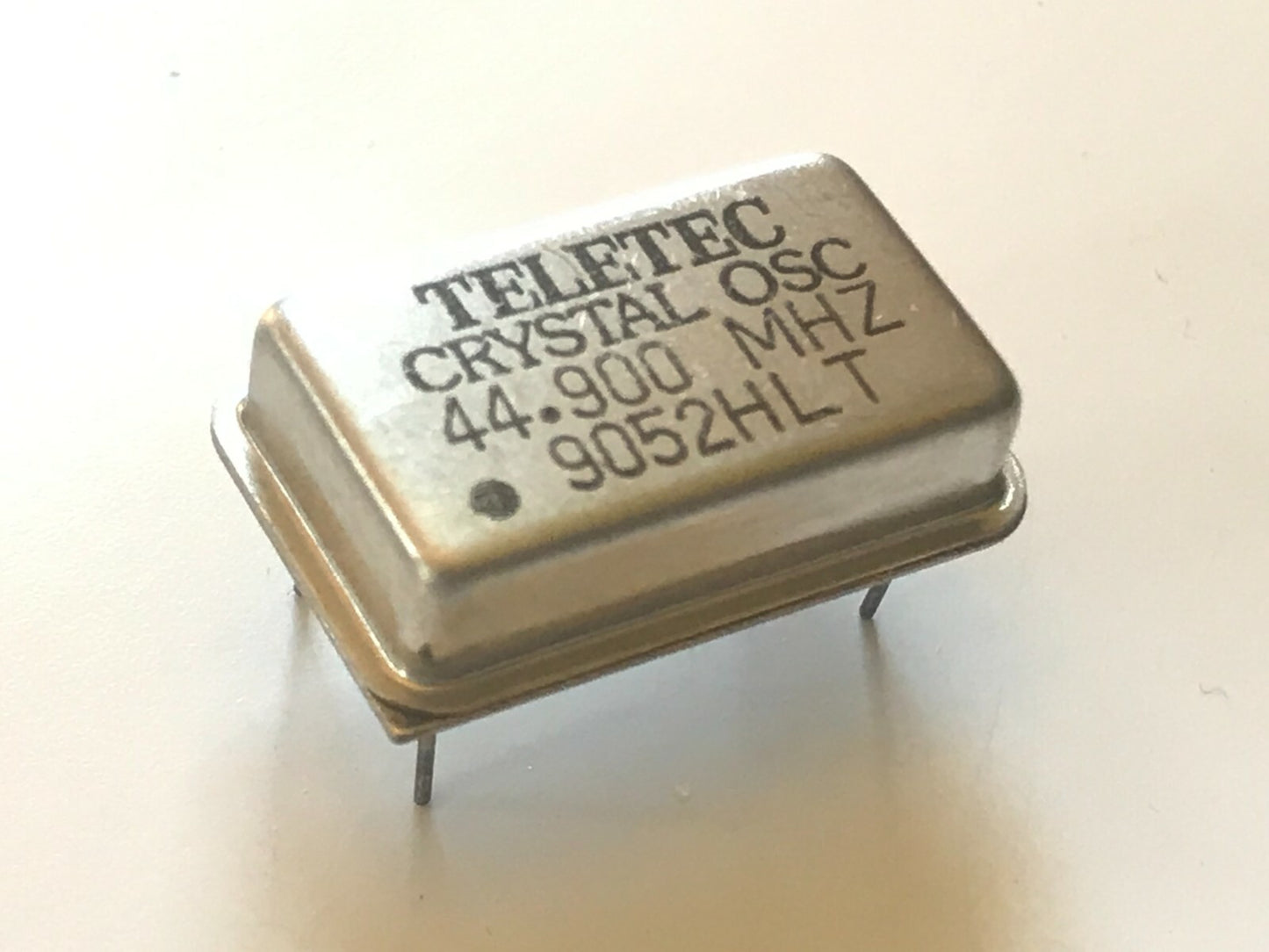

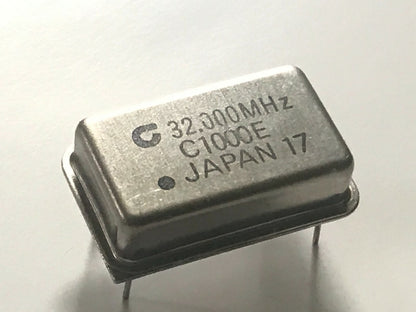

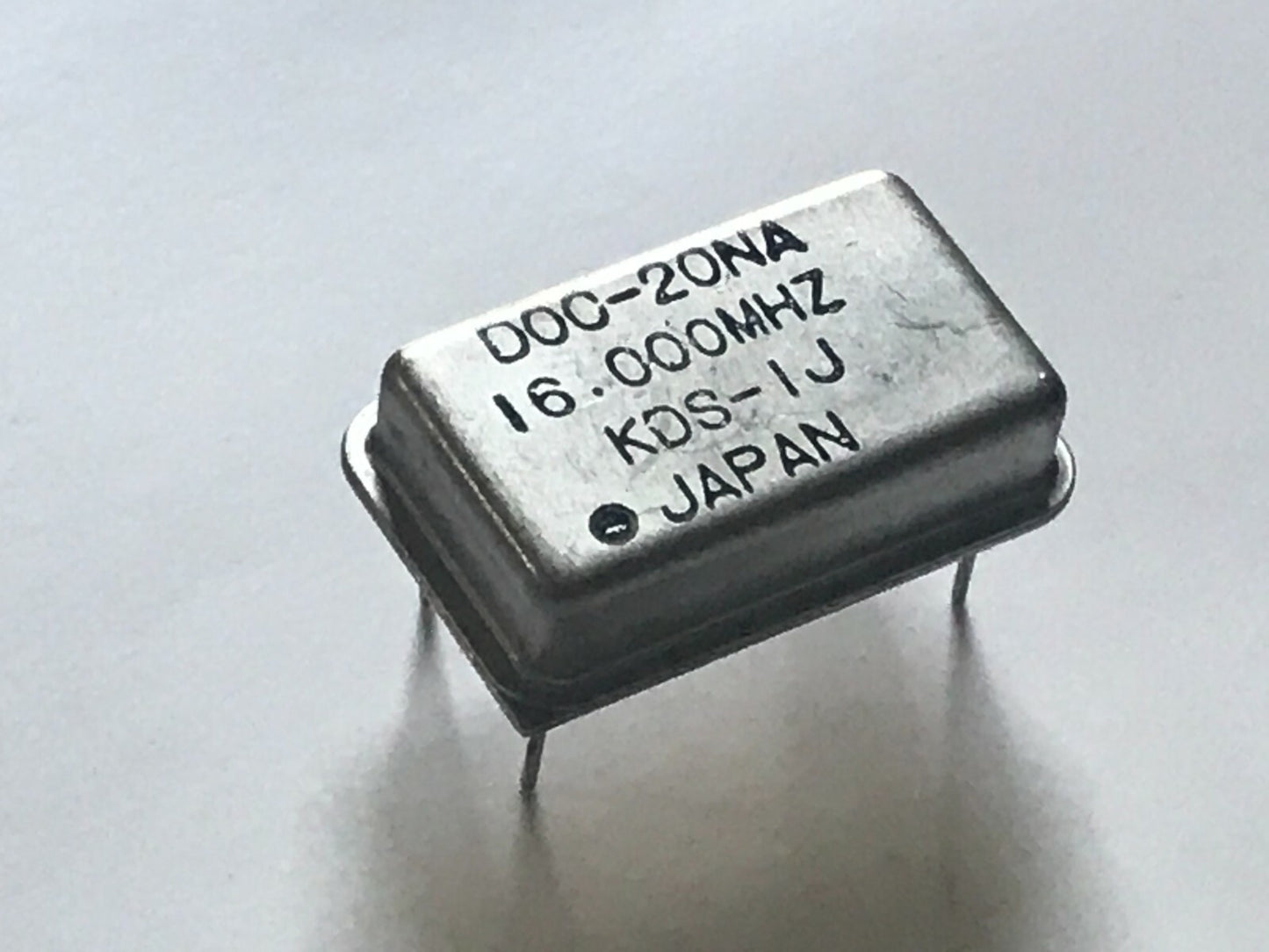

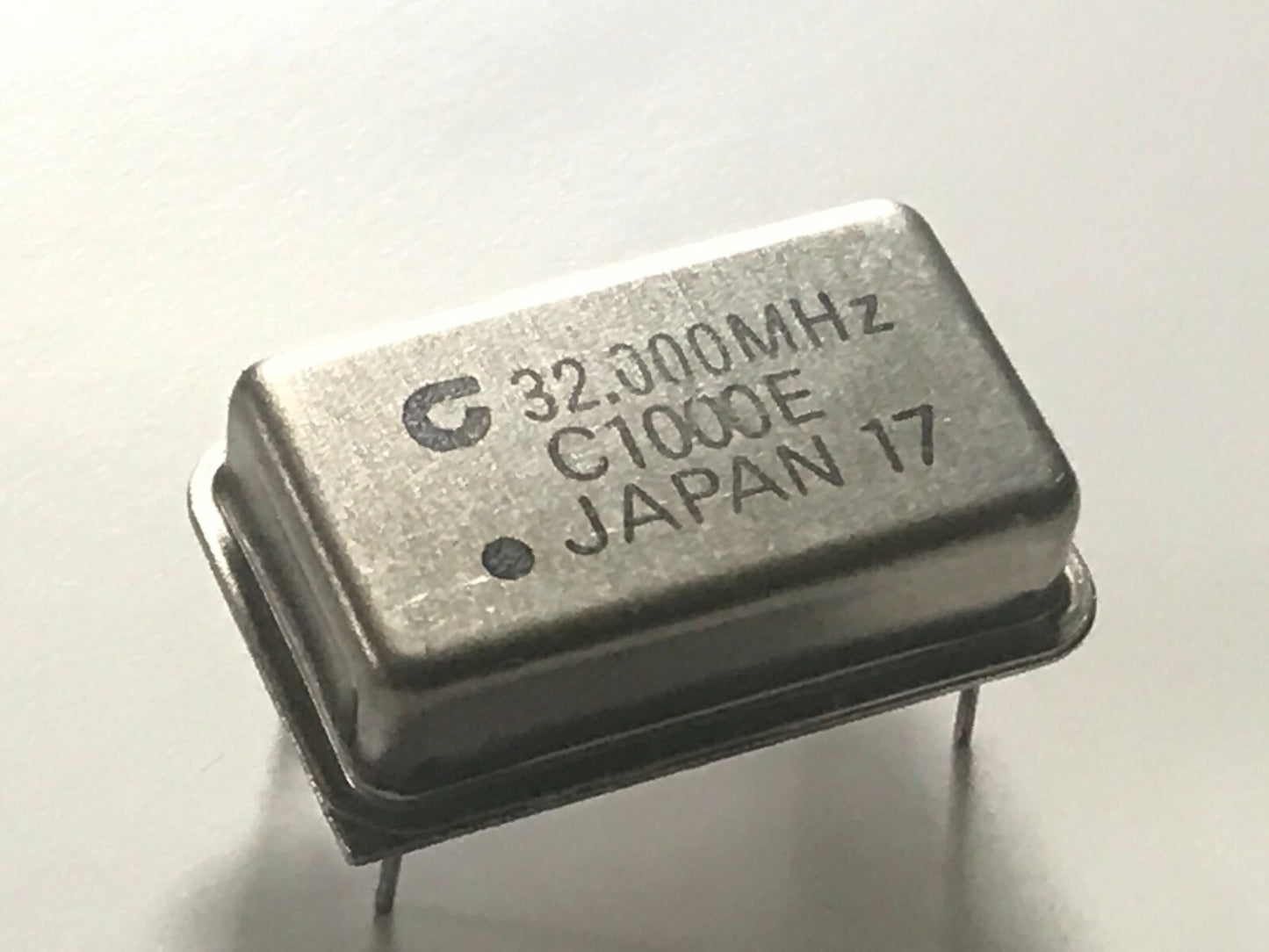

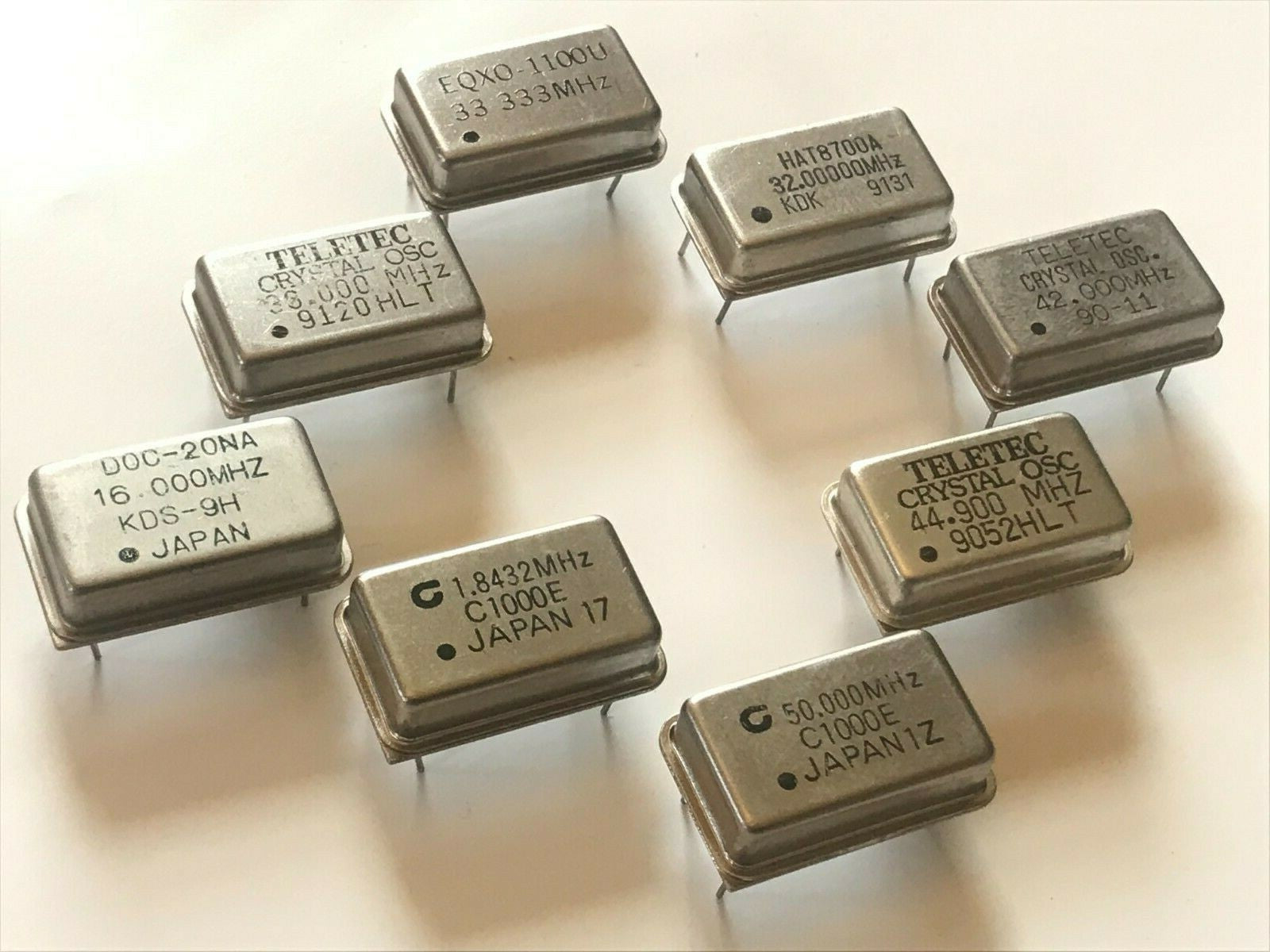

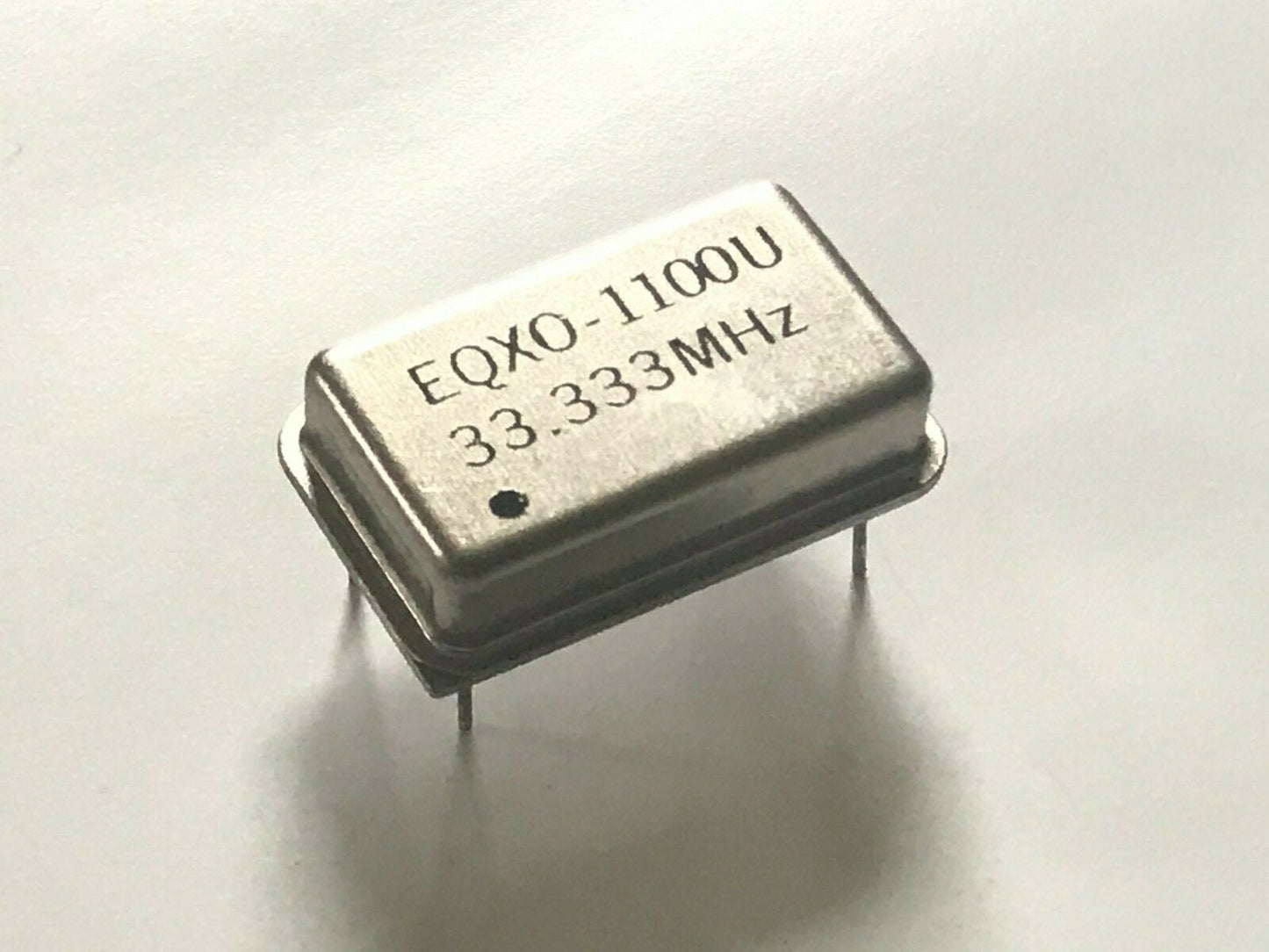

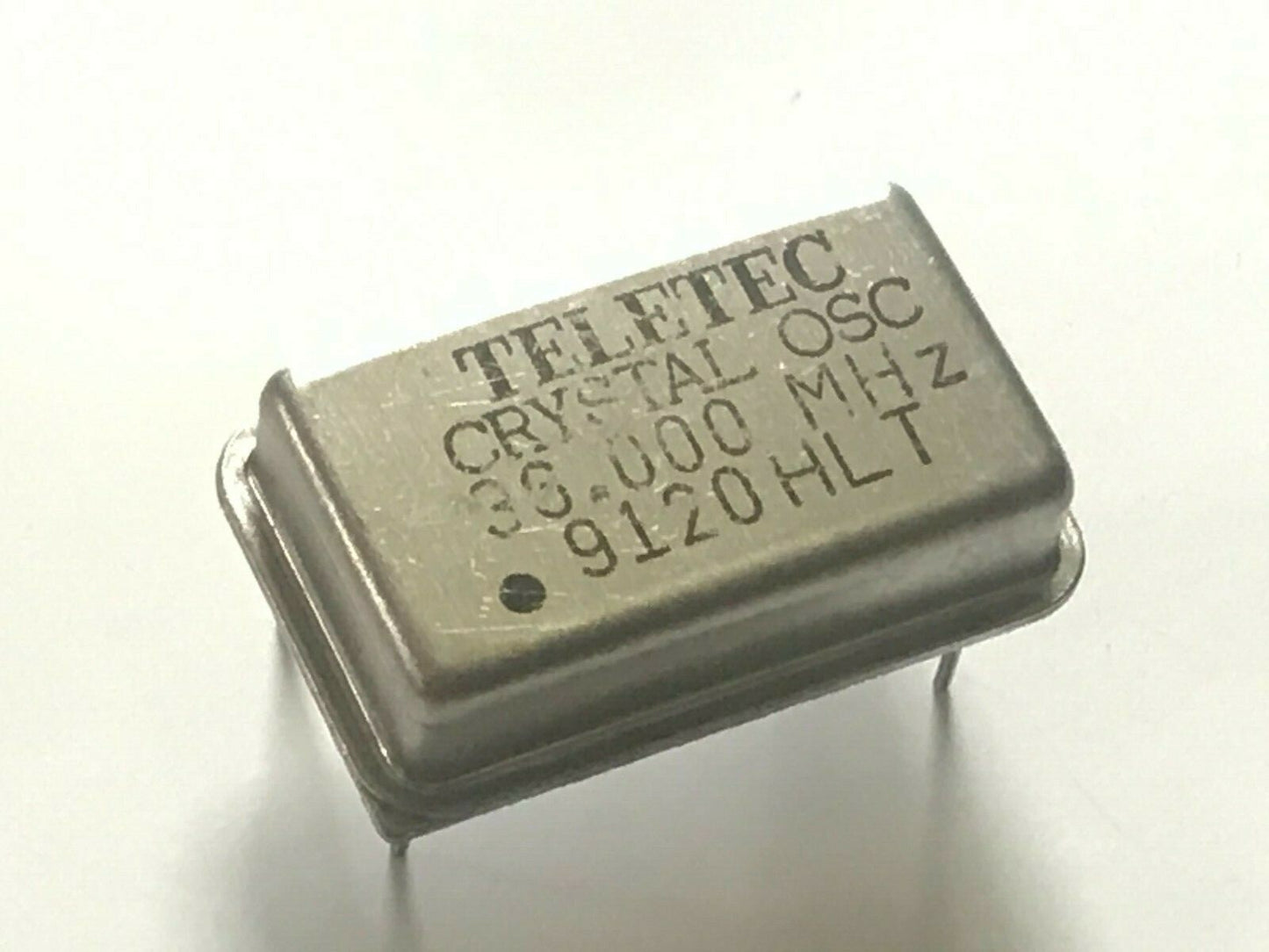

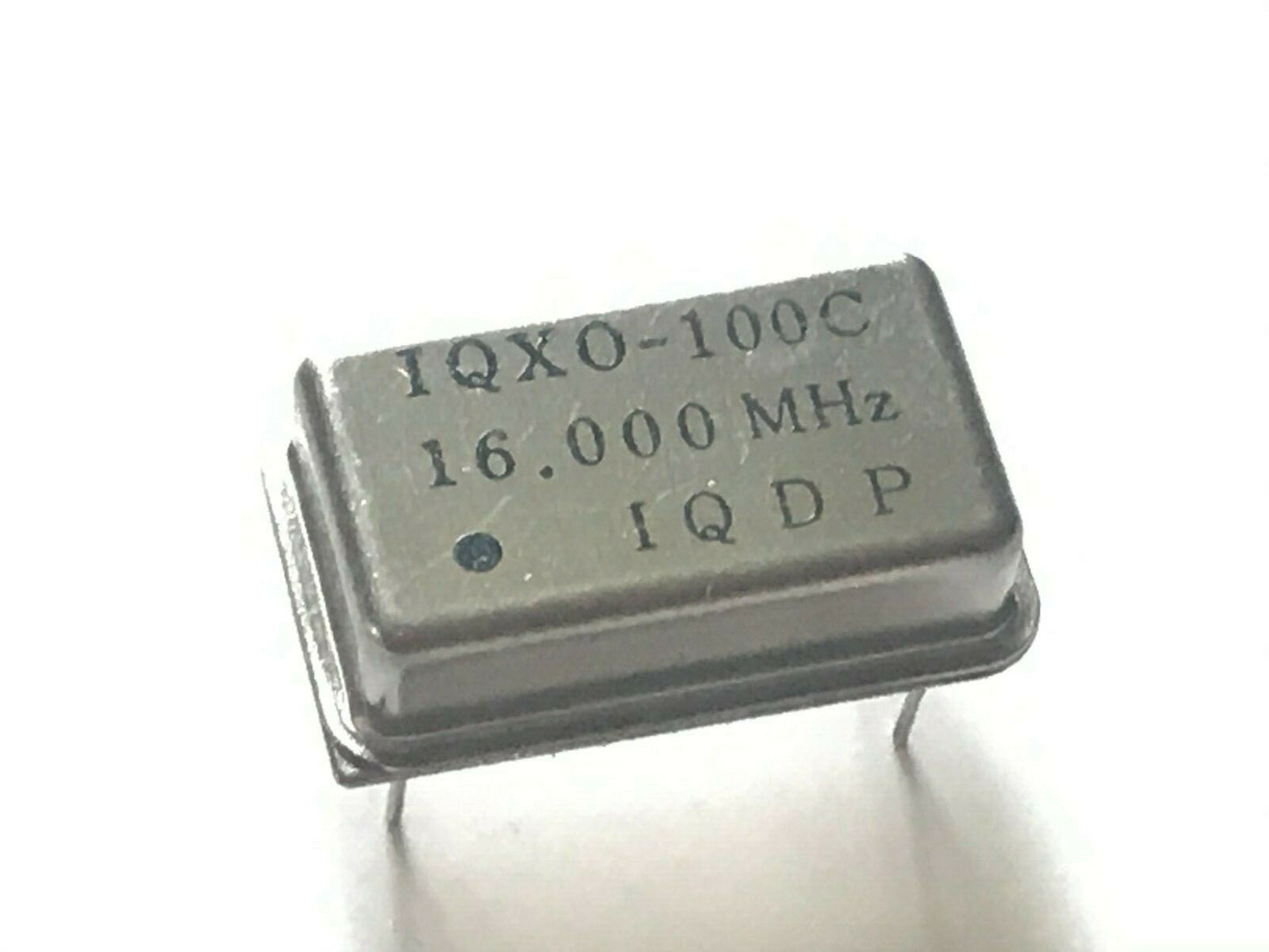

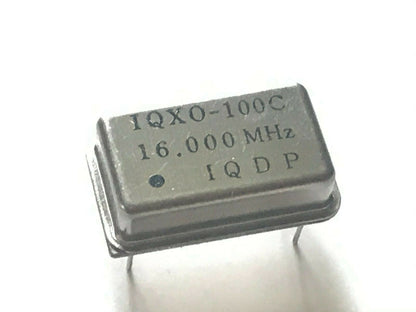

4 PIN OLD STYLE CRYSTAL OSCILLATORS

These are not really vintage, but they are an older style of crystal oscillator,  4 pin enclosed in a 14 pin dil size package.

Simply by connecting up the supply voltage 5Vdc, you get an oscillating output at the designated frequency.

All frequencies available from the drop down menu.

5V Operation - 18mA no load current

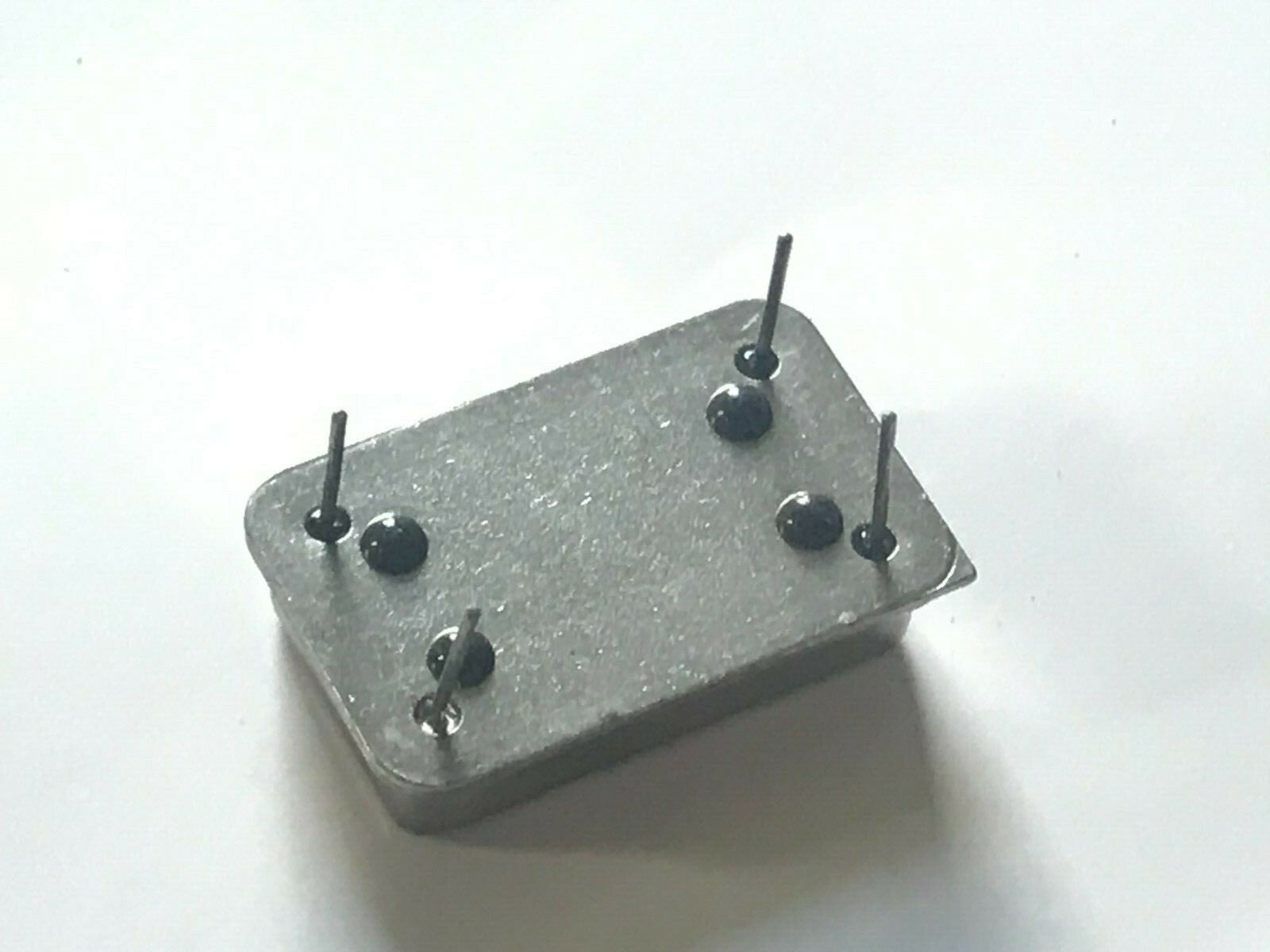

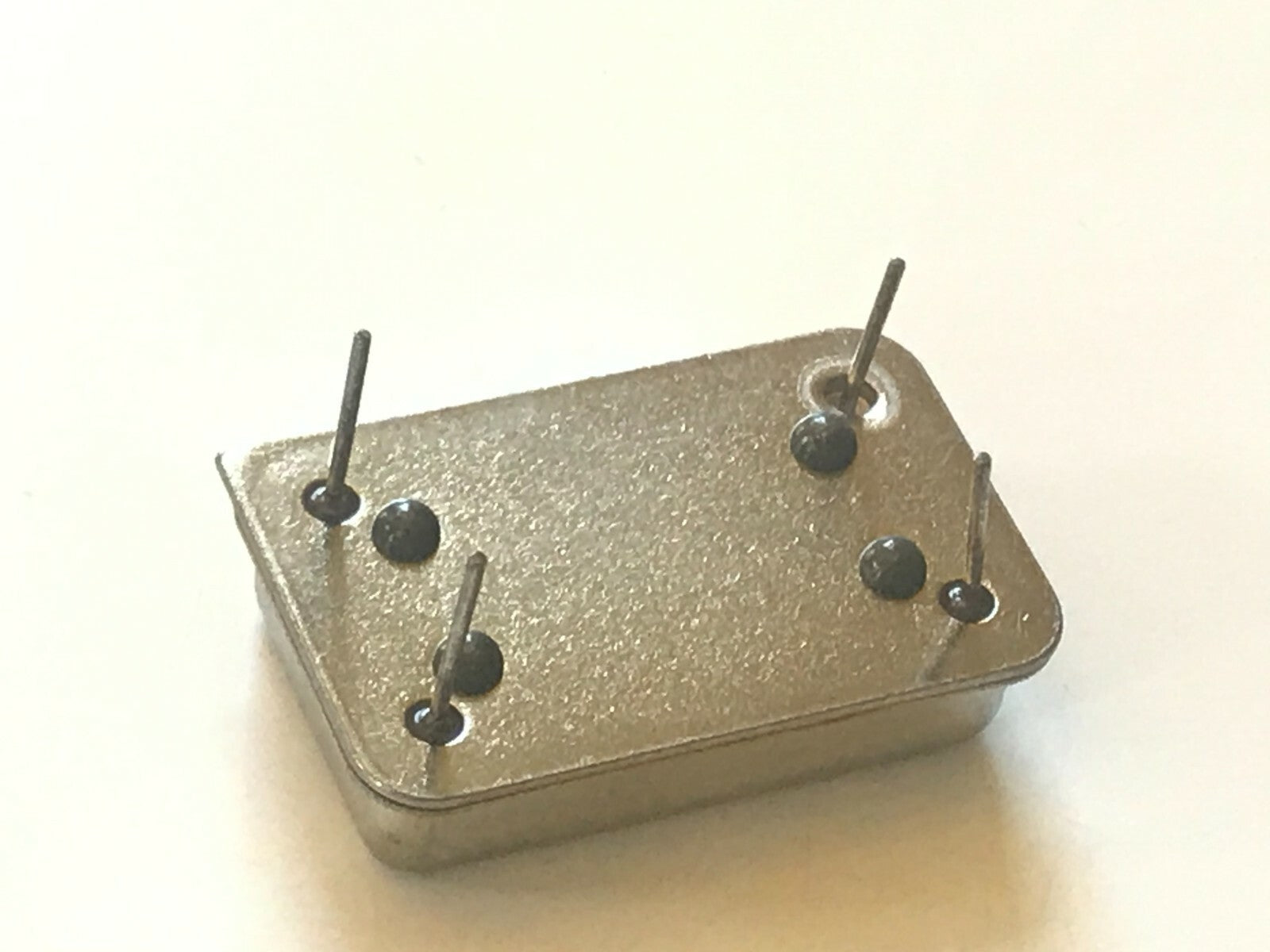

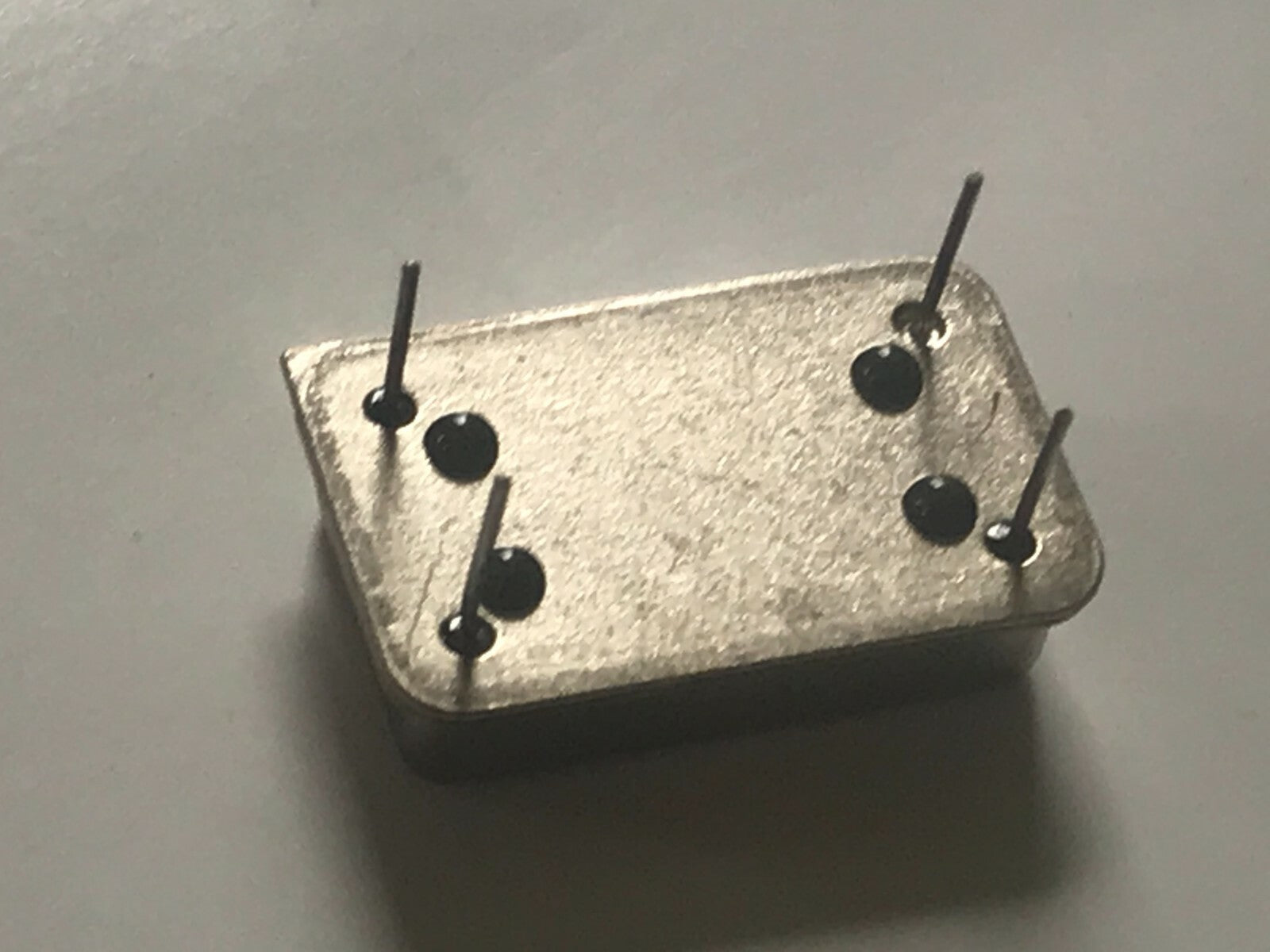

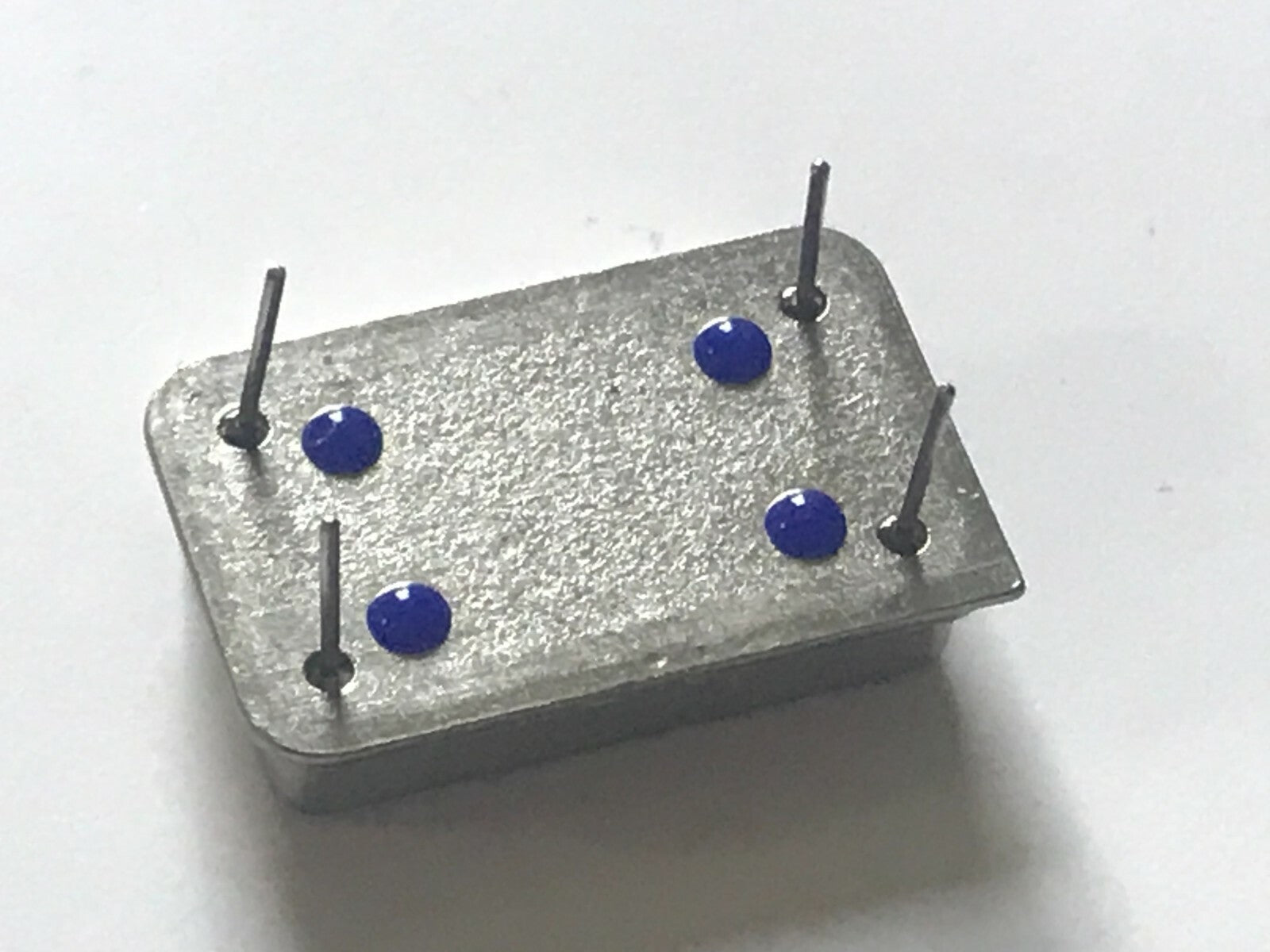

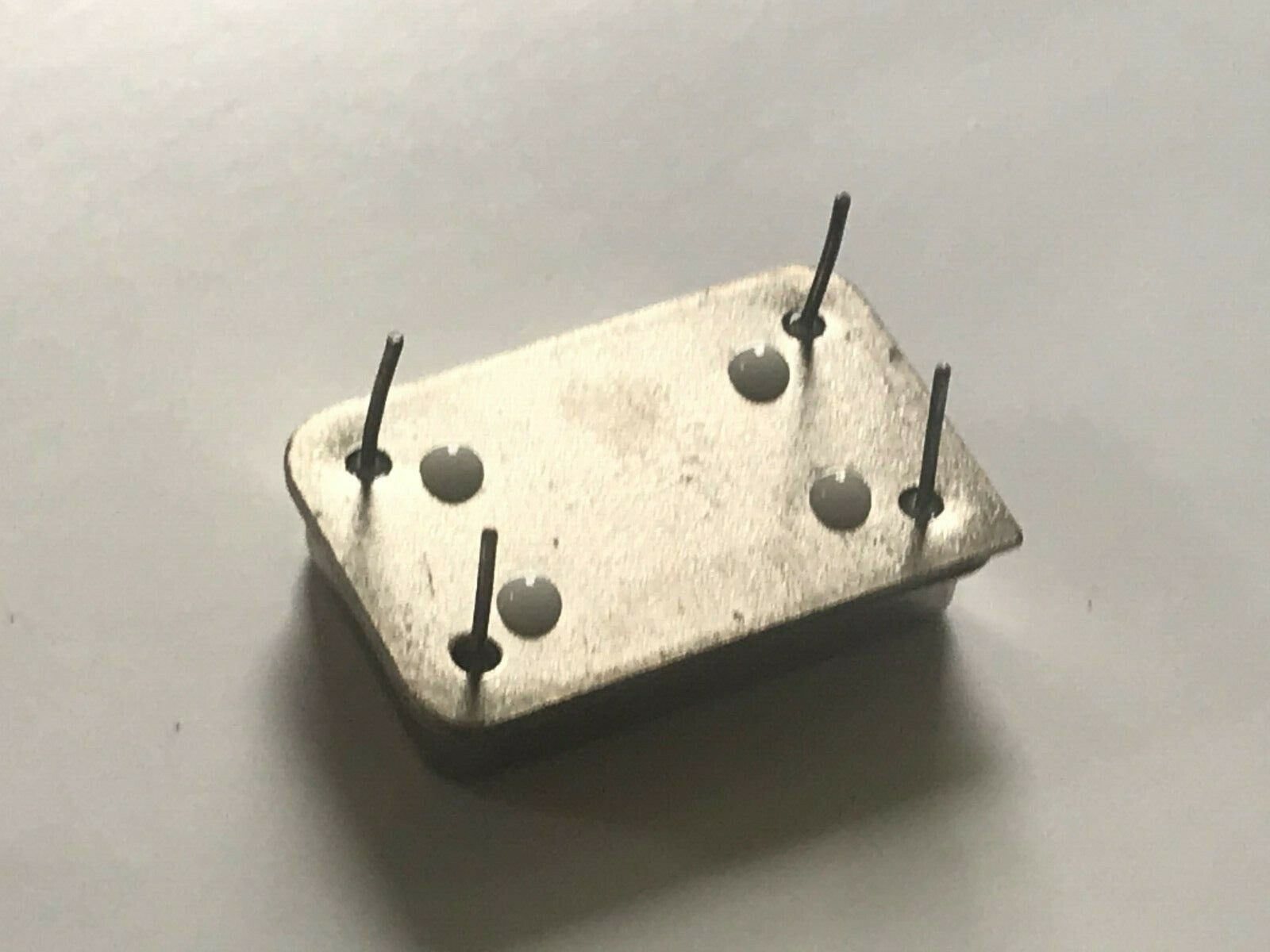

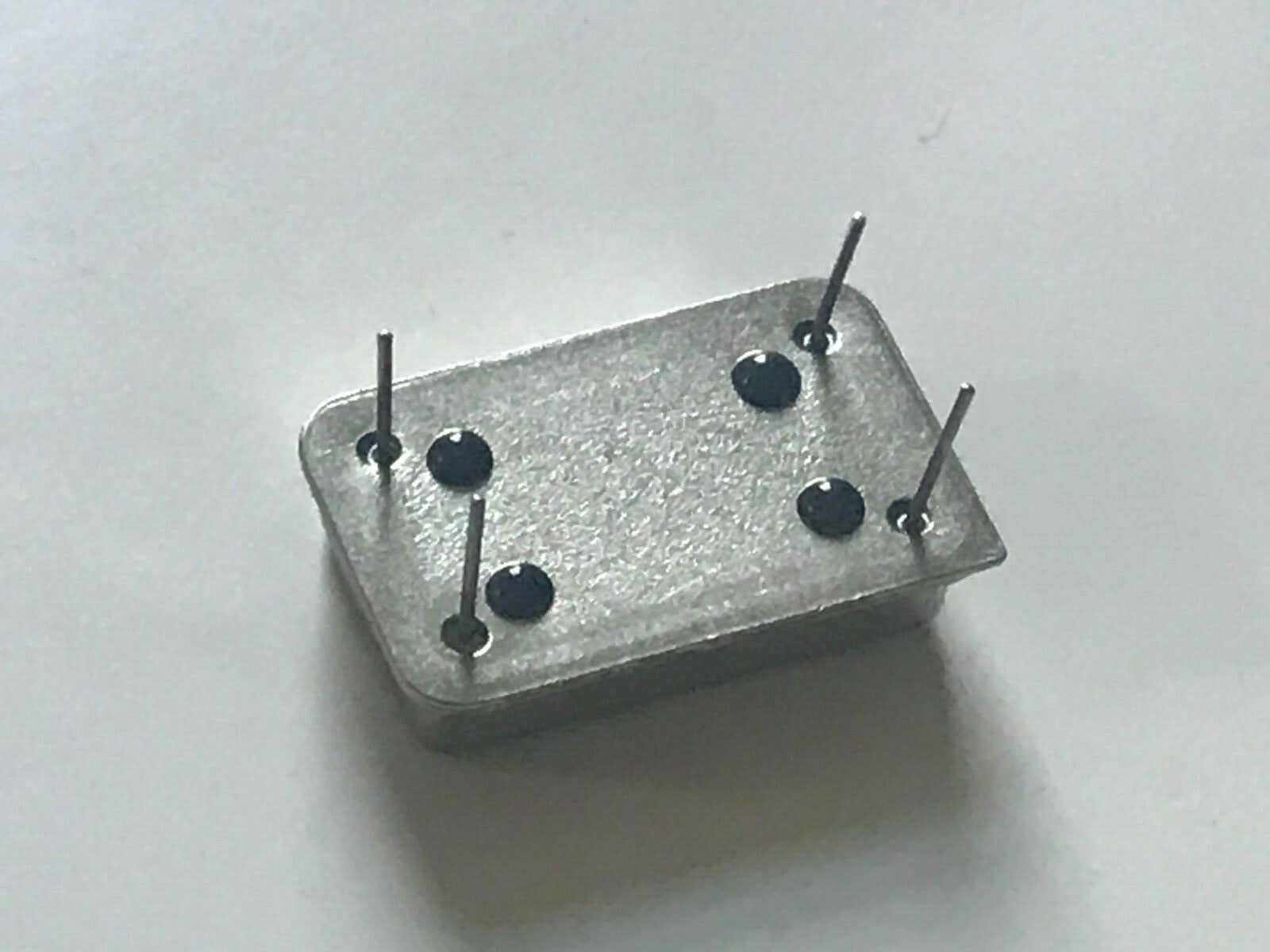

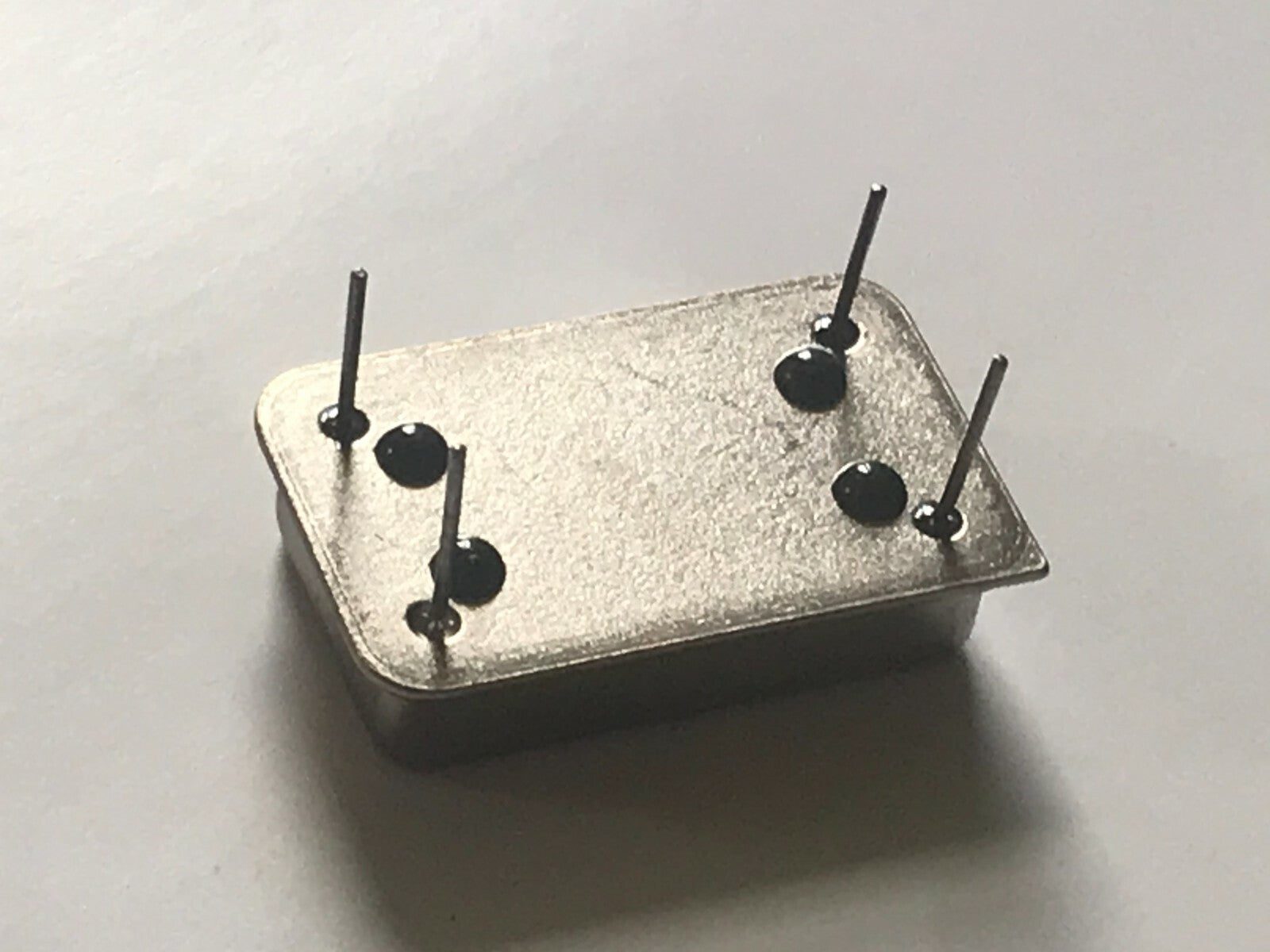

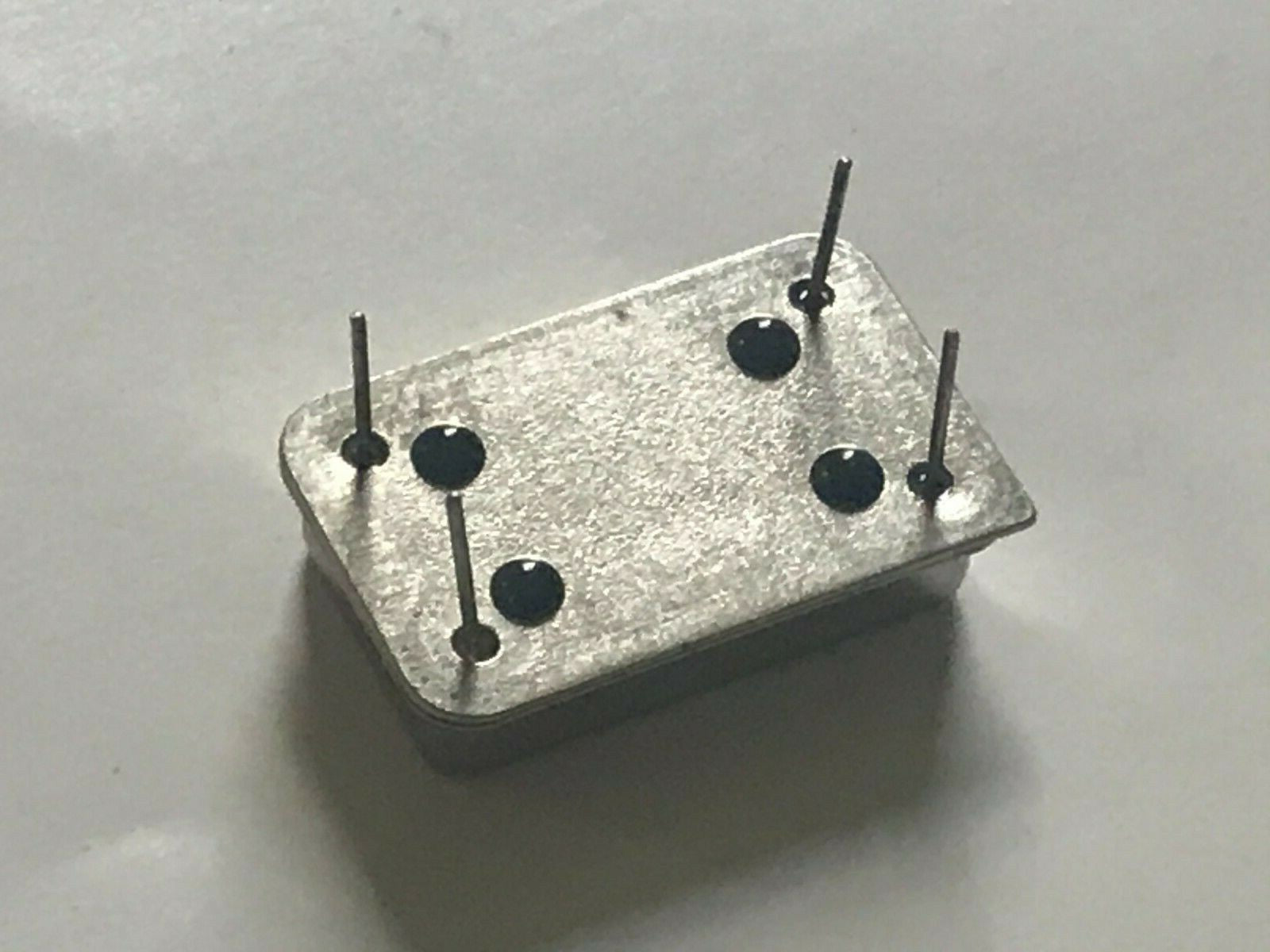

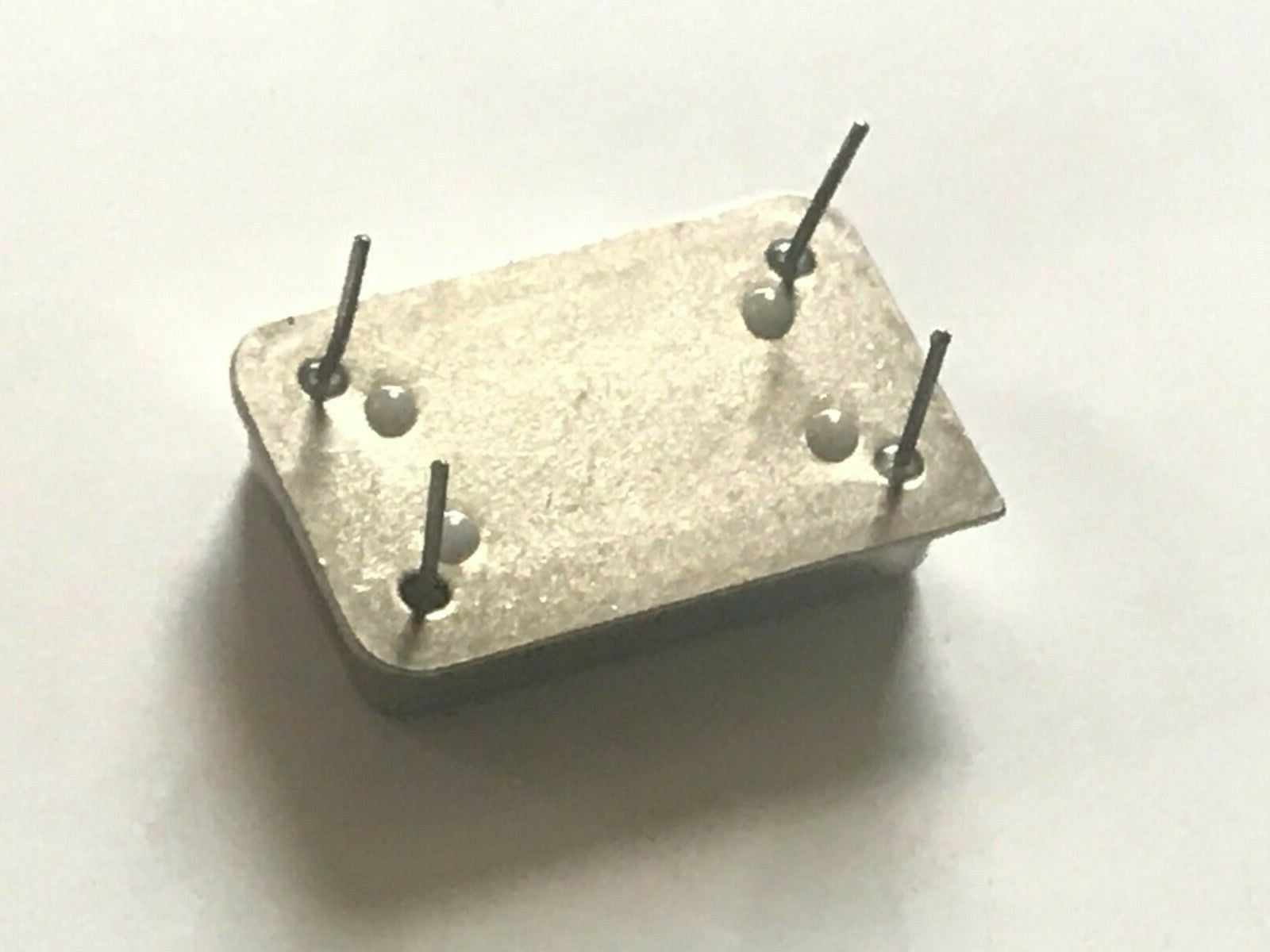

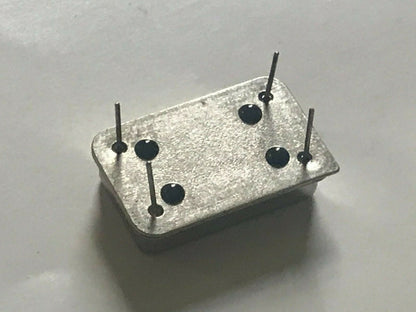

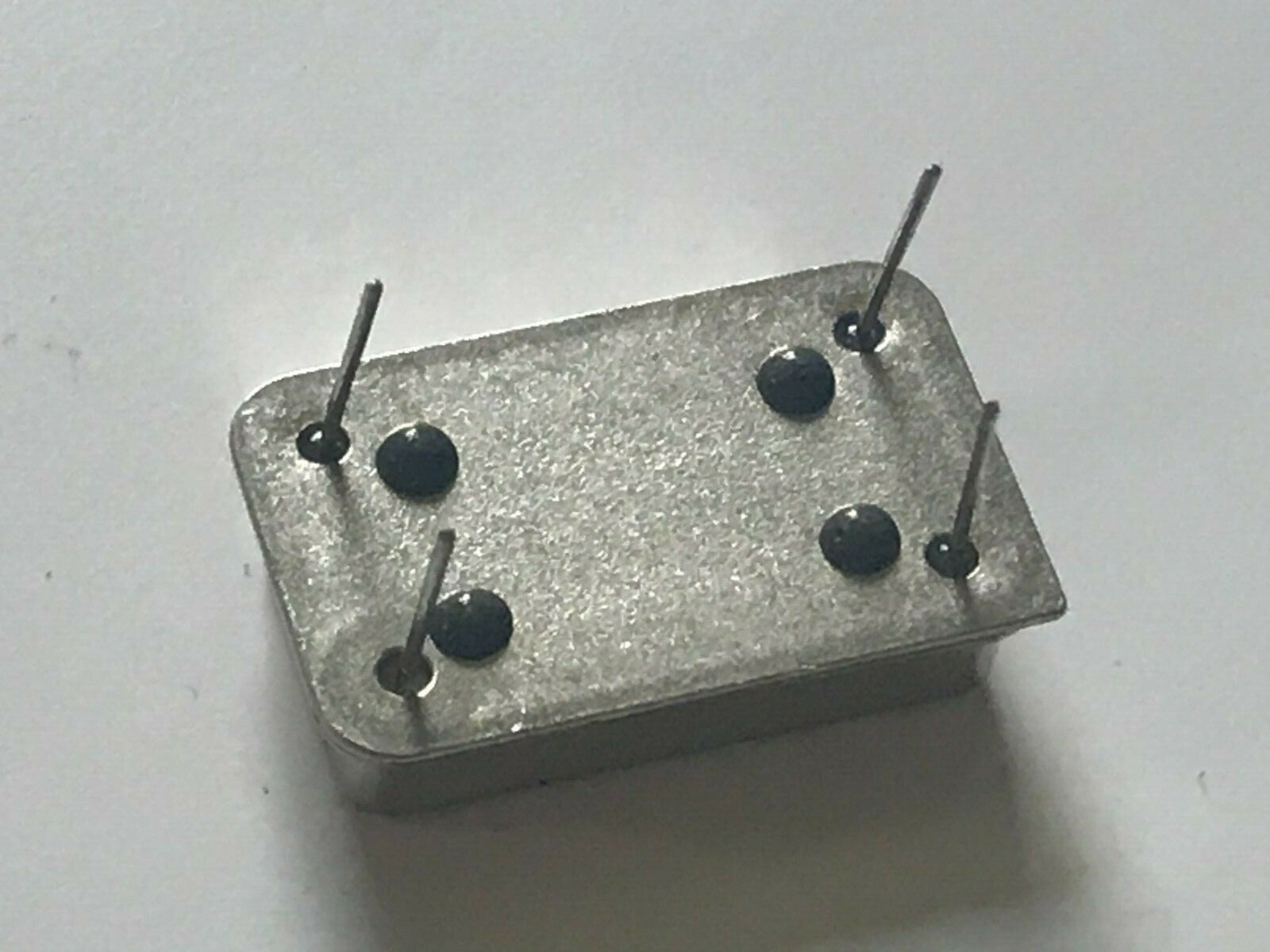

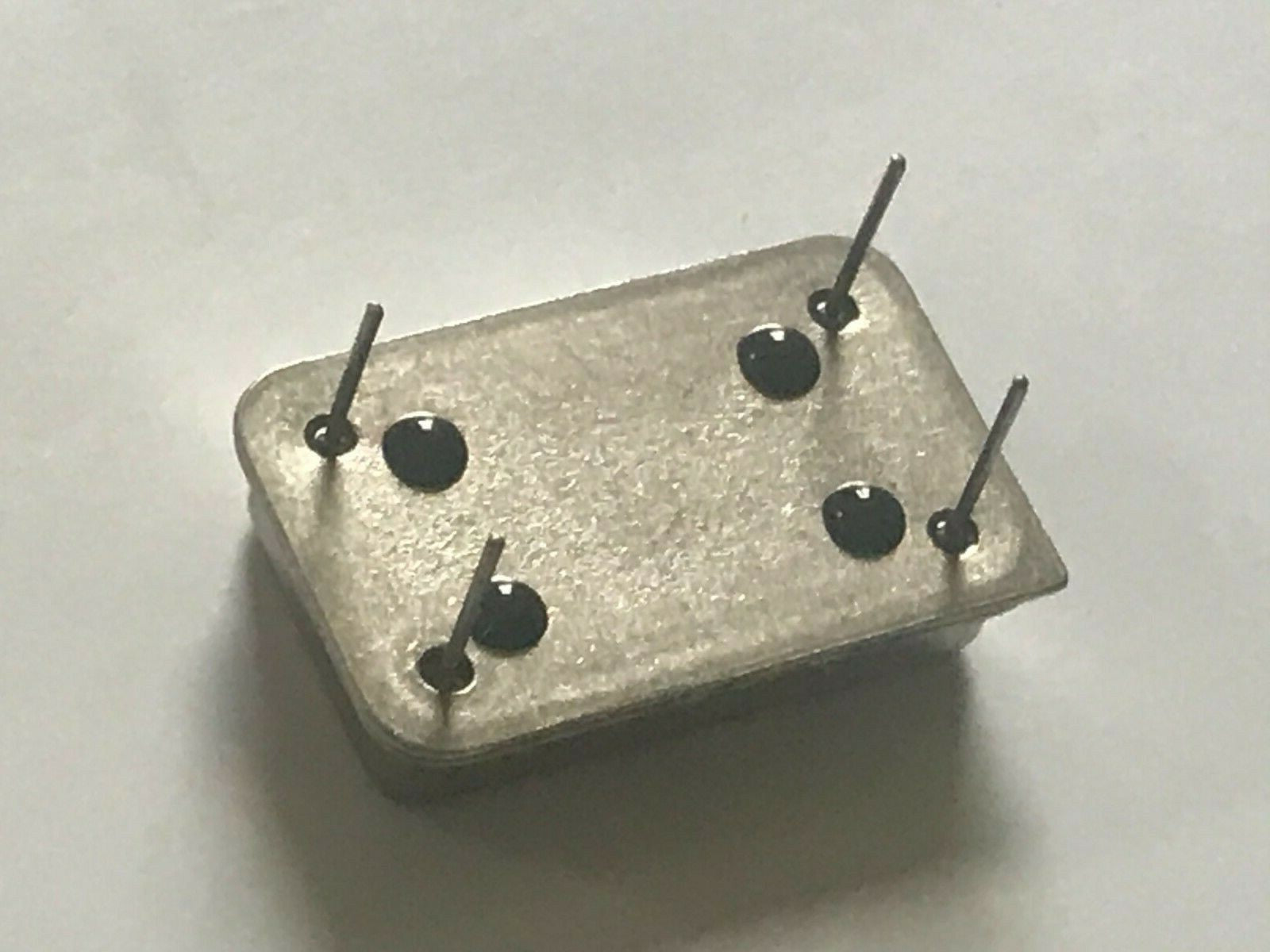

14 pin DIL format -only 4 pins present
Pin 1 no connection. Identified by dot or square corner on can
Pin 7 Ground - also connected to metal can case
Pin 8 TTL / HCMOS output
Pin 14  V+ supply


 PRICED AND SUPPLIED IN A PACK OF 1, ANY FREQUENCY FROM THE DROP MENU BOX, WITH QUANTITY DISCOUNTS ON ANY COMBINATIONS.
