ADC150 MULTI OUTPUT PSU

Interesting and useful unit, operates from either 110 - 240V mains OR 24Vdc...

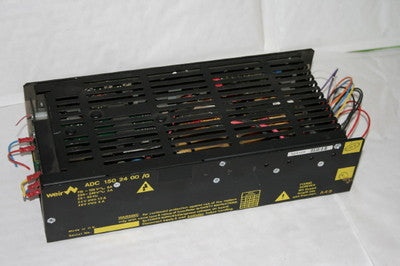

This industry standard power supply unit has been manufactured under various names in its time, Weir, Celab and Lambda to name but 3. The model number is ADC150/24.

 Outputs upto a maximum of 150W are:
 +5.1v @ 20A,
 +12v @ 5A,
 -12v @ 1.5A,
-5.2v @ 1A,
 24v @ 2A.

A seperate 10W constant voltage and constant current battery charger output to charge Nicads, lead acid cells etc is included, this output is settable inside the unit.

 Other features include 0.5% or better regulation, AC input fail and DC input low signals, Outputs are short circuit protected.

 All connections are made via screw terminal barrier strip.

Dimensions are approximately 270mm x 120mm x 70mm and the weight is 1.9Kg

New these units cost in excess of £800, the ones we offer for sale here have been stripped out of redundant military equipment, they have had little use and are sold in perfect condition.

 Supplied with a copy of the original Lambda datasheet.
