VINTAGE HP HDSP-6508 8 DIGIT RETRO BUBBLE LED DISPLAY MODULE fcb28.4

VINTAGE HP HDSP-6508 8 DIGIT RETRO BUBBLE LED DISPLAY MODULE fcb28.4

£50.00
£50.00
Sale Sold out
Taxes included.

VINTAGE HP 8 DIGIT LED DISPLAY

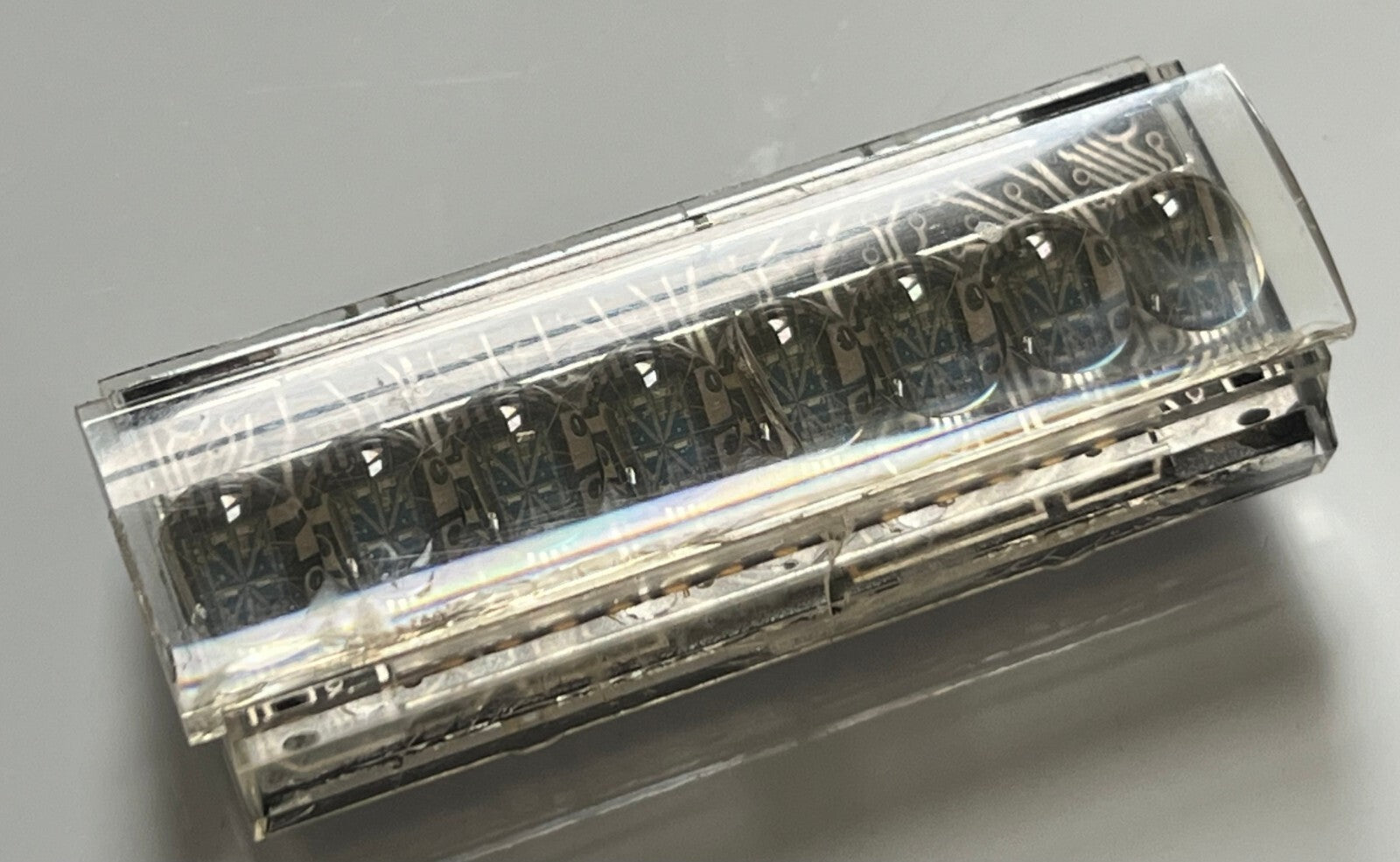

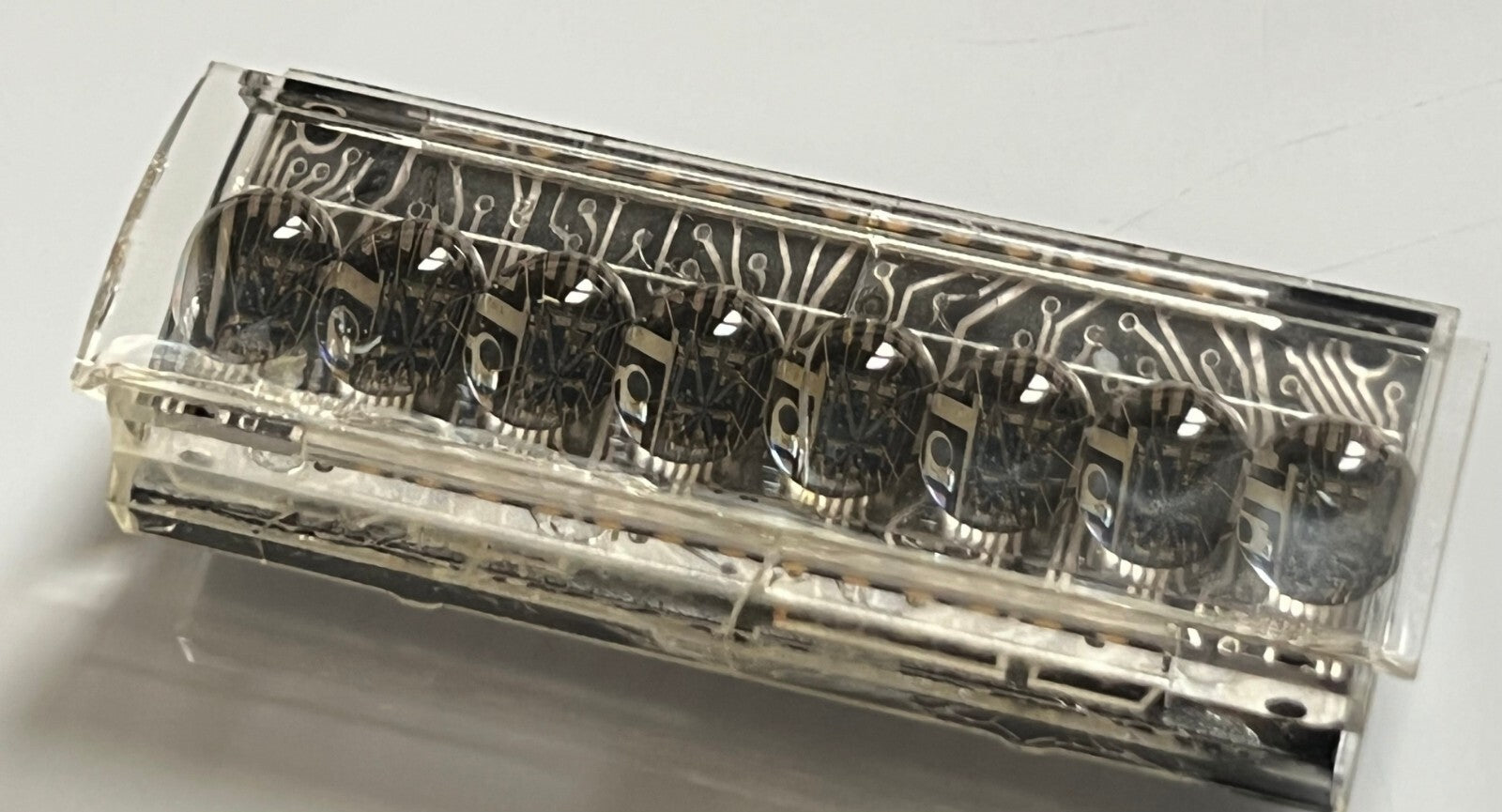

Manufactured by Hewlett Packard in the 1980's, part number HDSP-6508, this is an 8 digit bubble alphanumeric 16 segment led module with the HP 6509 magnifier lens fitted in front. These have been in our stock since the 1980's,  manufactured in the USA.

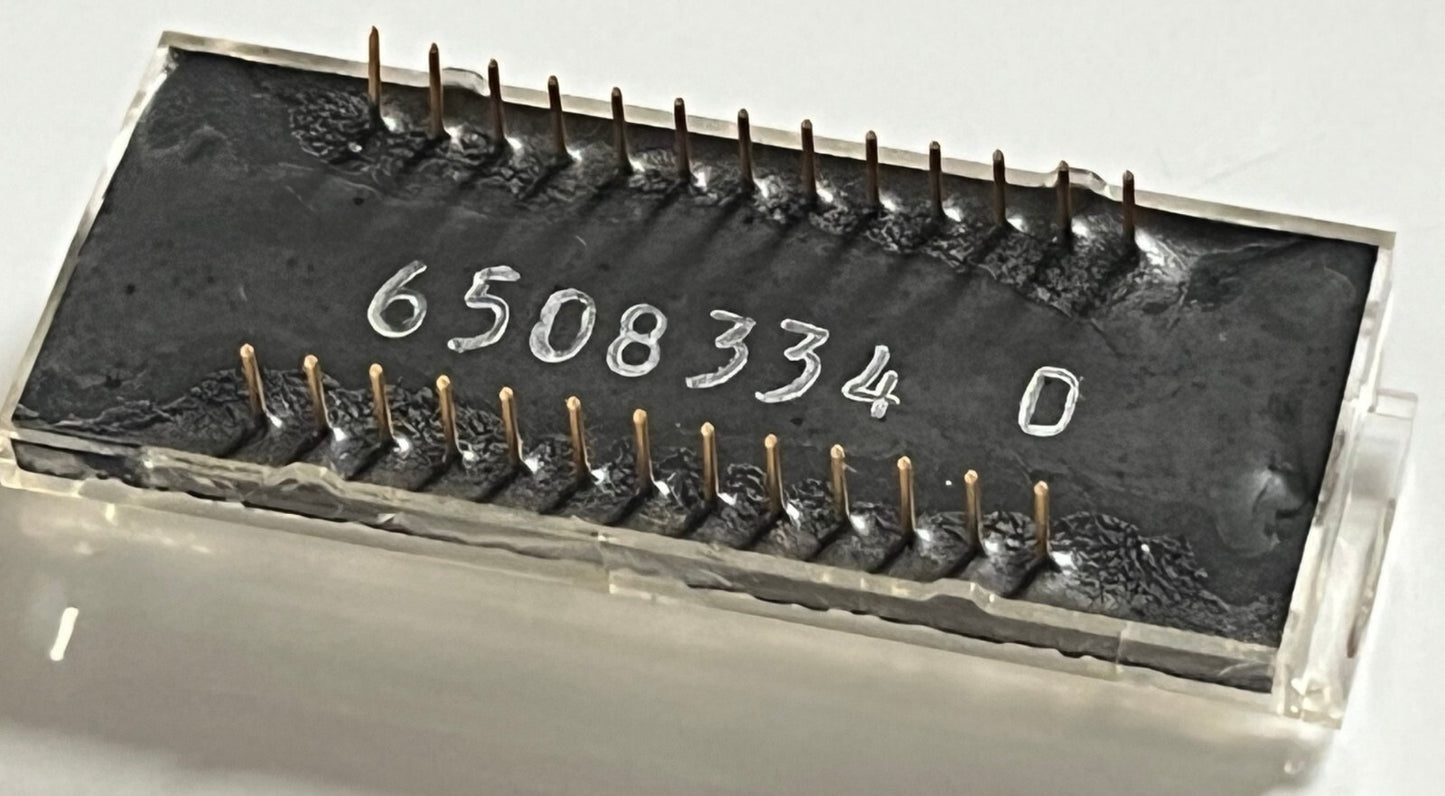

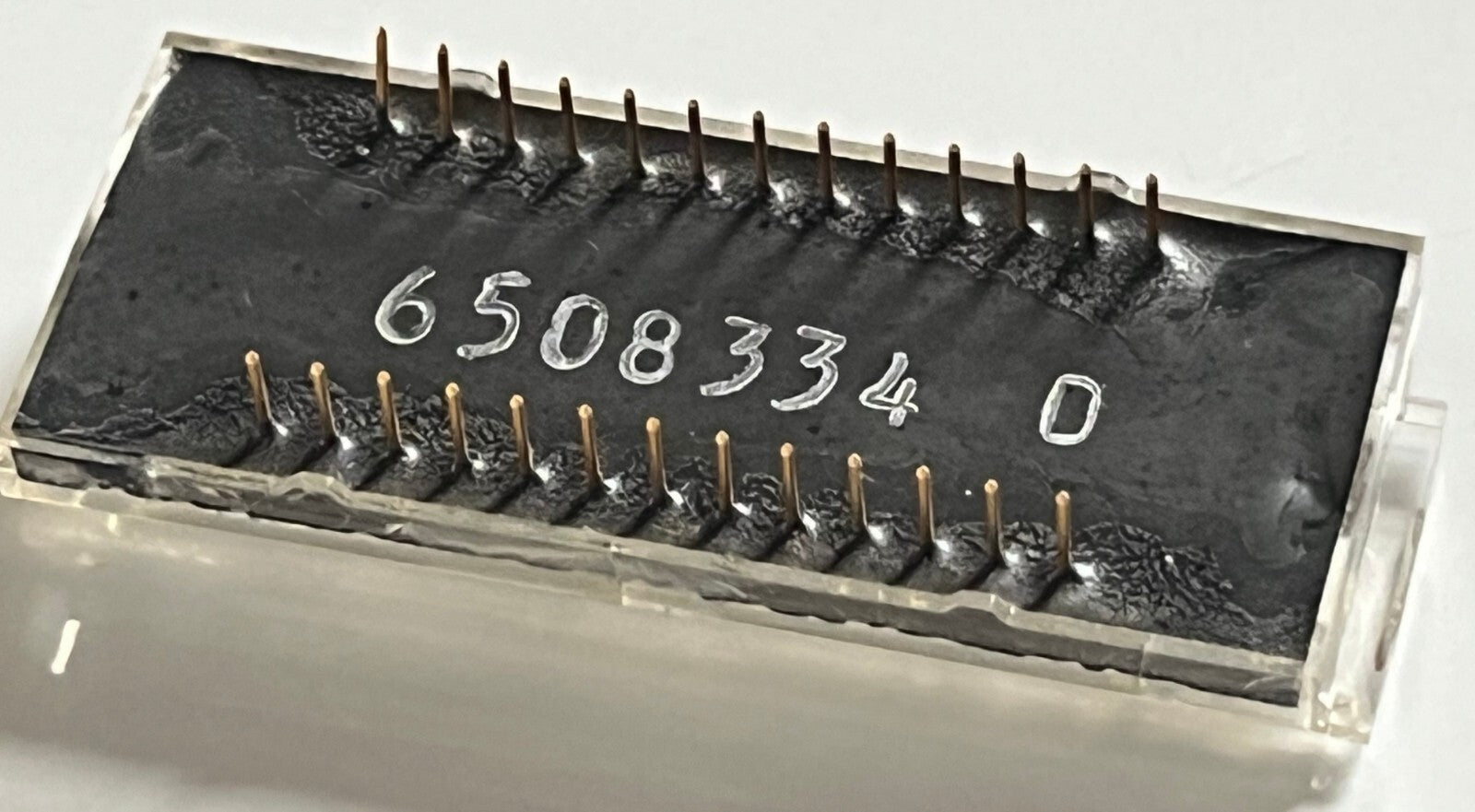

26 pin connection

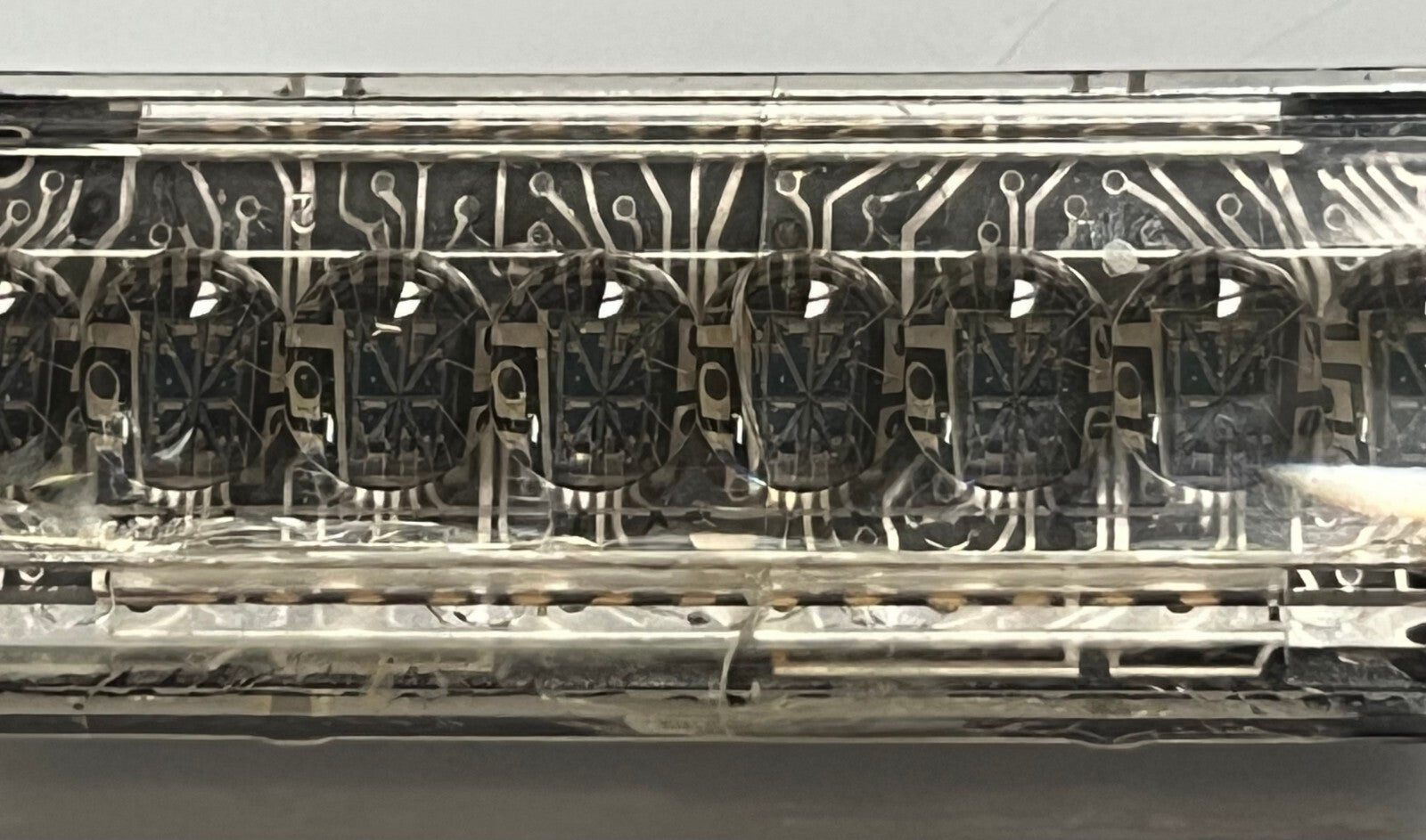

The HDSP-65XX are 3.81mm (0.150") sixteen segment GaAsP red alphanumeric displays mounted in 4 character and 8 character dual-in-line package configurations that permit mounting on PC boards or in standard IC sockets. The monolithic light emitting diode character is magnified by the integral lens which increases both character size and luminous intensity, thereby making low power consumption possible.

Nice item for anyone collecting vintage opto electronics

Priced and supplied each x1 module as shown in the photos.
