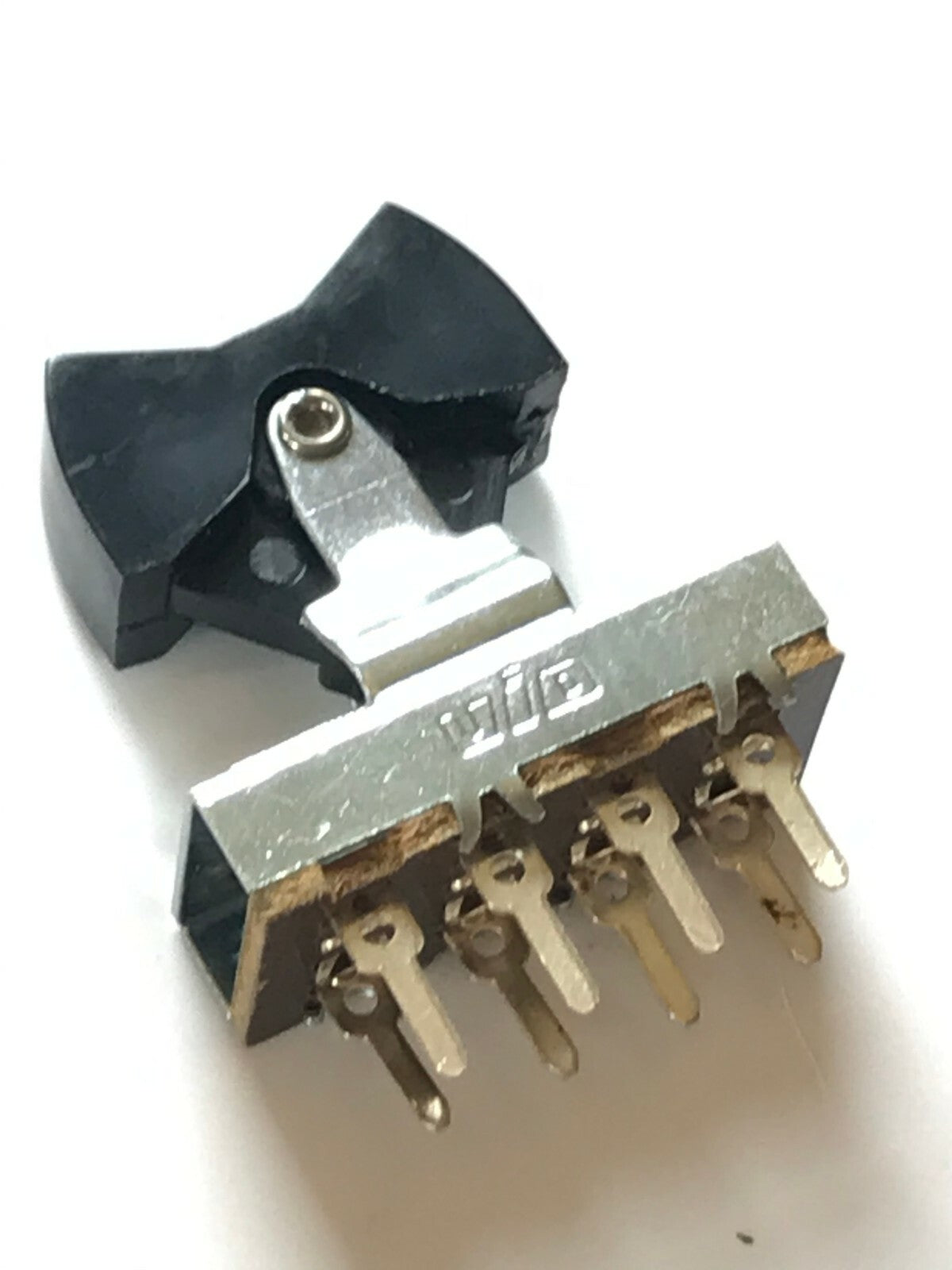

3 POSITION BIASED ROCKER SWITCH

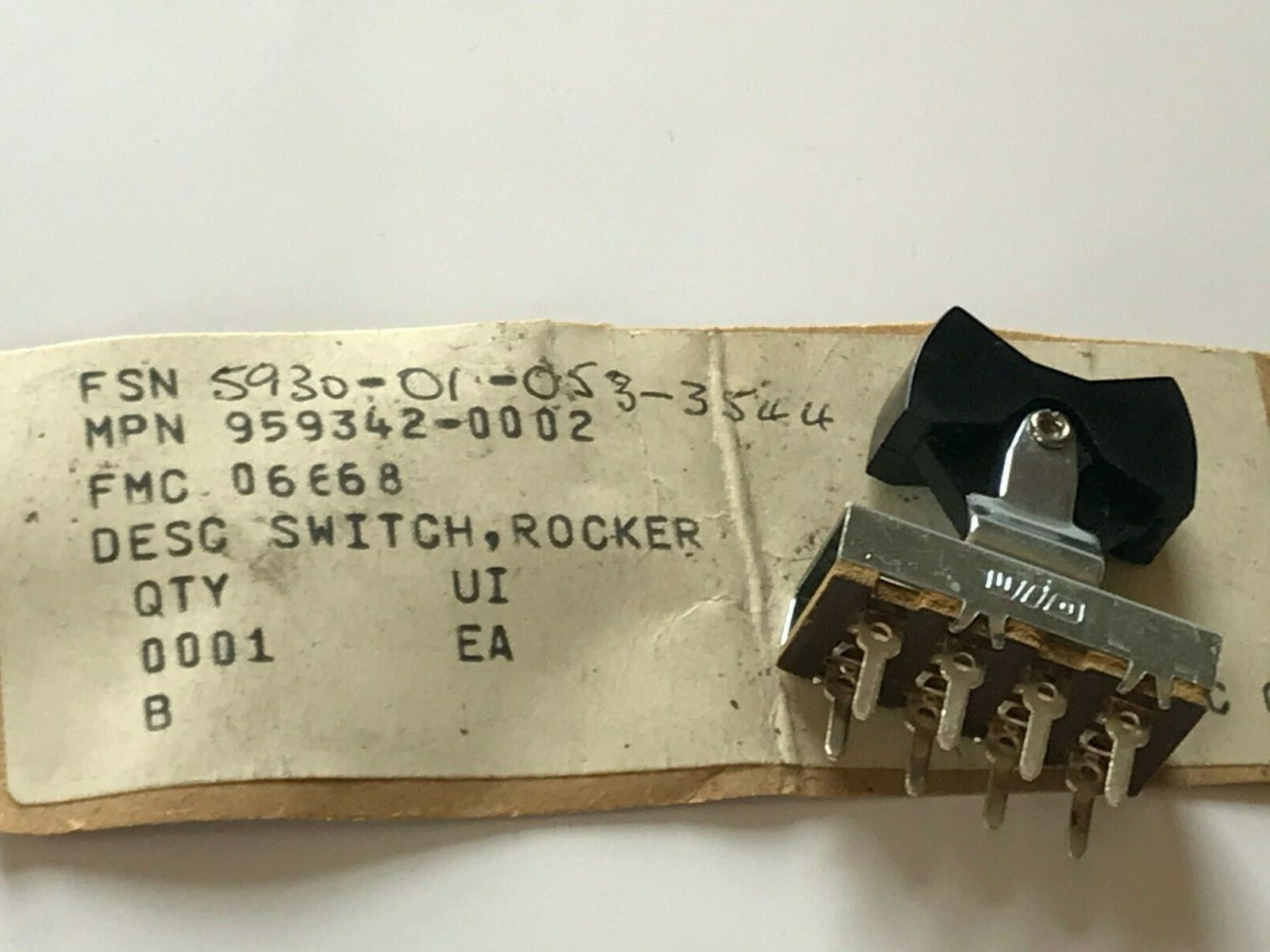

Manufactured to military specifications by UID Switches in the USA (NSN 5930-01-053-3544) and used by Hewlett Packard spare parts number 959342-0002, these are a 3 position change over slide switch, with centre spring bias - so the switch returns to the centre position when released.

Designed for circuit board mounting, with silver plated contacts, rated to 2A.

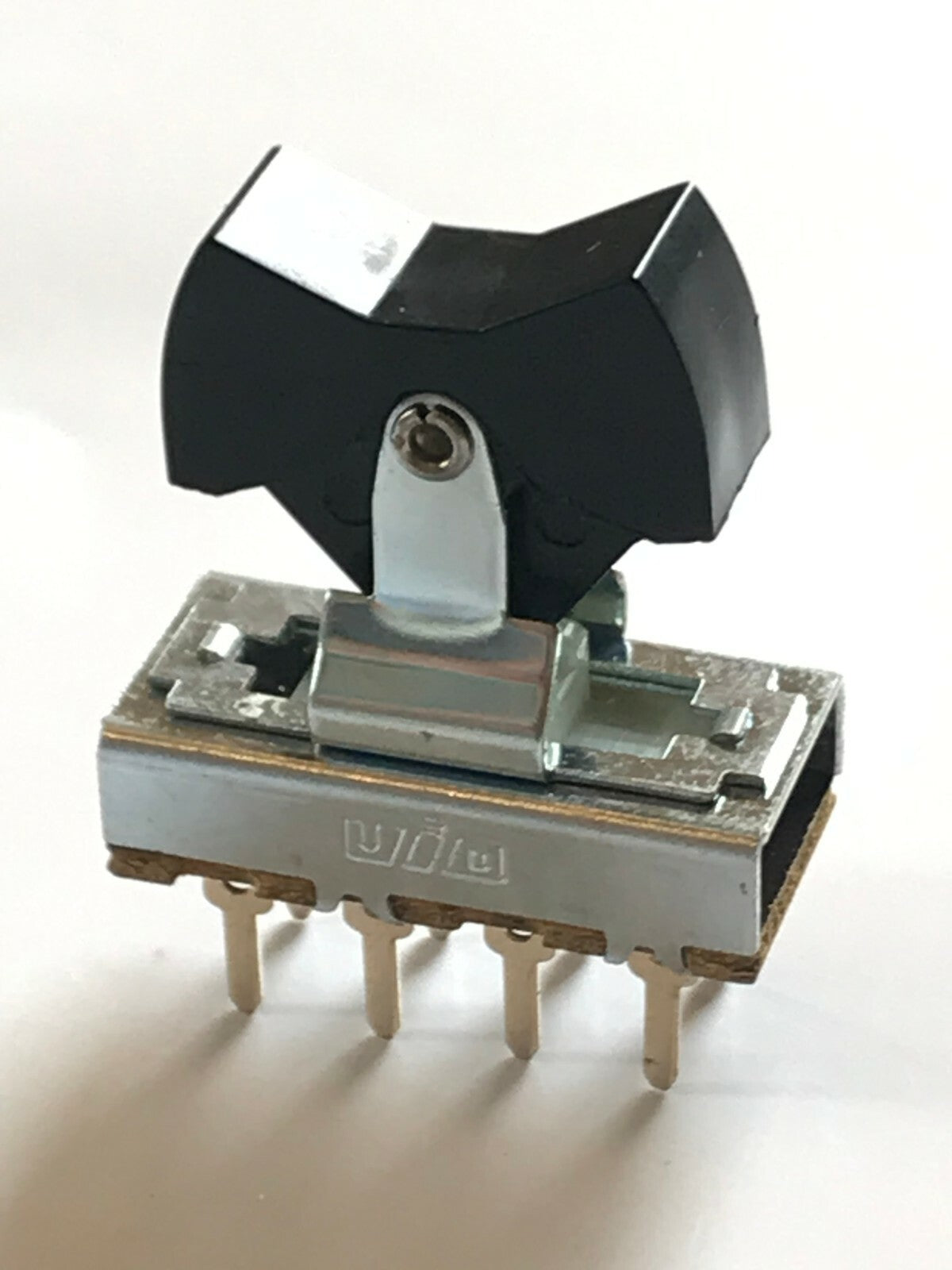

Overall dimensions are 30mm total length x 14mm wide x 16mm deep including the connections but plus the black switch knob which is 8mm wide x 22mm long and sits 12mm above the main switch body.


PRICED AND SUPPLIED EACH (1PC).
