TRIPLETT

TRIPLETT 320G 40uA - 0 - 40uA CENTER ZERO QUALITY PANEL METER 52-3744 ad2g

TRIPLETT 320G 40uA - 0 - 40uA CENTER ZERO QUALITY PANEL METER 52-3744 ad2g

£35.00
£35.00
Sale Sold out
Taxes included.

TRIPLETT NULL PANEL METER 40uA - 0 - 40uA

Manufactured by Triplett in the USA to military standards, as their part number 52-3744 and part of the 320-G range these are a best quality large  'Null' panel meter, with a centre zero DC 40uA - 0 - 40uA precision suspension movement.

 The large easy to read scale has a mirror back around the center of the scale to aid precise measurement, and is marked 0 - 40 on both sides of the center, with the first section 0 - 5 having an increment mark for every 1.

Dimensions are approximately 90mm x 76mm and 65mm overall depth. The meter is proud of the panel by 12mm.

Mounting and connection nuts included.

New and unused.

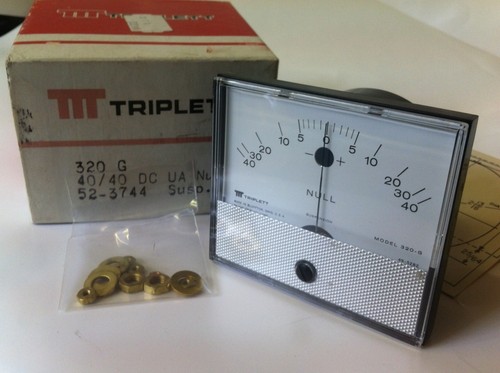

SUPPLIED AS SHOWN IN THE PHOTO.
