TEKTRONIX P6339A BUFFERED PASSIVE PROBE 500MHz, TekProbe III interface AE1W75

TEKTRONIX P6339A BUFFERED PASSIVE PROBE 500MHz, TekProbe III interface AE1W75

£395.00
£395.00
Sale Sold out
Taxes included.

TEKTRONIX P6339A TEKPROBE III BUFFERED PASSIVE PROBE

Manufactured by Tektronix as their part number P6339A, this is a Tekprobe III interface buffered passive probe, used with the TDS794D, TDS694 and other instruments that use the TekProbe III interface.

 Maximum Input Voltage – 300 VRMS.
Voltage Sensitivity – 10 mV/div to 100 V/div in a 1, 2, 5 sequence.
DC Attenuation Accuracy – ±4%.
Output Offset – ≤ ±5 mV.

TYPICAL SPECIFICATIONS
Bandwidth – DC to 500 MHz.
Rise Time – 700 ps.
Input C – 8 pF.
Input R – 10 MΩ.
Bandwidth Limit – Selectable 20 MHz and 150 MHz.
Coupling – AC/DC, <10 Hz Cutoff.
Output Termination – TEKPROBE III interface/50Ω termination.

Not new, but it has had little use and is sold in perfect working and cosmetic condition.

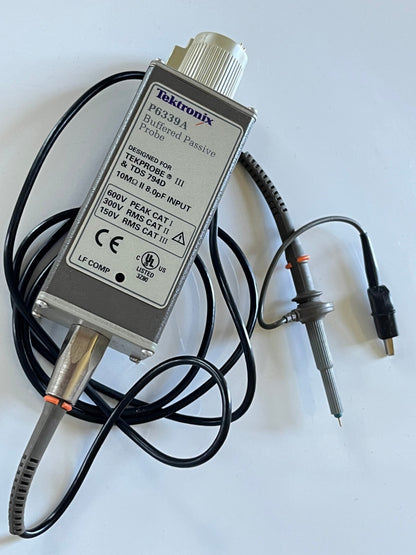

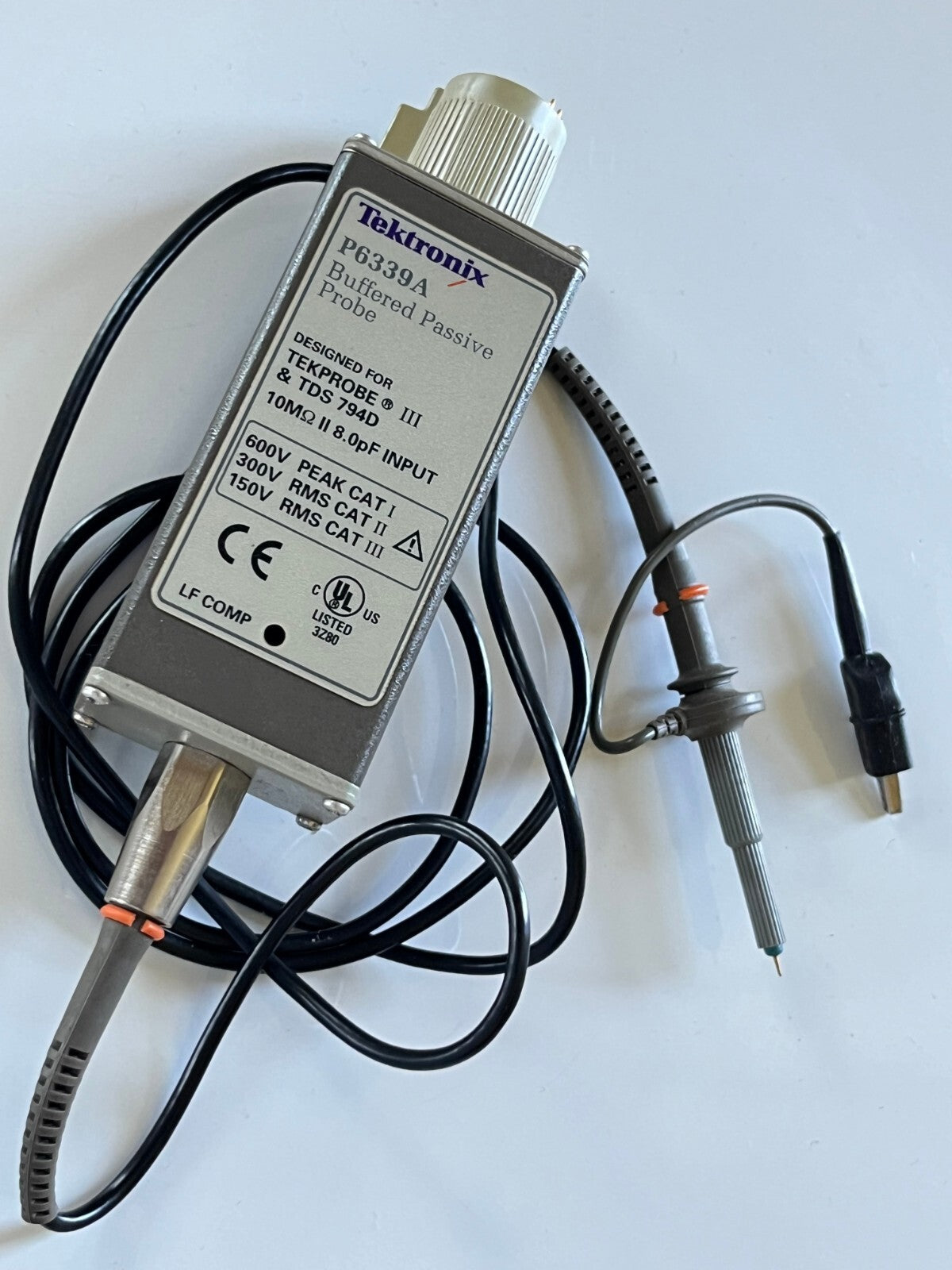

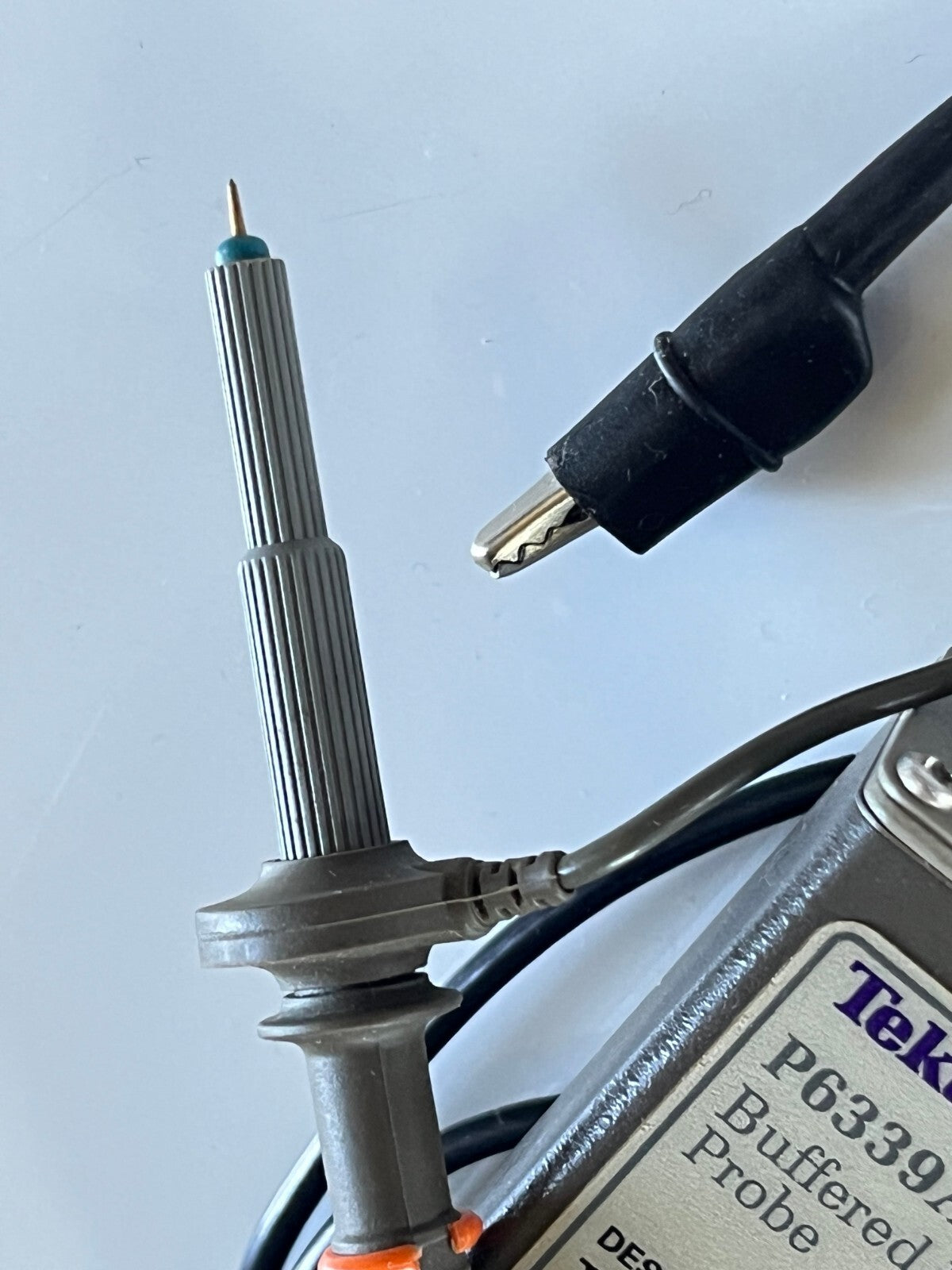

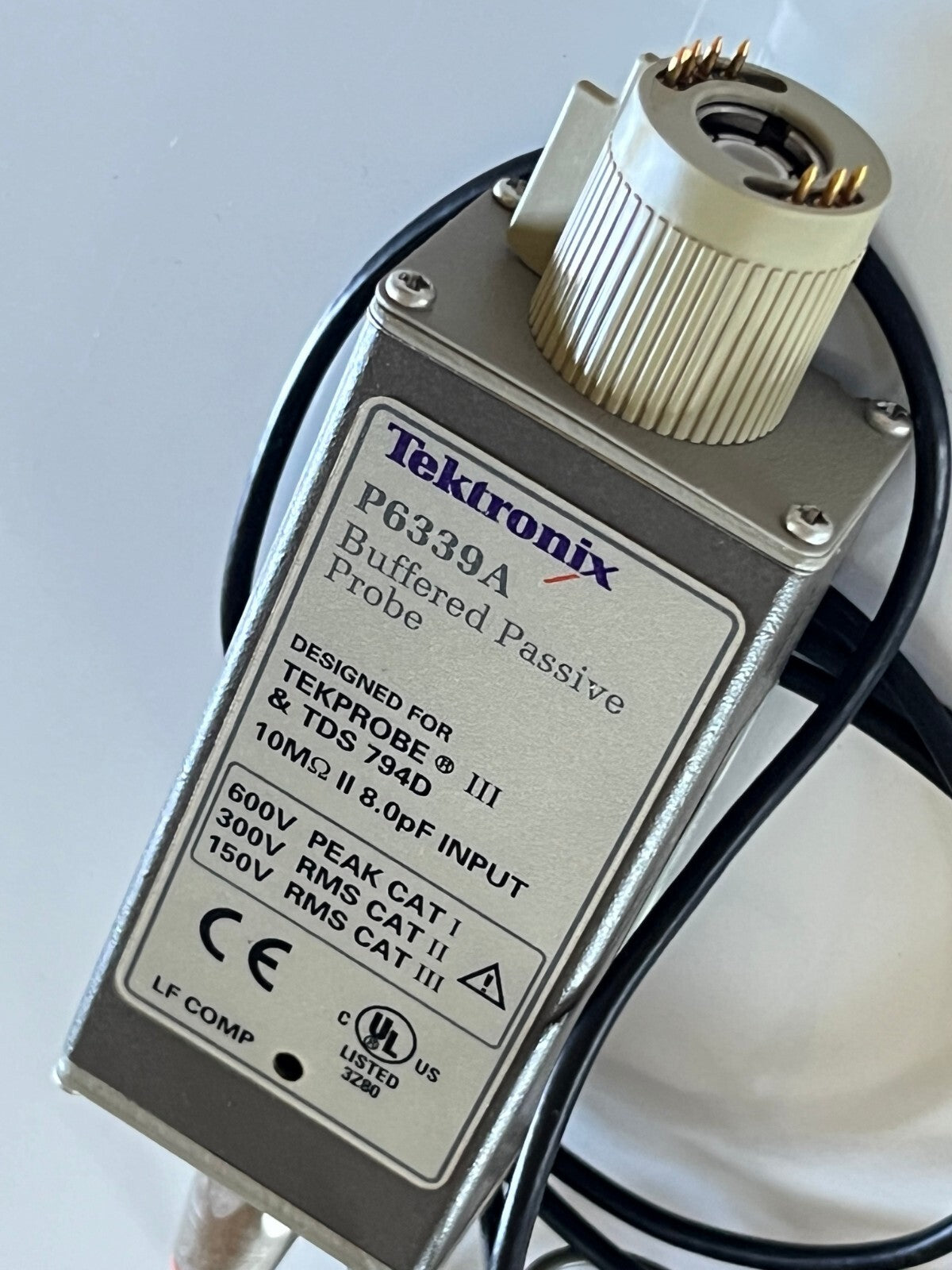

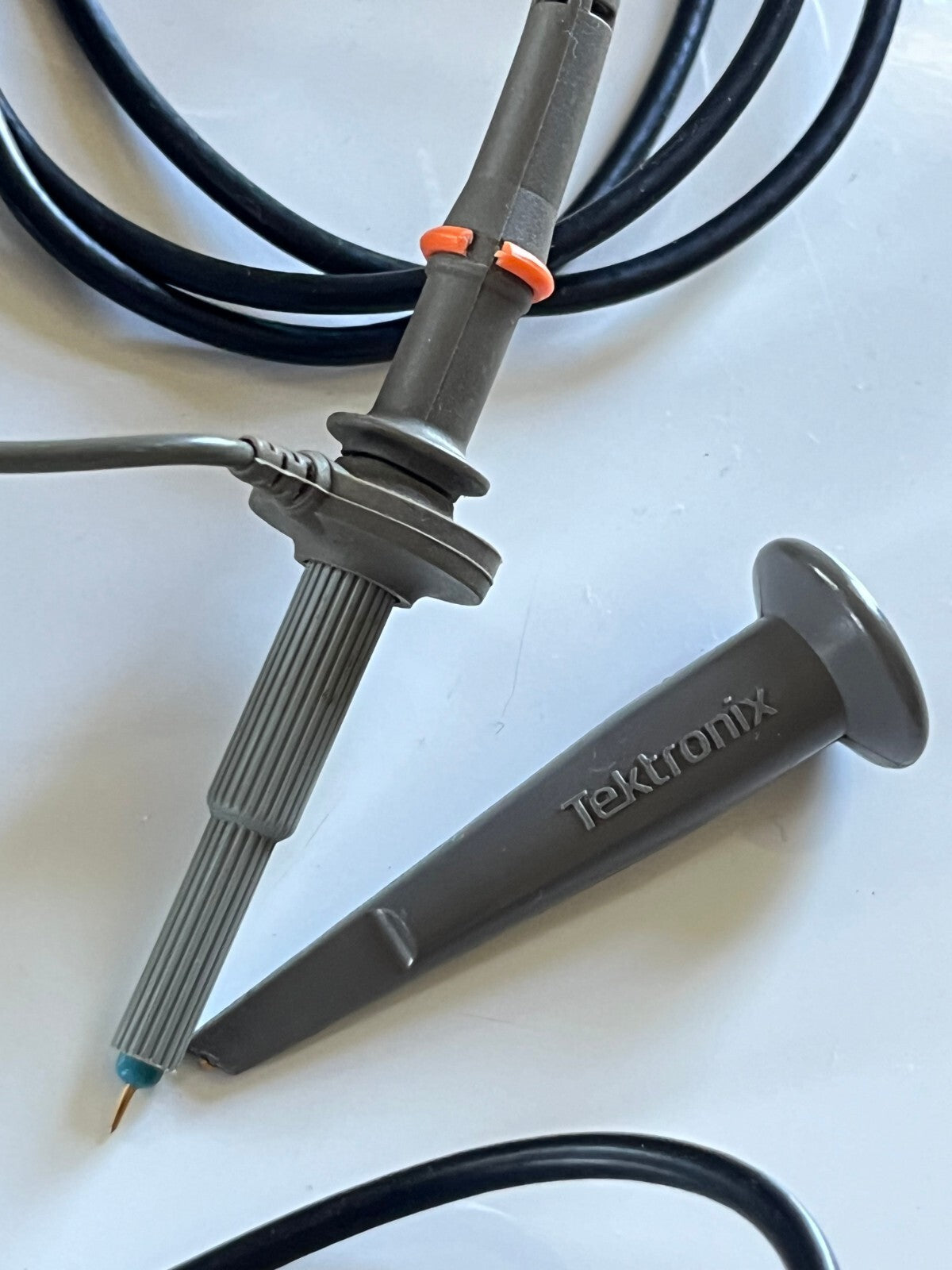

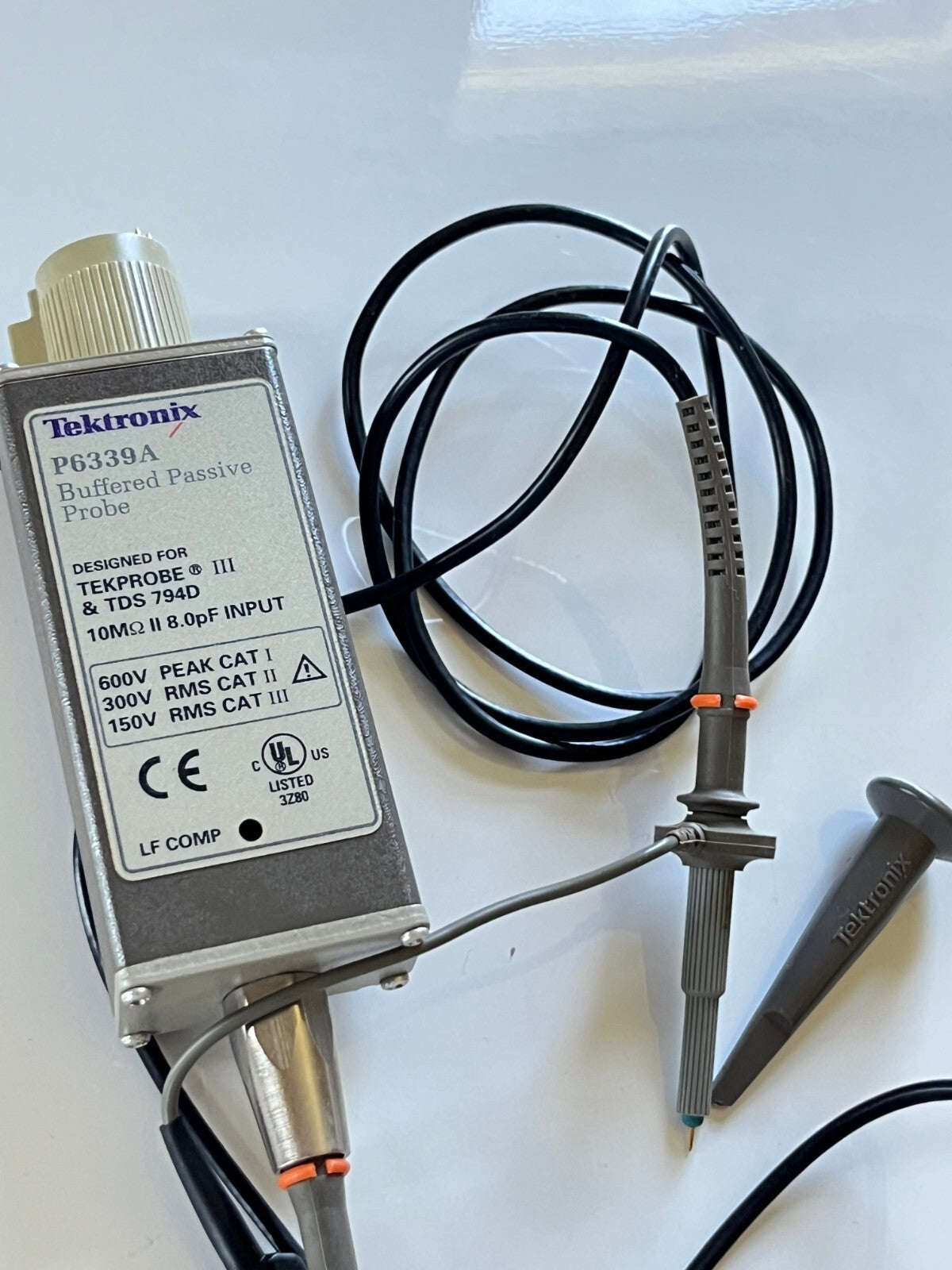

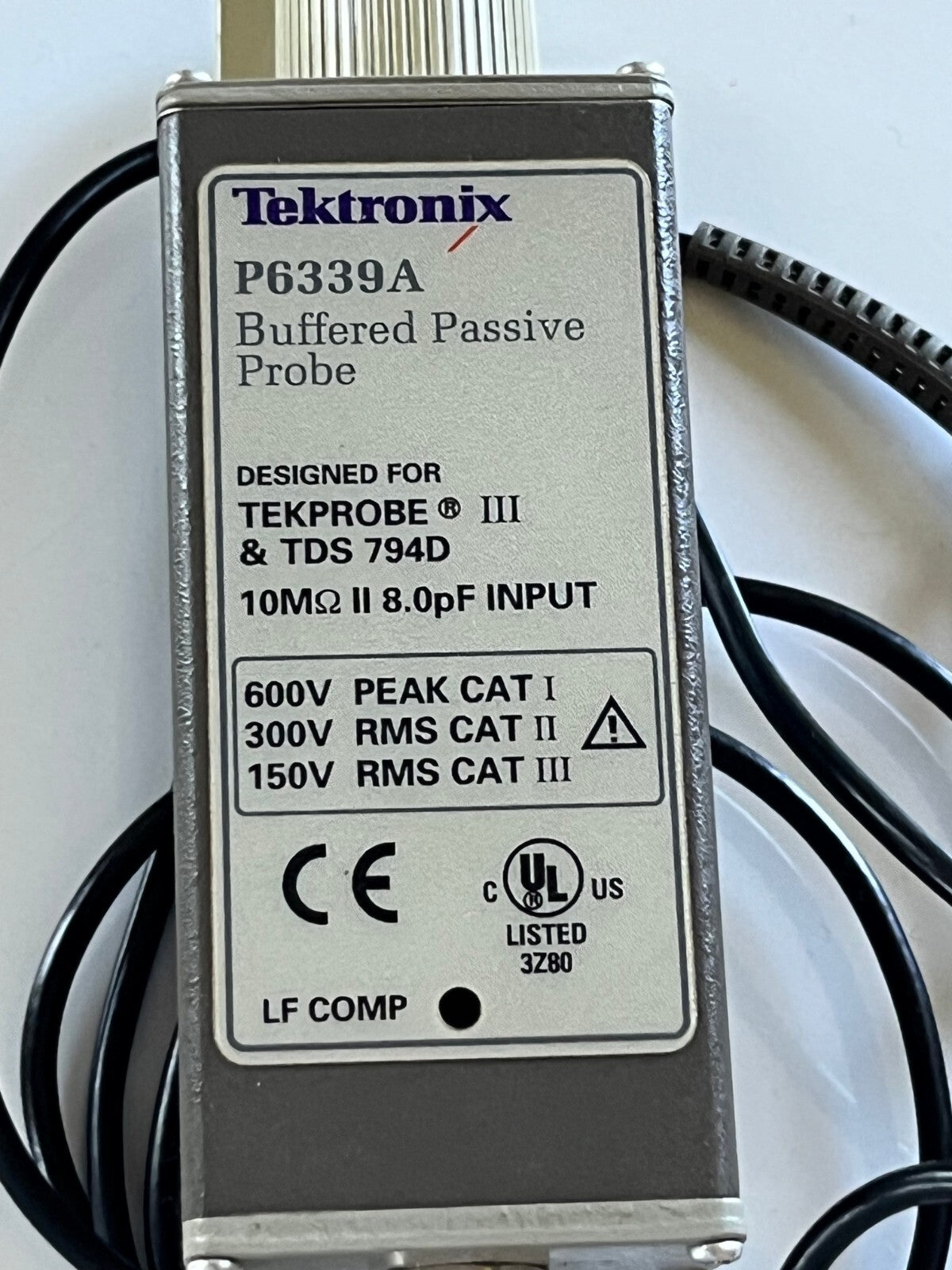

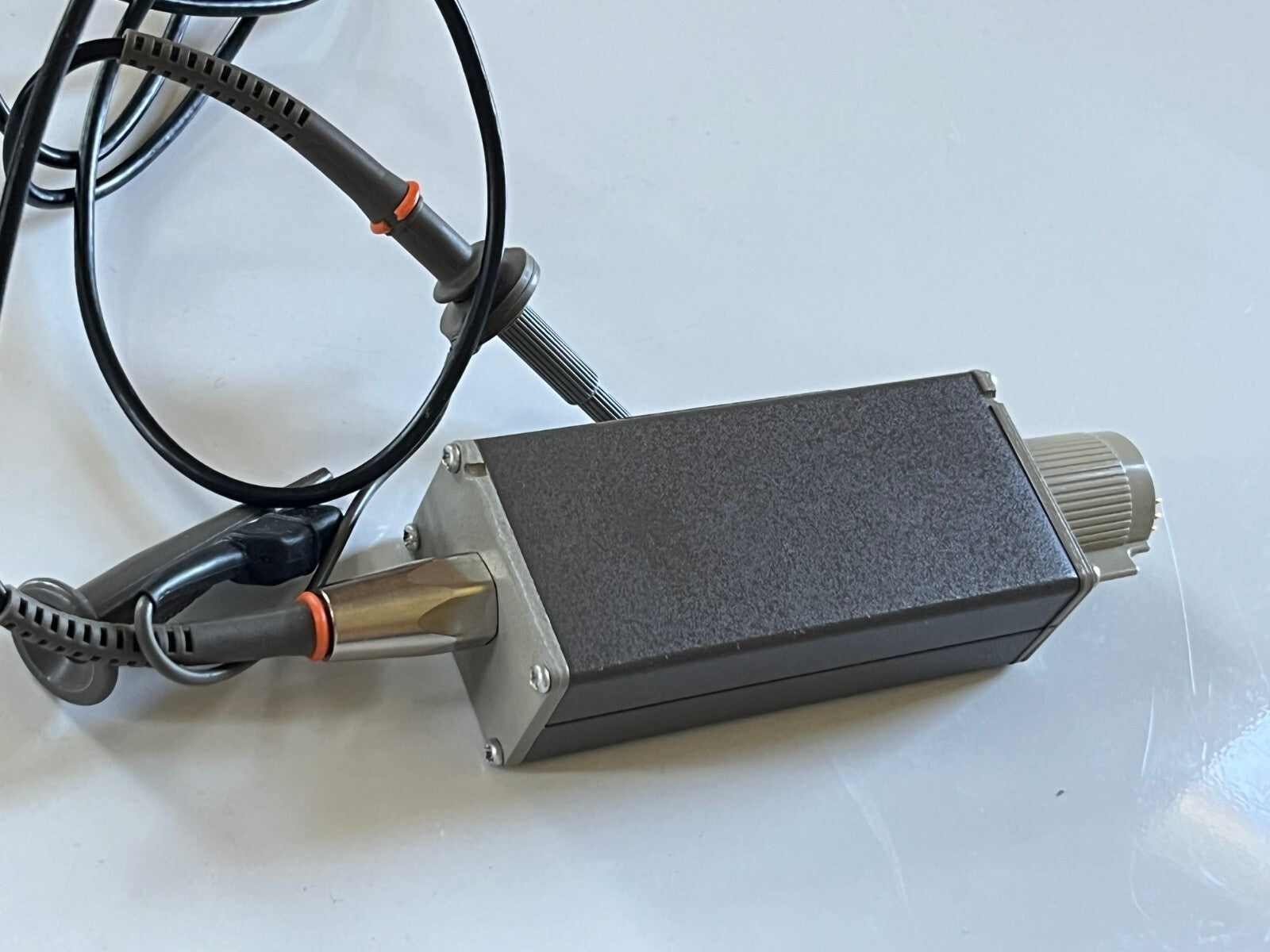

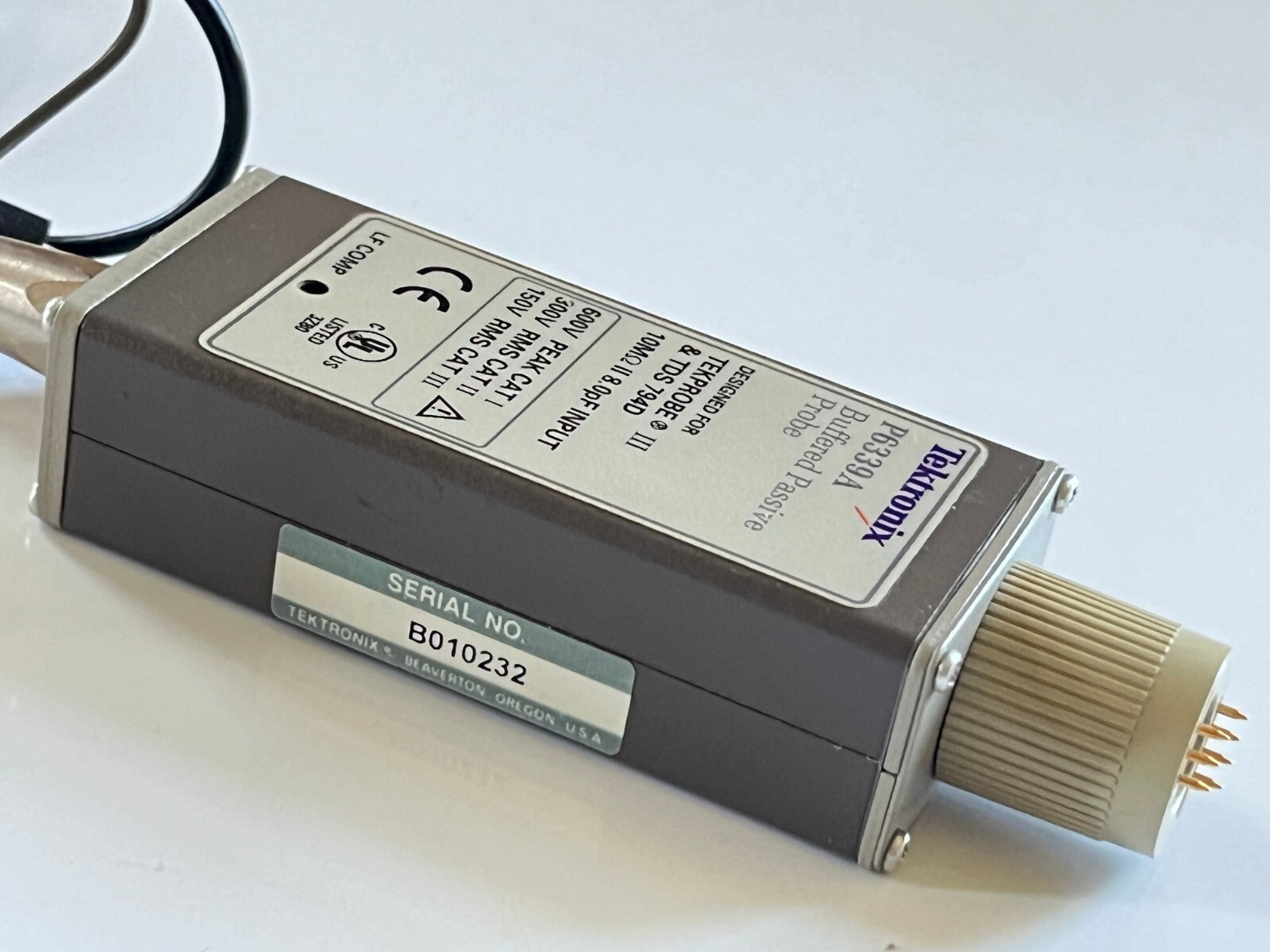

Supplied as shown in the photo.
