TEKTRONIX P6245 ACTIVE PROBE 1.5GHz, TekProbe interface TDS500 / 600 AE1W97

TEKTRONIX P6245 ACTIVE PROBE 1.5GHz, TekProbe interface TDS500 / 600 AE1W97

£420.00
£420.00
Sale Sold out
Taxes included.

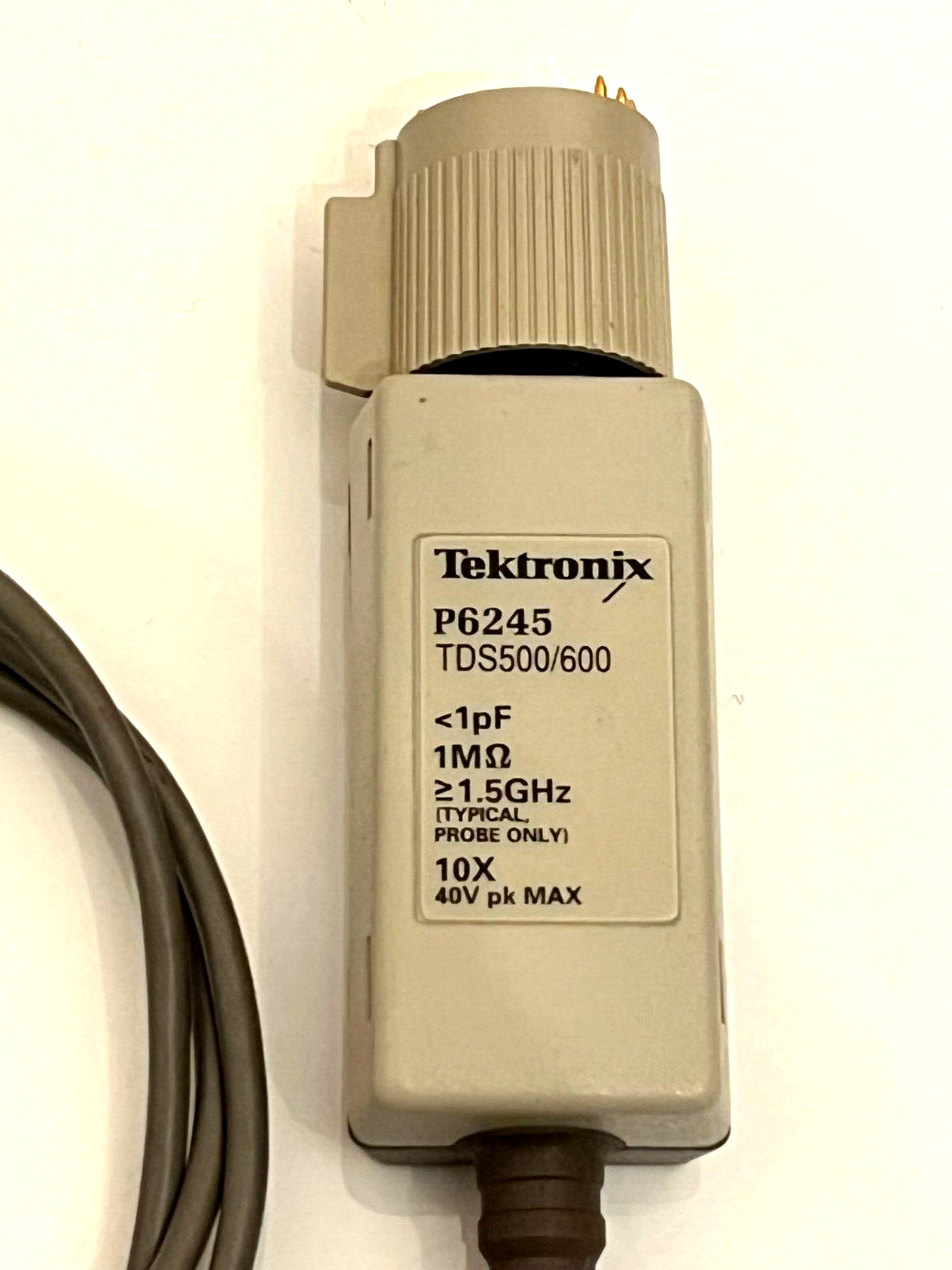

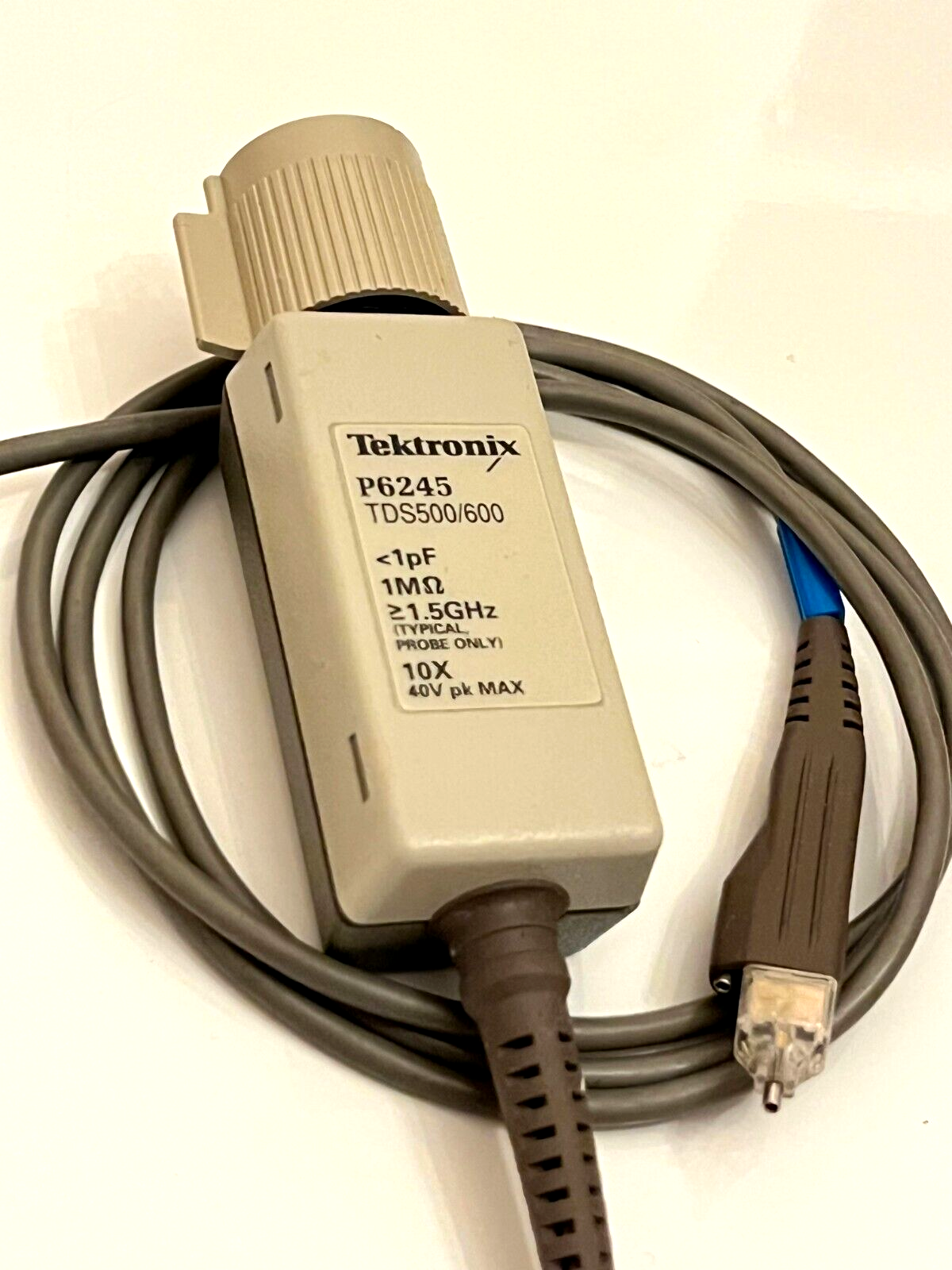

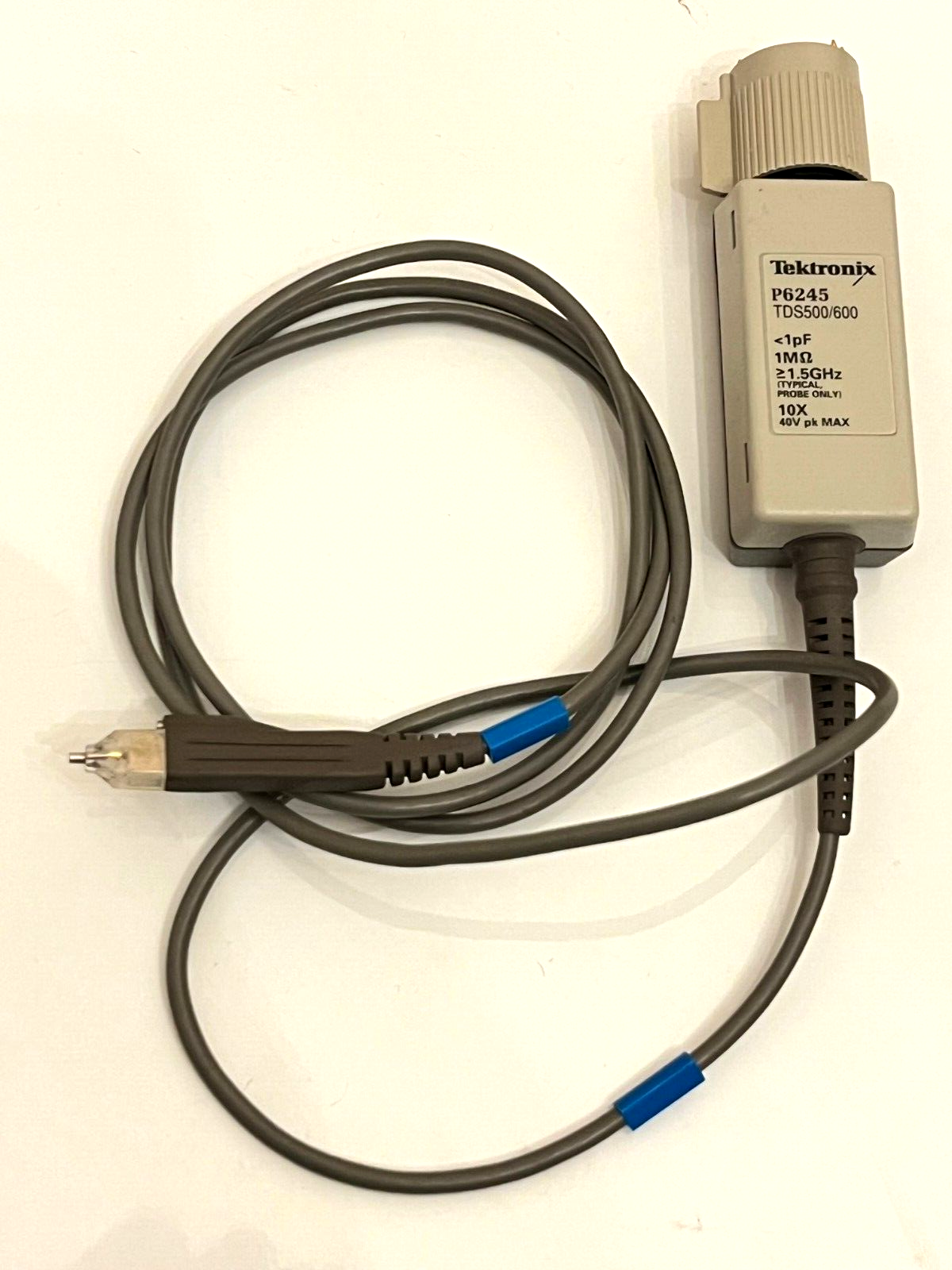

TEKTRONIX P6245 TEKPROBE 1.5GHz ACTIVE PROBE

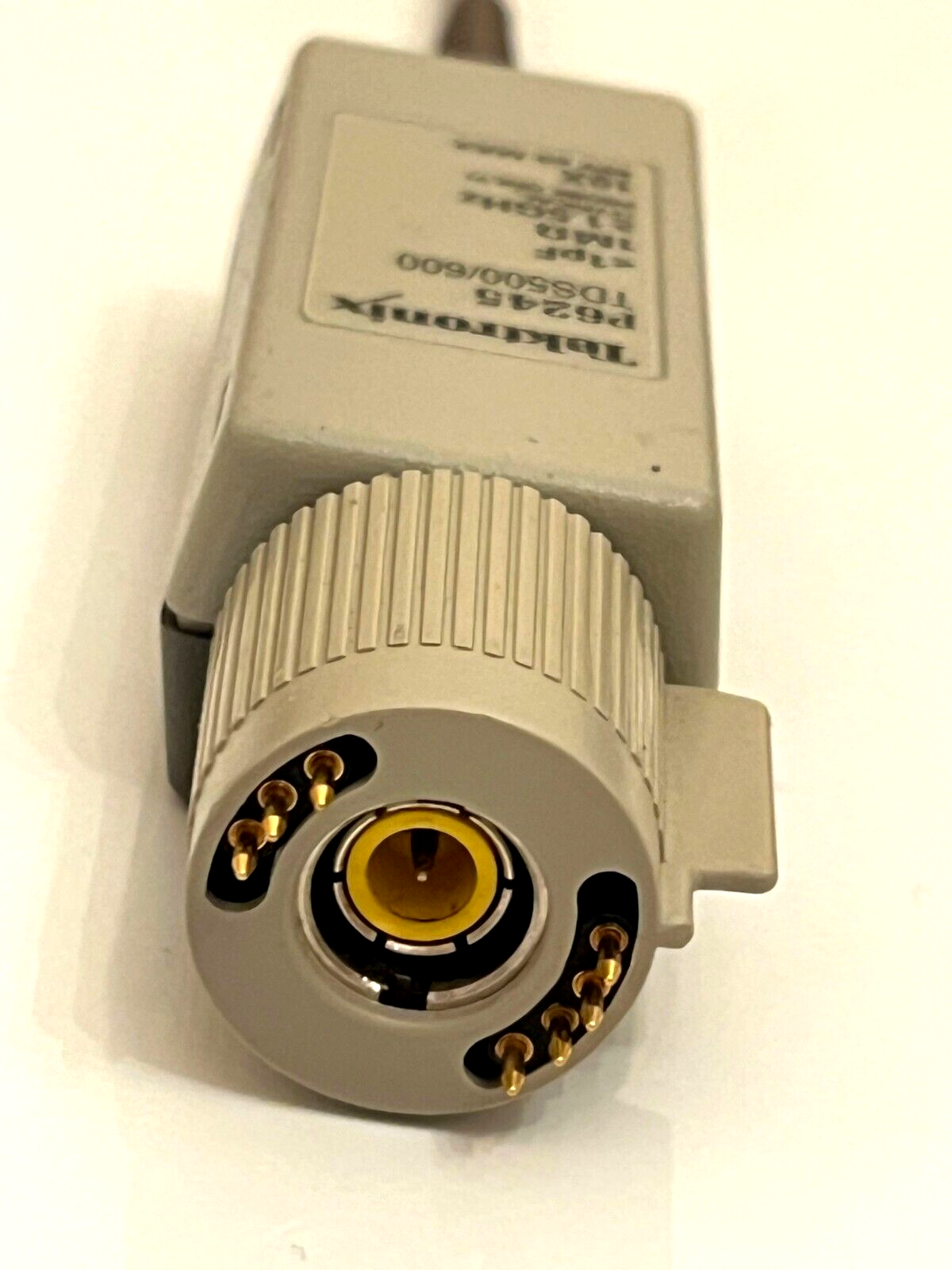

Manufactured by Tektronix as their part number P6245, this is a Tekprobe BNC interface active probe, used with the TDS500, TDS600 and other instruments that use the TekProbe interface.

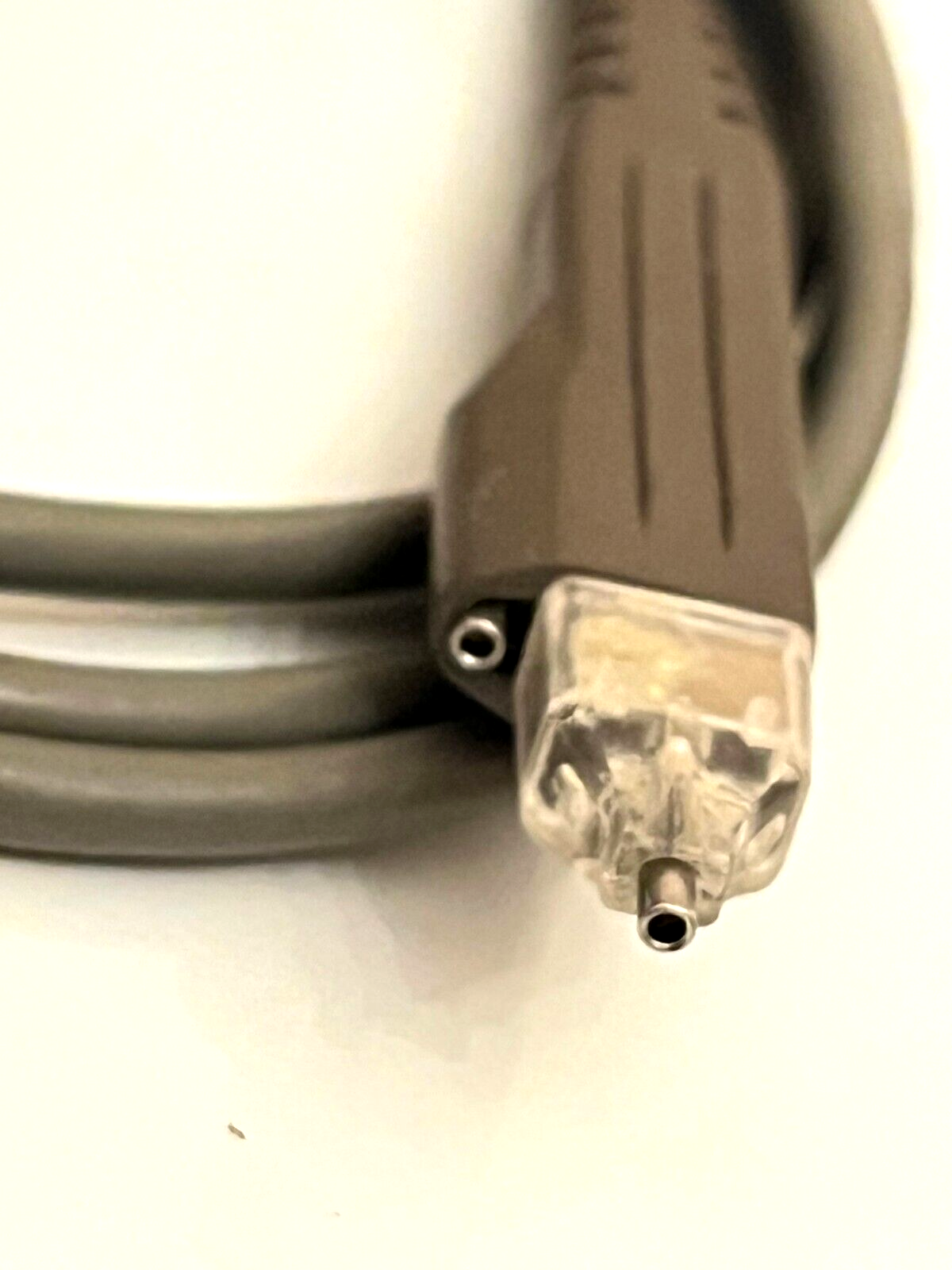

The P6245 is an Active Probe that  provides the electrical and mechanical performance required for today's digital systems designs. No additional power supplies or cables are required when used with TEKPROBE BNC oscilloscopes. It achieves high-speed signal acquisition and low circuit loading, required for solving today's problems faced by designers. The small compact probe head and versatile available attachment accessories allow direct connection to the device under test. The active probe provides scope bandwidth at the probe tip for the TDS500/600/700.


 ≥1.5 GHz Bandwidth (Typical, Probe Only)
40V peak (max)
≤1 pF Input Capacitance
1 MΩ Input Resistance
X10
Measures CMOS, BiCMOS, ECL, GaAs, and TTL Logic

Not new, but it has had very little use and is sold in perfect working and cosmetic condition.

We have several of these in identical condition, the only difference is the probe color identification markings, if you want a particular color (blue, green, white) advise and we will supply if possible.
