TEKTRONIX DC BLOCK PSPL5509 -240JP ULTRA BROADBAND 40GHz DC BLOCK ae1w19B

TEKTRONIX DC BLOCK PSPL5509 -240JP ULTRA BROADBAND 40GHz DC BLOCK ae1w19B

£495.00
£495.00
Sale Sold out
Taxes included.

PSPL5509 ULTRA BROADBAND DC BLOCK

Manufactured for Tektronix as their part number PSPL5509 - 240JP,  this is an industry standard premium quality ultra wide band DC block, fitted with 2.4mm connections.

The PSPL5509 DC Block is an ultra-broadband inner conductor DC block with a flat frequency response over many decades up to 50 GHz. 2.4 mm connectors.

Key performance specifications
7 kHz to 50 GHz Bandwidth
5 ps Rise time
1 dB Insertion Loss to 40 GHz

This item came to us from a recently closed European OEMS reserach and development lab in the UK, and has had little use, it is sold in perfect working and good cosmetic condition.

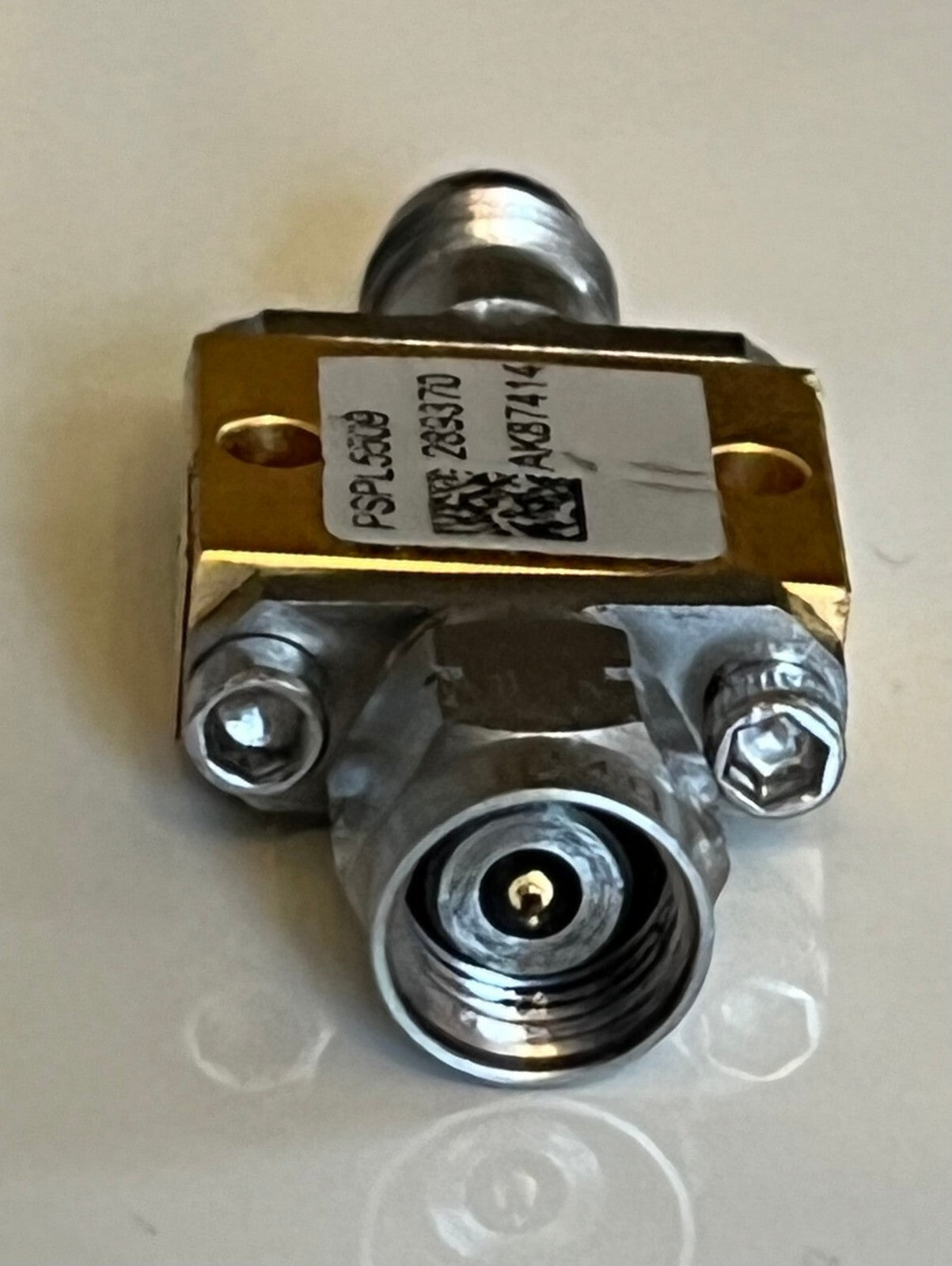

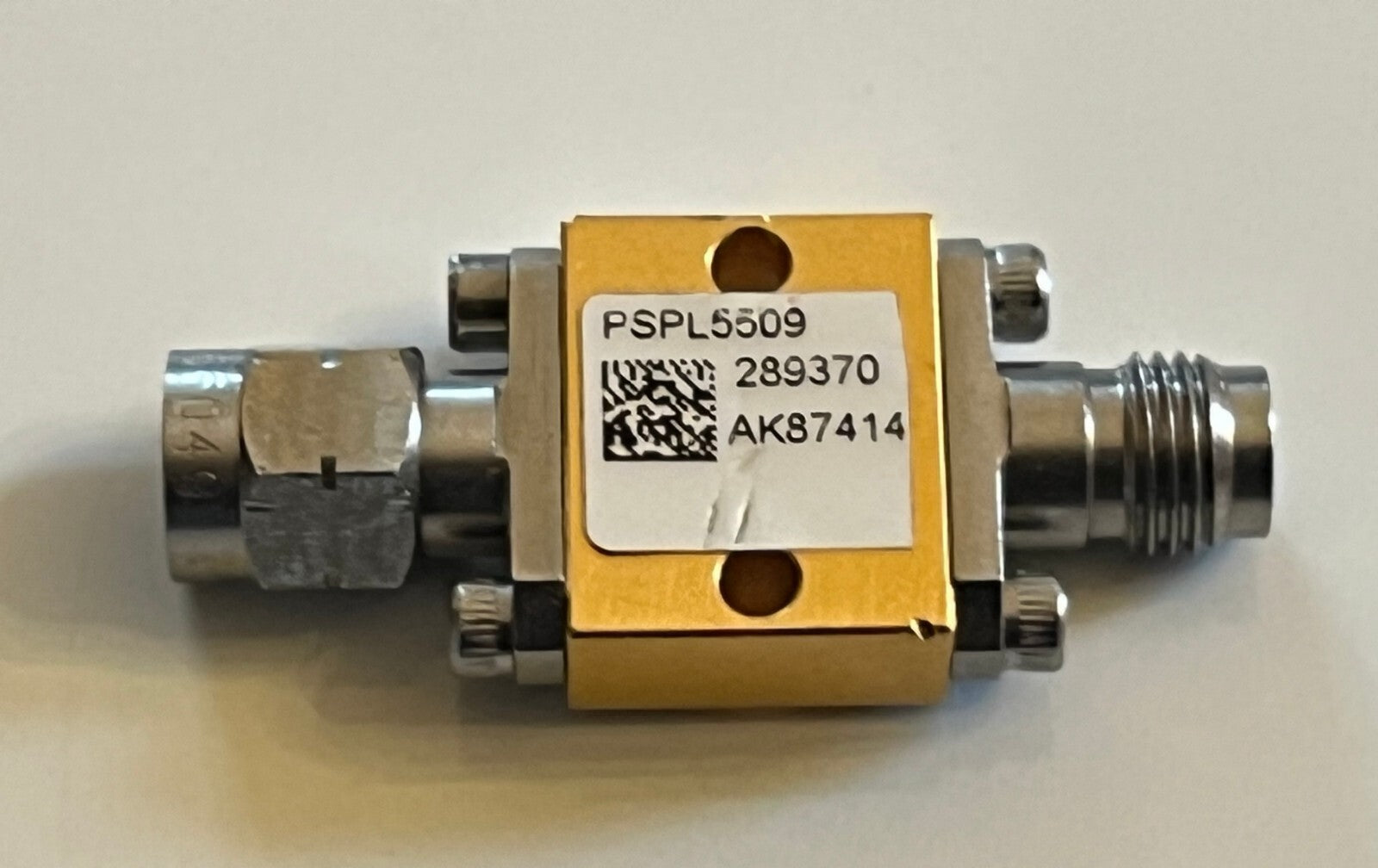

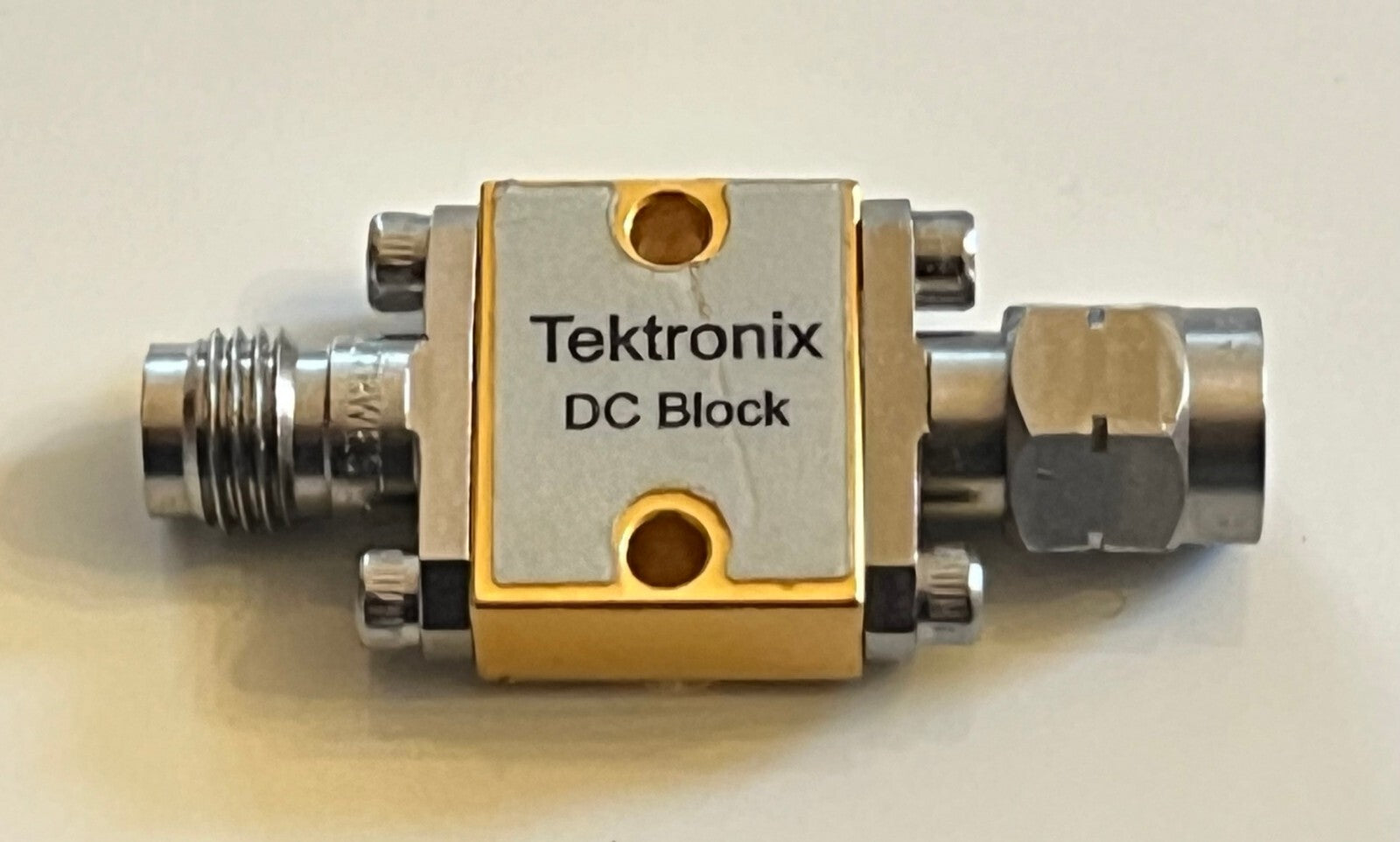

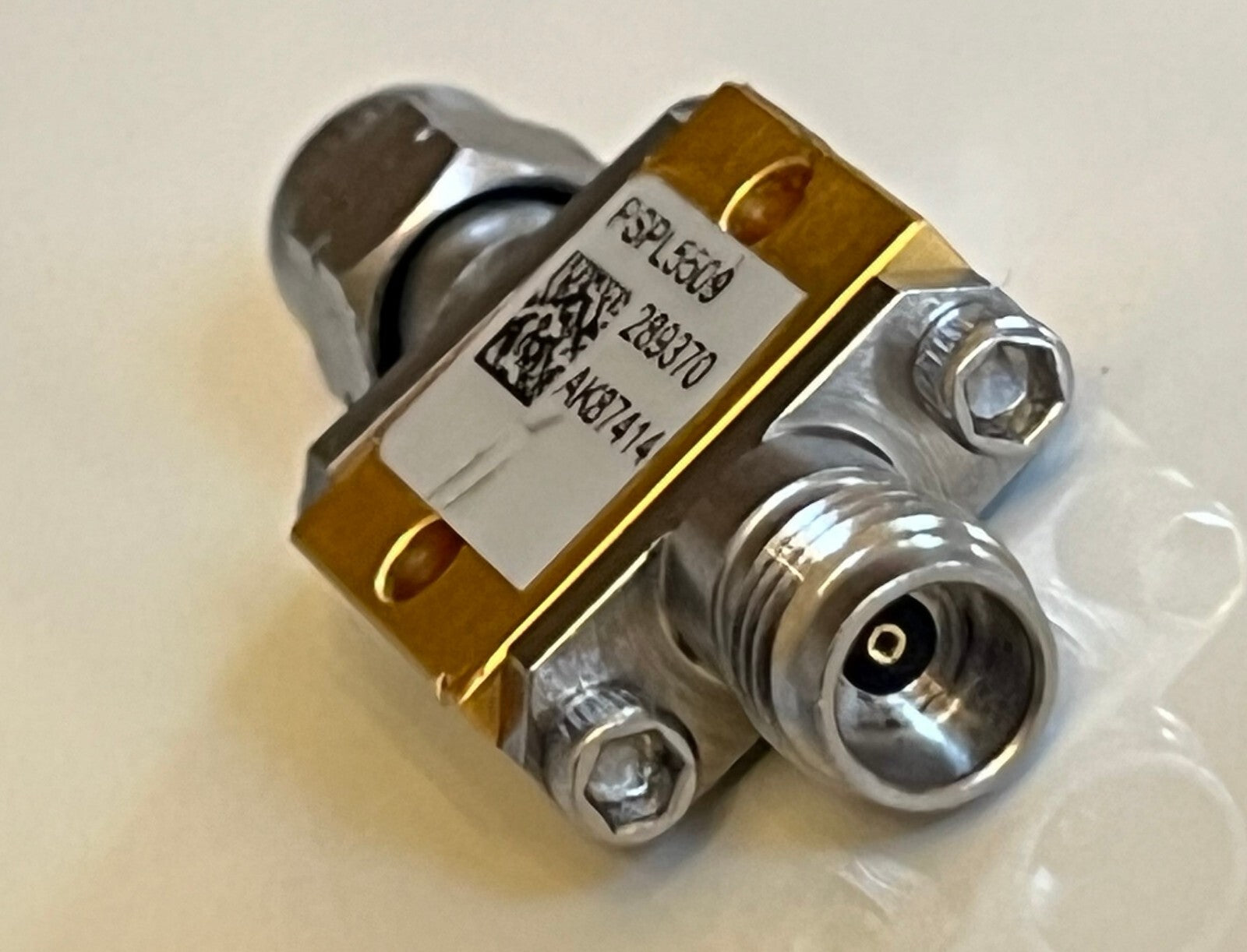

Supplied as shown in the photo.
