TAICOM 1 - 12 WAY BIG STACKABLE PCB TERMINAL BLOCK CONNECTOR 5mm PITCH 20A blb64

TAICOM 1 - 12 WAY BIG STACKABLE PCB TERMINAL BLOCK CONNECTOR 5mm PITCH 20A blb64

£4.00
£4.00
Sale Sold out
Taxes included.

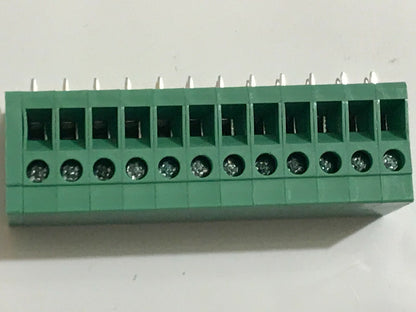

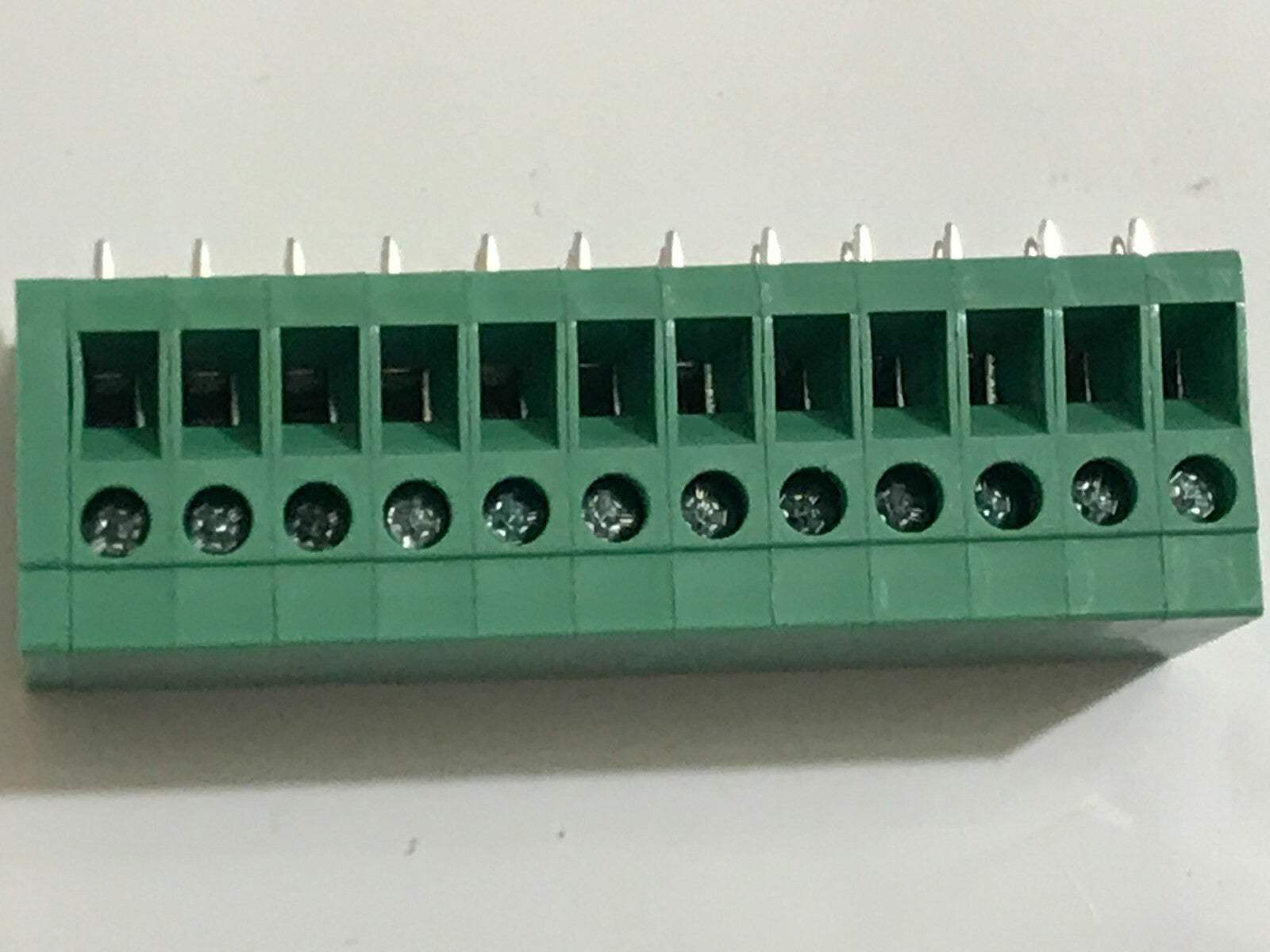

12 WAY PCB TERMINAL CONNECTION BLOCKS

Manufactured by Taicom as their part number
TBVP12AG  these are premium quality industry standard printed circuit board terminal connection blocks.

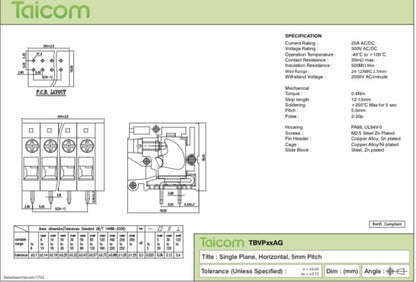

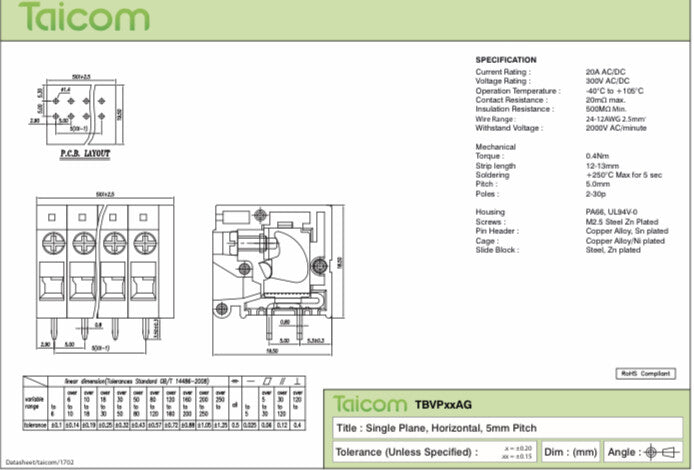

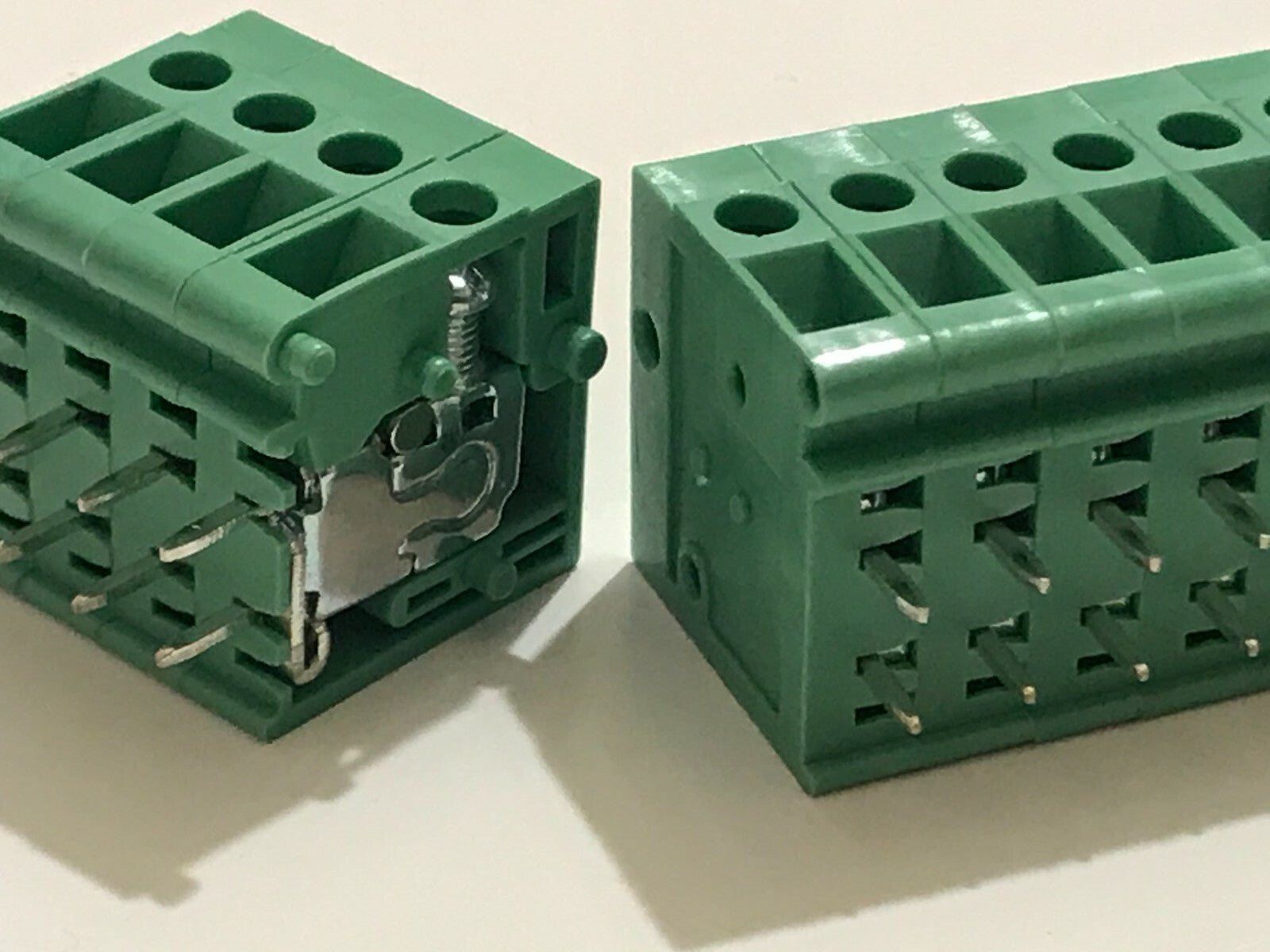

They come as a 12 way block, but are modular, so you can stack / join multiple blocks together to make from one single connection up to however many you need. For the exact dimensions see the drawing in the photos above.

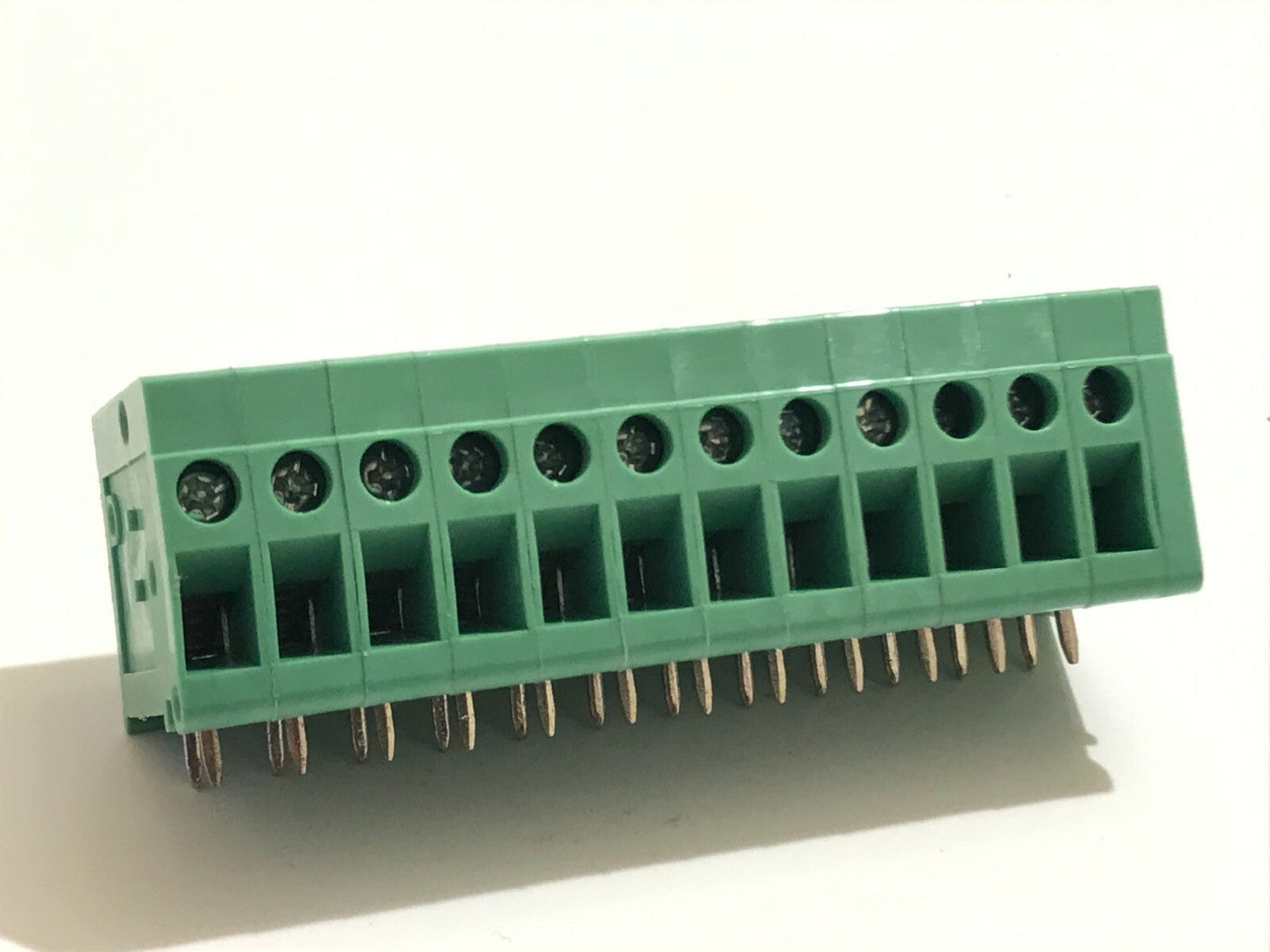

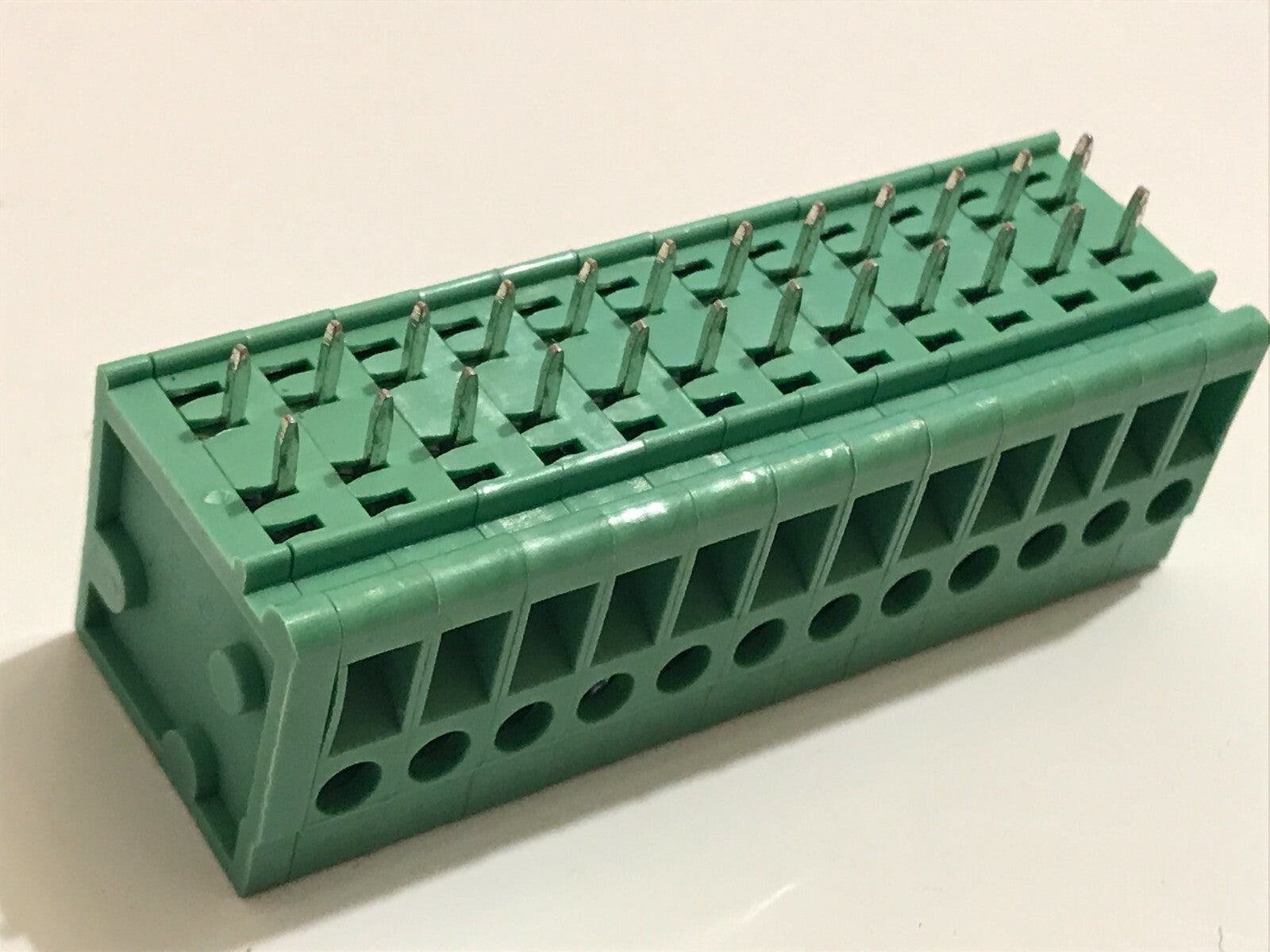

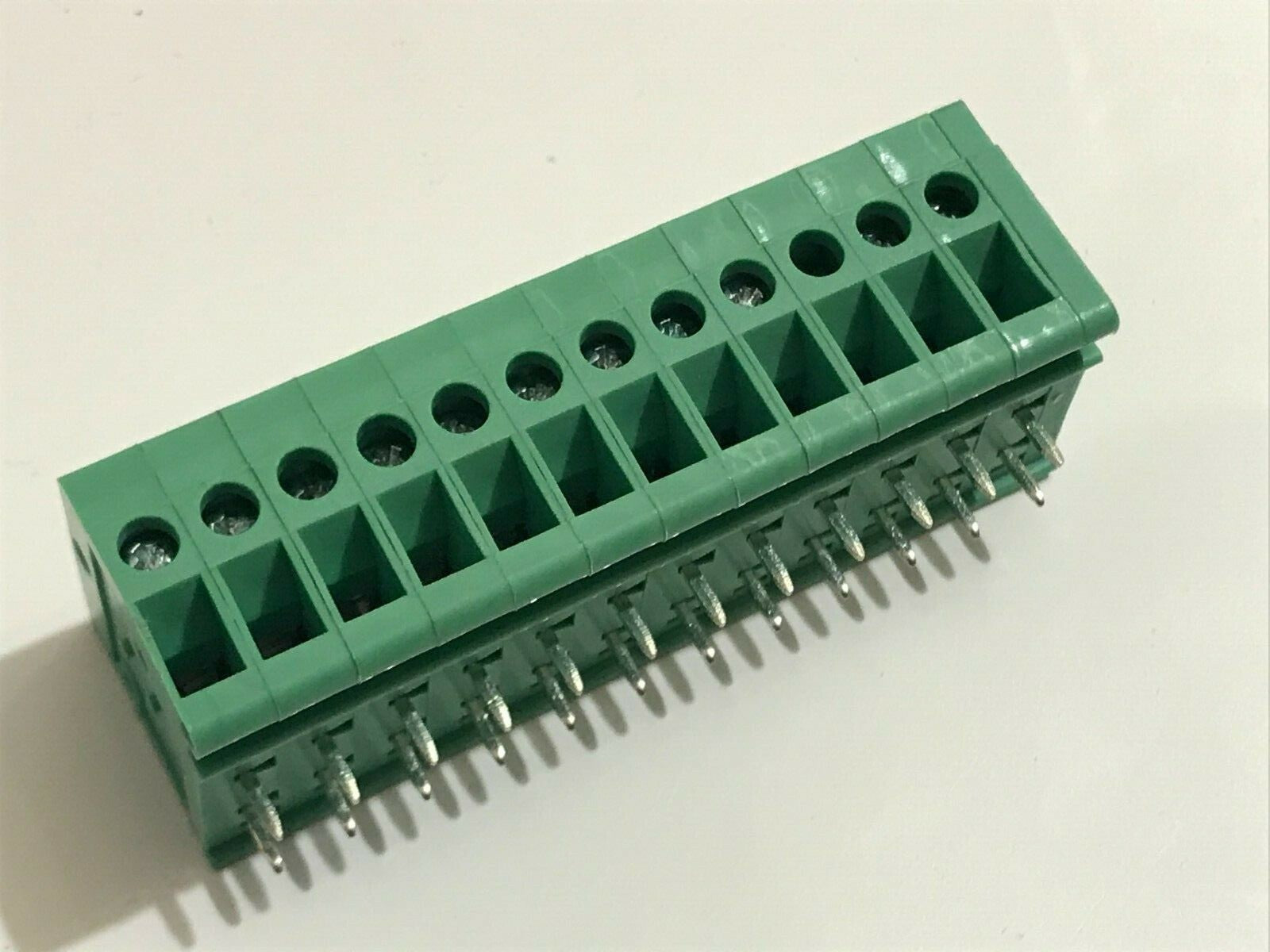

They are superb quality - not the smaller common type, they are marketed as "Wire Gaurd" and are single plane terminal blocks with rising clamp stainless steel wire chunks for extraordinary firm wire retention. Screw and wire entry are both on the same plane and they have double PCB pins on each connection for increased stability.

5mm hole pitch, and rated to 20A at 300V.

GENERAL INFORMATION

Pitch: 5 mm

Housing height: 19.00 mm

Housing depth: 19.00 mm

Wire section: 12-22 AWG 2.5mm

Clamp opening size: 3.0mm × 2.4 mm

Wire stripping:     max 10 - 11 mm

ELECTRICAL CHARACTERISTICS
Current: 20A
Voltage: 300V
Test voltage: 1.5 kVrms/60s

These are lovely professional quality,  not cheap Chinese rubbish.

Priced and supplied as one block of 12.
