SUHNER 10172 LOW LOSS SUPERB HIGH FREQUENCY N TYPE CABLE 1.95M LONG ad2a

SUHNER 10172 LOW LOSS SUPERB HIGH FREQUENCY N TYPE CABLE 1.95M LONG ad2a

£20.00
£20.00
Sale Sold out
Taxes included.

SUHNER HIGH FREQUENCY N TYPE CABLE 1.95M

Manufactured using Suhner S10172B-11 ultra low loss double screened cable and connectors, these are a superb quality 50 Ohm N type male (straight) to N type male (right angle) coaxial cable, 1.95M in length

 The cable is very thick, overall diameter of 13mm and although classed as flexible it holds its form when bent or curved.

 Max. operating frequency 8.5 GHz
Capacitance 77 pF/m
Velocity of signal propagation 87 %
Signal delay 3.85 ns/m
Min. screening effectiveness > 90 dB (up to 8.5 GHz)
Max. operating voltage 1.5 kVrms (at sea level)
Test voltage 3.4 kVrms (50 Hz/1 min)

At 400Mhz attenuation is 0.018dB per foot and maximum power handling is 1107W
At 2.1Ghz attenuation is 0.046dB per foot and maximum power handling is 483W
At 5.1Ghz attenuation is 0.076dB per foot and maximum power handling is 310W
At 8.5Ghz attenuation is 0.107dB per foot and maximum power handling is 240W

Full cable specs can be found by googling the part number S-10172-B11

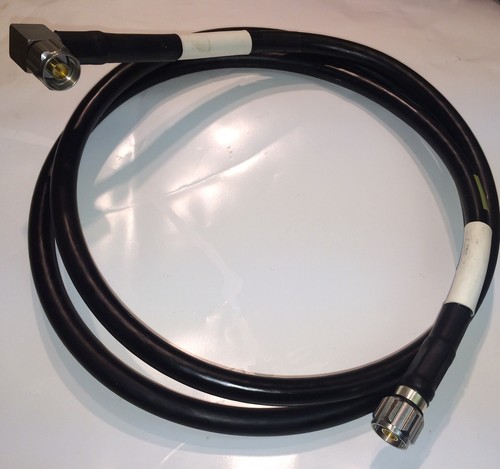

 SUPPLIED AS SHOWN IN THE PHOTO..
