SUHNER 07262 LOW LOSS HIGH POWER N TYPE CABLE 1.95M LONG PREMIUM QUALITY ad1~9

SUHNER 07262 LOW LOSS HIGH POWER N TYPE CABLE 1.95M LONG PREMIUM QUALITY ad1~9

£22.00
£22.00
Sale Sold out
Taxes included.

SUHNER 07262 LOW LOSS N TYPE CABLE 1.95M

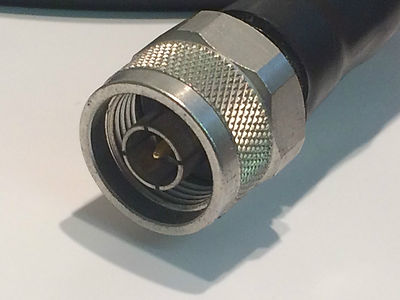

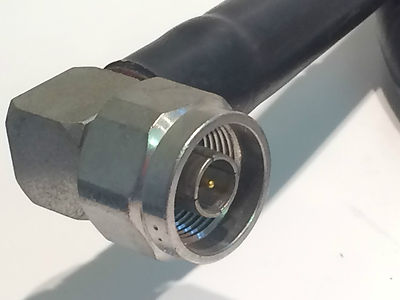

Manufactured using Suhner S07262BD low loss cable and connectors, these are a superb quality 50 Ohm N type male (straight) to N type male (right angle) coaxial cable, 1.95M in length.

This precision coaxial cable from Suhner is very flexible for a cable of this size with an overall diameter of 10.8mm.

Max. operating frequency 3 GHz
Capacitance 82 pF/m
Velocity of signal propagation 82 %
Signal delay 4.1 ns/m
Min. screening effectiveness > 90 dB (up to 3 GHz)
Max. operating voltage 1.05kV rms (at sea level)
Test voltage 2.1kV rms (50 Hz/1 min)

At 200Mhz attenuation is 0.018dB per foot and maximum power handling is 1163W
At 500Mhz attenuation is 0.037dB per foot and maximum power handling is 735W
At 1.1Ghz attenuation is 0.061dB per foot and maximum power handling is 496W
At 3.0Ghz attenuation is 0.113dB per foot and maximum power handling is 300W

 Full cable specs can be found by googling the part number S-07262-BD

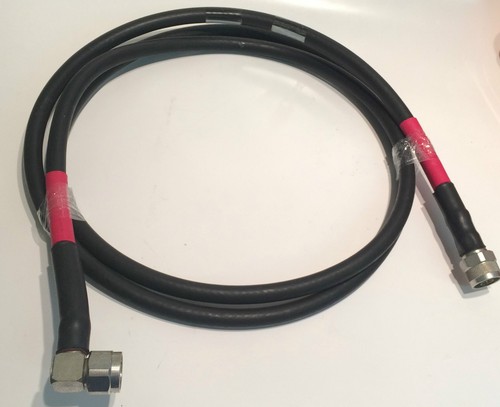

 SUPPLIED AS SHOWN IN THE PHOTO.

PACK QUANTITY: 1
