SPE SPECTROL 132-0-1-102 1K OHM PRECISION CONTINUOUS TURN POTENTIOMETER fd6f13

SPE SPECTROL 132-0-1-102 1K OHM PRECISION CONTINUOUS TURN POTENTIOMETER fd6f13

£35.00
£35.00
Sale Sold out
Taxes included.

1K OHM 2.75W CONTINUOUS TURN POTENTIOMETER

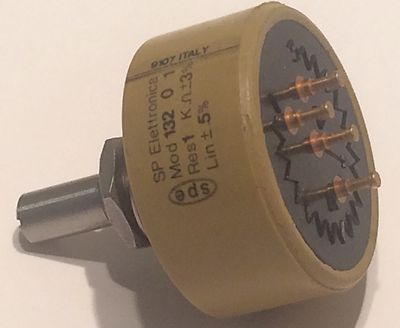

Manufactured to military standards by SP ELETTRONICA (now Spectrol and Vishay) these are superb quality precision wire wound bush mounting potentiometers, 1K Ohm linear and high 2.75 Watt rated, continuous turn - that is to say there is no mechanical stop, the pot just keeps turning round and round, each turn however covers the full 1K resistance range, and there is a centre tap connection at 500 Ohms.

Part of the 132 range, resistance is 3% tolerance and linearity is 5%

Body dimensions are 33mm diameter x 22mm deep, including connections but plus the shaft which is standard 6.3mm diameter and 25mm in total length.

Priced and supplied each.
