SPARK ARC GAP CAPACITOR 1 - 2 KV 75PF GAP KAP FD2J8

SPARK ARC GAP CAPACITOR 1 - 2 KV 75PF GAP KAP FD2J8

£10.00
£10.00
Sale Sold out
Taxes included.

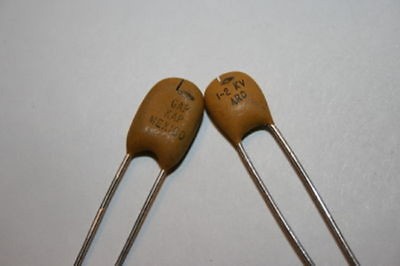

SPARK ARC GAP CAPACITOR 1 - 2 KV 75PF GAP KAP

Manufactured to military specifications as the 'Gap Kap' in the 1970's, these are new old stock high voltage discharge capacitors.
Unusual design - a slot is machine cut into the top of the ceramic package between the plates thus forming a 'spark gap'.

An interesting item, they are rated at 75pF and 1kV working voltage, with the spark arc rated between 1 and 2kV.

The quite primative manufacturing process means the body dimensions are not identical, but the main bodies are about 11mm high x 9mm wide and 3mm thick with long 50mm leads at 6mm spacing.
LAST FEW
 Supplied and priced each x1.
