FUJISOKU

SMALL HIGH QUALITY LATCHING DOUBLE POLE FOOT OR PANEL SWITCH fbb15a32

SMALL HIGH QUALITY LATCHING DOUBLE POLE FOOT OR PANEL SWITCH fbb15a32

£7.50
£7.50
Sale Sold out
Taxes included.

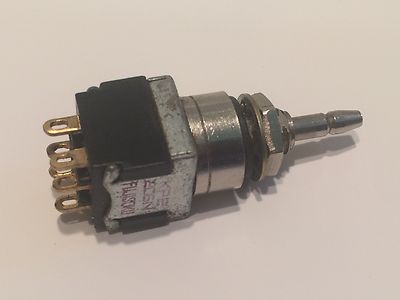

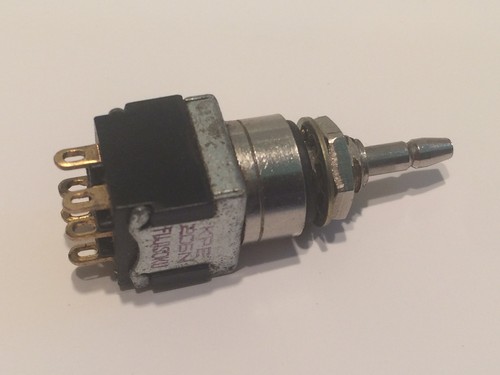

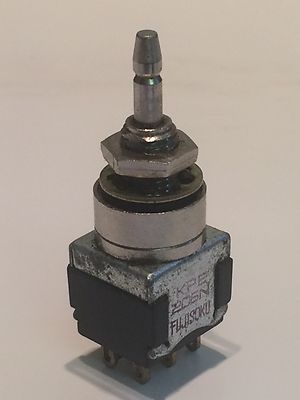

SMALL HIGH QUALITY LATCHING DOUBLE POLE SWITCH

These are a compact high quality panel mount push switch which is also suitable for use as a foot switch. Great quality with gold plated contacts - these are new old stock and were manufactured years ago by Fujisoku in Japan as their type KPE206N

It has double pole - so 2 sets of both normally open and normally closed - latching (so not momentary - these are push to make and then push again to break) change over contacts rated at 250V 3A.

3mm stainless steel button and mounting nut.   The travel for switch activation is about 4mm.

Panel hole required is about 6mm, behind panel dimensions are roughly 13mm x 13mm x 22mm depth including contacts.
