PHILIPS FERROXCUBE

SMALL 3C11 FERROXCUBE FERRITE RING 10MM MINIATURE HI PERMEABILITY (X1) fba18a

SMALL 3C11 FERROXCUBE FERRITE RING 10MM MINIATURE HI PERMEABILITY (X1) fba18a

£2.00
£2.00
Sale Sold out
Taxes included.

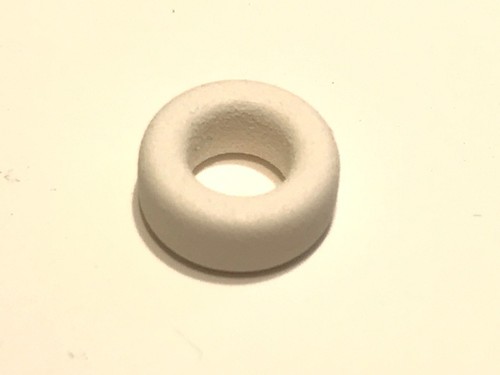

SMALL  3C11  FERRITE  RING

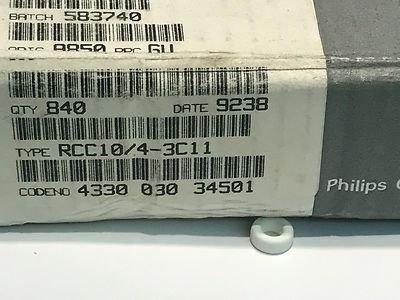

Miniature ferrite rings, manufactured by Philips Ferroxcube as their part RCC10/4-3C11 (4330-030-34501), composition of the ferrite is the high permeability 3C11.

Dimensions are 10mm outer diameter, and 5mm internal diameter.

     Material 3C11 Characteristics:
µi  at 25 ° C = 4300
Bsat (mT) at 25 ° C (1200 A/m) ≈ 390
Tc(° C) ≥ 125
p (Ωm) ≈ 1
Ferrite type is MnZn

Priced and supplied each x1, with quantity discounts available.  so buy as many as you need
