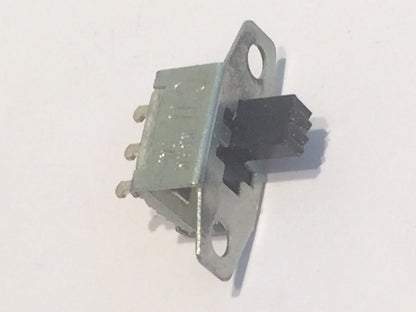

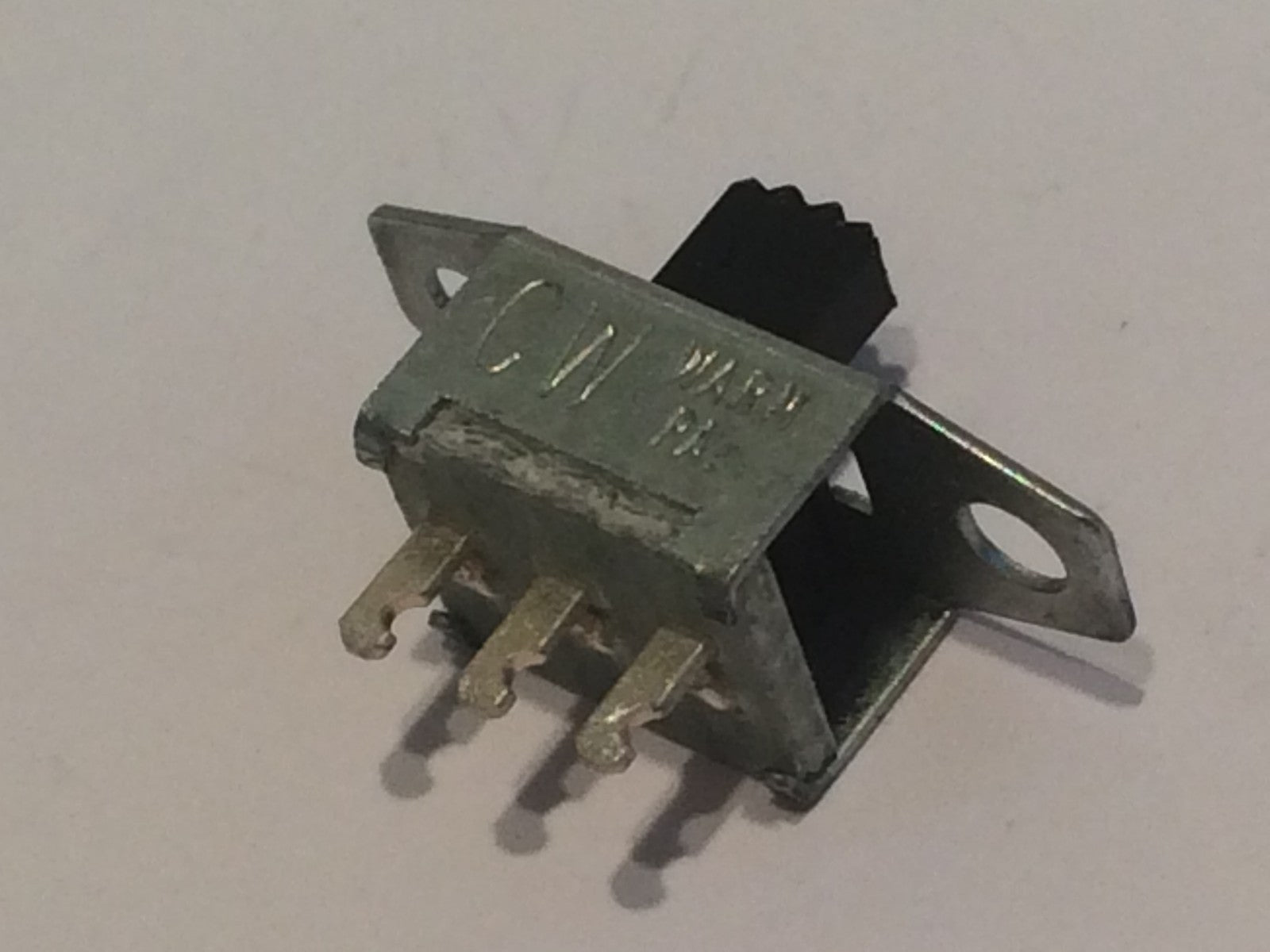

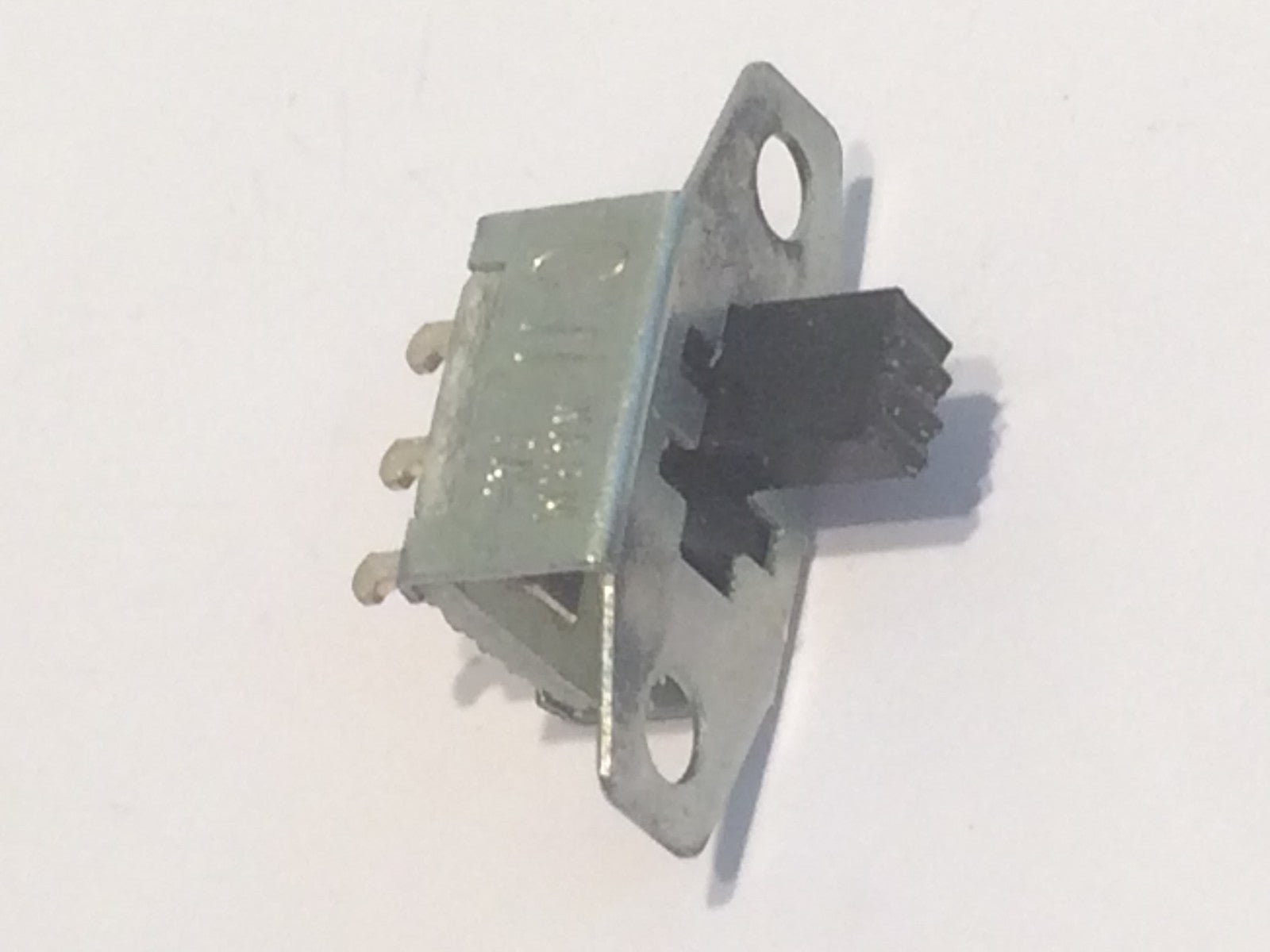

SMALL BEST QUALITY SLIDE SWITCH

Manufactured to military specifications by CW Switches in the USA, these are a miniature single pole double throw (2 position on-off, or, on - on) slide switch, designed for panel mounting, with silver plated contacts, rated to 0.5A

Useful small size quality switch with a very positive switch action, not to be confused with cheap Chinese imitations !

Overall dimensions are 20mm total length x 8mm wide x 10mm deep plus the black switch knob which is 2mm wide x 4mm long and 5mm high. 2 mounting holes at 15mm centers.

A quality switch for when only the best will do !

PRICED AND SUPPLIED EACH (1PC) WITH QUANTITY DISCOUNTS.
