SINGLE HOLE BULKHEAD CRIMP CABLE MOUNT TNC SOCKET 50 OHM MILITARY SPEC ad1J34

SINGLE HOLE BULKHEAD CRIMP CABLE MOUNT TNC SOCKET 50 OHM MILITARY SPEC ad1J34

£10.00
£10.00
Sale Sold out
Taxes included.

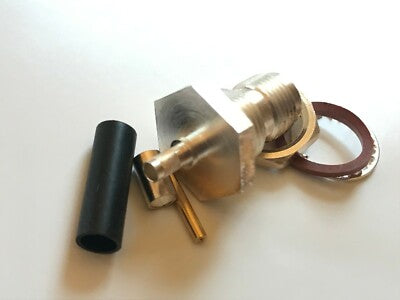

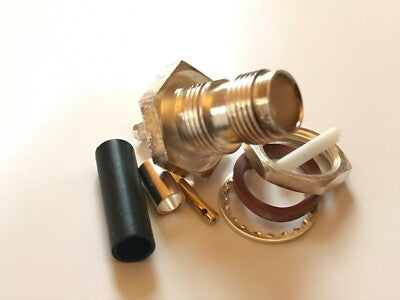

SINGLE HOLE MOUNT CRIMP TNC FEMALE

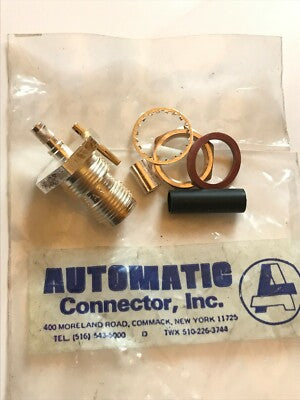

Manufactured by Automatic Connector Inc in the USA,  to military specifications, these are a premium quality 50 Ohm RF TNC single hole mount female, for crimping onto RG59 and similar coaxial cable.

 The locking nut is on the front of the chassis side as opposed to the rear, thus this connector has very shallow behind panel depth, ideal for where space is short.

Mounting hole is about 13mm and behind panel depth is 10mm, though allowance for the connecting cable must be made.

These are a really nicely made connector, the body and lock nuts are heavily silver plated and the center connection pin is thickly plated gold - these are old stock over 30 years old - manufactured when they used to plate things properly and cost to the military wasn't an issue.

New, unused and offered at a fraction of the distributors cost, when only the BEST female TNC solution will do the job !

 PRICED AND SUPPLIED INDIVIDUALLY - EACH.
