SHRACK RFH34012 12V DC POWER RELAY 16A CONTACTS fbb19a

SHRACK RFH34012 12V DC POWER RELAY 16A CONTACTS fbb19a

£6.00
£6.00
Sale Sold out
Taxes included.

SHRACK  RFH34012  RELAY

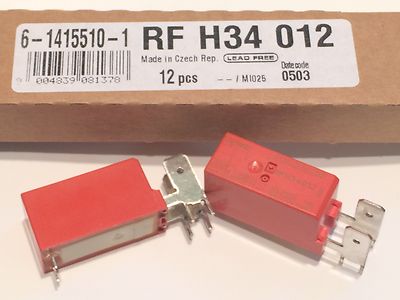

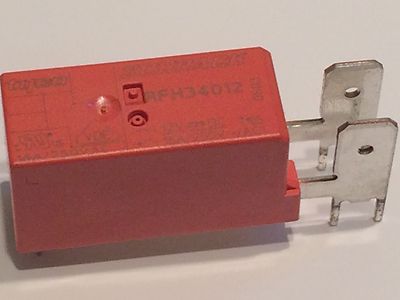

Manufactured by Shrack / Tyco as their part number  RFH34012, these are a miniature power relay with a 12Vdc coil and single pole single throw (SPST) normally open contacts rated to 16A, 250Vac.

The switch contact connections usefully have both printed circuit board pins and standard quarter inch spade type connections.

Dimensions of the main body are 30mm x 13mm x 15mm high, plus connections.

Priced and supplied each, and this item is lead free ROSH compliant.
