SANTON 100A 440Vac 250Vdc 3 POLE 4 POSITION ROTARY DISCONNECT SWITCH ab3a9A

SANTON 100A 440Vac 250Vdc 3 POLE 4 POSITION ROTARY DISCONNECT SWITCH ab3a9A

£220.00
£220.00
Sale Sold out
Taxes included.

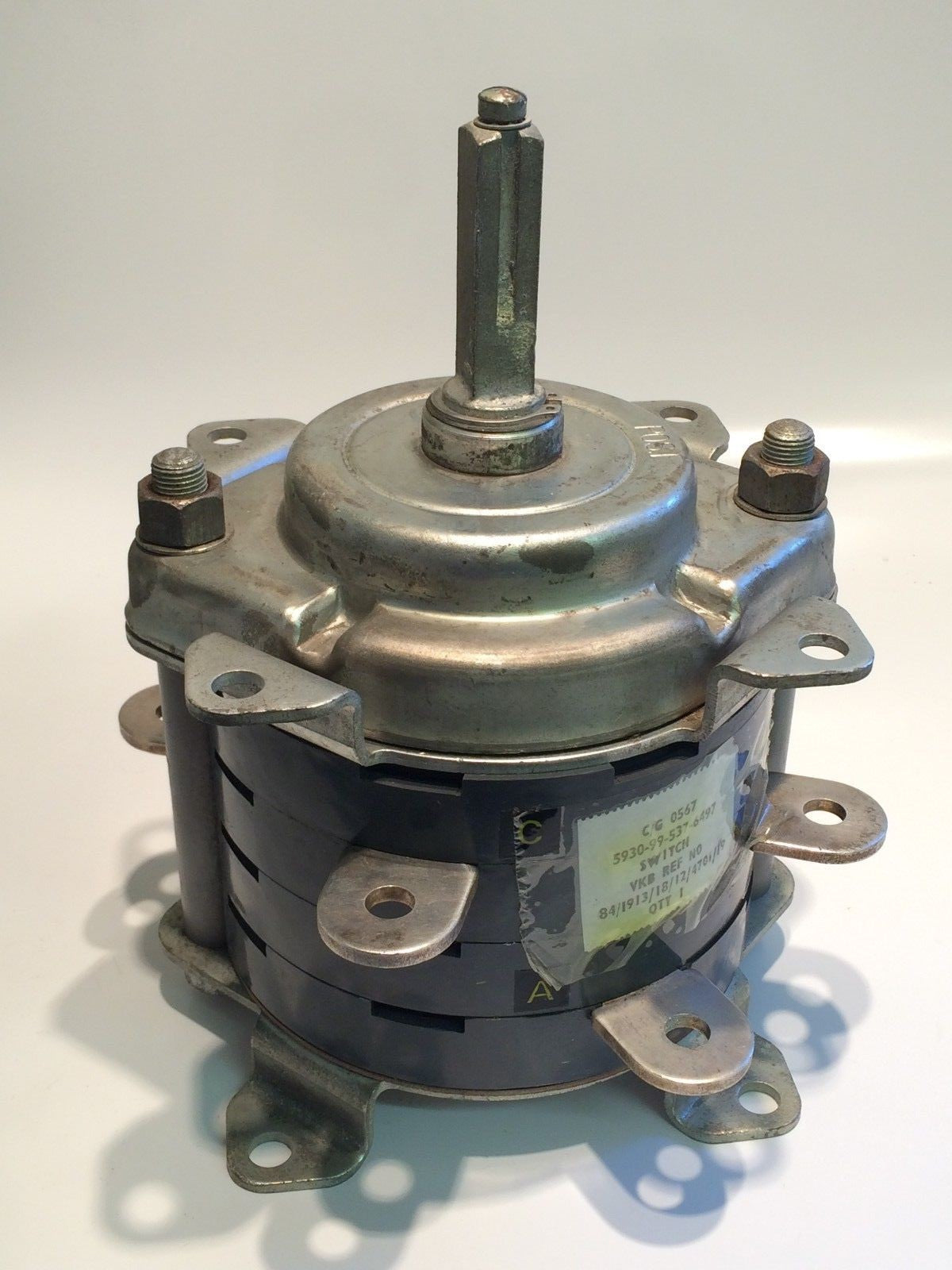

3 POLE 4 POSITION ROTARY PANEL SWITCH

If you're looking for a big, serious switch, you just found it !
Manufactured to military specifications (NSN 5930-99-537-6497) by Santon in the UK, these are a very heavy duty rotary disconnect switch, 3 pole and 4 position.

100 Amps at 440Vac and 250Vdc.

4 rotary positions, on - off - on - off

This one does not have its control lever.

Overall dimensions of the main body are approximately 24cm high x 20cm diameter, including control shaft and connections

Connections are screw terminals

New old stock, been in long term military storage but never opened (see the last photo). Packed weight is 8kg

Priced and supplied individually, each (x1) - A fraction of the real cost for a switch of this spec.
