RS 338-951 ILLUMINATED RECTANGULAR PANEL CONTROL PUSH SWITCH DOUBLE POLE fbb14b

RS 338-951 ILLUMINATED RECTANGULAR PANEL CONTROL PUSH SWITCH DOUBLE POLE fbb14b

£14.00
£14.00
Sale Sold out
Taxes included.

BURGESS ILLUMINATED PANEL PUSH SWITCH

These are a very common industry standard switch.

Manufactured by Burgess as their part number TH401100625 and marketed by RS as their catalog number 338-951, they are a top quality panel mount push switch, latching so push on push off, with double pole on - off contacts.

With this type of switch it is possible to purchase more of the contact blocks to make them more than 2 pole.

This is just the switch, they then take a push in filament lamp and take a coloured clip on lens (not supplied).

Industry standard panel mount illuminated push switch rated upto 5A at 250V.

The panel hole for mounting is circular 16.2mm. Dimensions of the rectangular top are 24mm x 18mm. behind panel depth is 45mm.

The lens the switch takes is RS type 339-005 and the lamps are type T5.5

Supplied and priced each with quantity discounts available

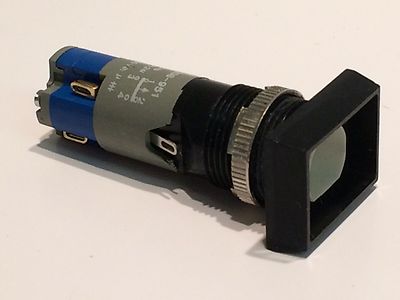

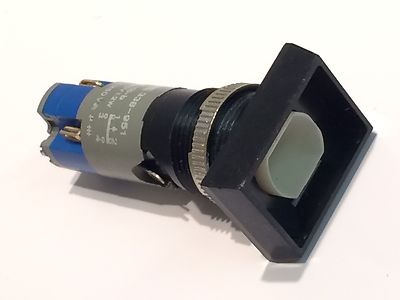

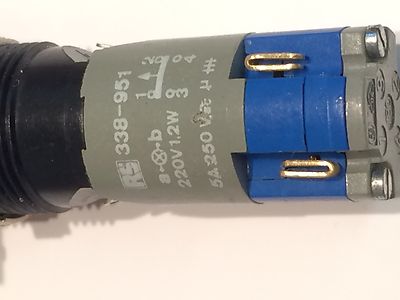

 SUPPLIED AS SHOWN IN THE PHOTO.
