ROSENBERGER PRO 7/16TH 4 HOLE CHASSIS FEMALE LONG REACH 60K411-900B1 fd4f2

ROSENBERGER PRO 7/16TH 4 HOLE CHASSIS FEMALE LONG REACH 60K411-900B1 fd4f2

£26.00
£26.00
Sale Sold out
Taxes included.

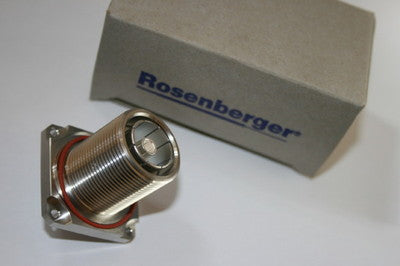

ROSENBERGER 7/16TH 4 HOLE CHASSIS FEMALE

Manufactured by Rosenberger as their part number 60K411-900B1, these are 50 Ohm professional 7/16th type coaxial female connectors, 4 hole chassis or panel mount, with an unusually long reach.

The rubber seal ring is on the neck of the connector, so it looks like this type is designed to protrude through the chassis as opposed to been mounted on the outside of the chassis. Stainless steel construction  with silver plated center pin and teflon PTFE insulation, these are completely flat on the rear.

The socket protrudes by about 35mm away from the mounting plate.

Footprint dimensions are roughly 40mm square with fixing centers at 33mm.
