ROSENBERGER

ROSENBERGER PREMIUM QUALITY PANEL MOUNT SMC FEMALE WITH LONG PIN (X1) fd7L34

ROSENBERGER PREMIUM QUALITY PANEL MOUNT SMC FEMALE WITH LONG PIN (X1) fd7L34

£4.00
£4.00
Sale Sold out
Taxes included.

PANEL MOUNT SMC FEMALE WITH LONG PIN

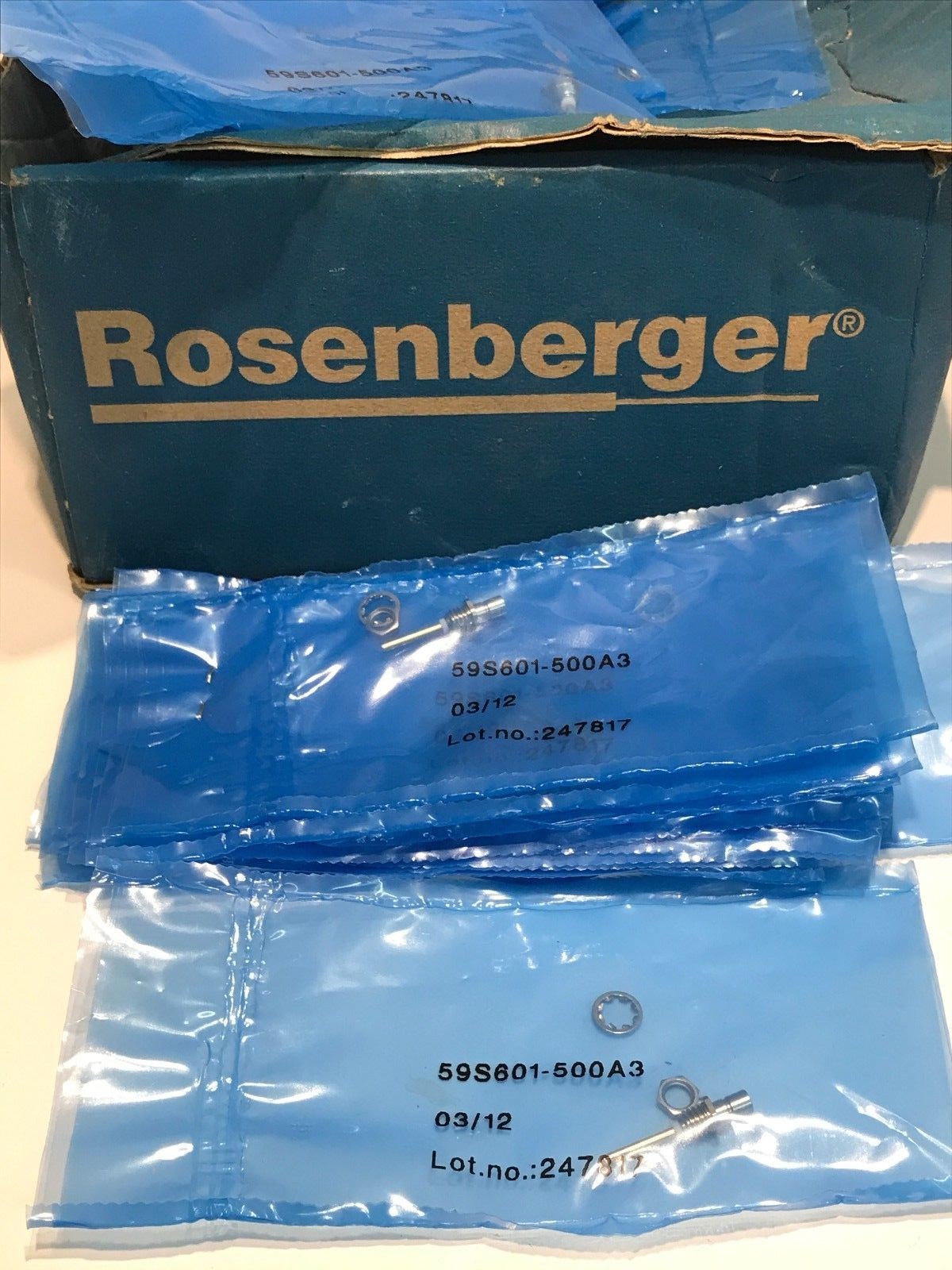

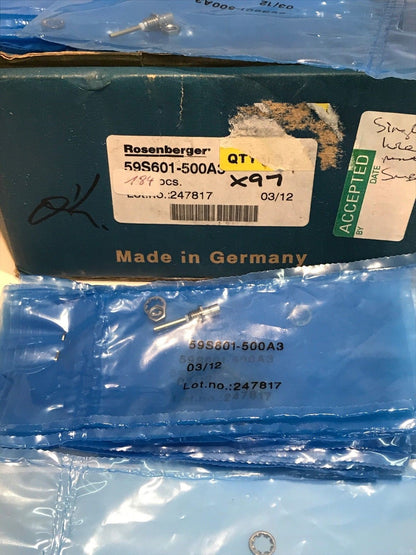

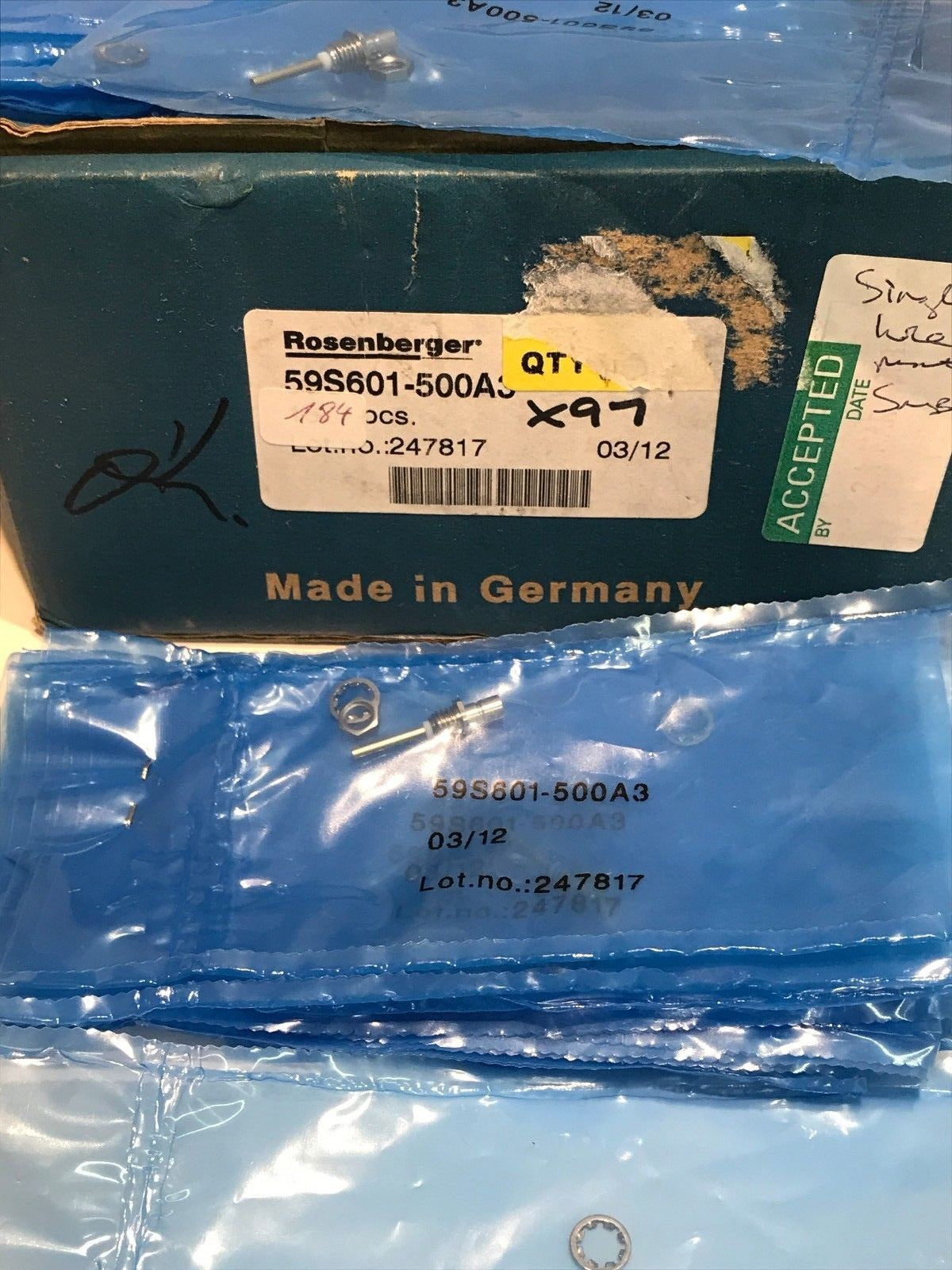

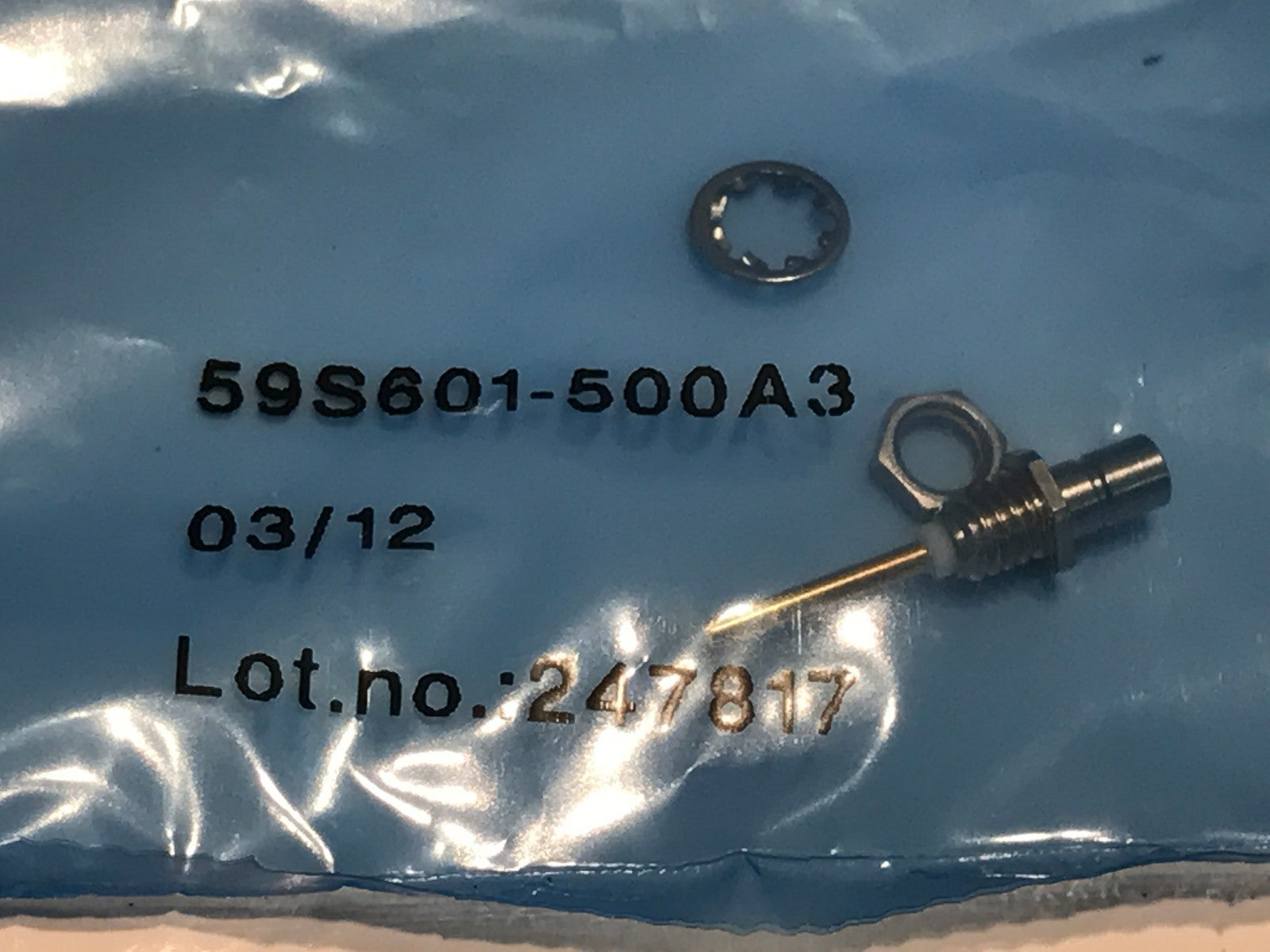

 Manufactured by Rosenberger as their part number 59S601-500A3, these are a premium quality panel mount SMC female, with an unusually long center connection pin.

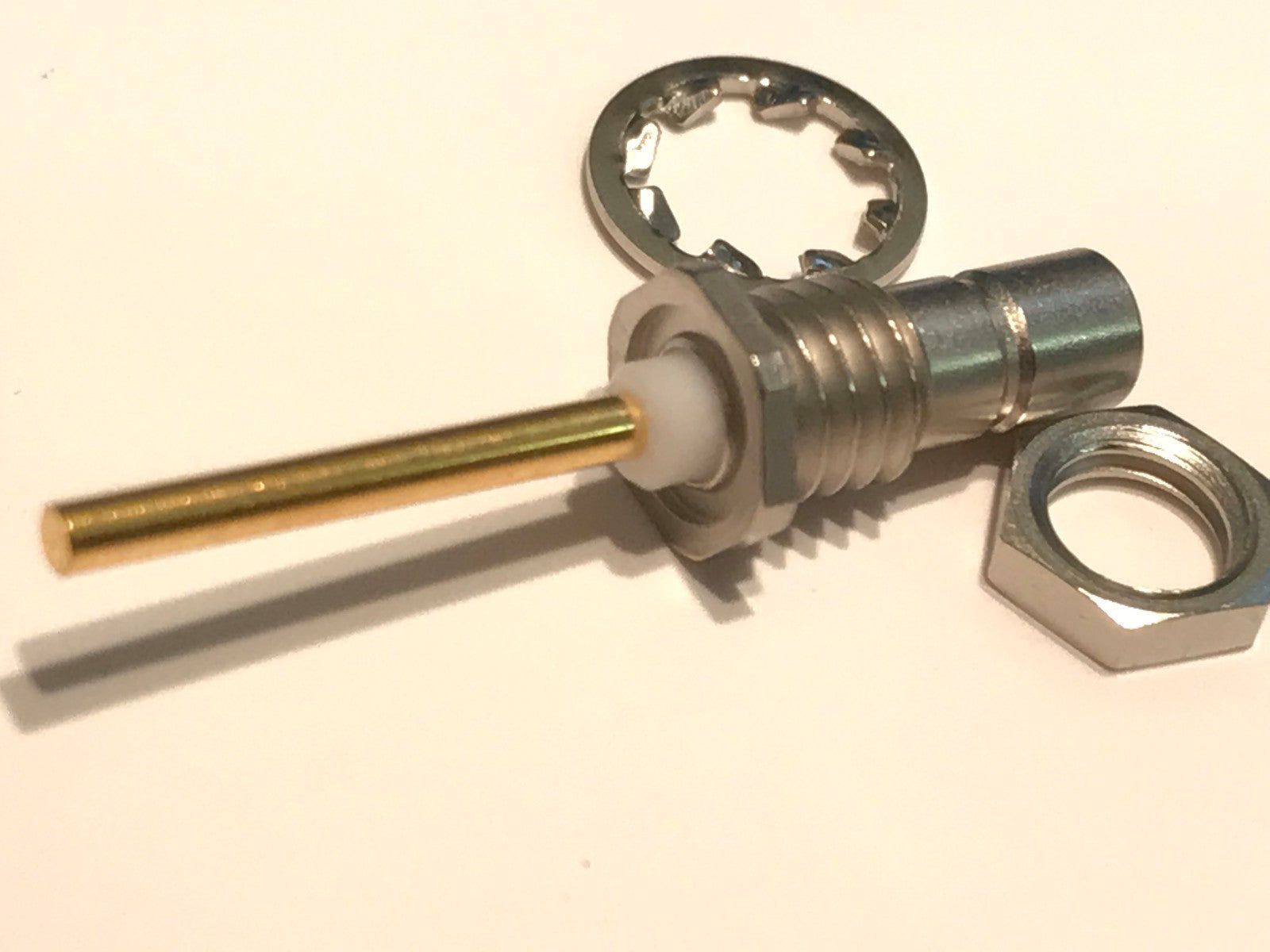

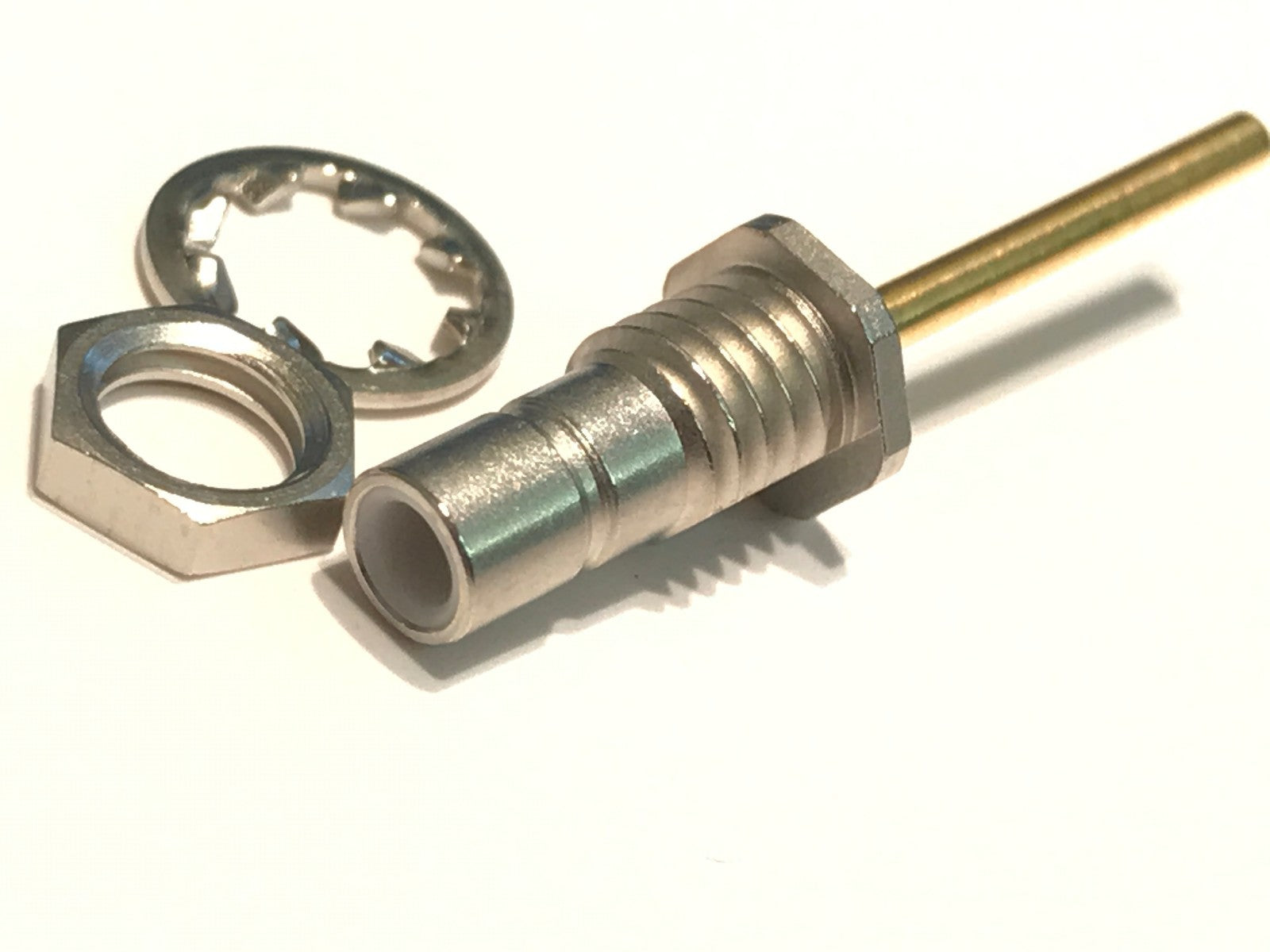

The center connection protrudes from the rear of the connector by 14mm

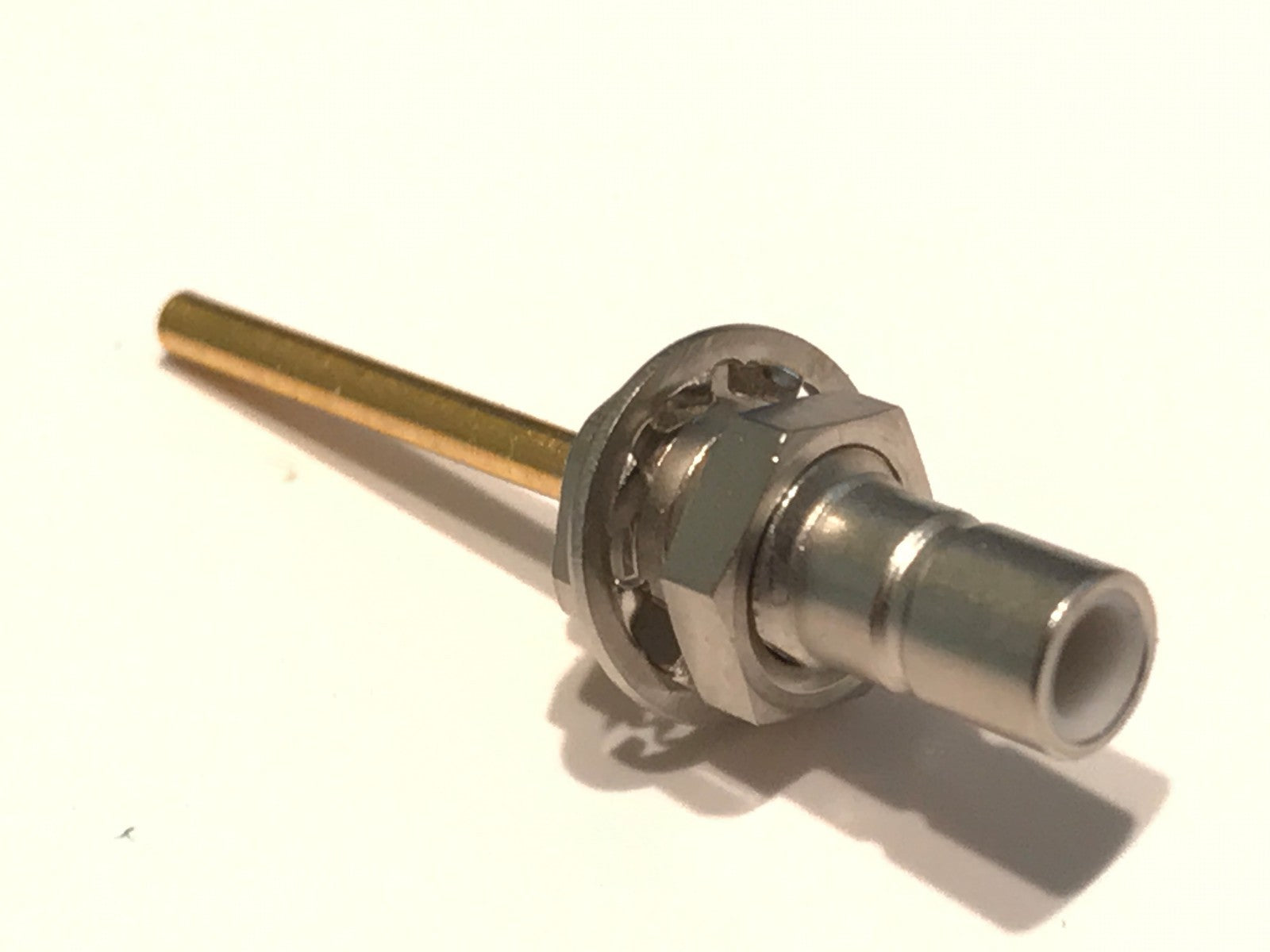

This type is designed so that the connector pushes through a panel and the locking nut is then secured on the other side - on the front of the panel, which reduces both the depth required behind the panel, and increases the reach of the connector.

Constructed from nickle plated brass with PTFE insulation and gold plated center connection, supplied with locking nut and washer.

Priced and supplied each x1
