ROSENBERGER 32K44N TOP SPEC. MICROWAVE SMA PANEL FEMALE CONNECTOR fd6h18

Name: ROSENBERGER 32K44N TOP SPEC. MICROWAVE SMA PANEL FEMALE CONNECTOR fd6h18
Brand: Rosenberger
SKU: 10099
Price: 5.00 GBP
Availability: InStock

£5.00

Sale Sold out

Taxes included.

Quantity

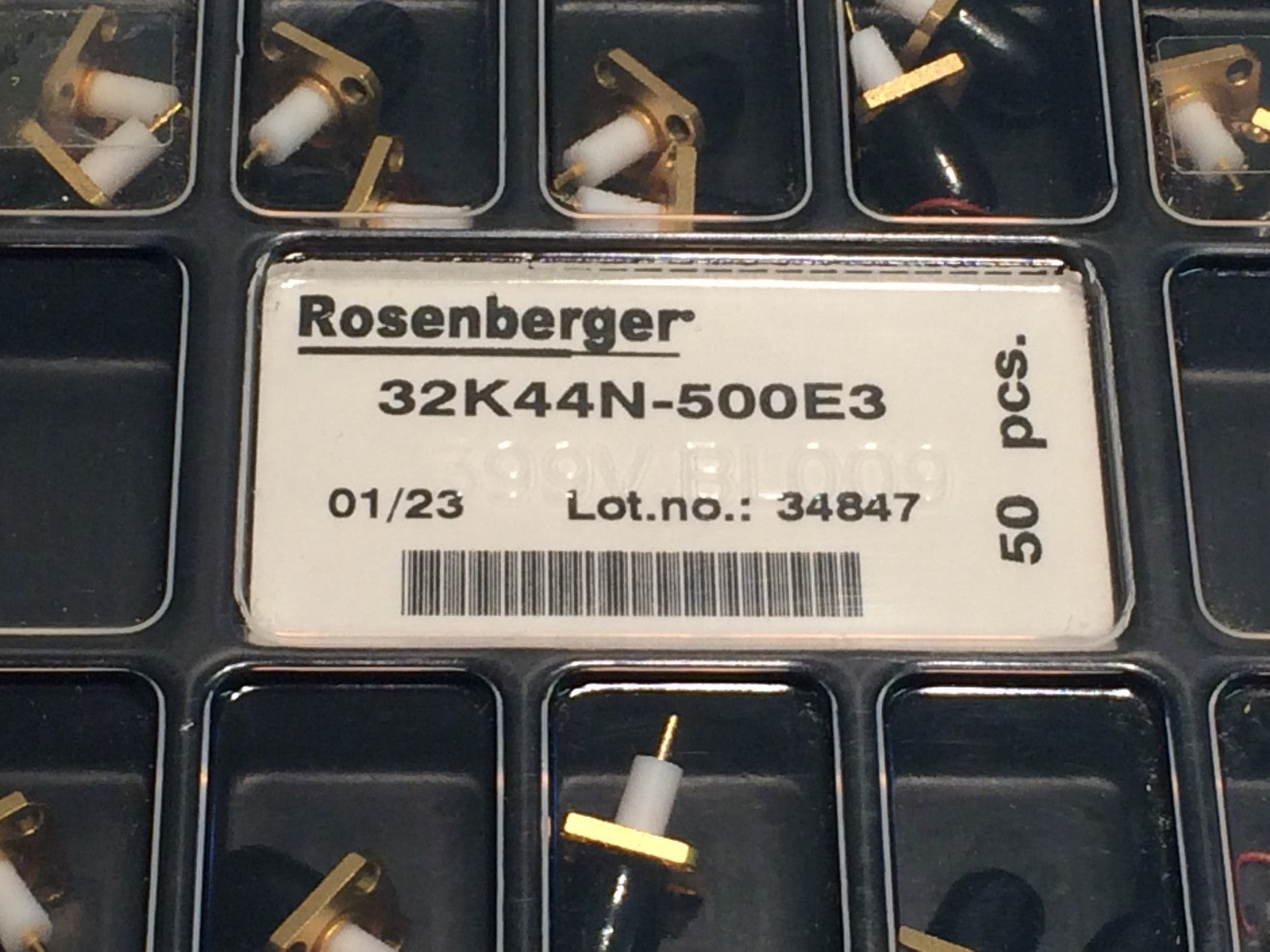

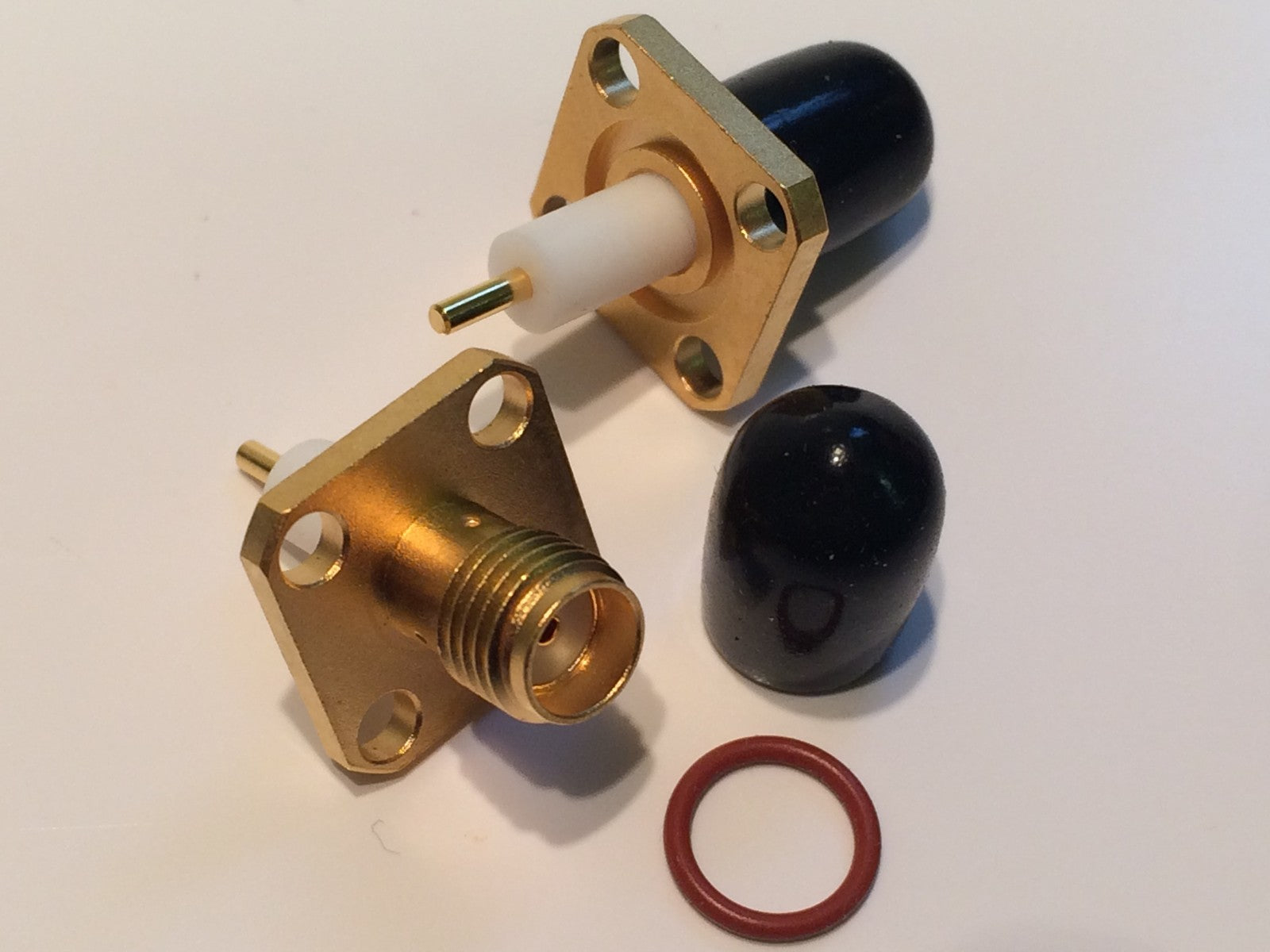

Manufactured by Rosenberger a their type 32K44N-500E3, these are a premium quality heavily gold plated and teflon 4 hole chassis mount SMA female.

They are supplied with a protective rubber cap and neoprene sealing ring.

The connection pin extends from the back of the connector by approximately 11mm, with the teflon insulation covering some 7mm of that.

Standard 4 hole footprint for SMA, 13mm square with mounting holes at 9mm centers.

PRICED AND SUPPLIED EACH X1
