Rohde & Schwarz APN62 LF (Ultrasonic) Signal Generator 1Hz - 260KHz fcf3d

Rohde & Schwarz APN62 LF (Ultrasonic) Signal Generator 1Hz - 260KHz fcf3d

Regular price £950.00
Regular price Sale price £950.00
Sale Sold out
Taxes included.


R&S  APN62  LOW FREQUENCY SIGNAL GENERATOR

Manufactured by Rohde & Schwarz as their model APN62, this is a laboratory standard Audio Frequency Generator,  high-precision synthesized source for signals from 1 Hz to 260 kHz.

It provides sinewave and squarewave signals and also incorporates many outstanding characteristics and functions including frequency sweep and level sweep.

The Rohde & Schwarz APN62 LF Synthesised signal generator covers the frequency range from 1Hz to 260kHz delivering an unusually high output level of +33dBm (2 watts).
Its suitable for general purpose laboratory applications including audio, ultrasound and sonar, VLF/LF radio testing etc.

The APN62 is actually an upgraded/modified version of the APN06,  It contains an output transformer (20 Hz to 25 kHz/ 2 KOhm) and has different AC supply voltage ranges.
All other specifications are the same as those of the APN06:

Frequency range 1 Hz 260 kHz
Resolution 0.1Hz up to 20 kHz and 1 Hz up to 260
Output level range 50 µV a 20 Vrms(V – dbV – dBU – dBm)
Source Impedance 10 – 640 Ohm; step 5 ohm
Low distortion< 0,01% up to 20 kHz, tipic -80dBc
Frequency and level Sweep
Remote controller HP-IB
Waveform sine, square, triangle, sawtooth

Ex the UK Ministry of Defence, it has had little actual use and is sold in perfect working condition and fair cosmetic condition.

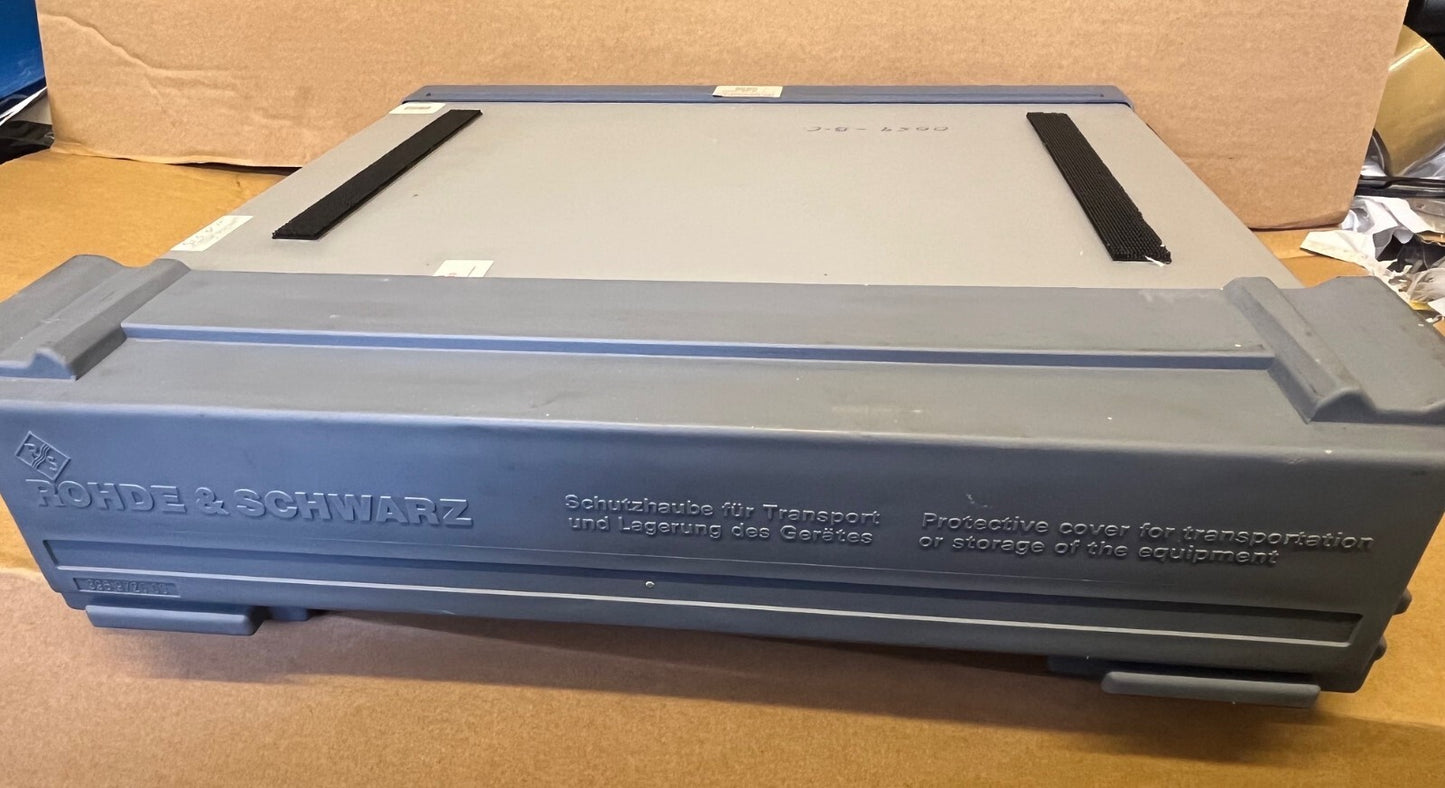

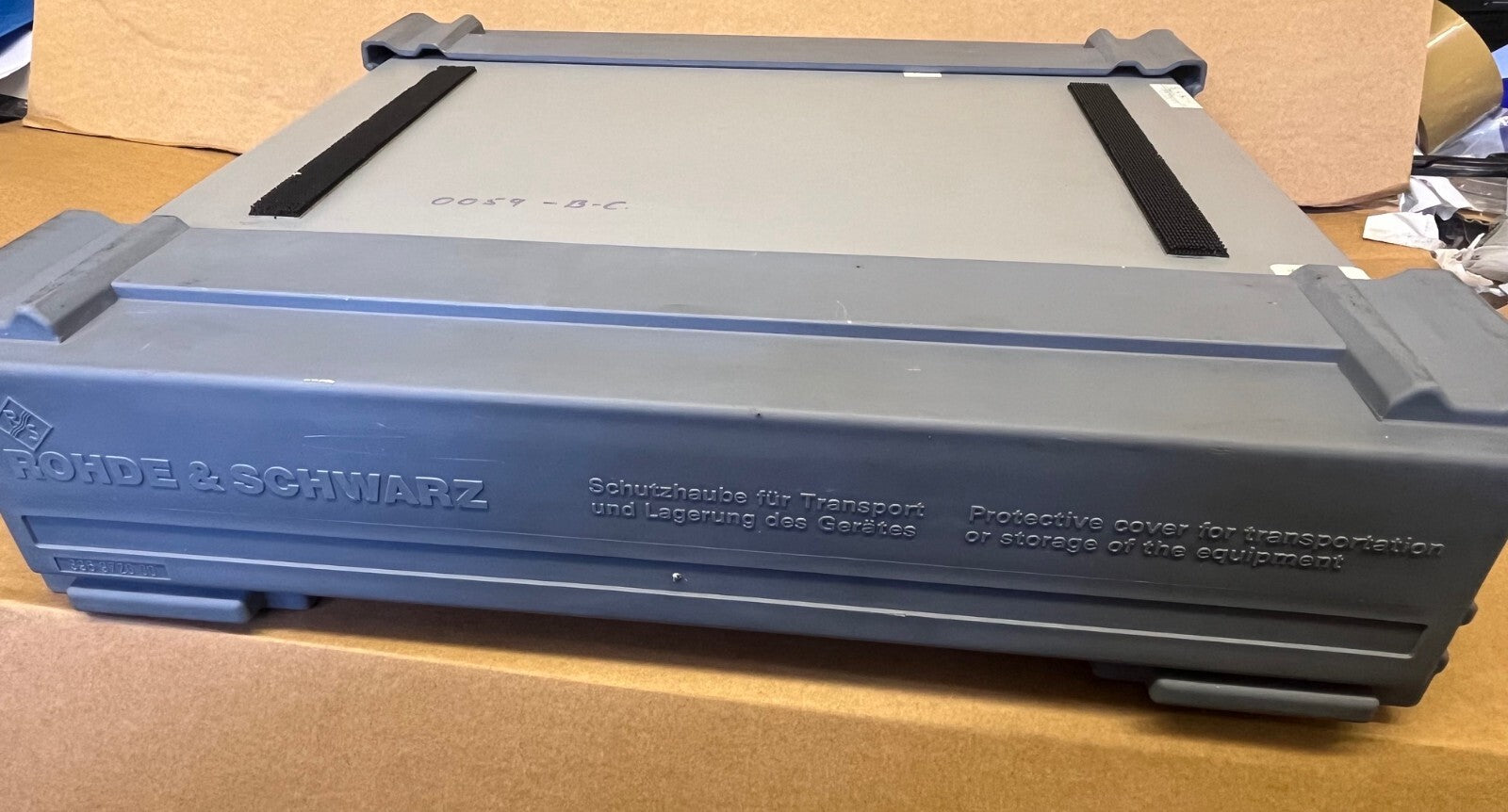

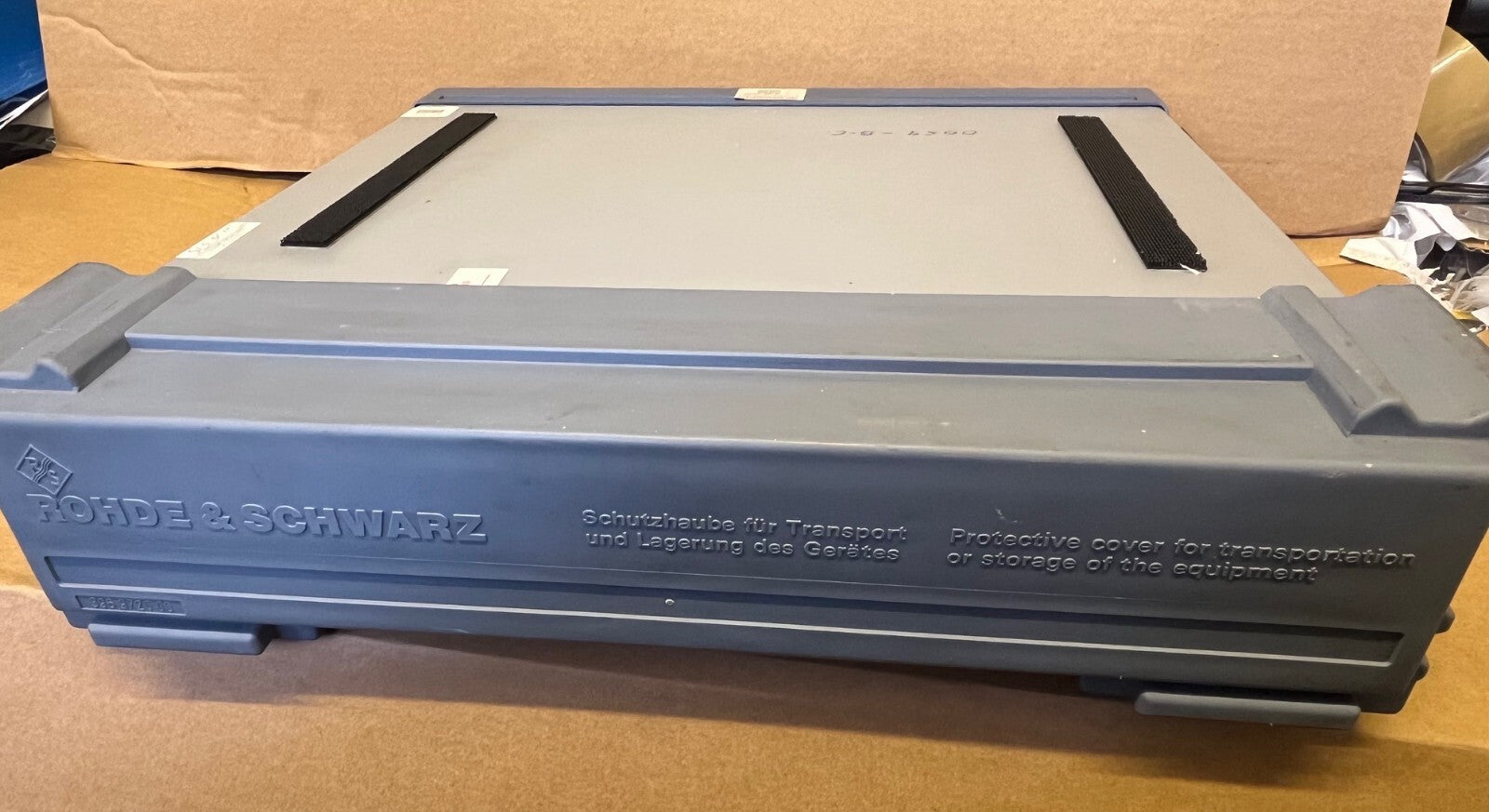

Comes complete with its original transportation covers / protectors.

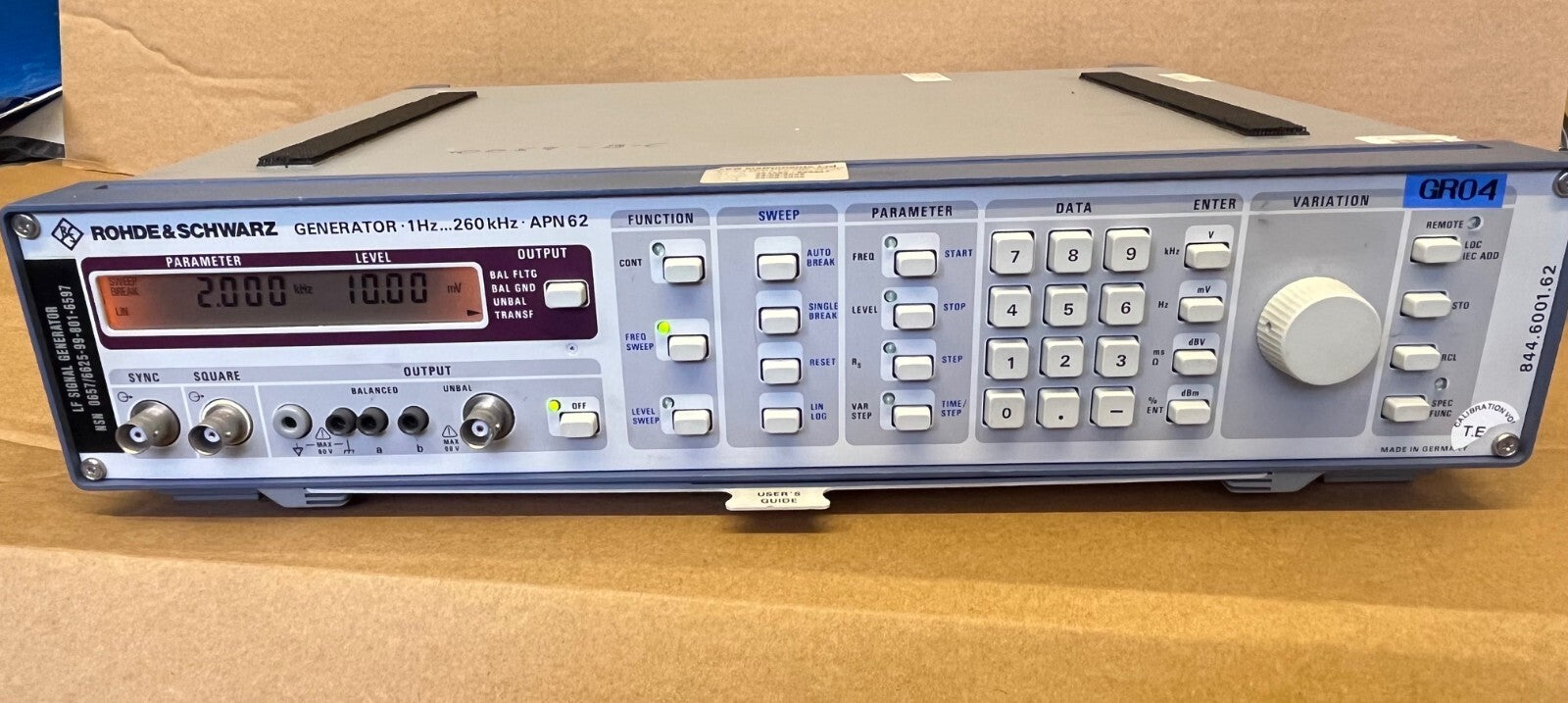

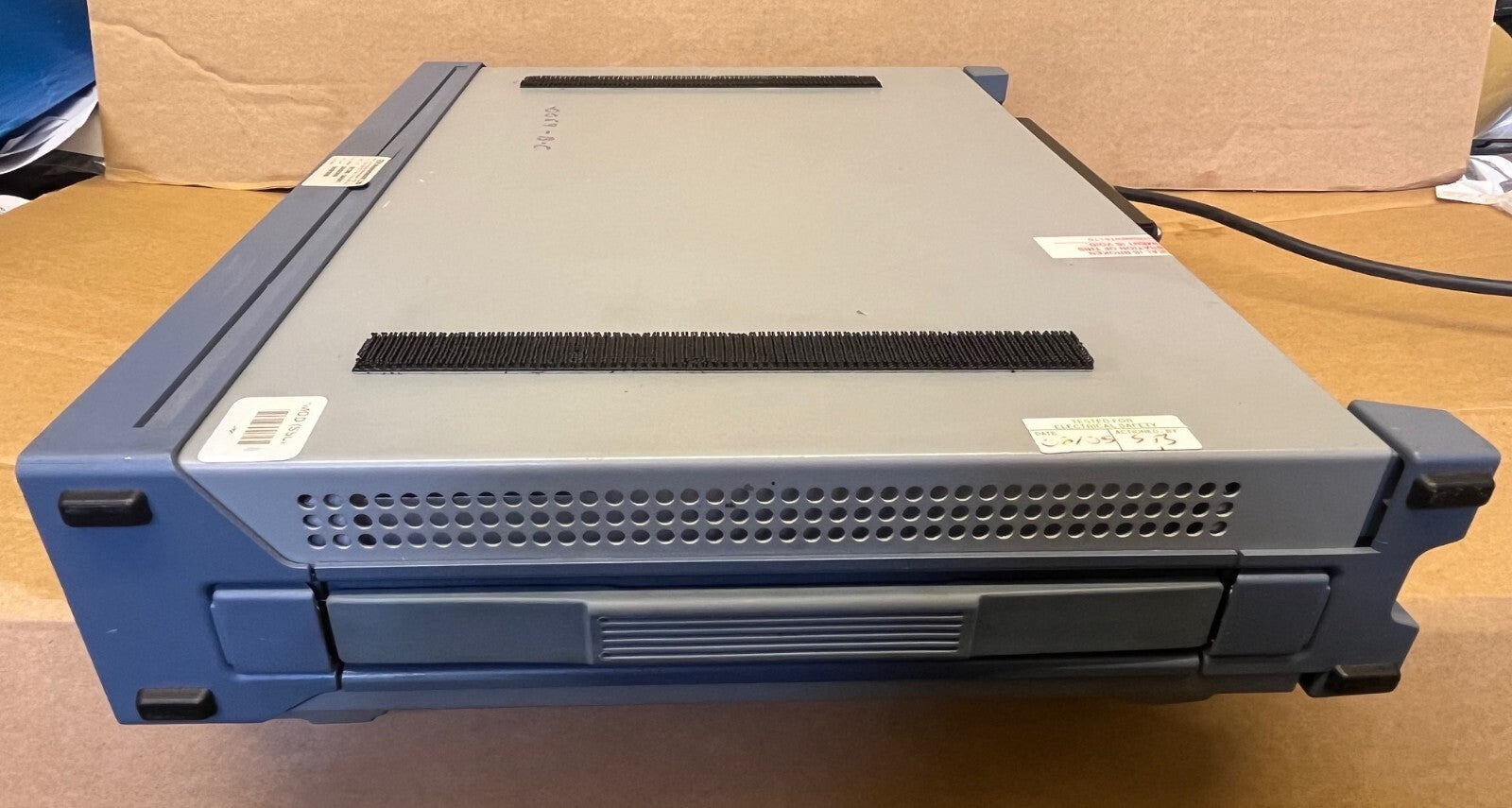

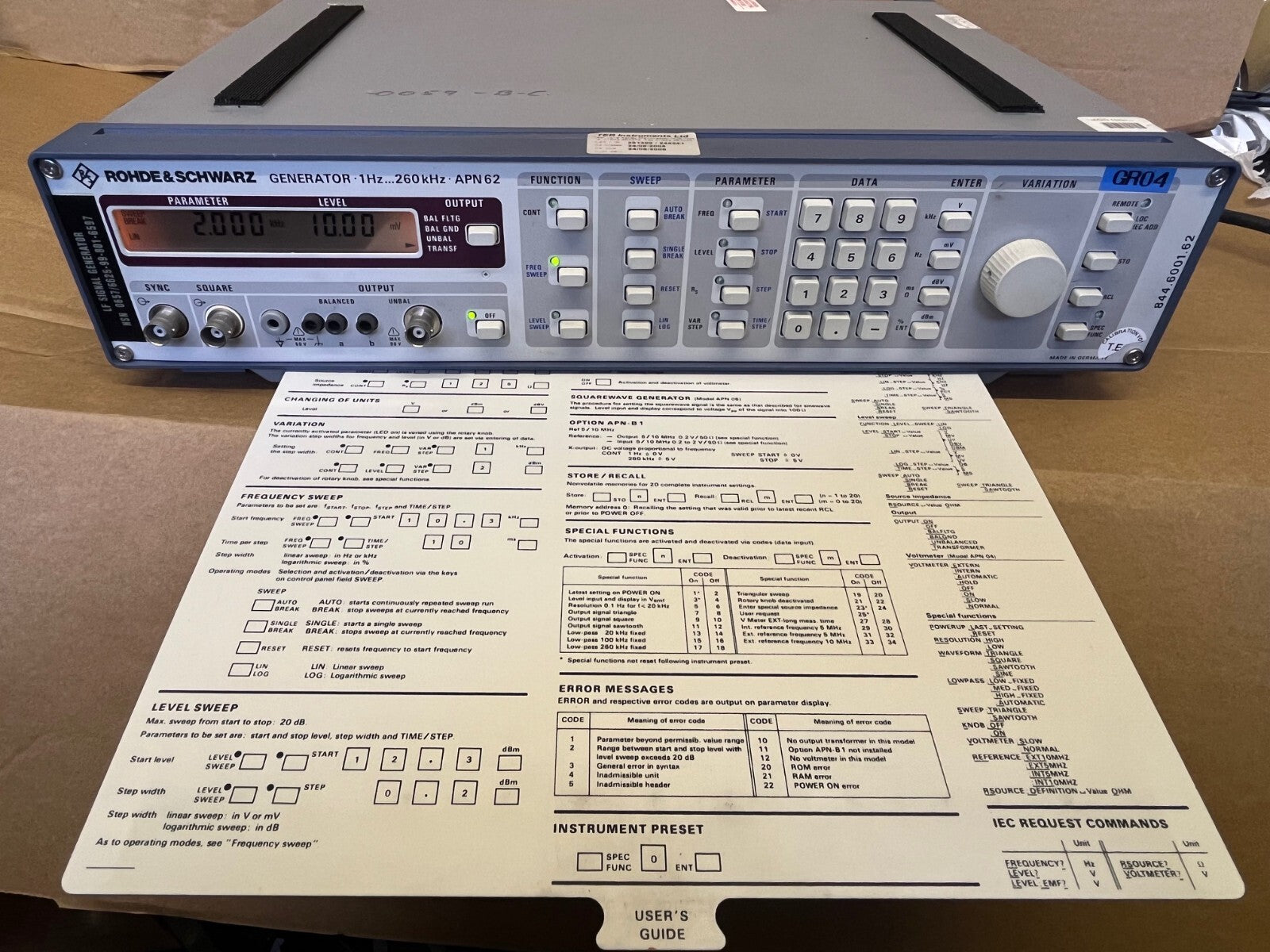

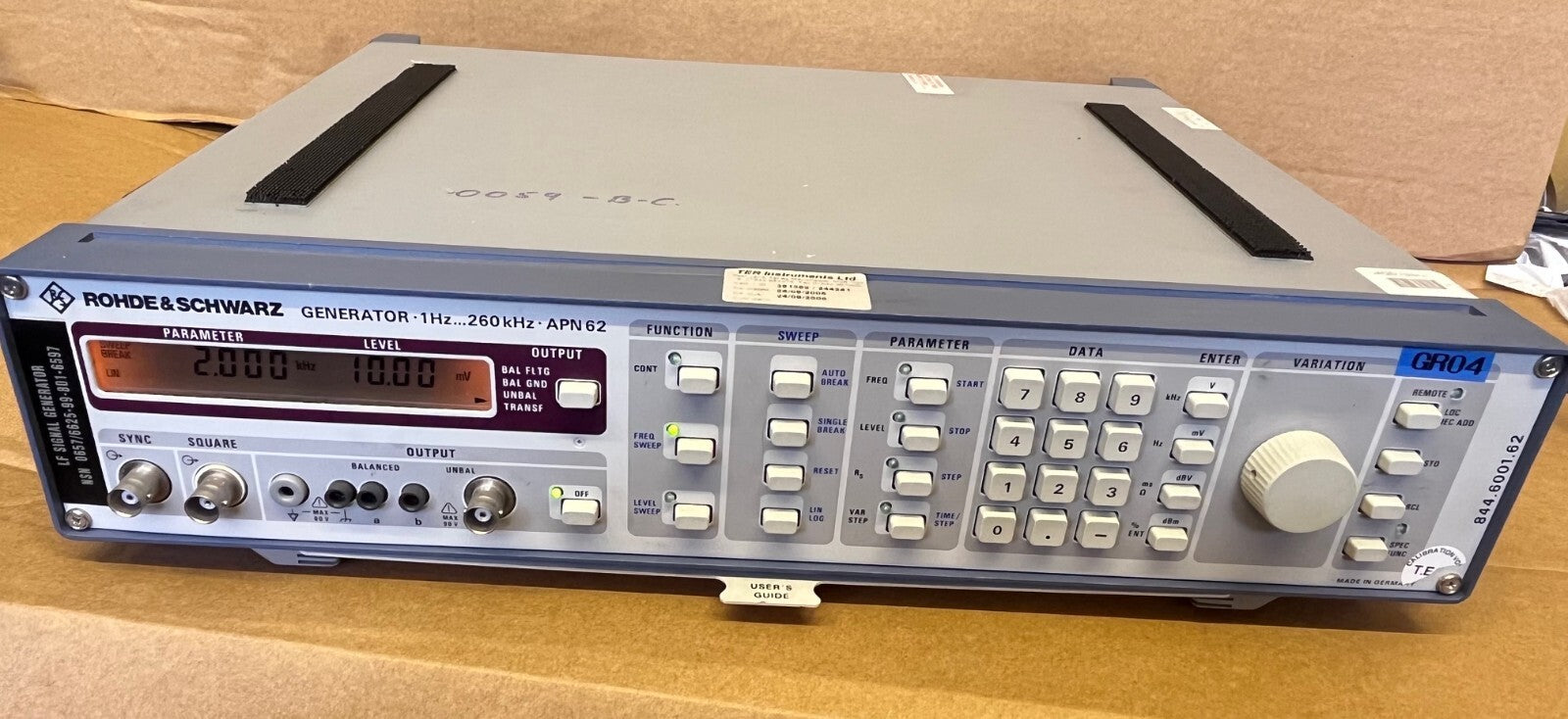

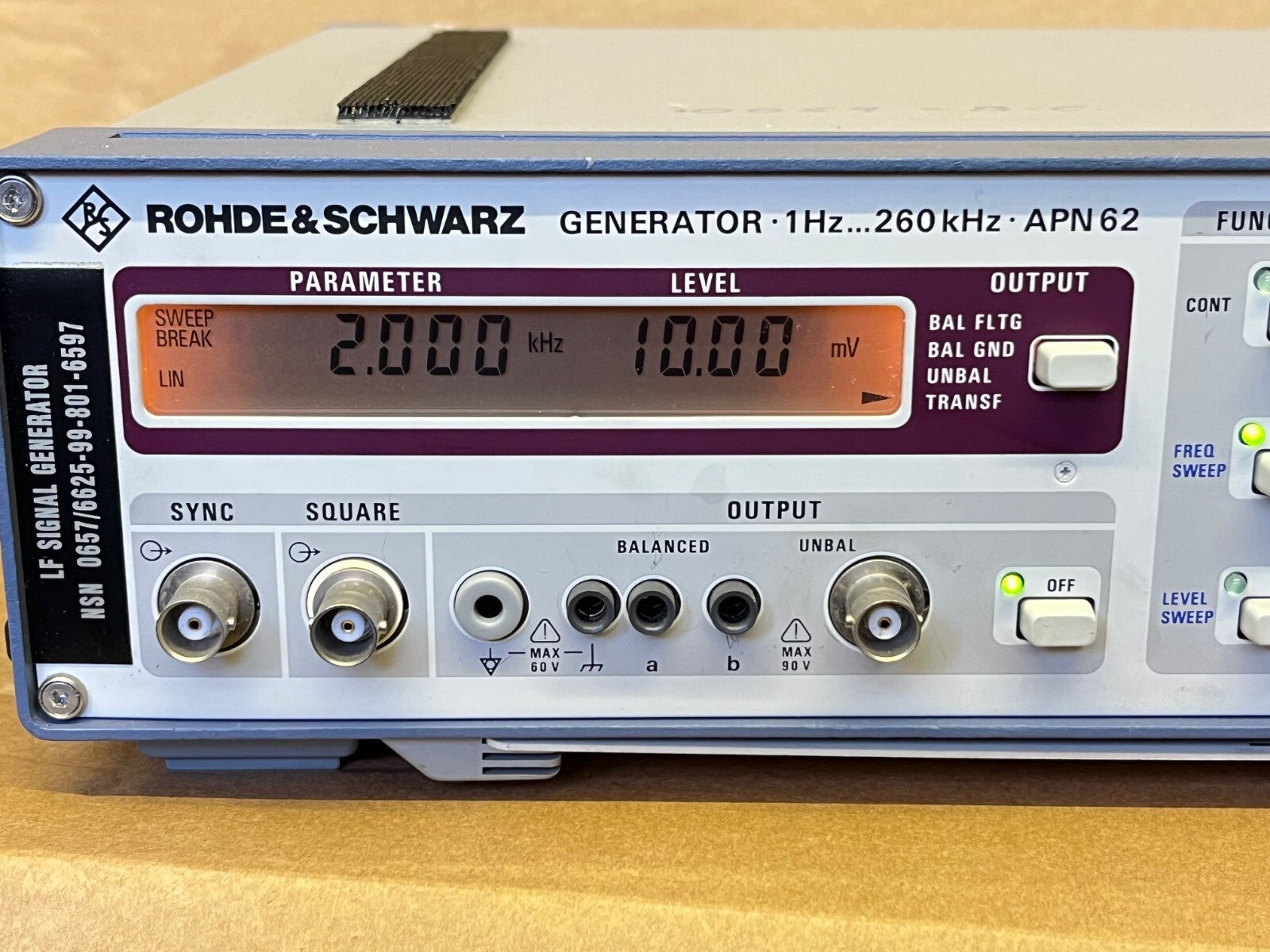

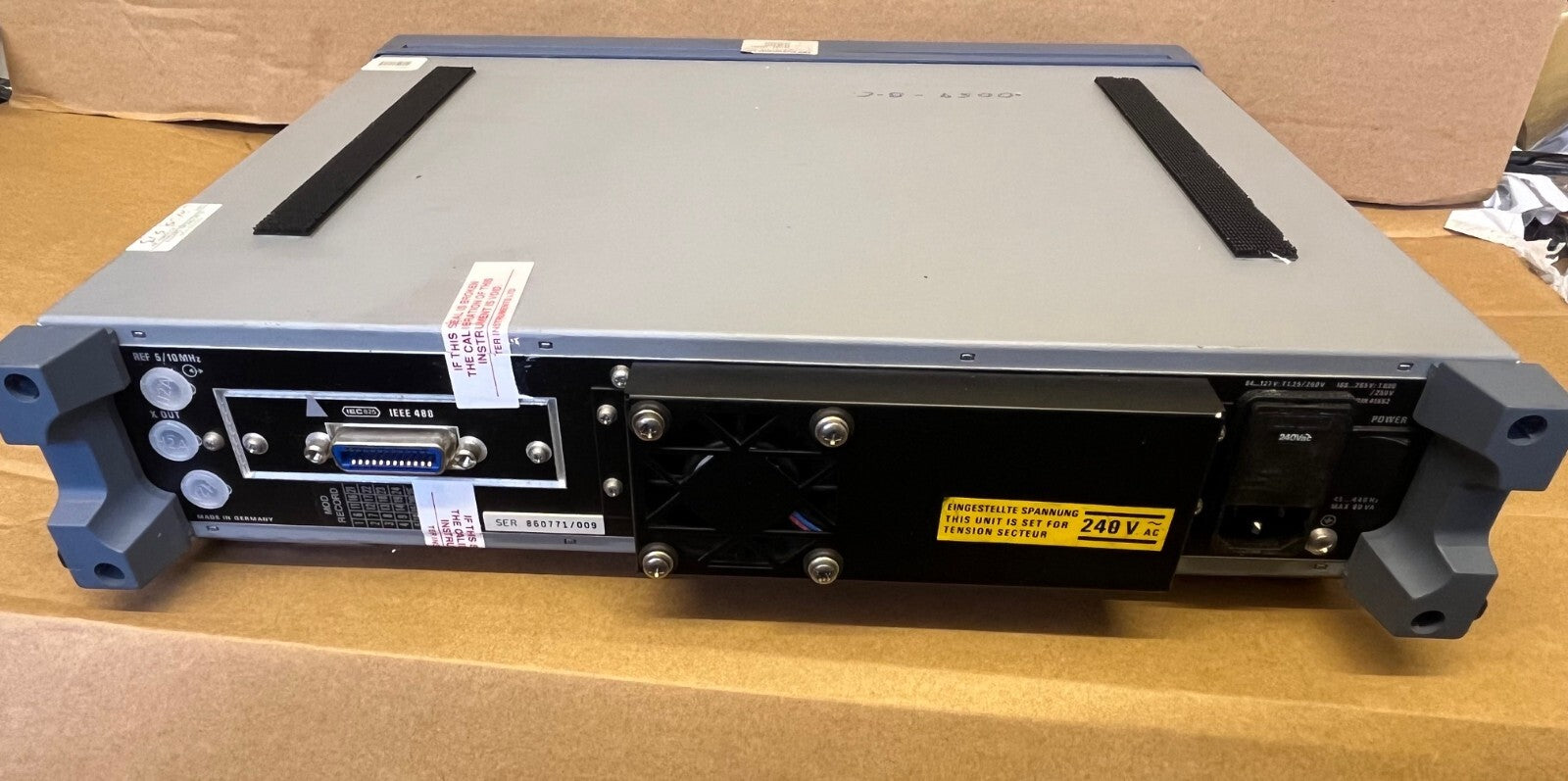

 The unit in the photos is the unit you will receive.
