RLC ELECTRONICS SR-2 SPCO RF SMA COAX SWITCH RELAY 12.4GHz 28Vdc AD1M5

RLC ELECTRONICS SR-2 SPCO RF SMA COAX SWITCH RELAY 12.4GHz 28Vdc AD1M5

£95.00
£95.00
Sale Sold out
Taxes included.

RLC ELECTRONICS SR-2 RF COAXIAL RELAY

Manufactured by RLC Electronics in the USA as their part number SR-2-min-D, this is an industry standard high quality simple operation single pole changeover coaxial relay with SMA female connectors and a 28V coil, DC-12.4Ghz.

Frequency Range

DC-12.4 GHz

Frequency

DC-7.0

7.0 – 12.4

Insertion Loss (Max dB)

0.3

0.6

VSWR (Max)

1.25

1.6

Isolation (dB Min)

60

55

  Removed from brand new equipment which was scrapped, so not new in the strictest sense, but good as new.

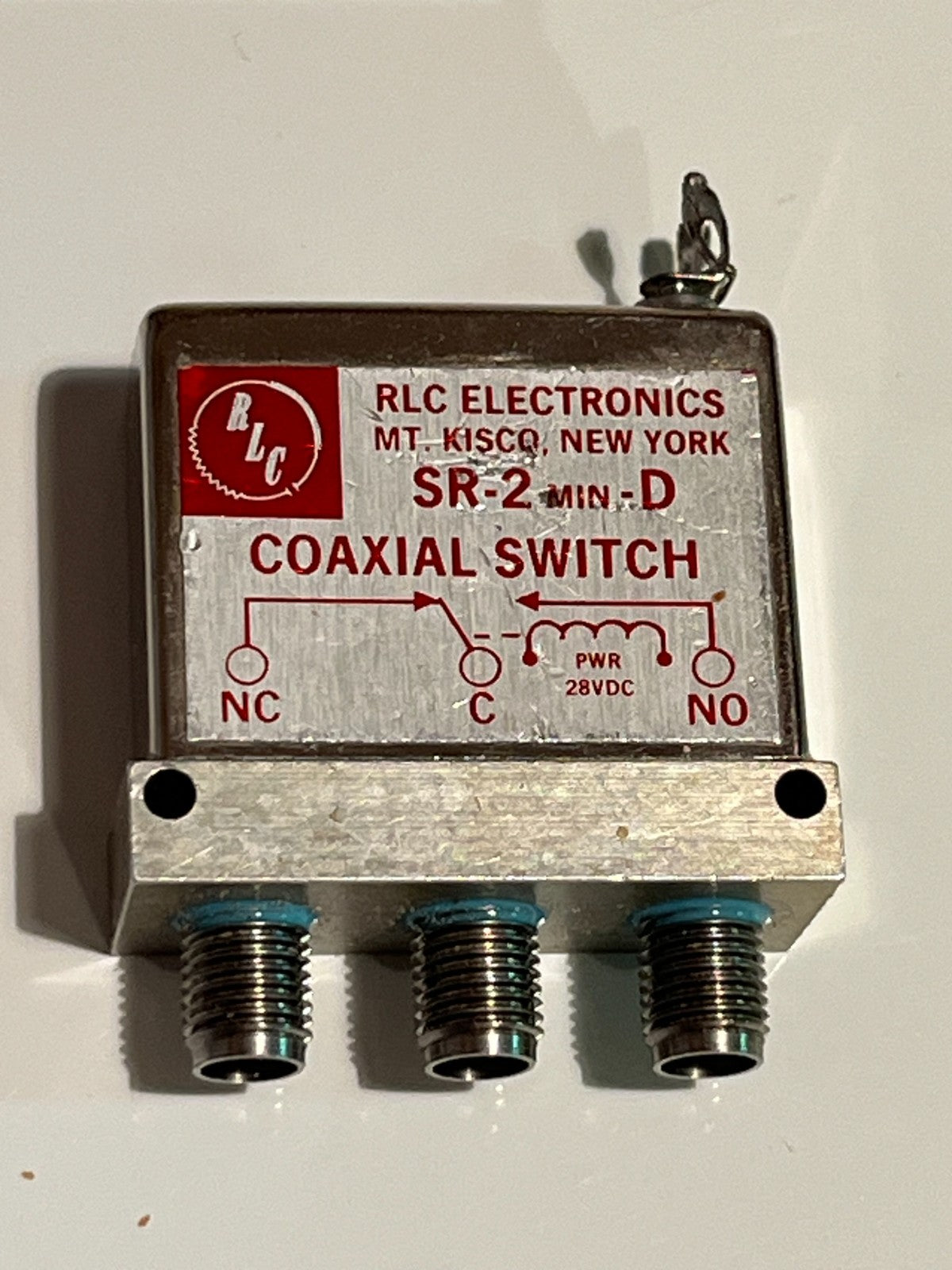

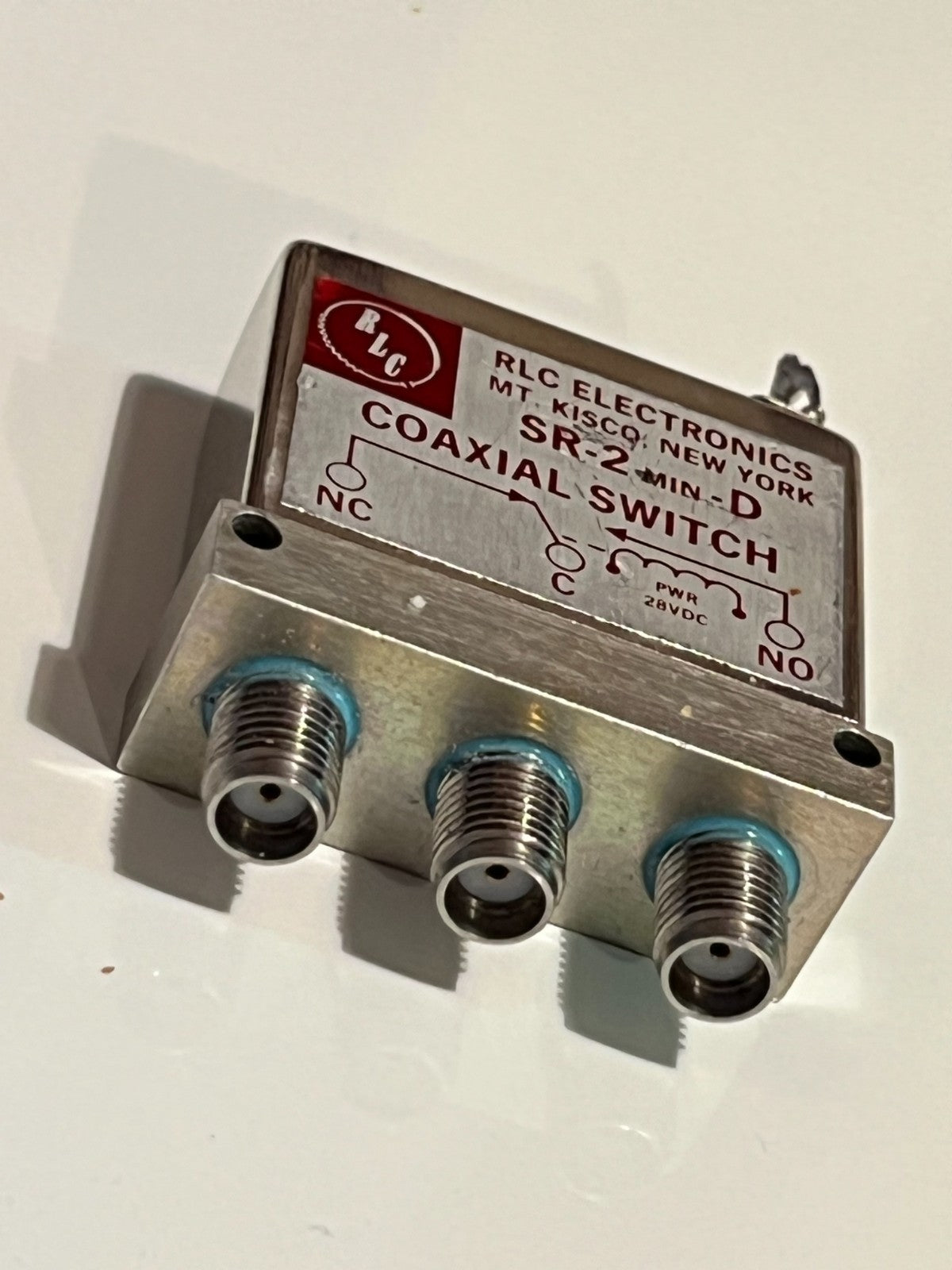

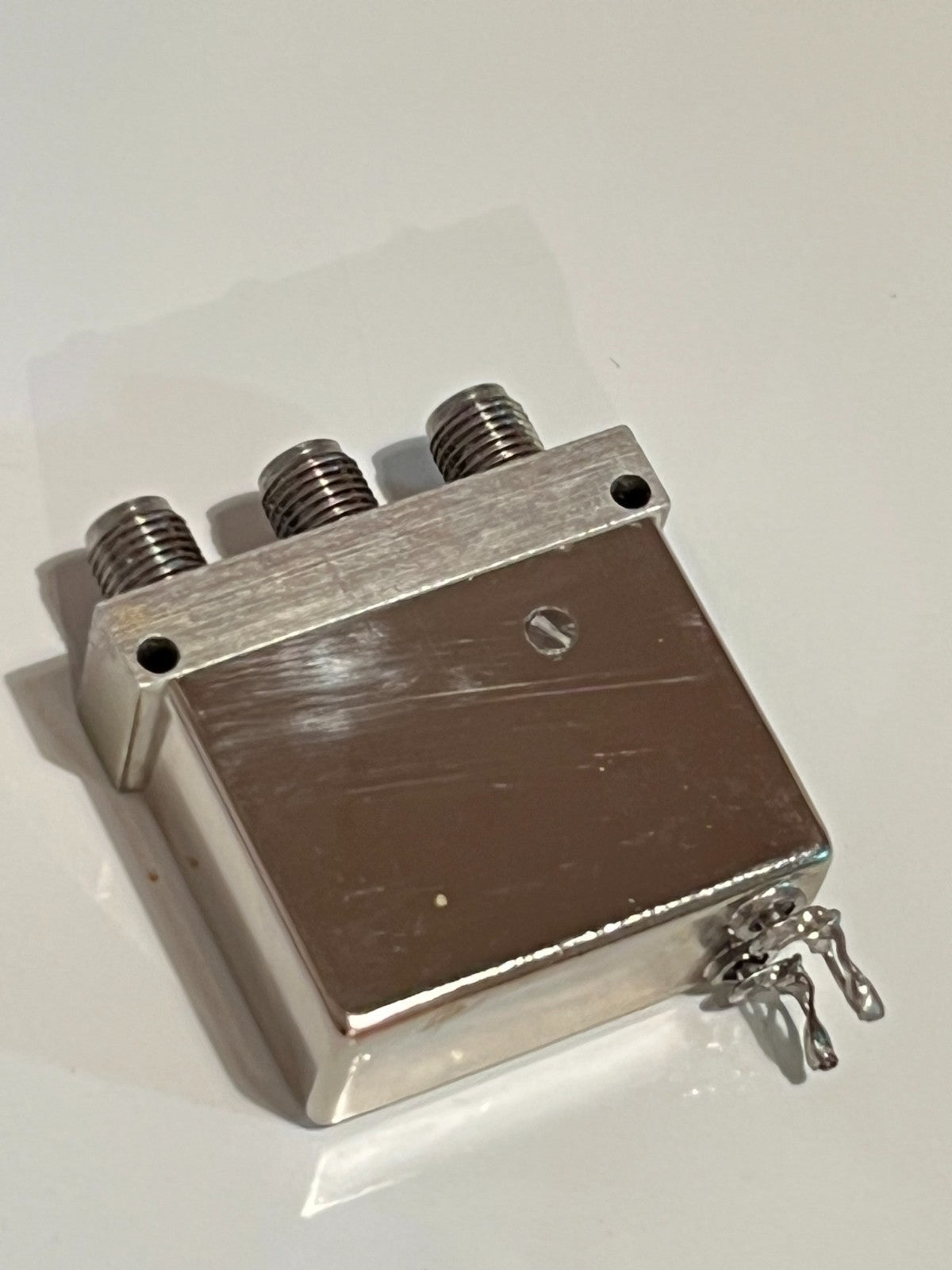

Supplied as shown in the photographs and priced each x1
