RF-LAMBDA RFSPDT67EMB-S COAXIAL RELAY SWITCH 1.85MM 67GHz 24Vdc SPDT AE1W9

RF-LAMBDA RFSPDT67EMB-S COAXIAL RELAY SWITCH 1.85MM 67GHz 24Vdc SPDT AE1W9

£1,700.00
£1,700.00
Sale Sold out
Taxes included.

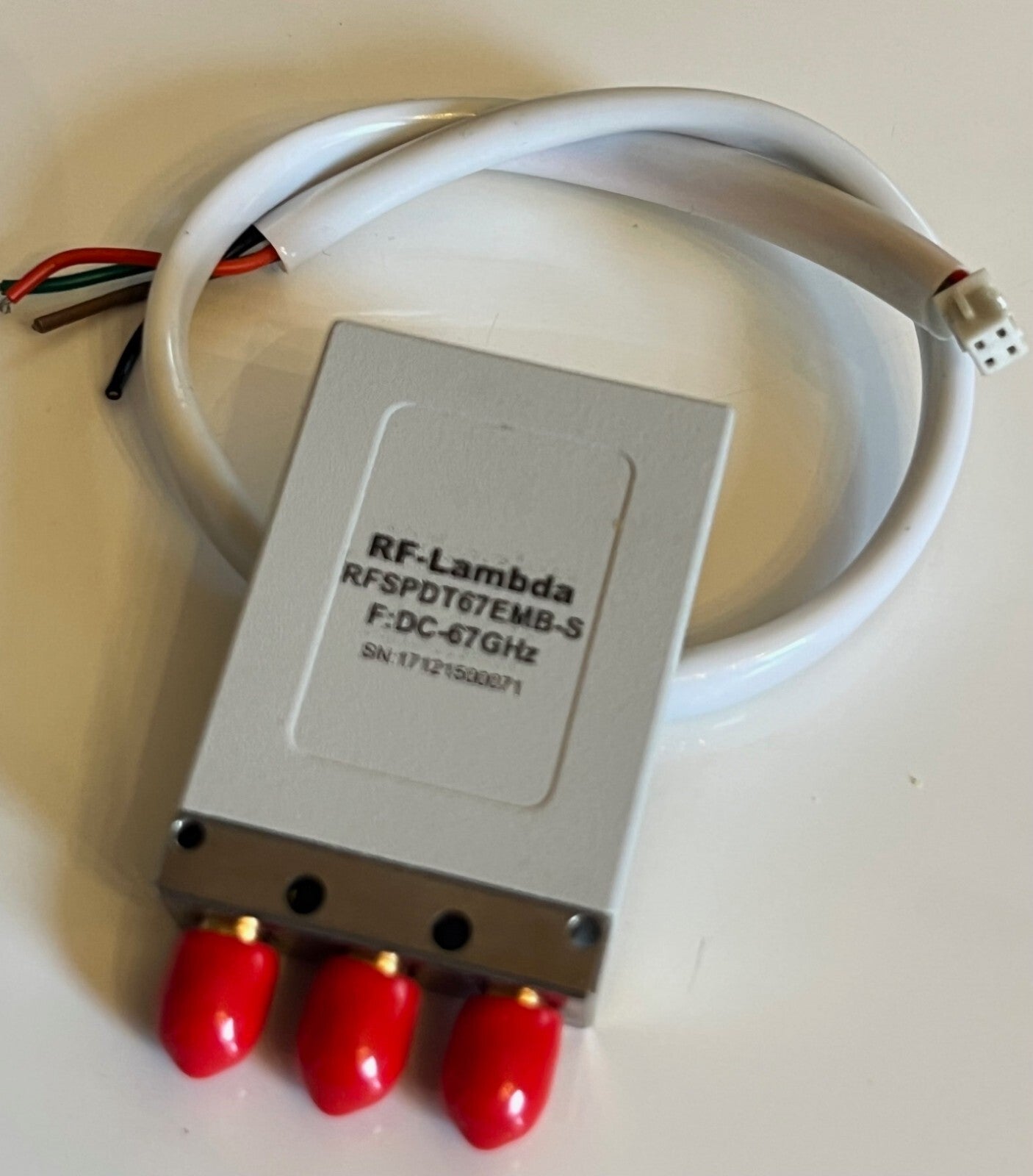

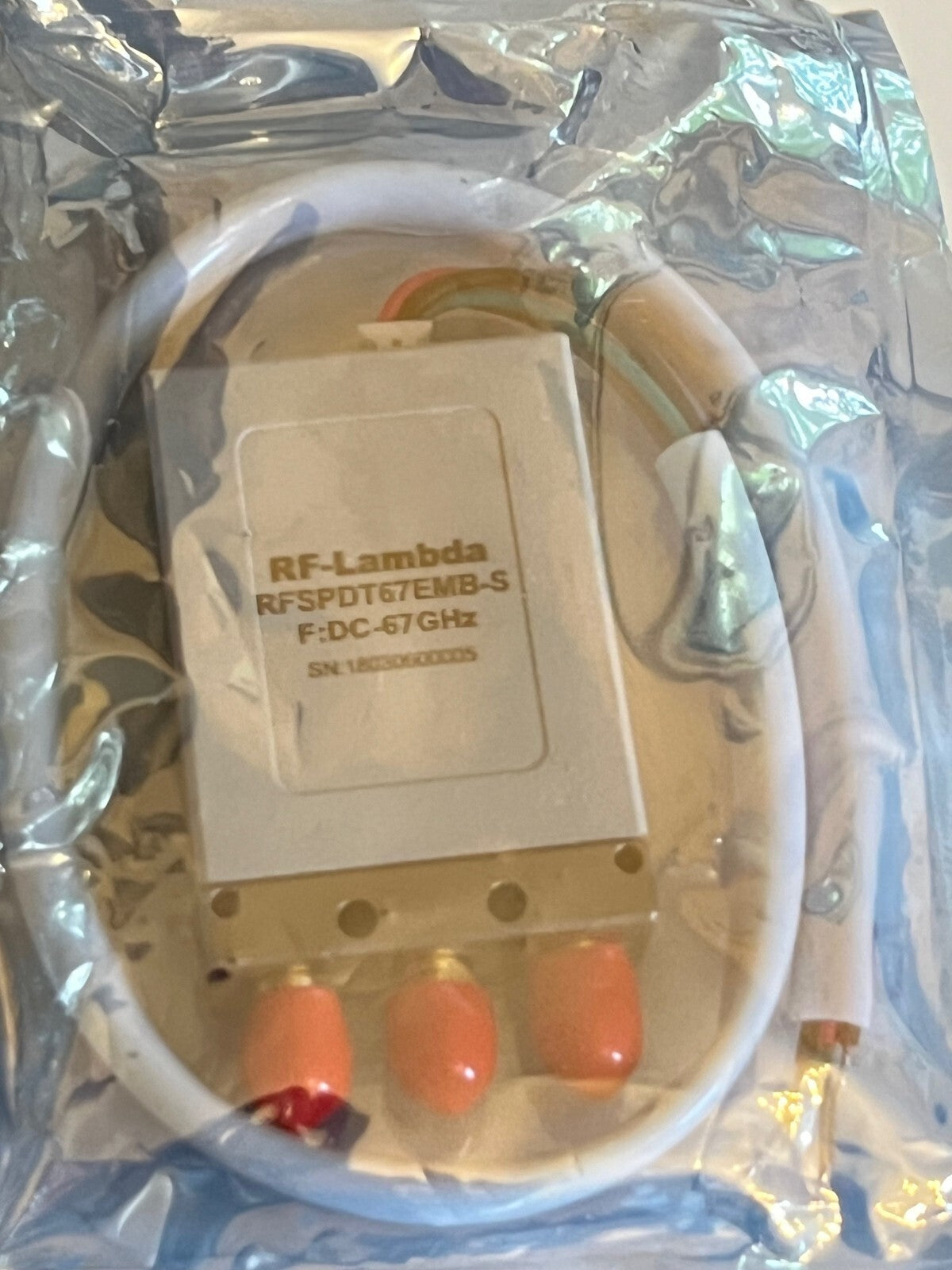

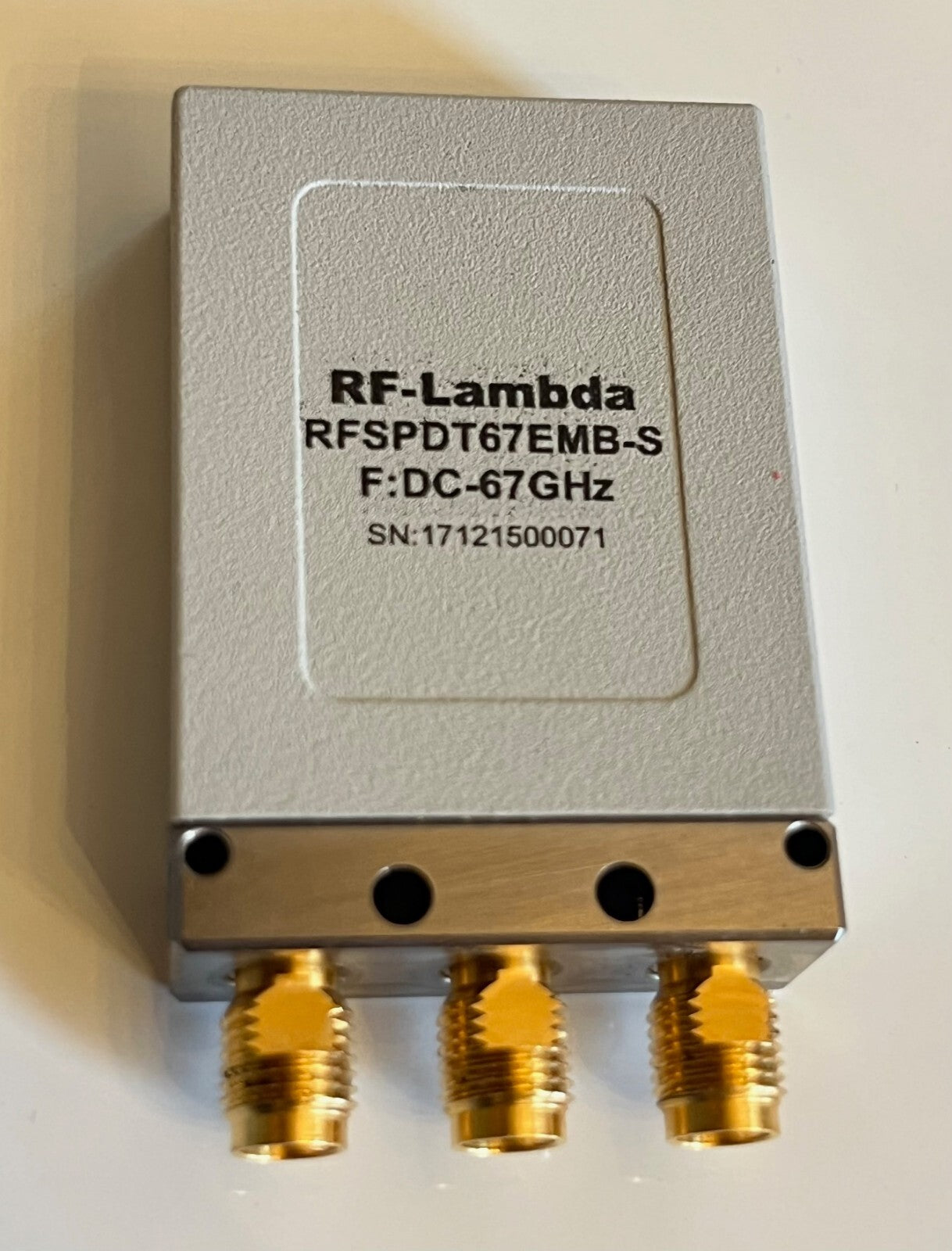

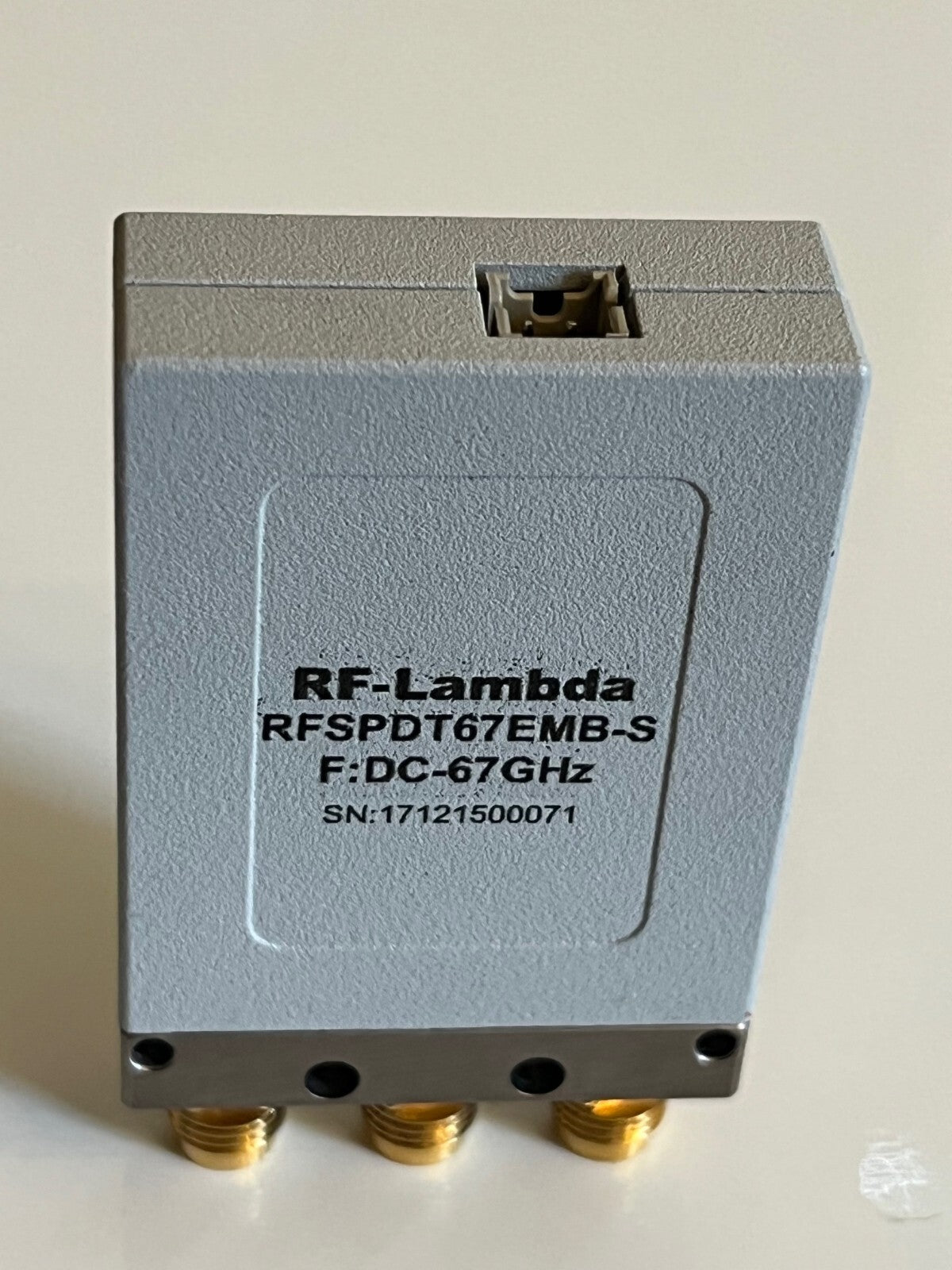

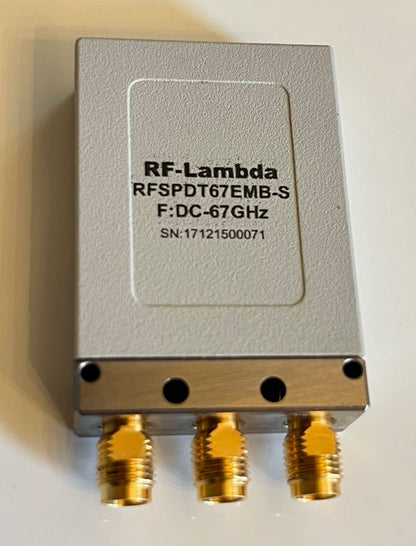

RF-LAMDA 67GHz RF COAXIAL RELAY

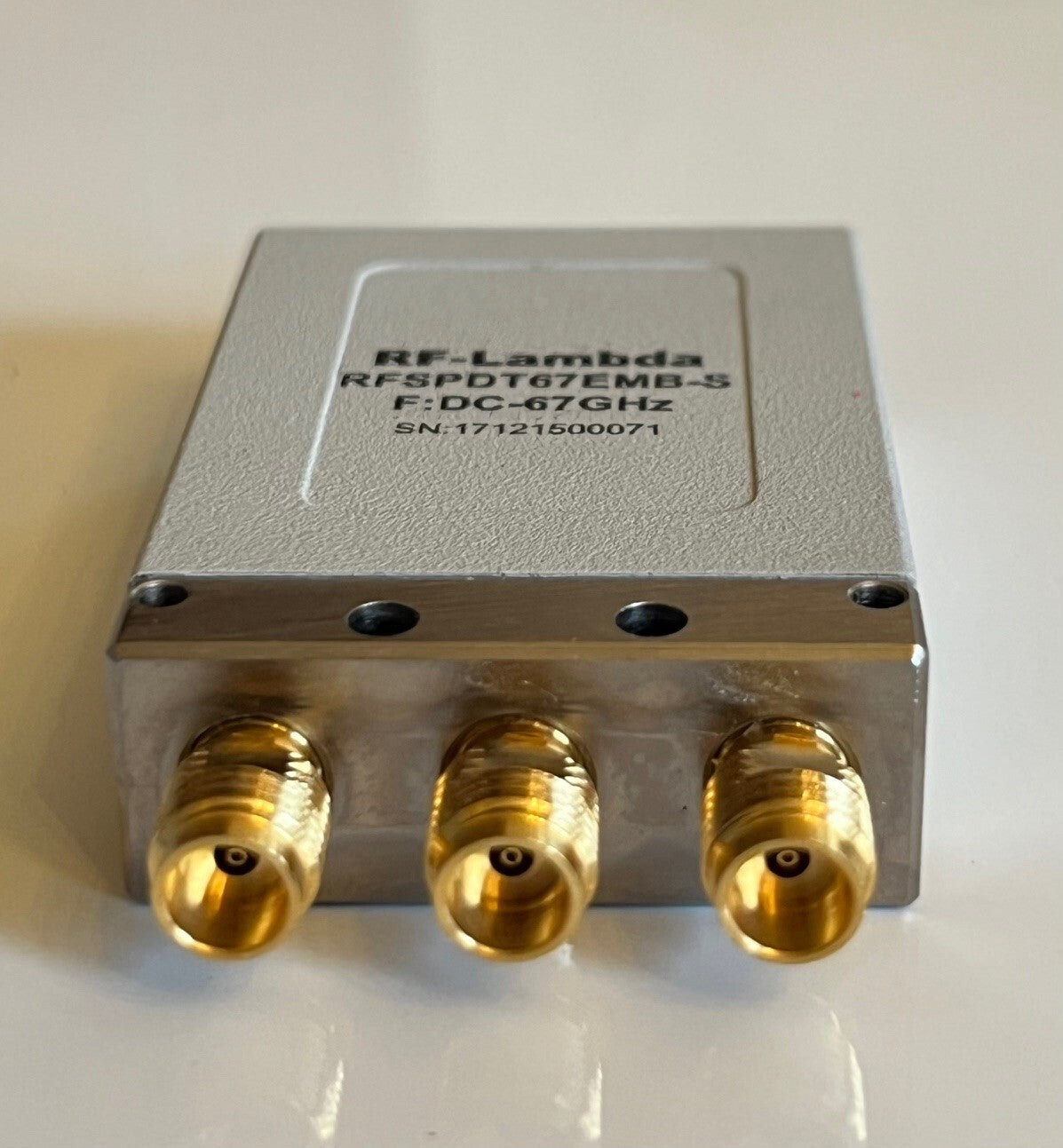

Manufactured by RF-Lambda as their part number RFSPDT67EMB-S, this is an industry standard single pole changeover coaxial relay with 1.85mm female connectors and a 20 - 28V coil, DC-67Ghz.

RFSPDT67EMB-S is a SPDT reflective electro-mechanical switch with a frequency range of DC to 67GHz.

The power of this switch is 1W Max. The typical insertion loss is 0.8dB and the Isolation is 70 dB with the speed of 20ms.

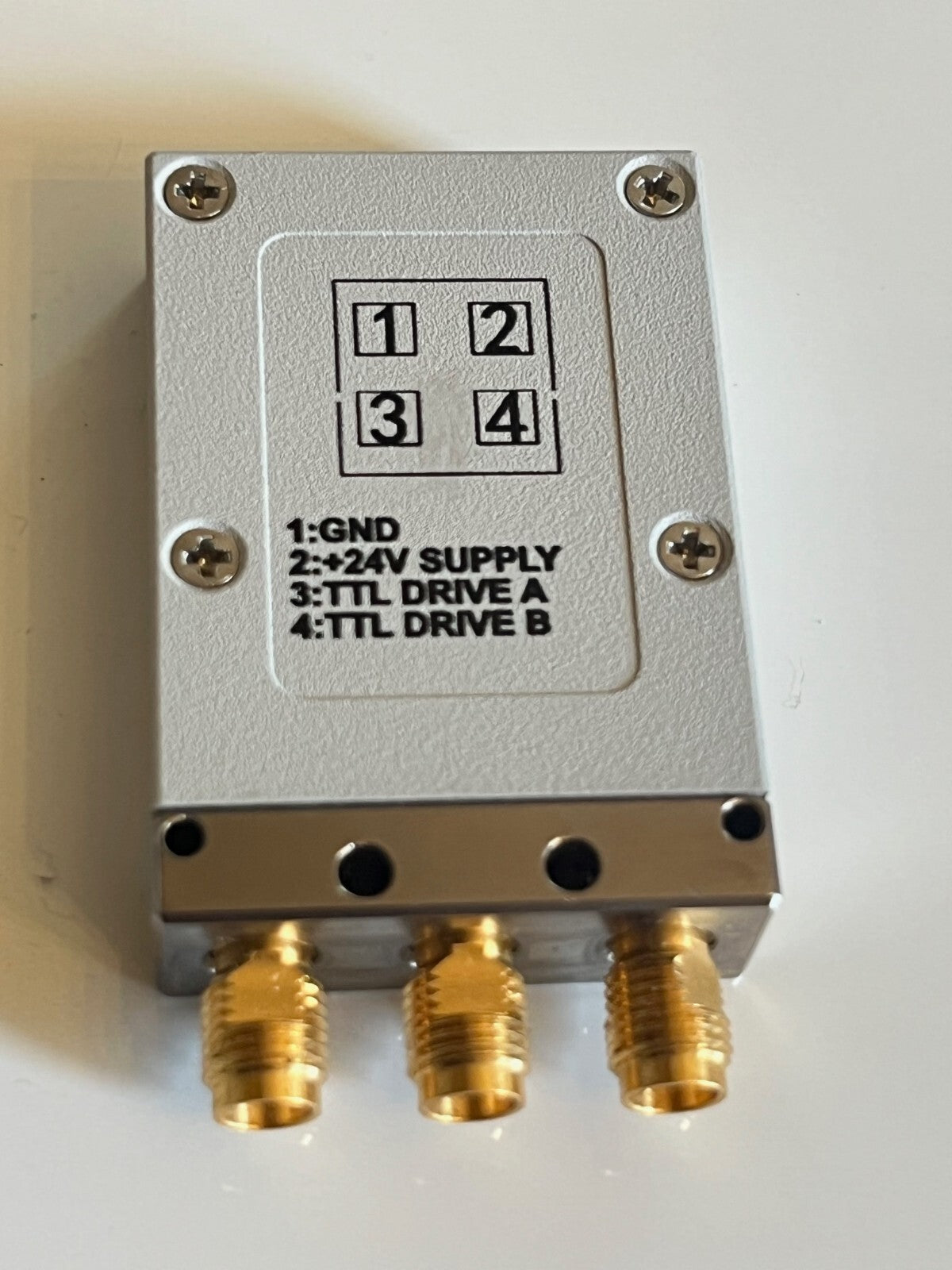

This electromechanical switch works with a +24 VDC power supply.

The repeatability and reliability of this switch is vital to ATS measurement accuracy and can cut the cost of ownership by reducing calibration cycles.

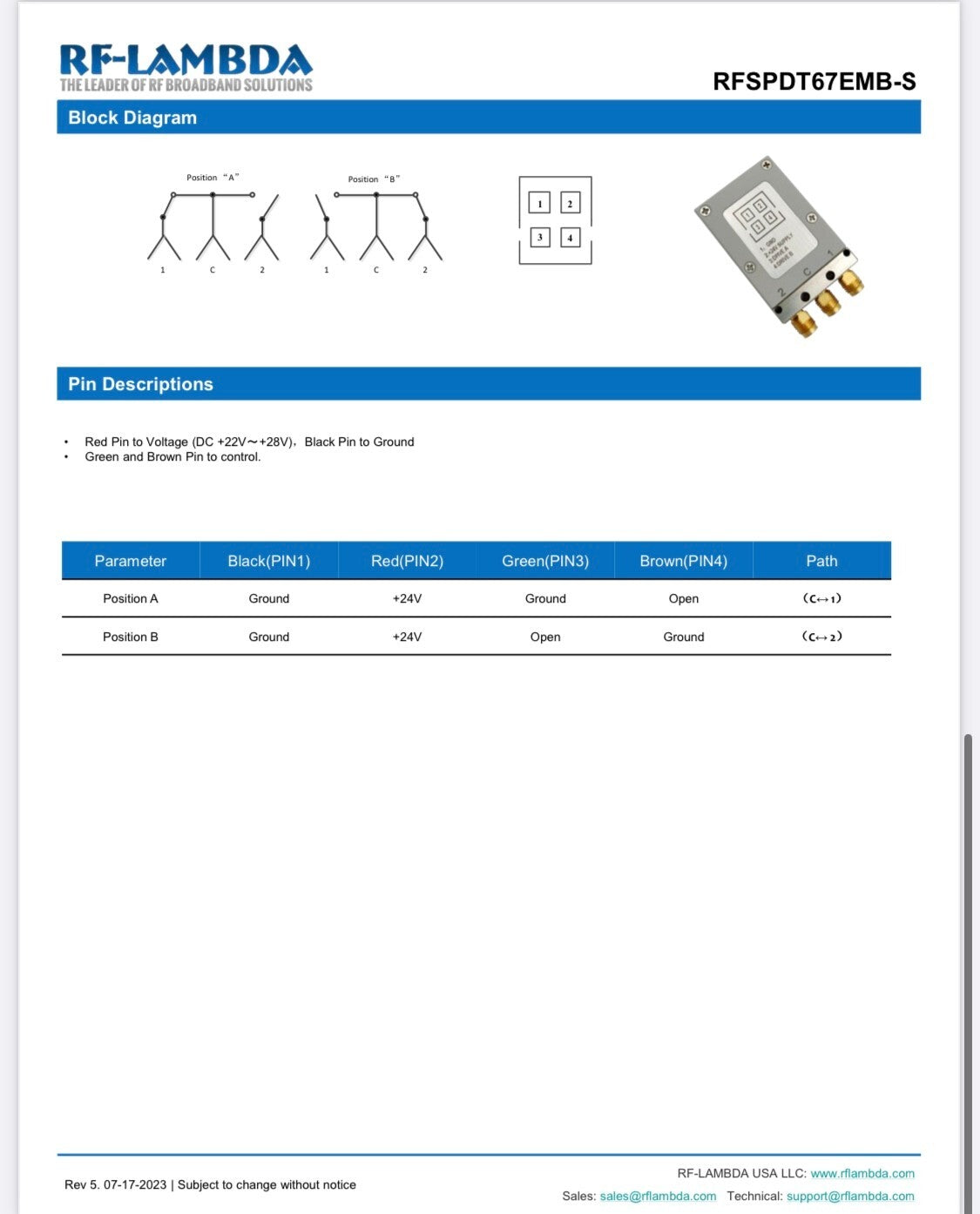

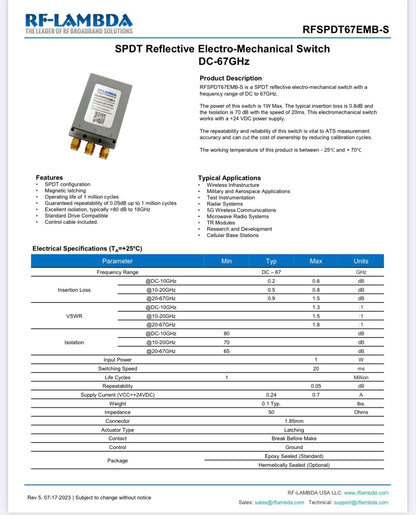

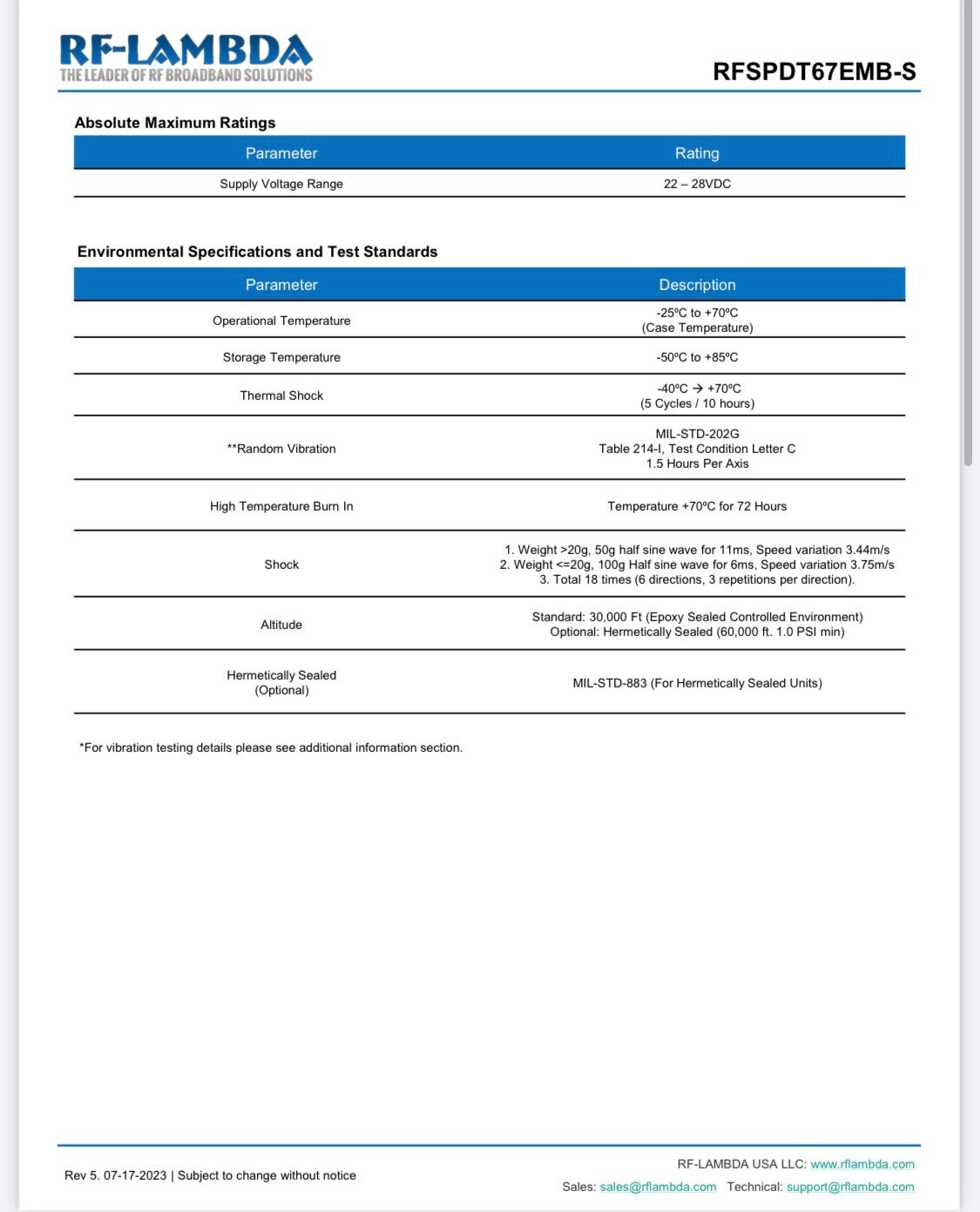

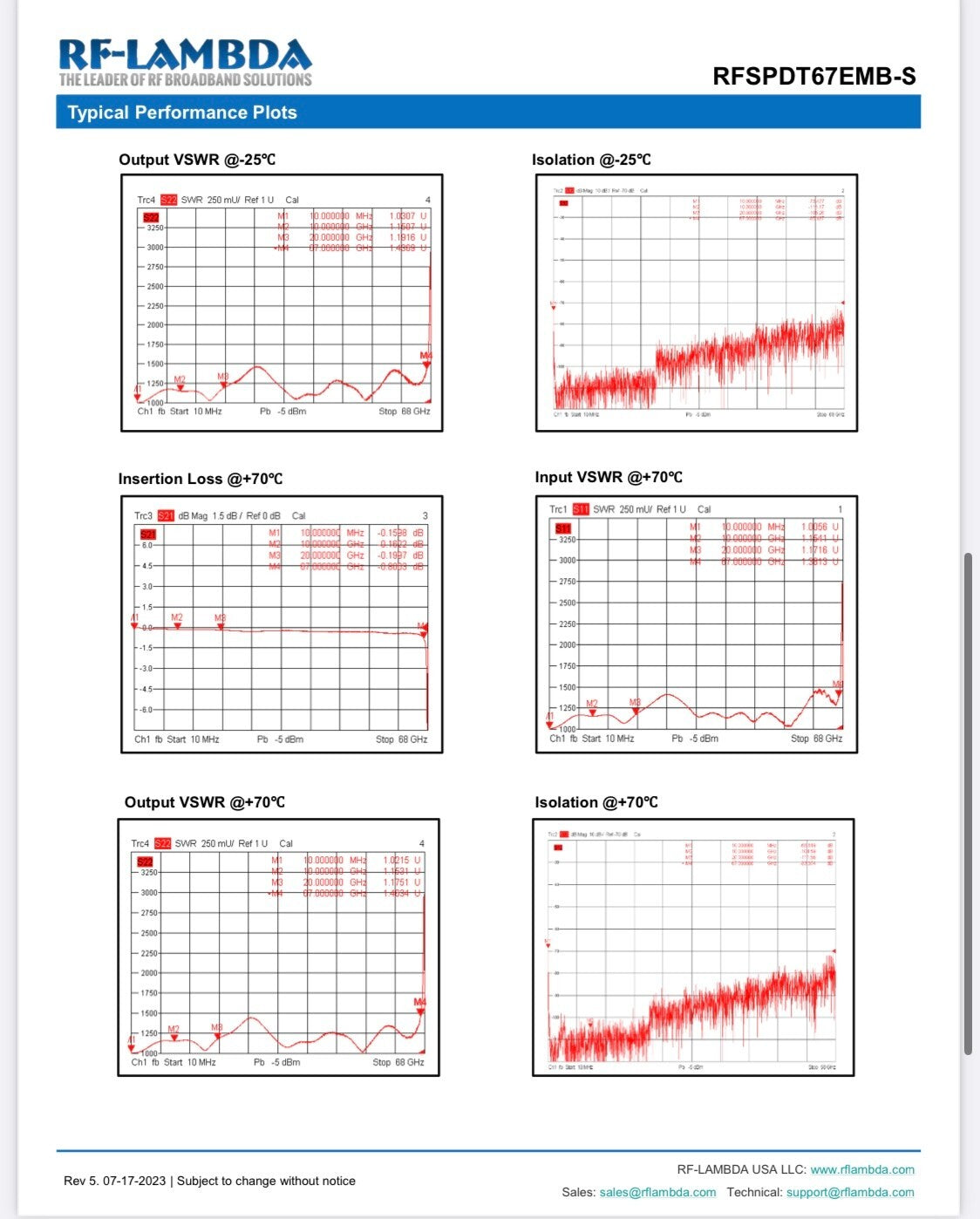

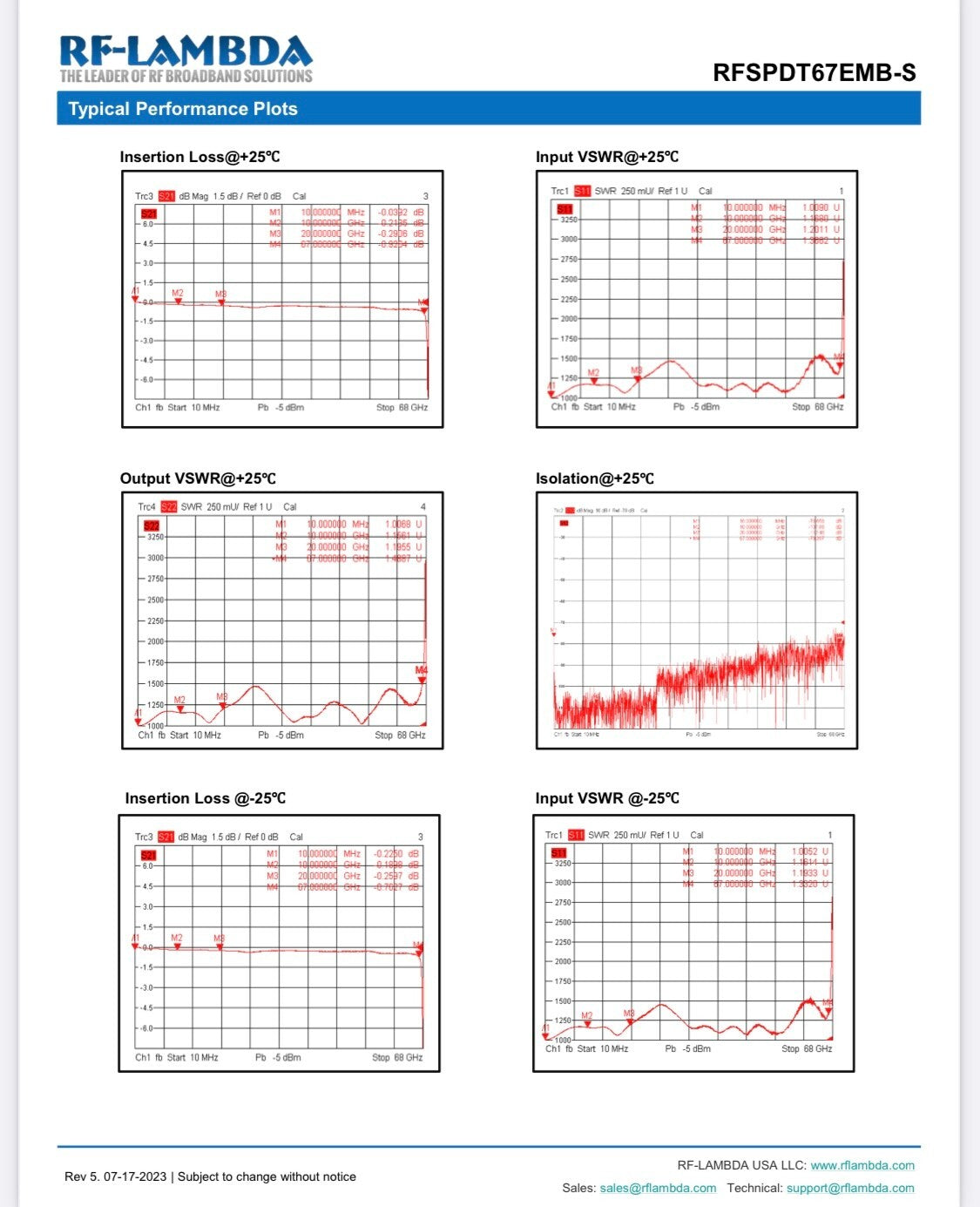

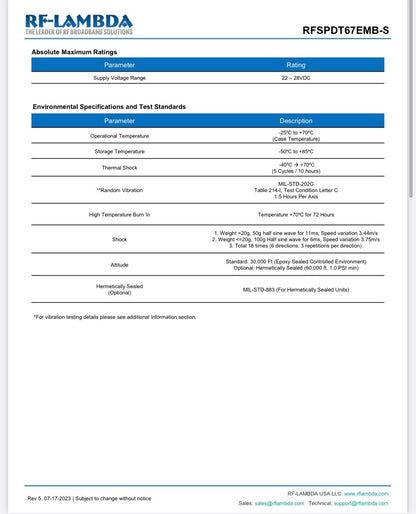

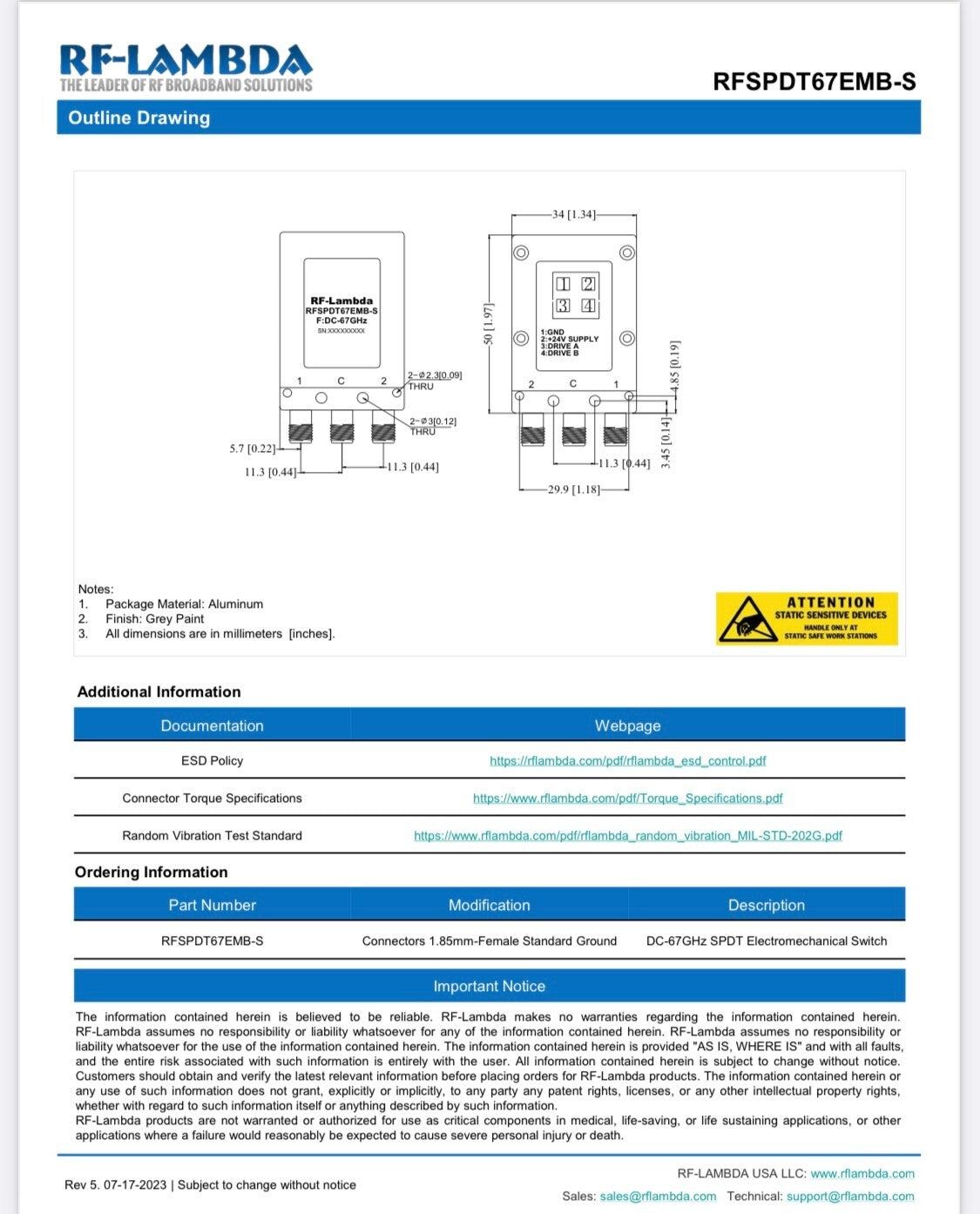

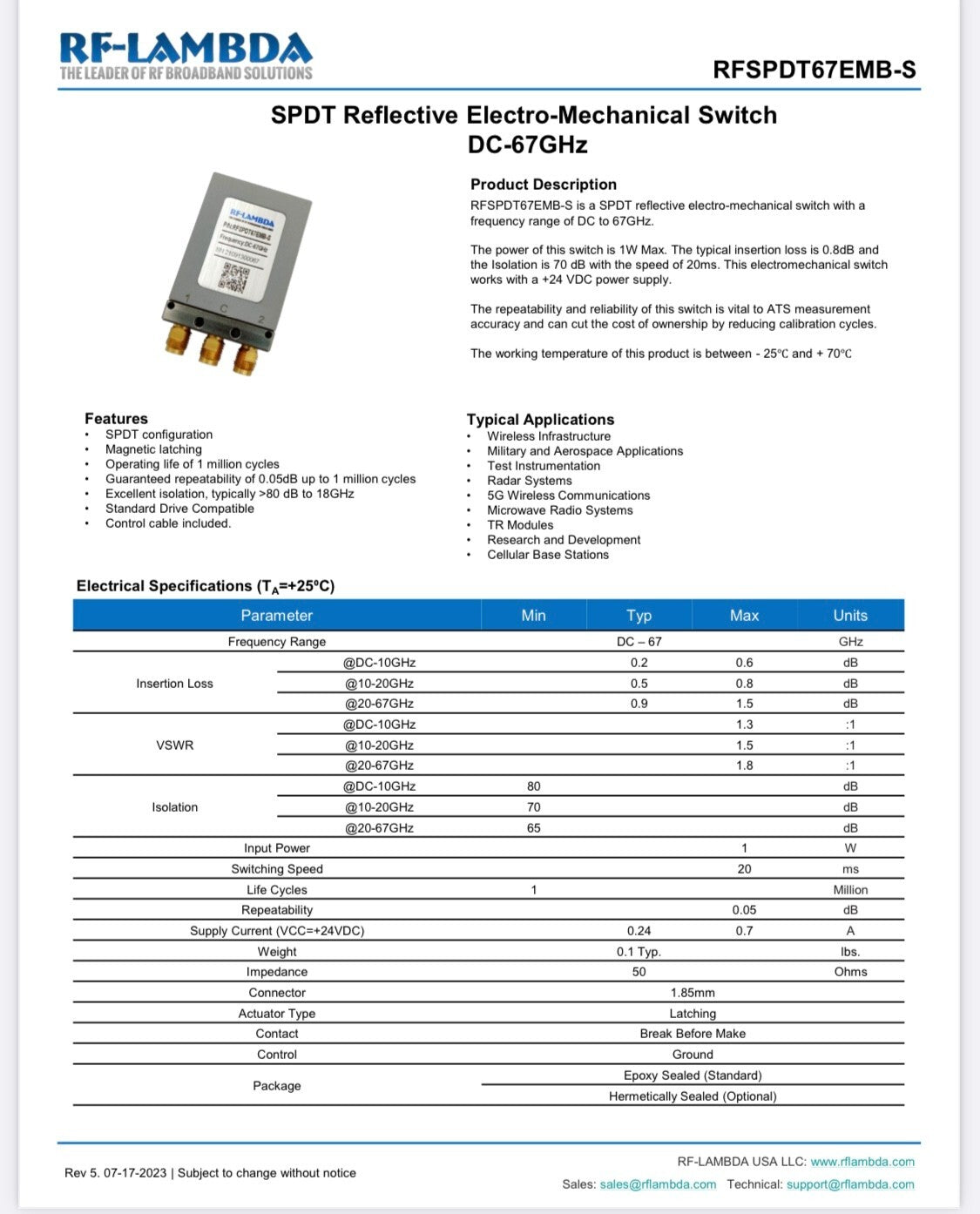

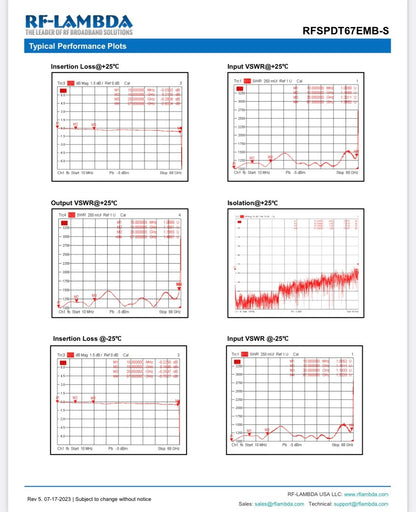

Full Technical details can be seen in the datasheet reproduced in the photos above.

  These came to us from a closed European OEM research and development lab, they have had little or no use at all and are supplied in perfect condition, at a fraction of the distributors price.
