RF-LAMDA 50GHz RF COAXIAL RELAY

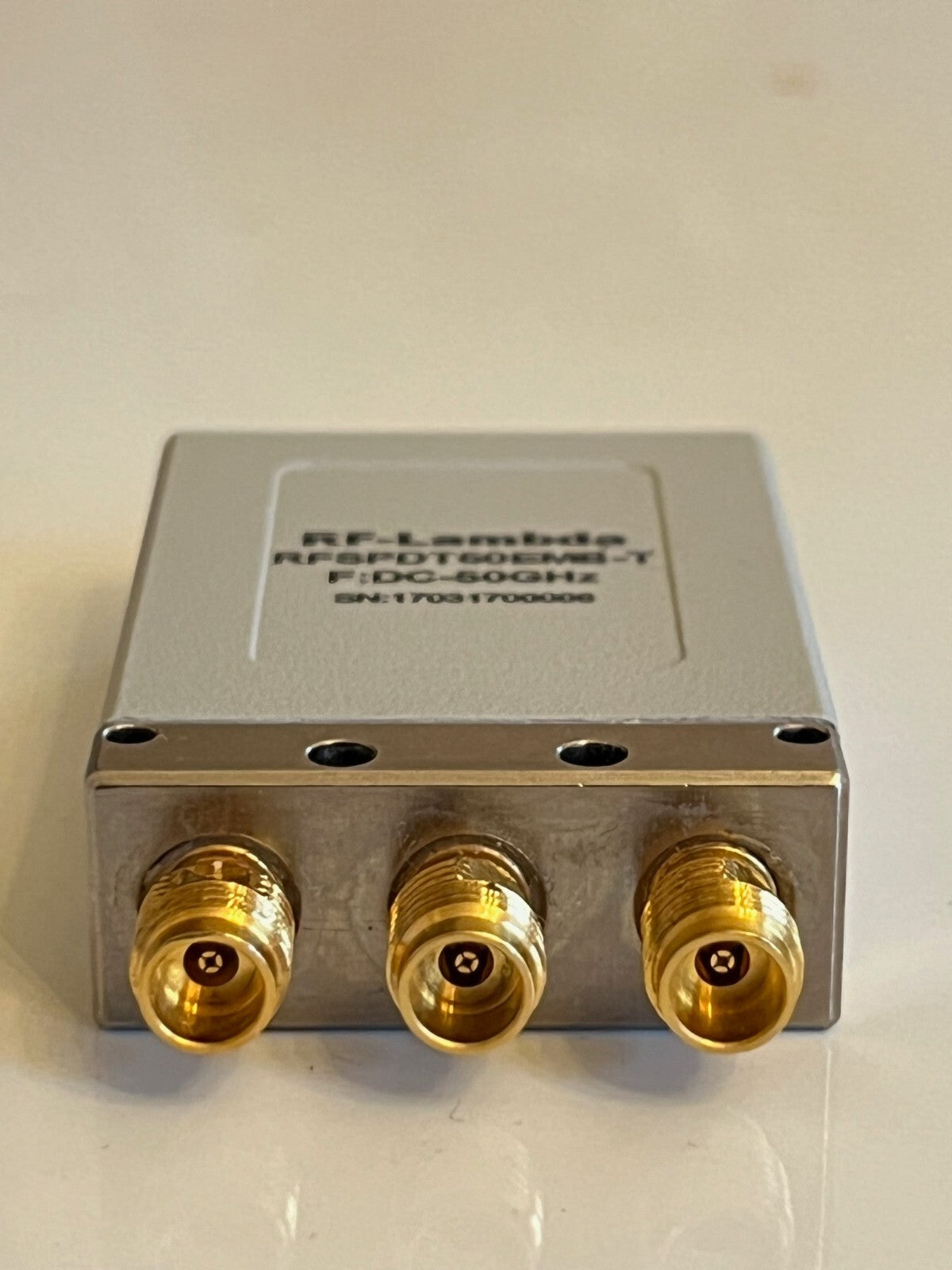

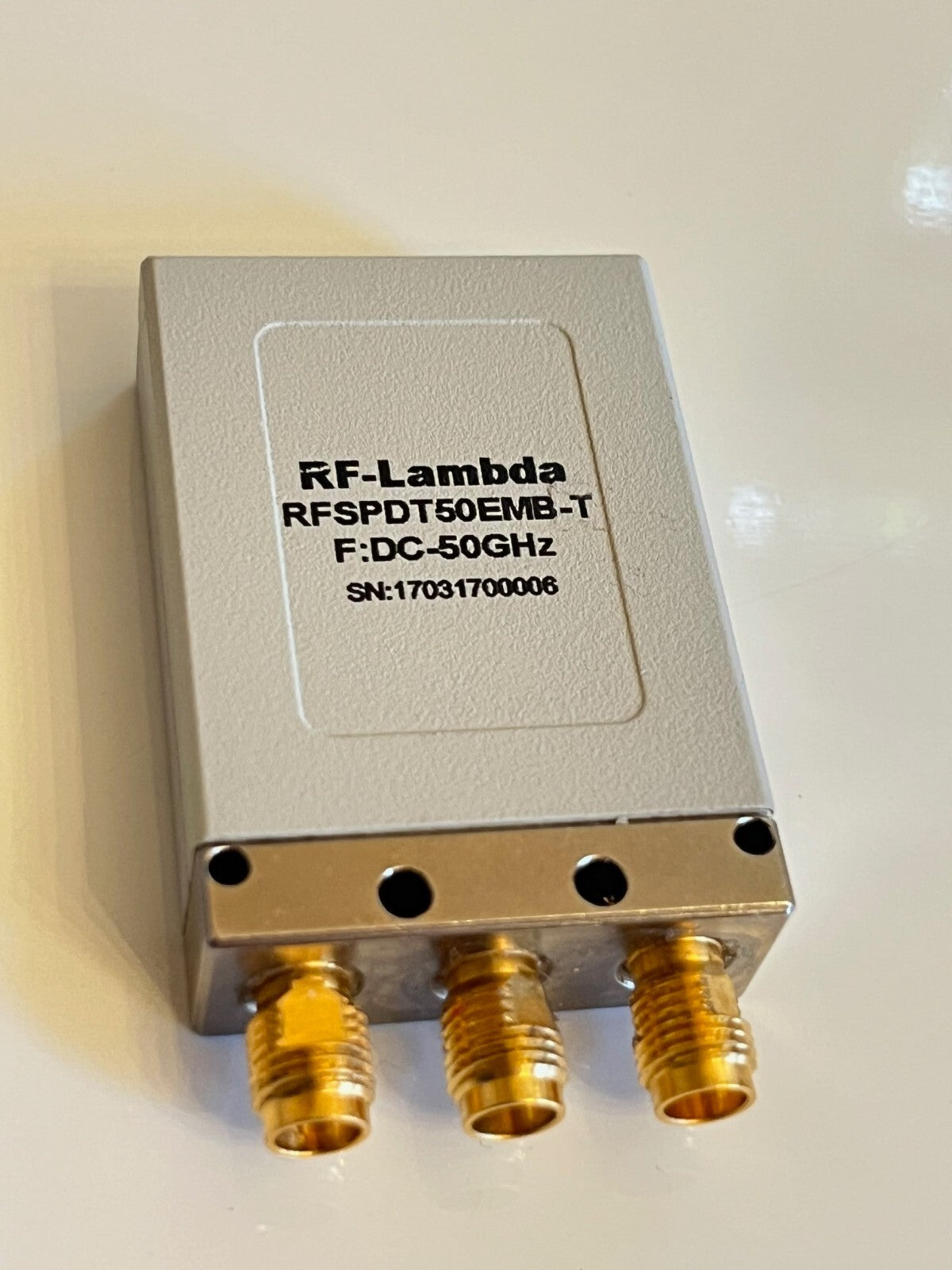

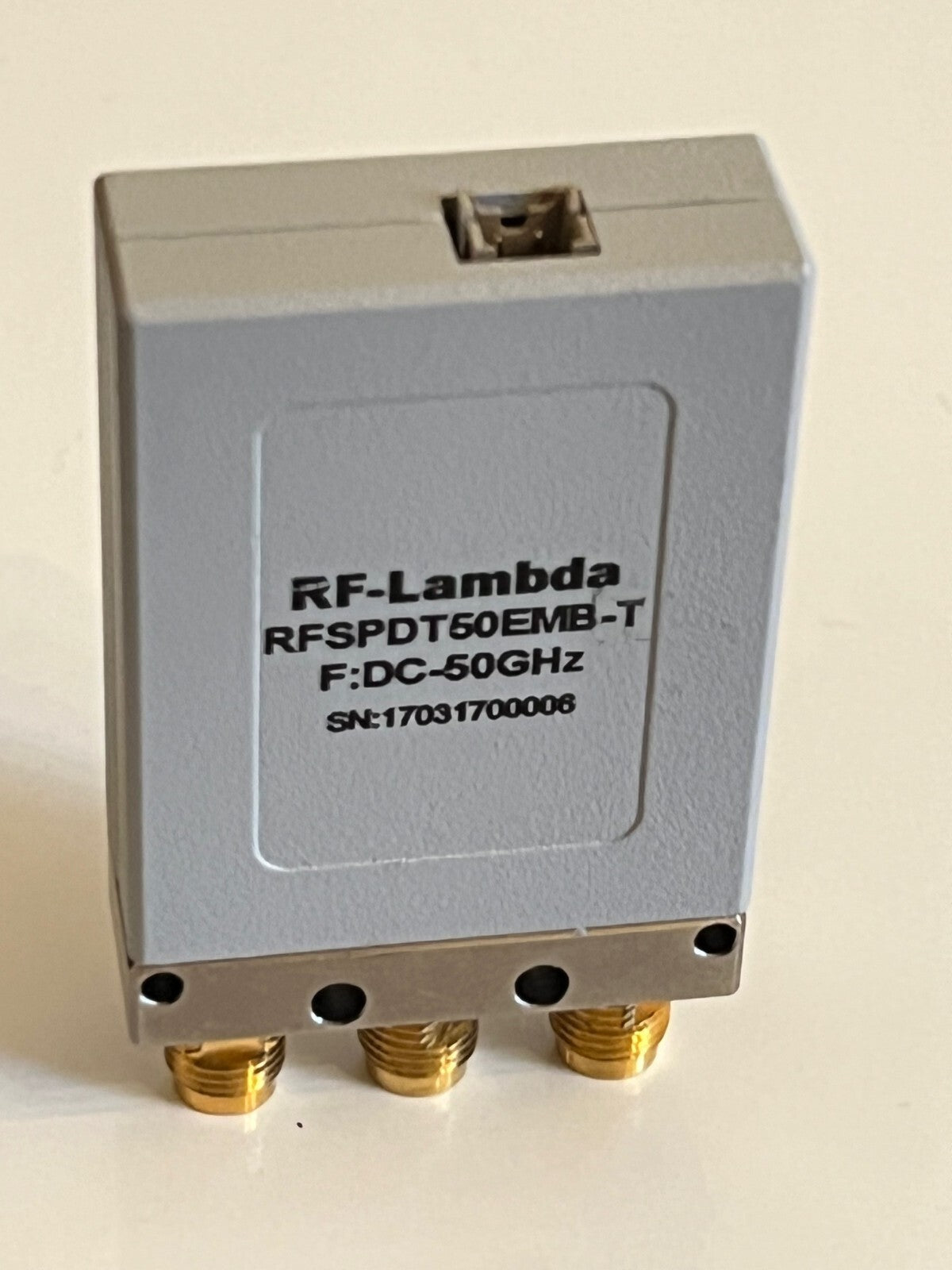

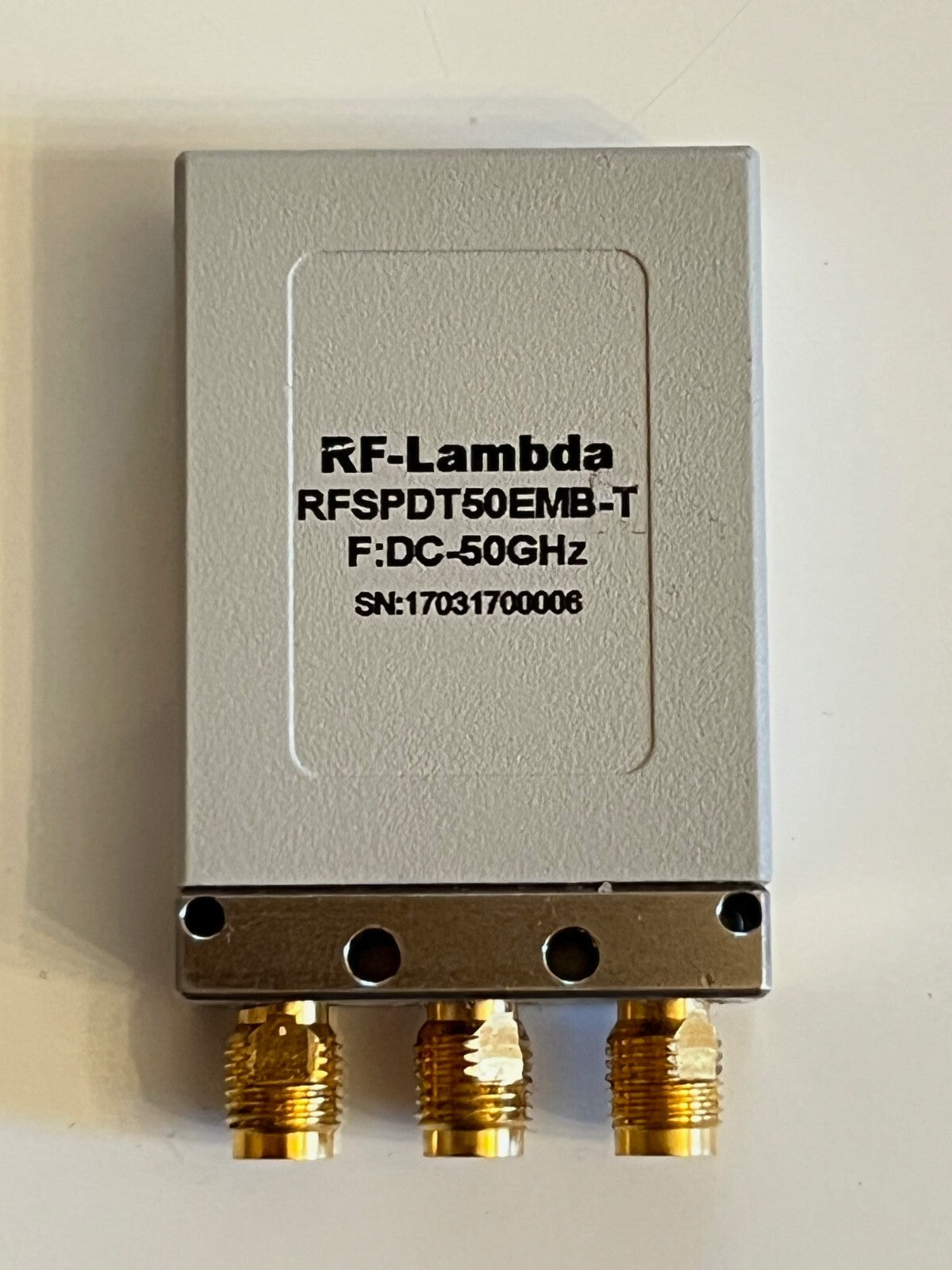

Manufactured by RF-Lambda as their part number RFSPDT50EMB-T, this is an industry standard single pole changeover coaxial relay with 2.4mm female connectors and a 20 - 28V coil, DC-50Ghz, with TTL control option.

RFSPDT50EMB-T is a SPDT reflective electro-mechanical switch with a frequency range of DC to 50GHz.

The power of this switch is 2W Max. The typical insertion loss is 0.8dB and the Isolation is 77 dB with the speed of 20ms.

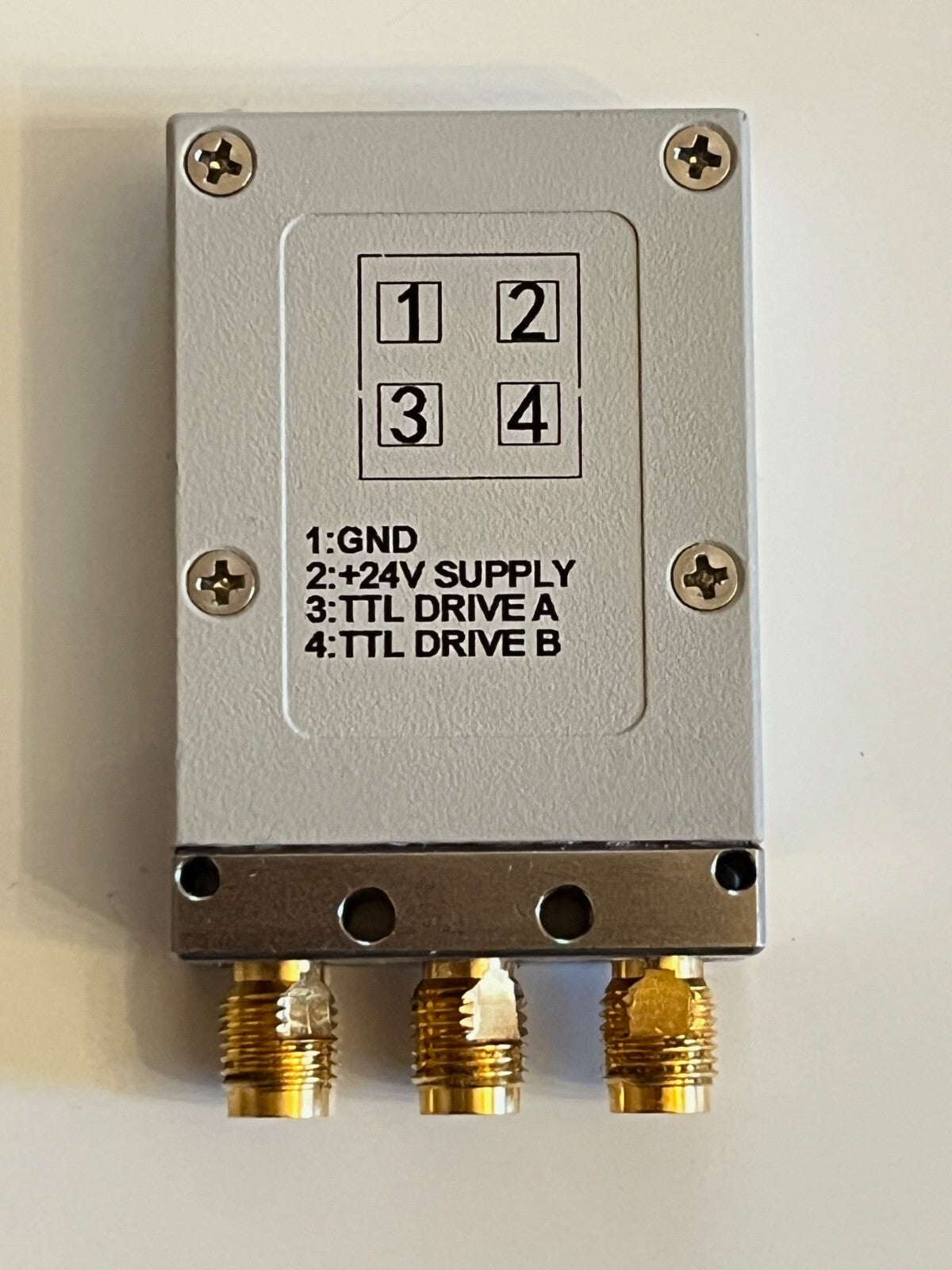

This electromechanical switch works with a +24 VDC power supply.

The repeatability and reliability of this switch is vital to ATS measurement accuracy and can cut the cost of ownership by reducing calibration cycles.

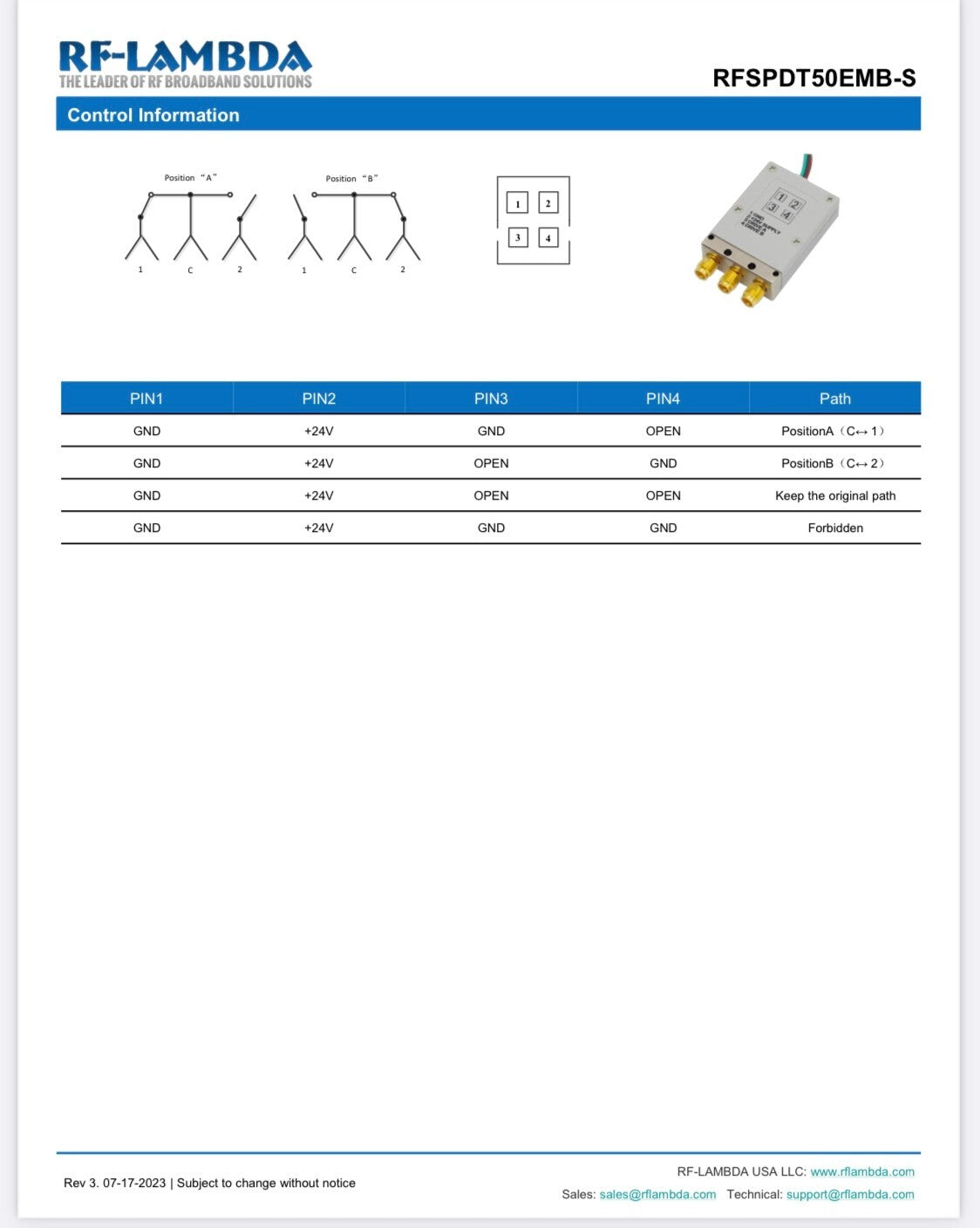

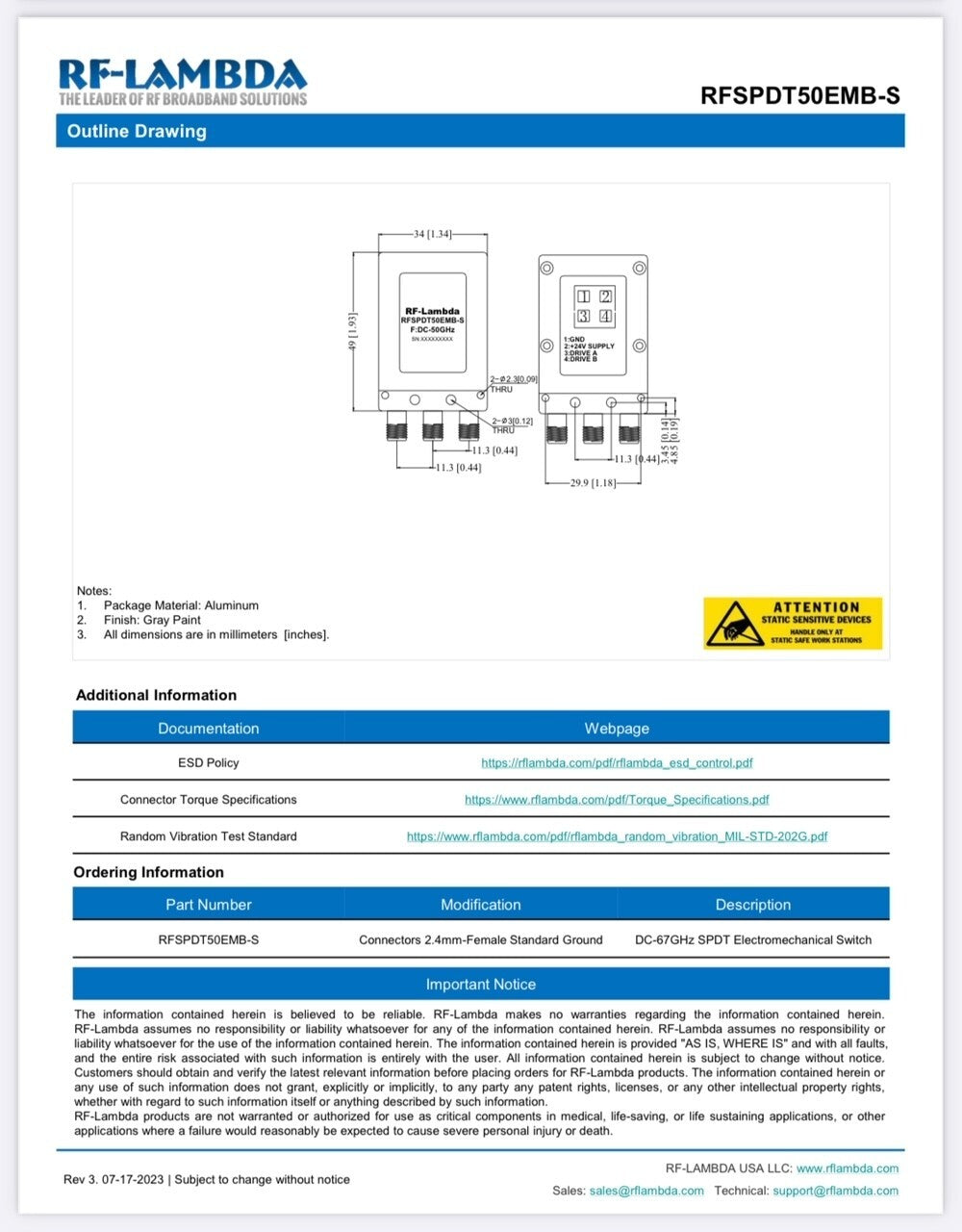

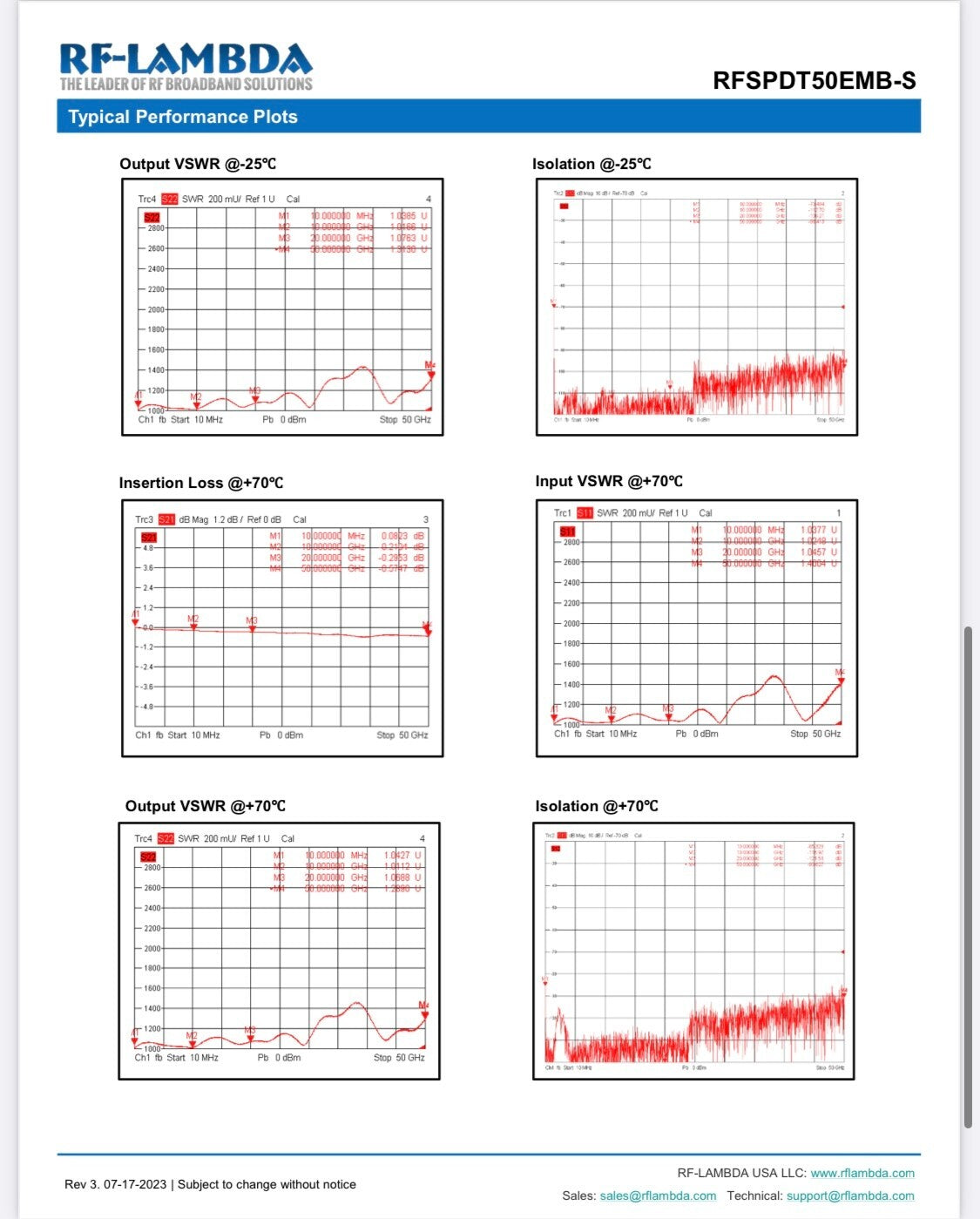

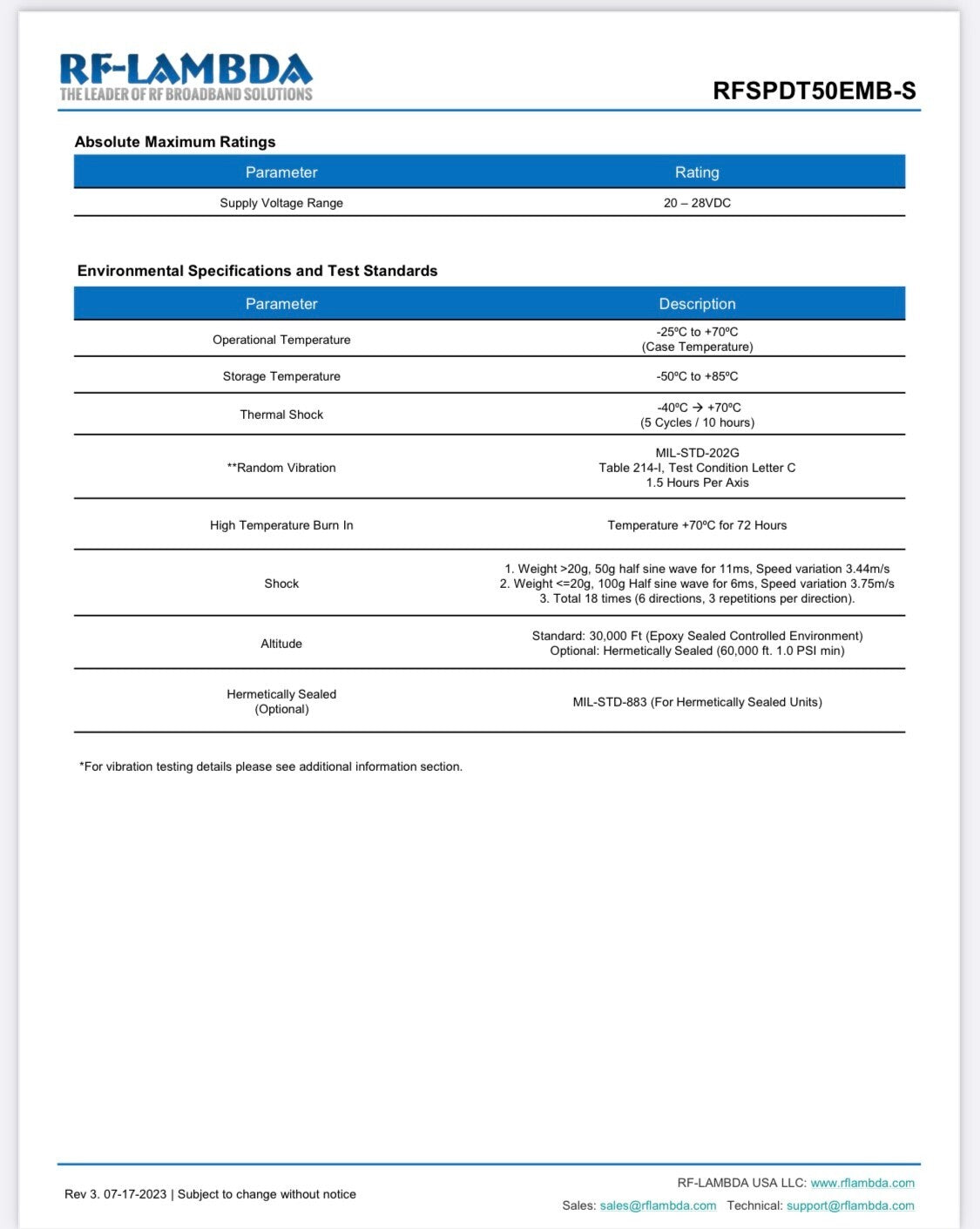

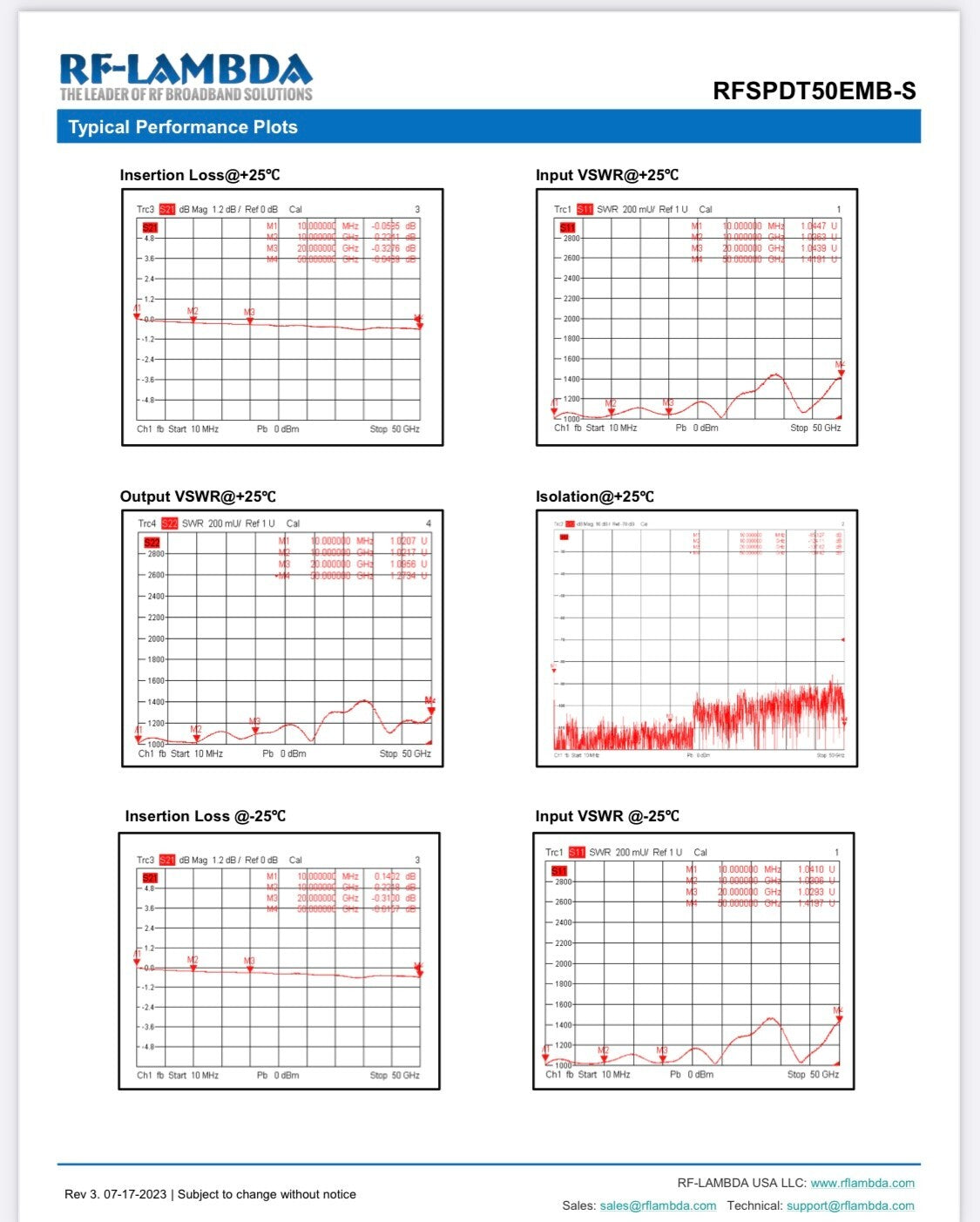

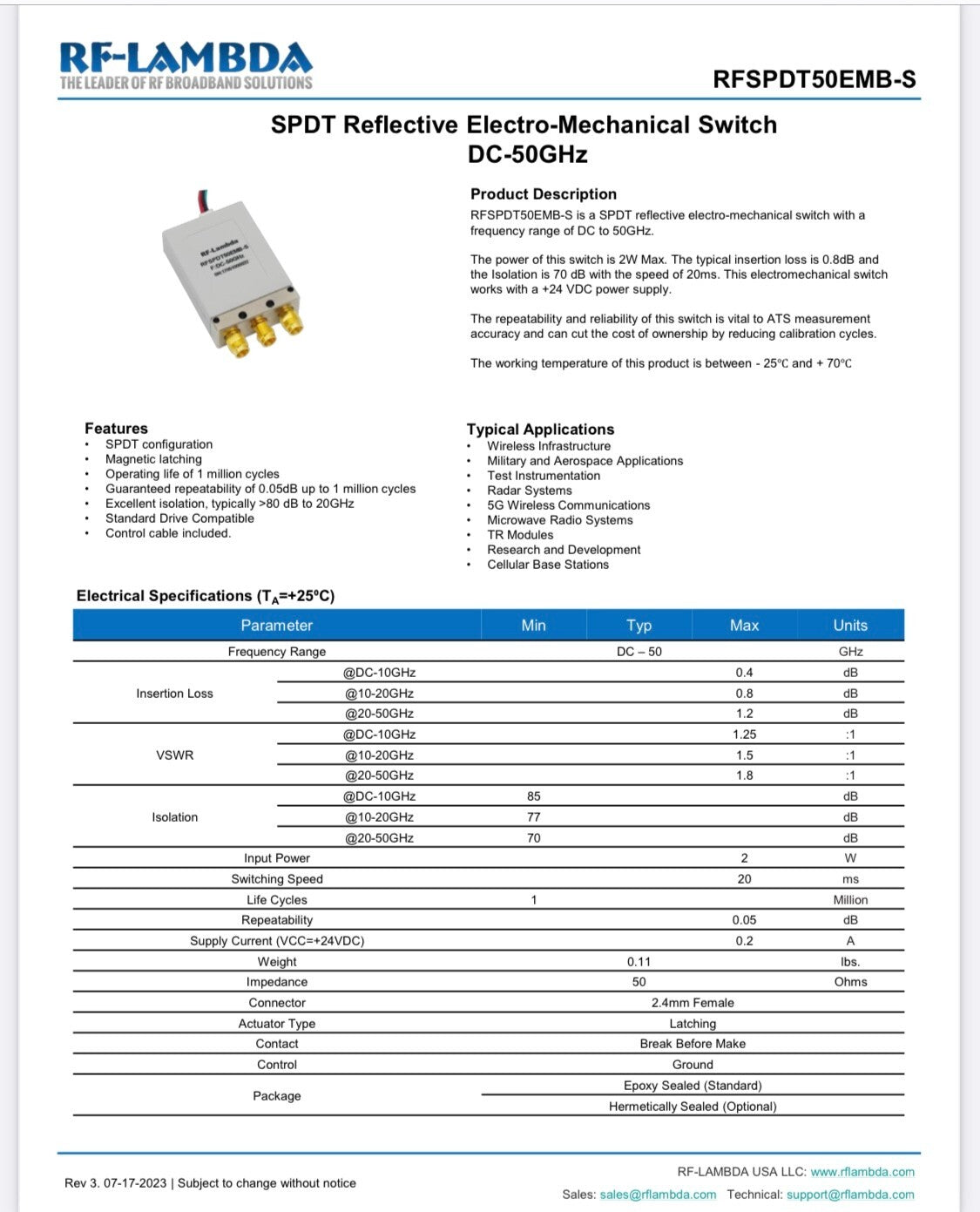

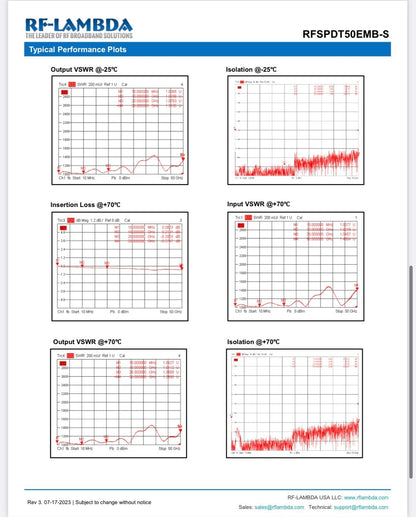

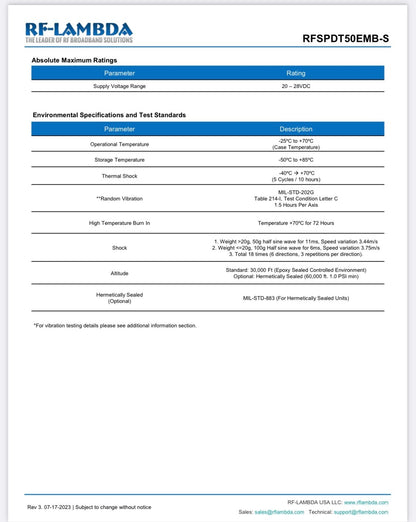

Full Technical details can be seen in the datasheet reproduced in the photos above.

  These came to us from a closed European OEM research and development lab, they have had little or no use at all and are supplied in perfect condition, at a fraction of the distributors price.
