RADIALL N TYPE CHASSIS FEMALE - LONG INSULATED PIN BEST QUALITY SOCKET blb184

RADIALL N TYPE CHASSIS FEMALE - LONG INSULATED PIN BEST QUALITY SOCKET blb184

£7.00
£7.00
Sale Sold out
Taxes included.

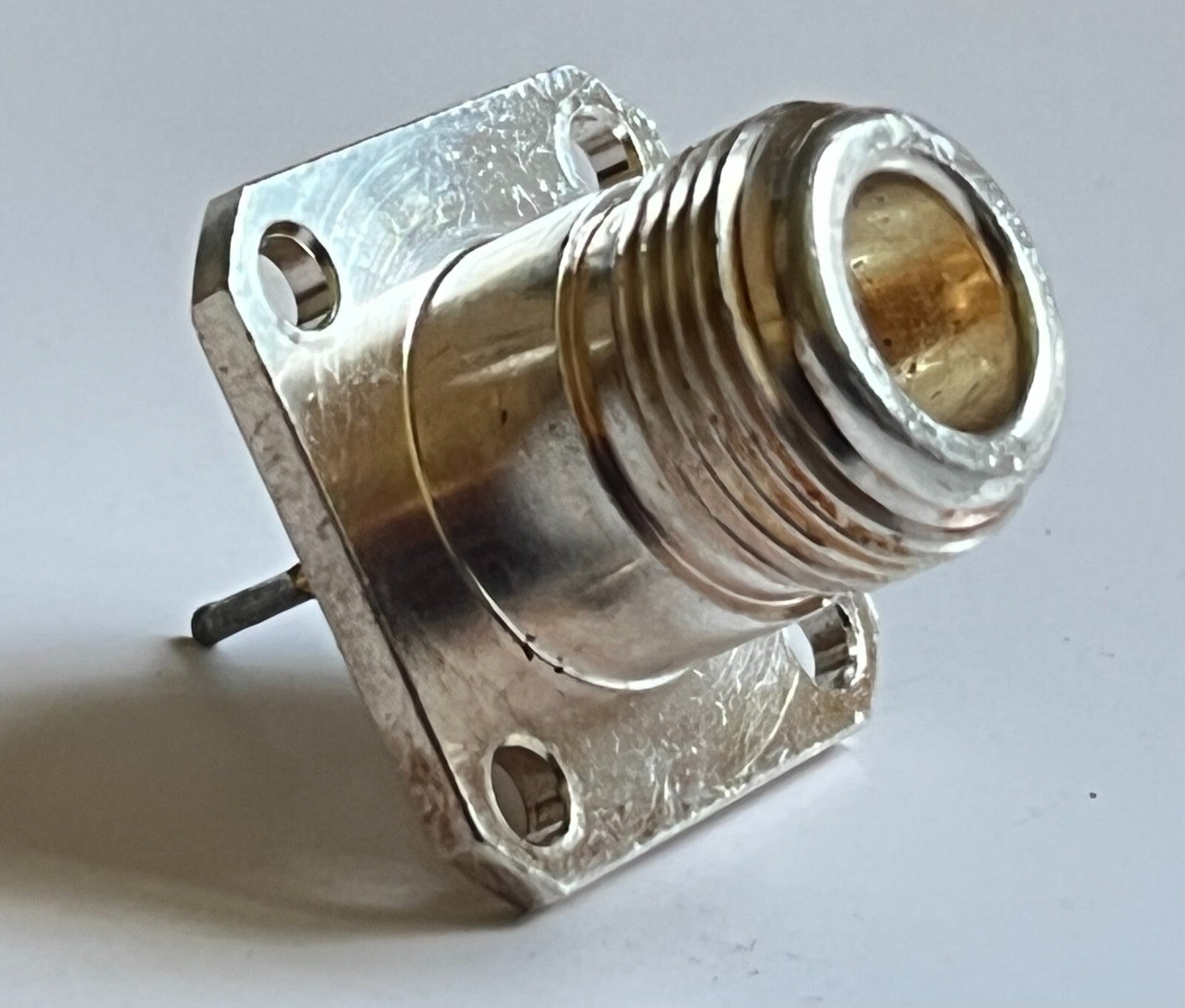

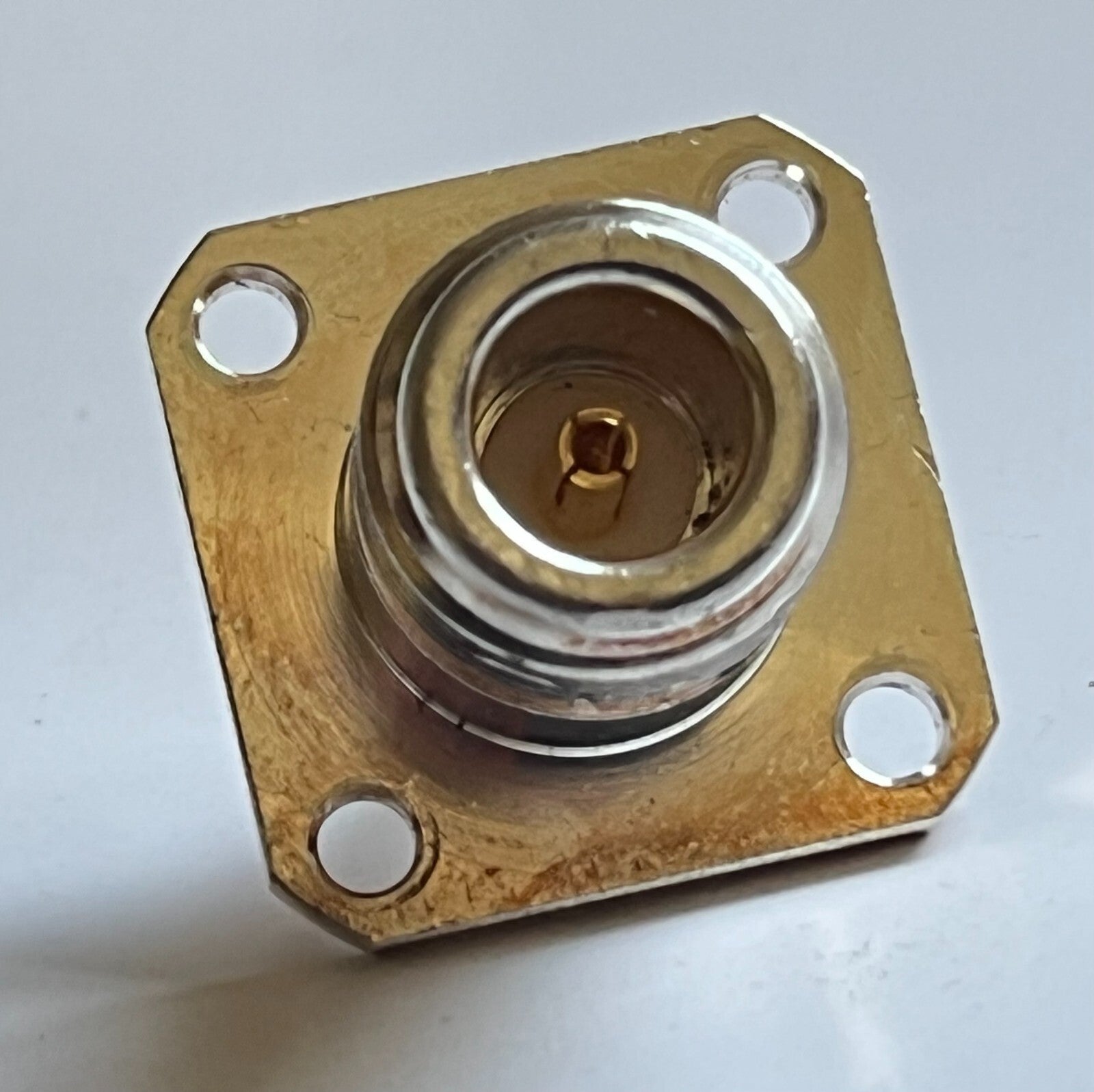

N TYPE CHASSIS FEMALE - LONG INSULATED PIN

Manufactured by Radiall, these are a top quality 50 Ohm chassis N type female, 4 hole mount with a long center pin connection at the rear which is partly shrouded in PTFE.

Construction is of heavily silver plated brass with Teflon insulation and a heavily gold plated centre pin.

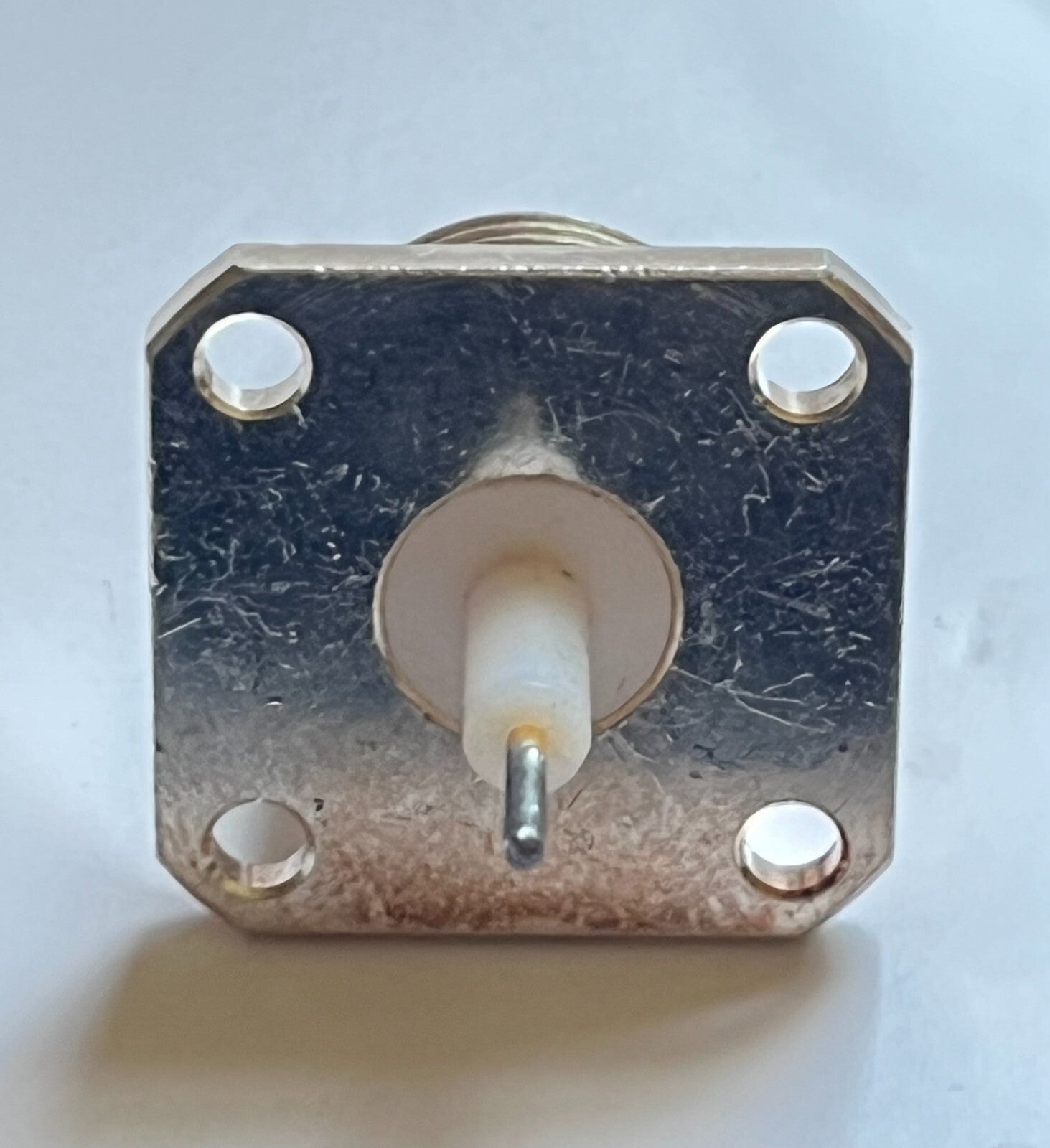

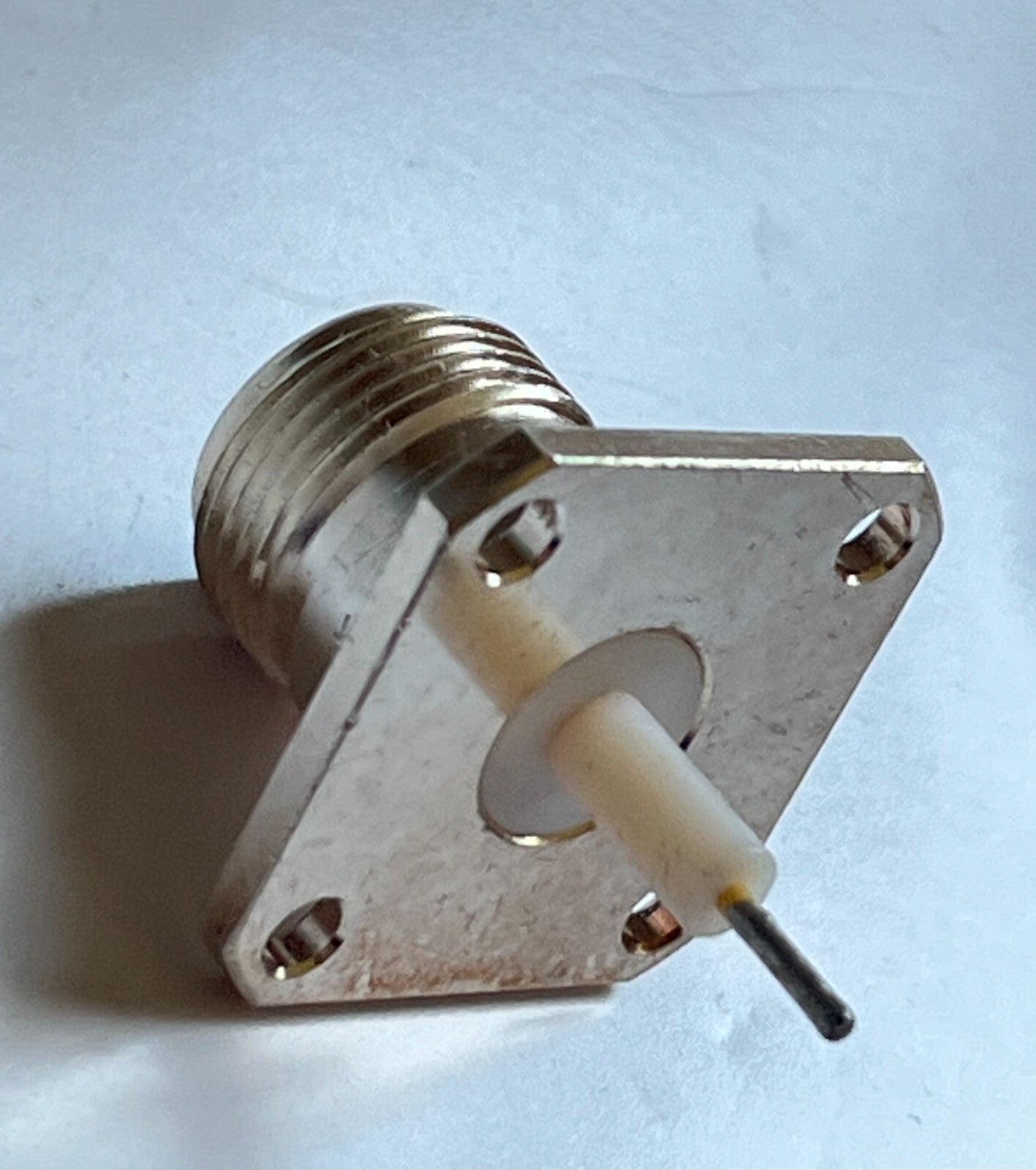

 The connector is completely flat at the rear except for the 1mm diameter center pin which protrudes from the rear by about 20mm with 10mm of that been shrouded in Teflon insulation (approximately 4mm diameter).

 Mounting flange is standard 25mm square with fixing centres at roughly 18mm.

These came off a production line and were ready to be used on equipment, they are new and unused, but the center pin may or may not be ready tinned.

Silver plating may be dull.

PRICED AND SUPPLIED EACH X1
