QUICK PUSH FIT N TYPE MALE LOAD 50 OHM TERMINATOR 3W 12.5GHZ FCI blb88

QUICK PUSH FIT N TYPE MALE LOAD 50 OHM TERMINATOR 3W 12.5GHZ FCI blb88

£20.00
£20.00
Sale Sold out
Taxes included.

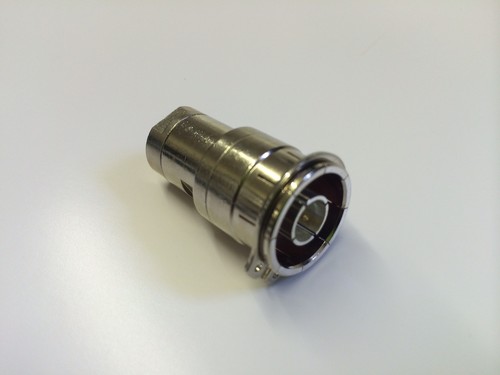

QUICK FIT N TYPE MALE 50 OHM TERMINATOR 3W

Manufactured by FCI as their part number 25PO106S-1, these are an industrial spec 50 Ohm male quick-connect N type terminator.

 For those not familiar with quick release N types - they are just a push fit - no screw thread as with a conventional N type, but designed to snuggly fit on to a conventional N type female, widely used in commercial microwave radio applications

 Good upto 12.5Ghz, constant power rating is 3Watt with a peak handling power of 500W.

Manufactured from nickle plated brass with PTFE insulation and heavily gold plated center pin.
