QUALWAVE DC - 8GHZ LOW PASS FILTER SMA CONNECTORS AE1W90

QUALWAVE DC - 8GHZ LOW PASS FILTER SMA CONNECTORS AE1W90

£85.00
£85.00
Sale Sold out
Taxes included.

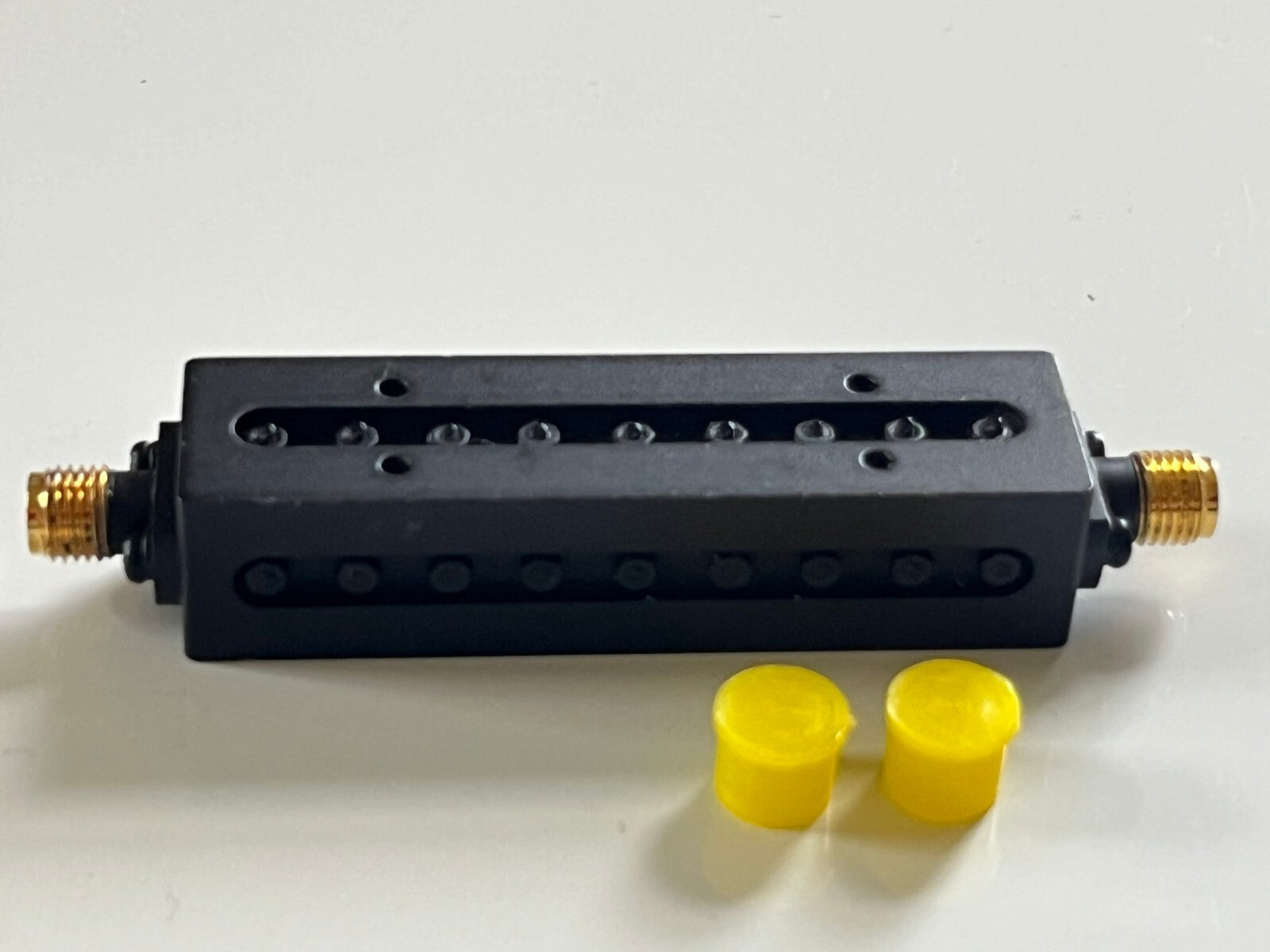

QUALWAVE LOW PASS FILTER DC - 8000 MHz

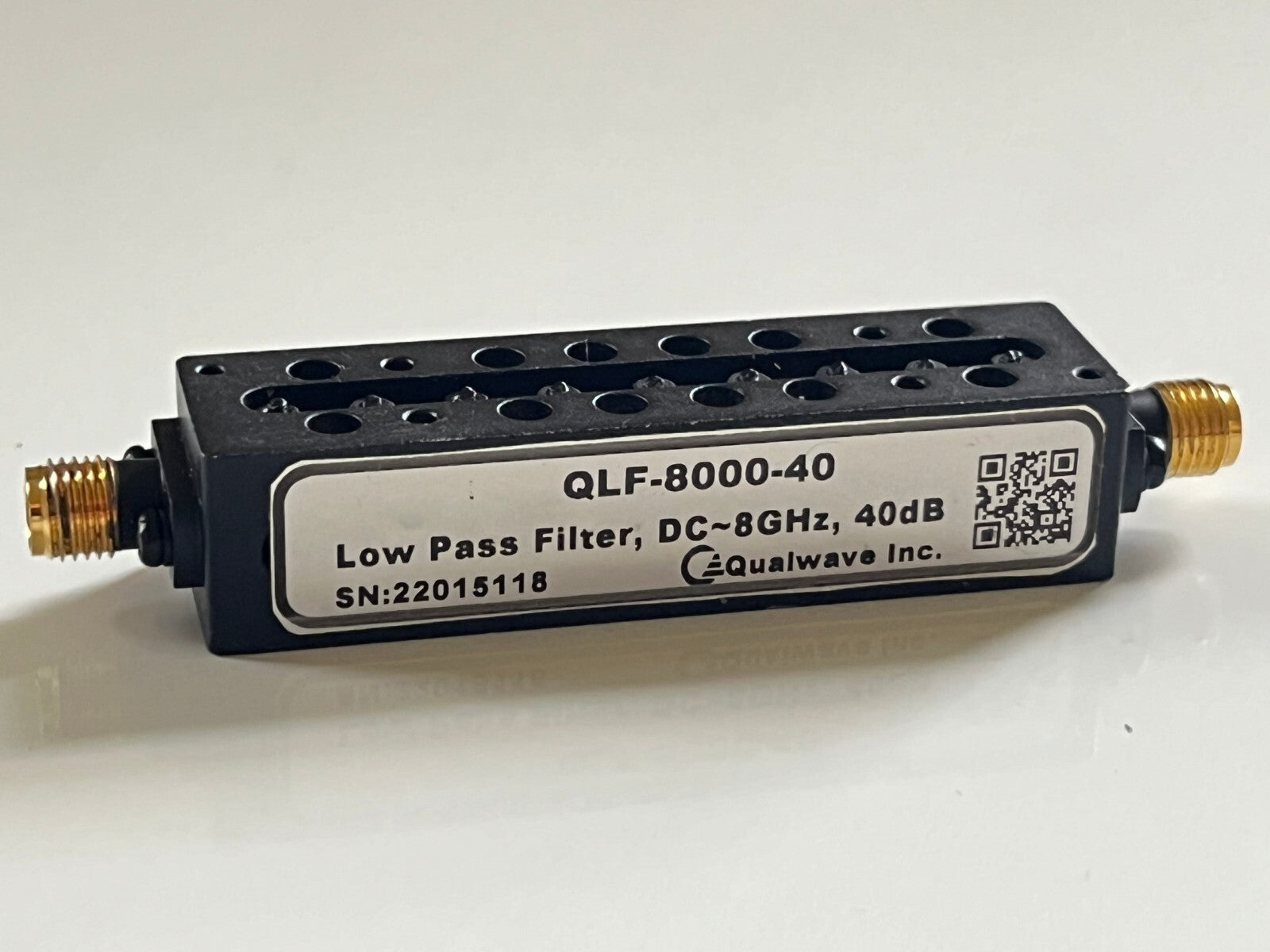

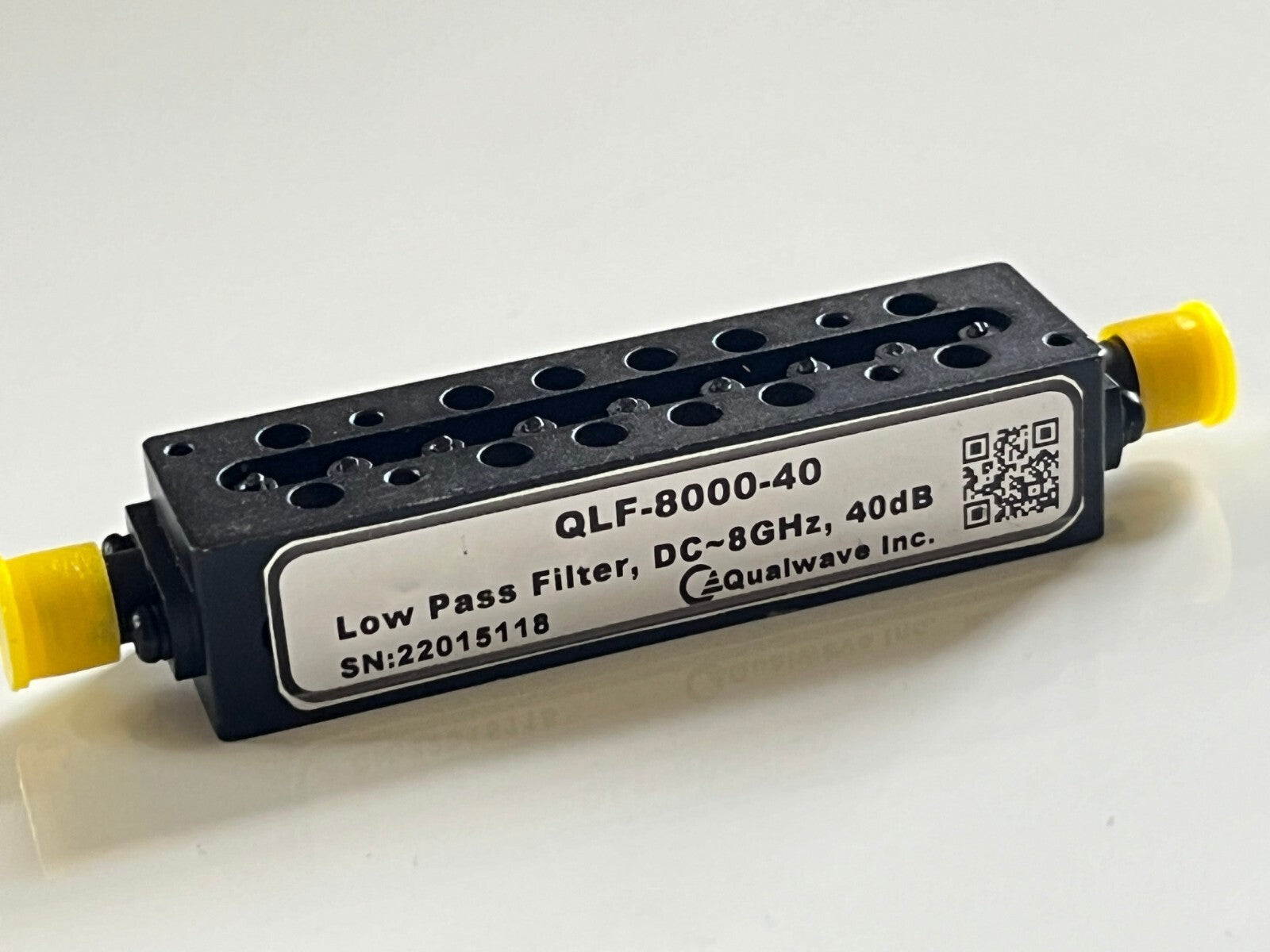

Manufactured by Qualwave as their part number  QLF-8000-40, this is a laboratory standard 50 Ohm low pass filter with frequency DC to 8 GHz, Stopband Frequency 9 to 25 GHz, Insertion Loss 2 dB, Upper Rejection 40 dB @ 9 to 25 GHz, VSWR 2.00:1.

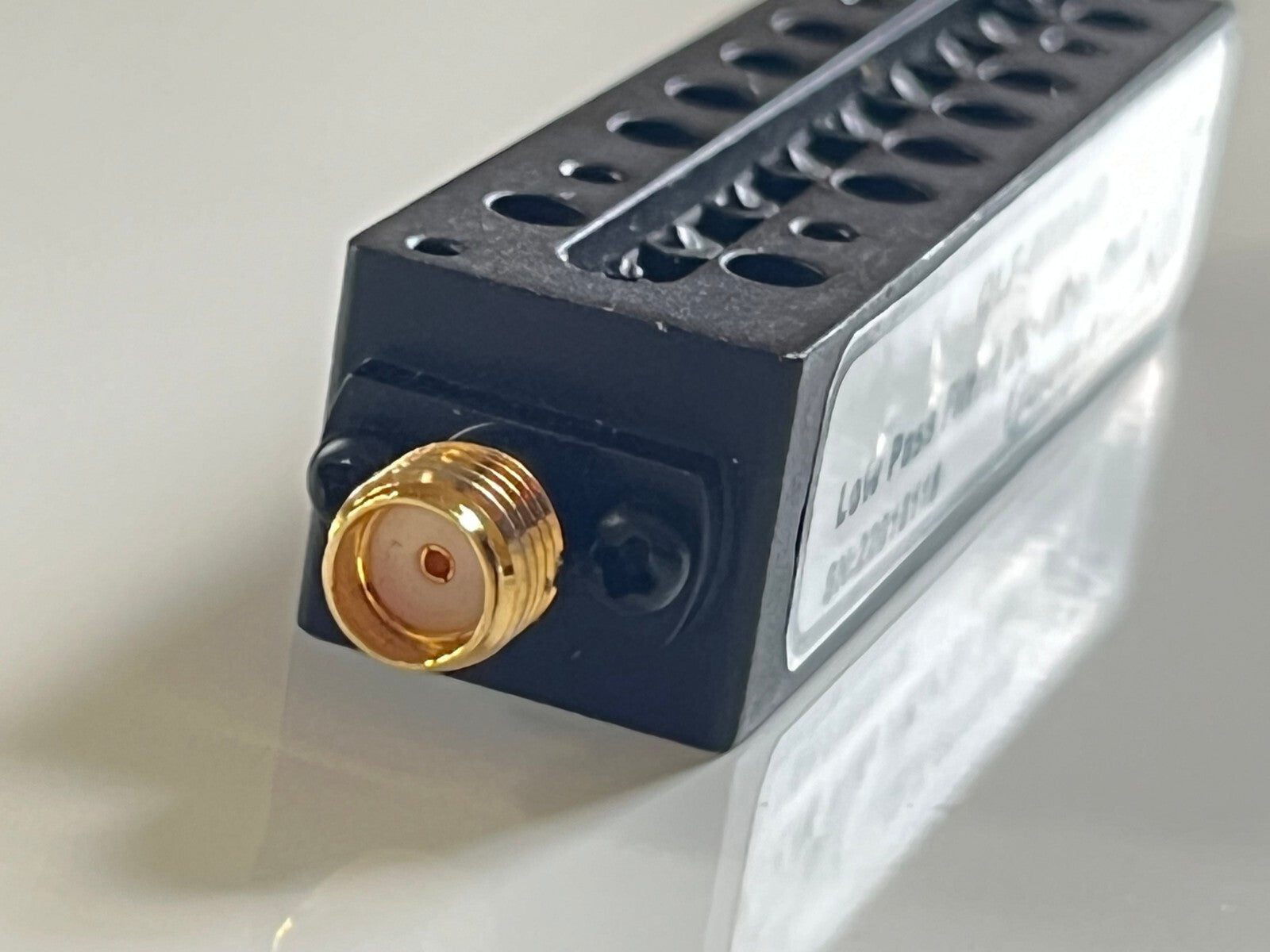

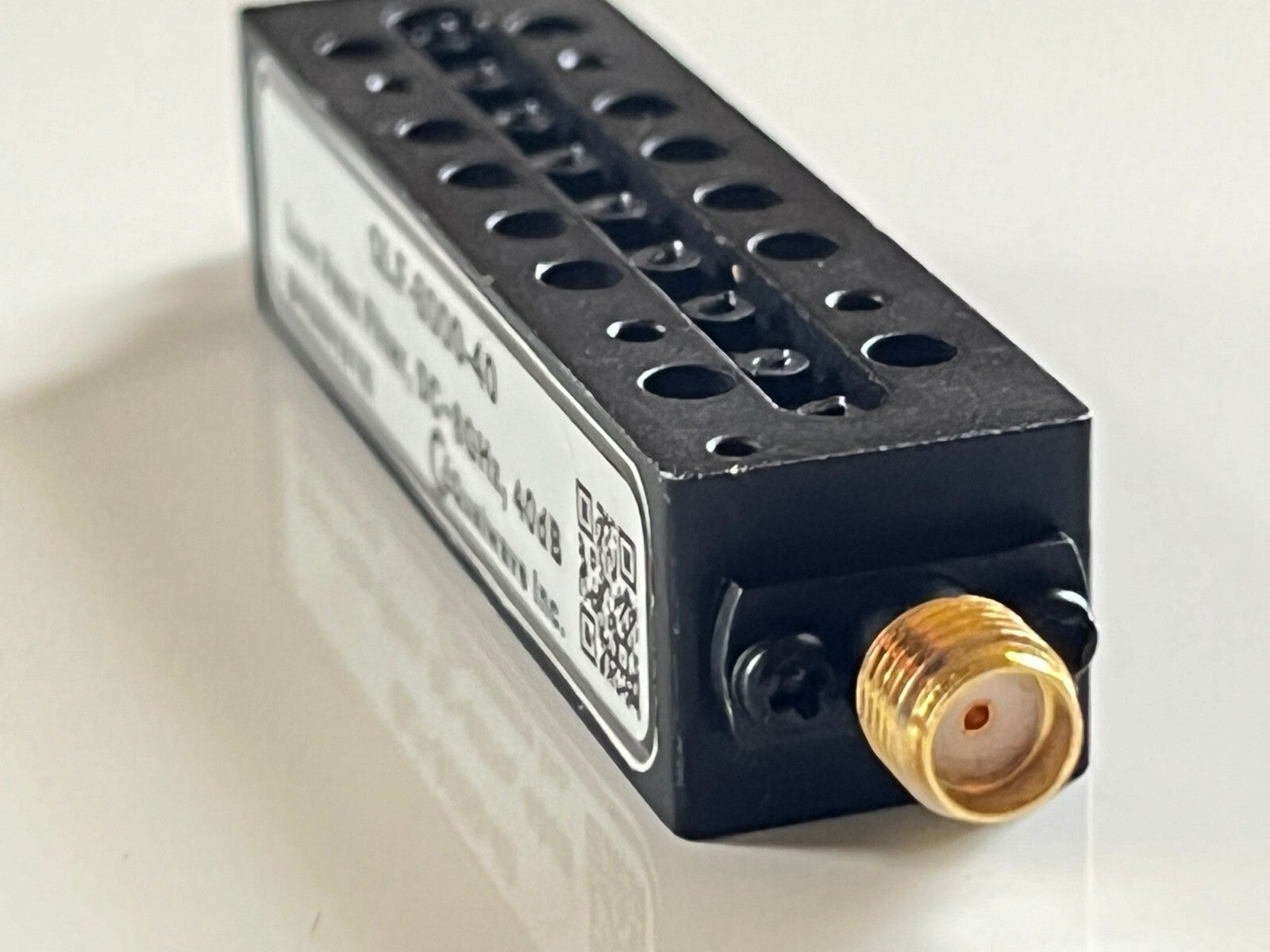

SMA female connections.

Application Type - Telecom, Laboratory Test, Receivers & Instrumentation
Frequency DC to 8 GHz
Stopband Frequency 9 to 25 GHz
Insertion Loss 2 dB
Upper Rejection 40 dB @ 9 to 25 GHz
VSWR 2.00:1
Impedance 50 Ohms

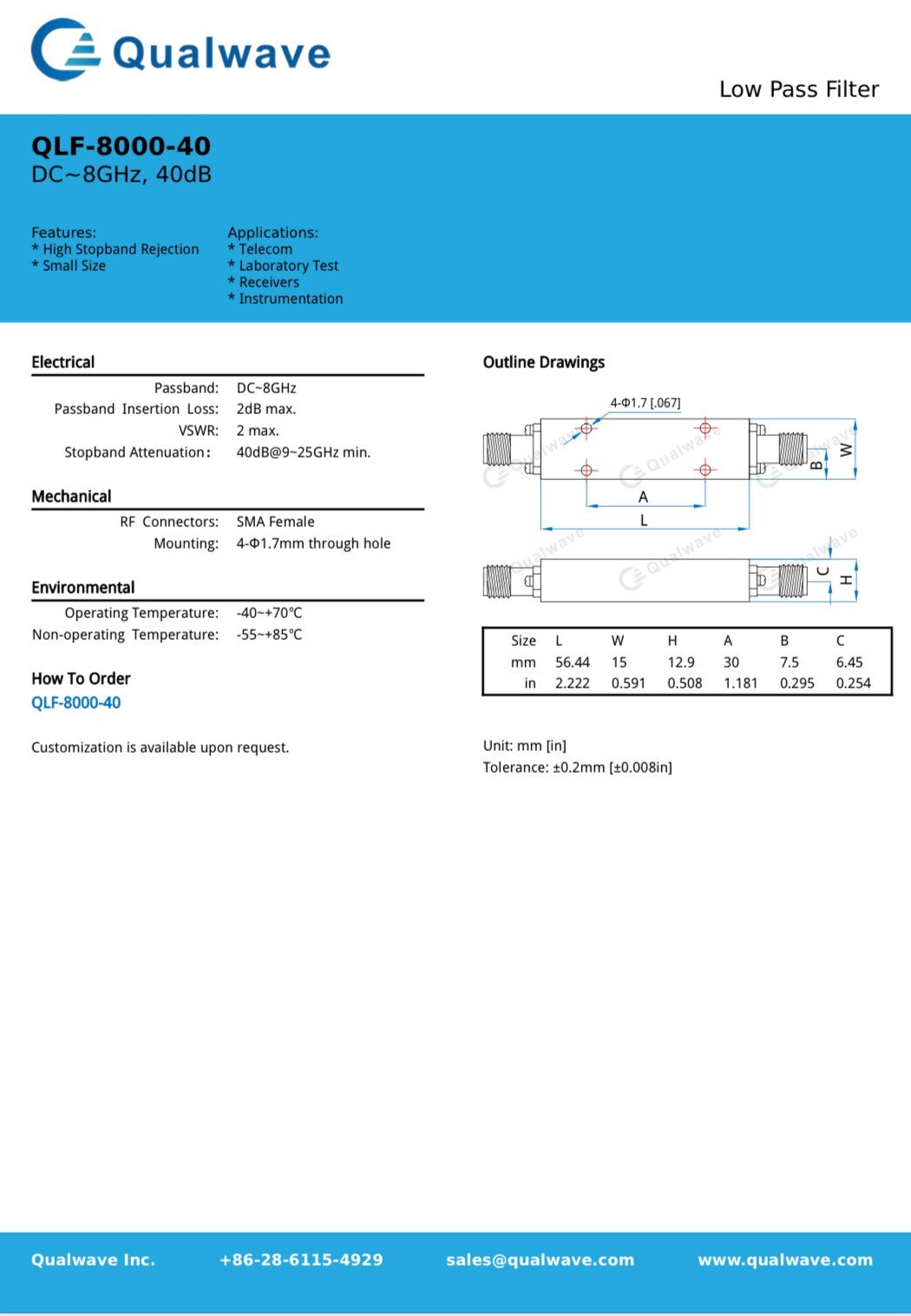

Manufacturers datasheet with full specifications can in the photos above

This came to us from a closed OEM companies test laboratory where it had little or no use, supplied in perfect condition at a fraction of the list price.
.  PRICED AND SUPPLIED EACH - X1.
