QUALWAVE 8.5GHZ - 16.5GHZ 2W BAND PASS FILTER 2.92MM CONNECTORS AE1W86

QUALWAVE 8.5GHZ - 16.5GHZ 2W BAND PASS FILTER 2.92MM CONNECTORS AE1W86

£135.00
£135.00
Sale Sold out
Taxes included.


QUALWAVE BANDPASS FILTER 8.5 GHz - 16.5 GHz

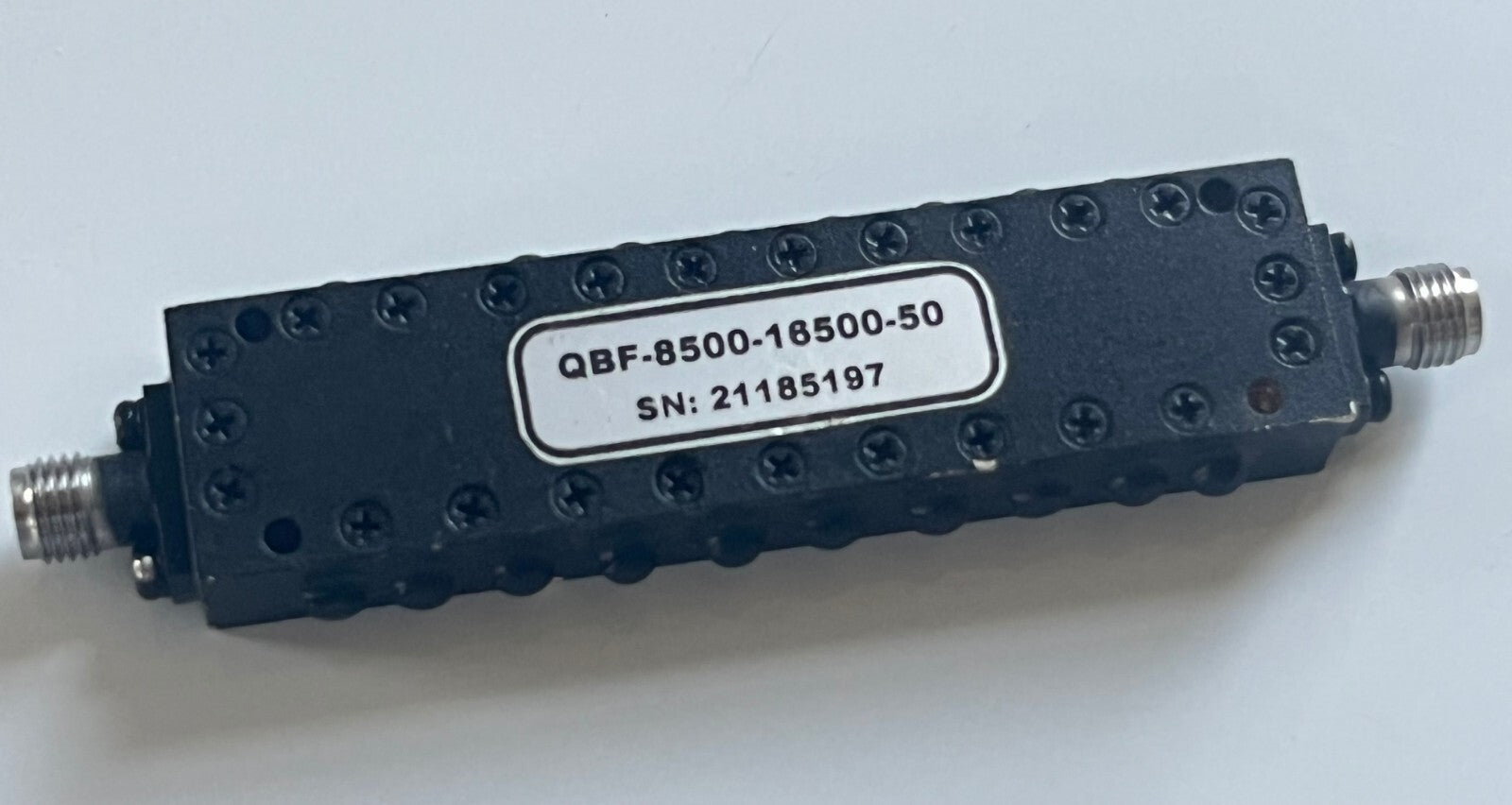

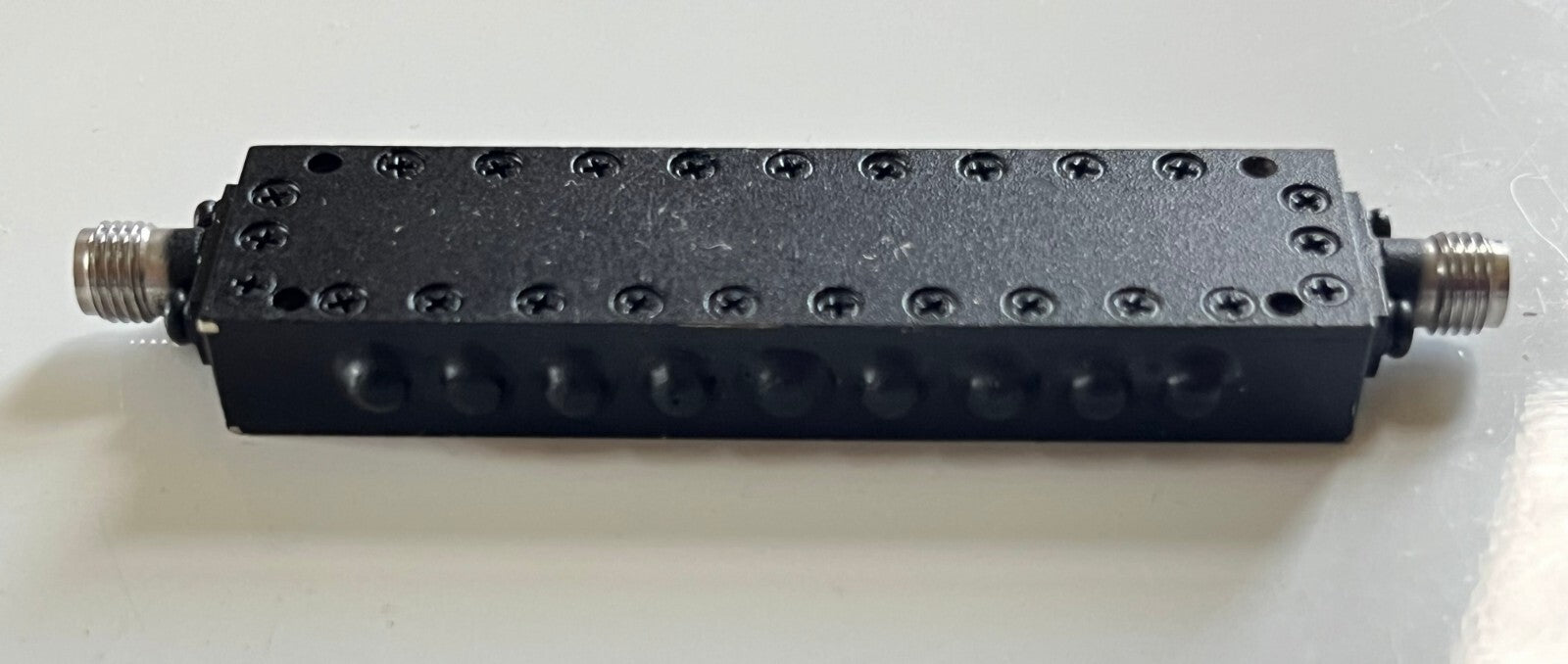

Manufactured by Qualwave as their part number  QBF-8500-16500-50, this is a laboratory standard 50 Ohm band pass filter Frequency 8.5 to 16.5 GHz, Bandwidth 8000 MHz, Center Frequency 12500 MHz, Insertion Loss 1.5 dB, Upper Rejection 50 dB @17.8 to 19 GHz.

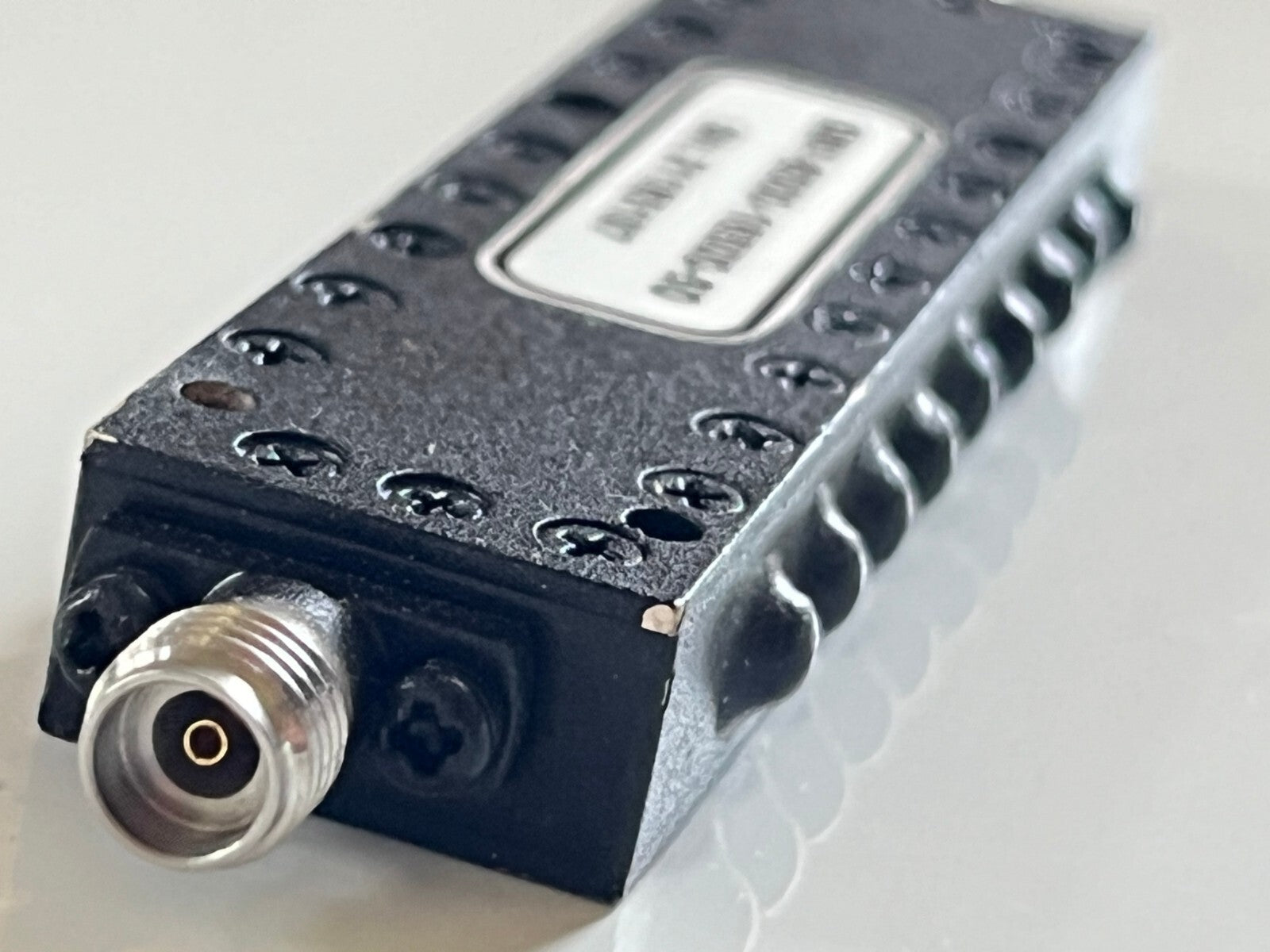

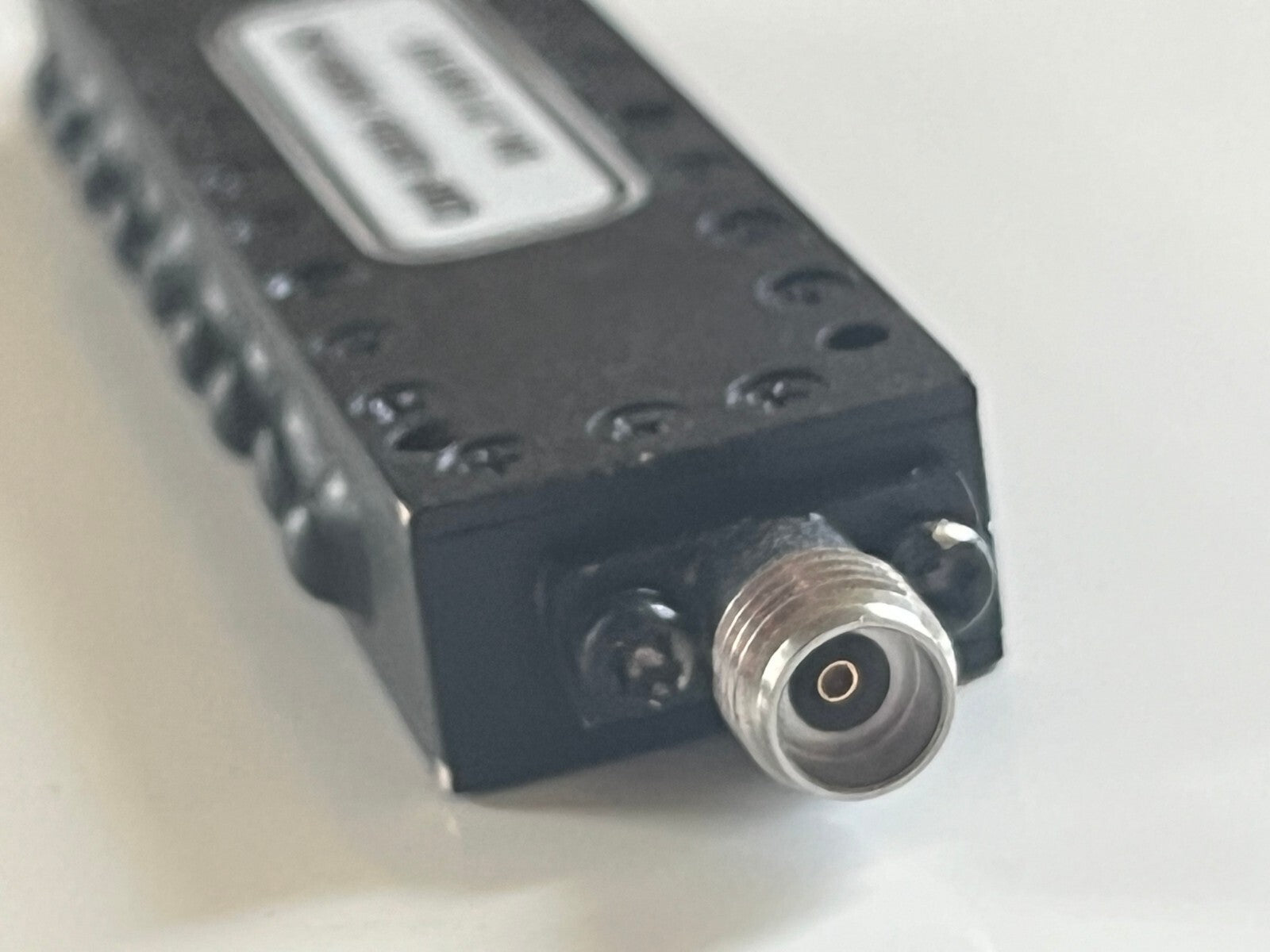

RF input power 2W with 2.92mm female connections.

Application Type - Telecom, Laboratory Test, Receivers & Instrumentation
Frequency 8.5 to 16.5 GHz
Bandwidth 8000 MHz
Center Frequency 12500 MHz
Insertion Loss 1.5 dB
Upper Rejection 50 dB @17.8 to 19 GHz
Lower Rejection 50 dB @DC to 7.2 GHz
Power 2 W
Ripple 0.7 dB
VSWR 1.80:1
Impedance 50 Ohms

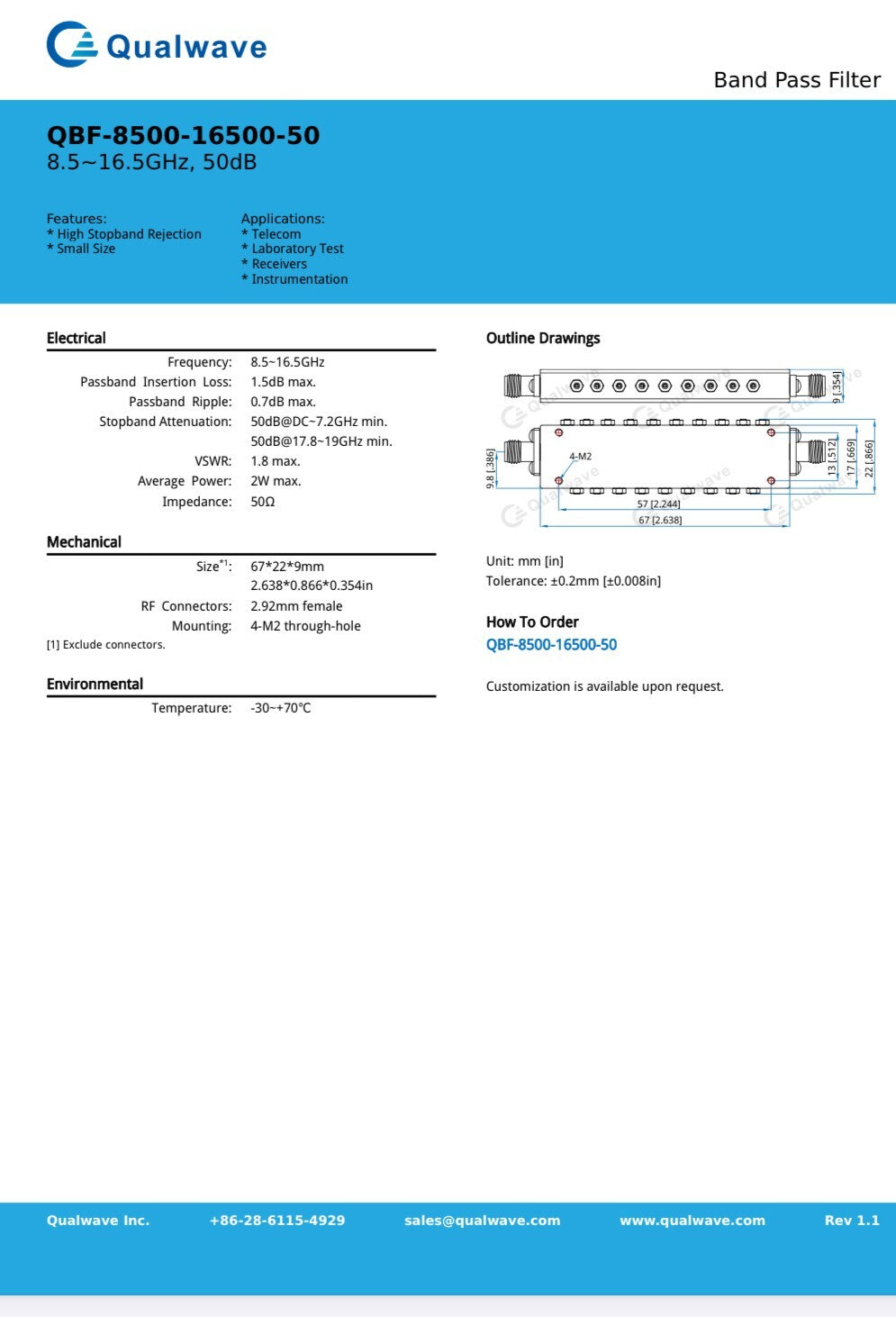

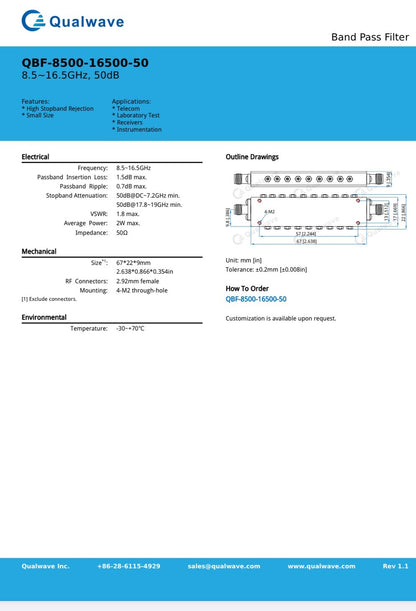

Manufacturers datasheet with full specifications can in the photos above

This came to us from a closed OEM companies test laboratory where it had little or no use, supplied in perfect condition at a fraction of the list price.
.  PRICED AND SUPPLIED EACH - X1.
