QUALWAVE BANDPASS FILTER 400 MHz - 700 MHz

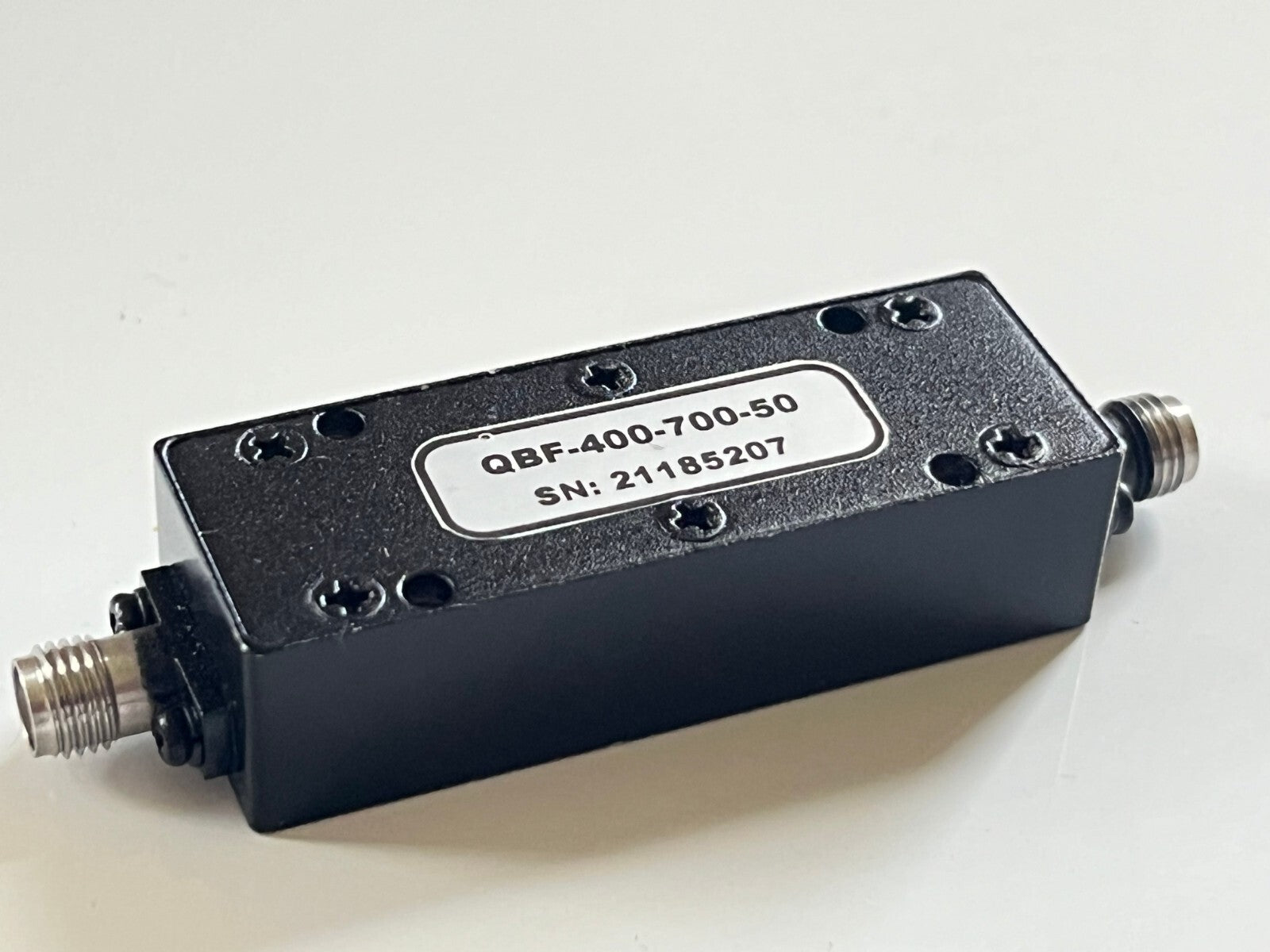

Manufactured by Qualwave as their part number  QBF-400-700-50, this is a laboratory standard 50 Ohm band pass filter Frequency 400 to 700 MHz, Bandwidth 300 MHz, Center Frequency 550 MHz, Insertion Loss 2.5 dB, Upper Rejection 50 dB@0.85 to 1 GHz.

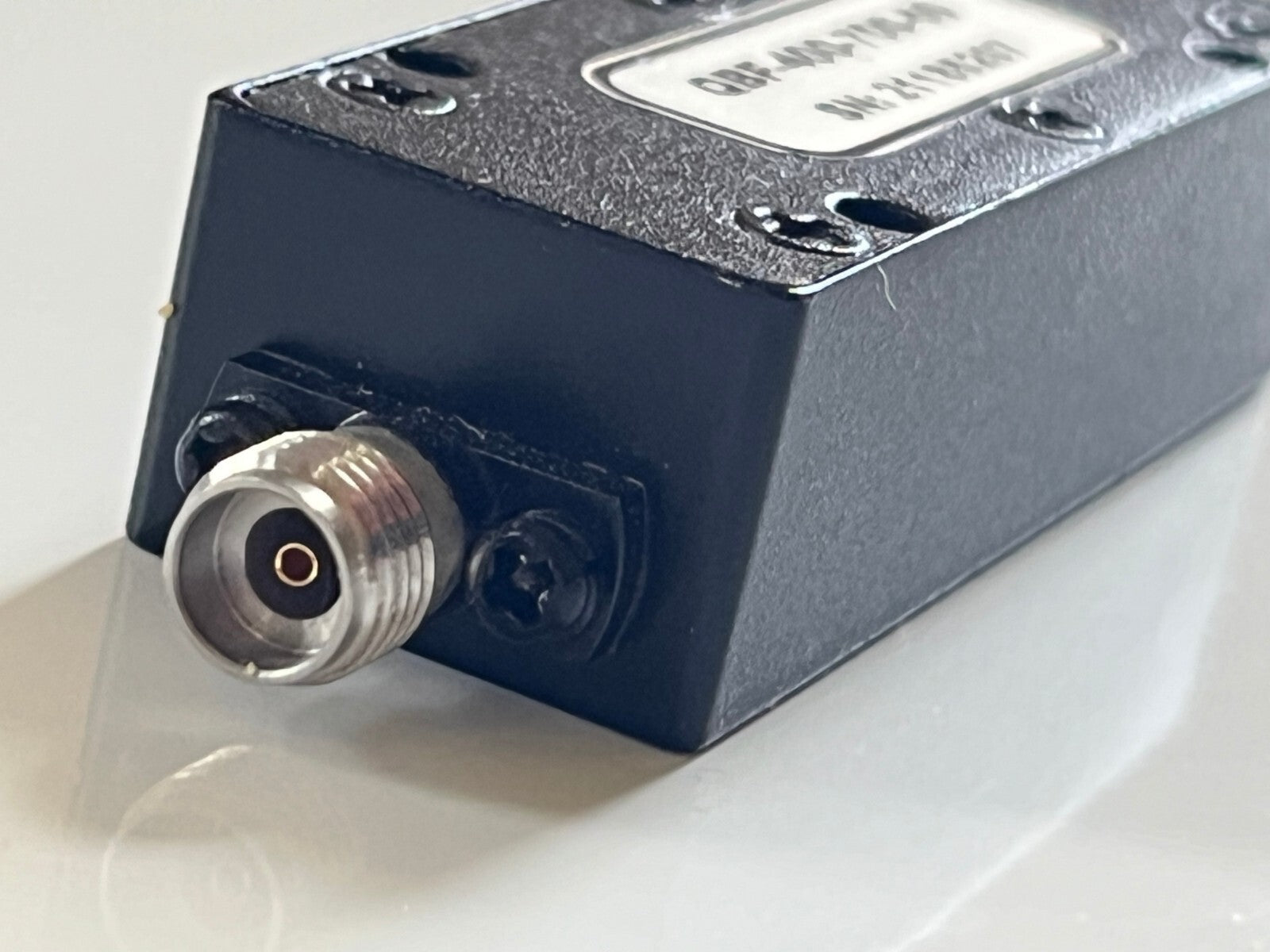

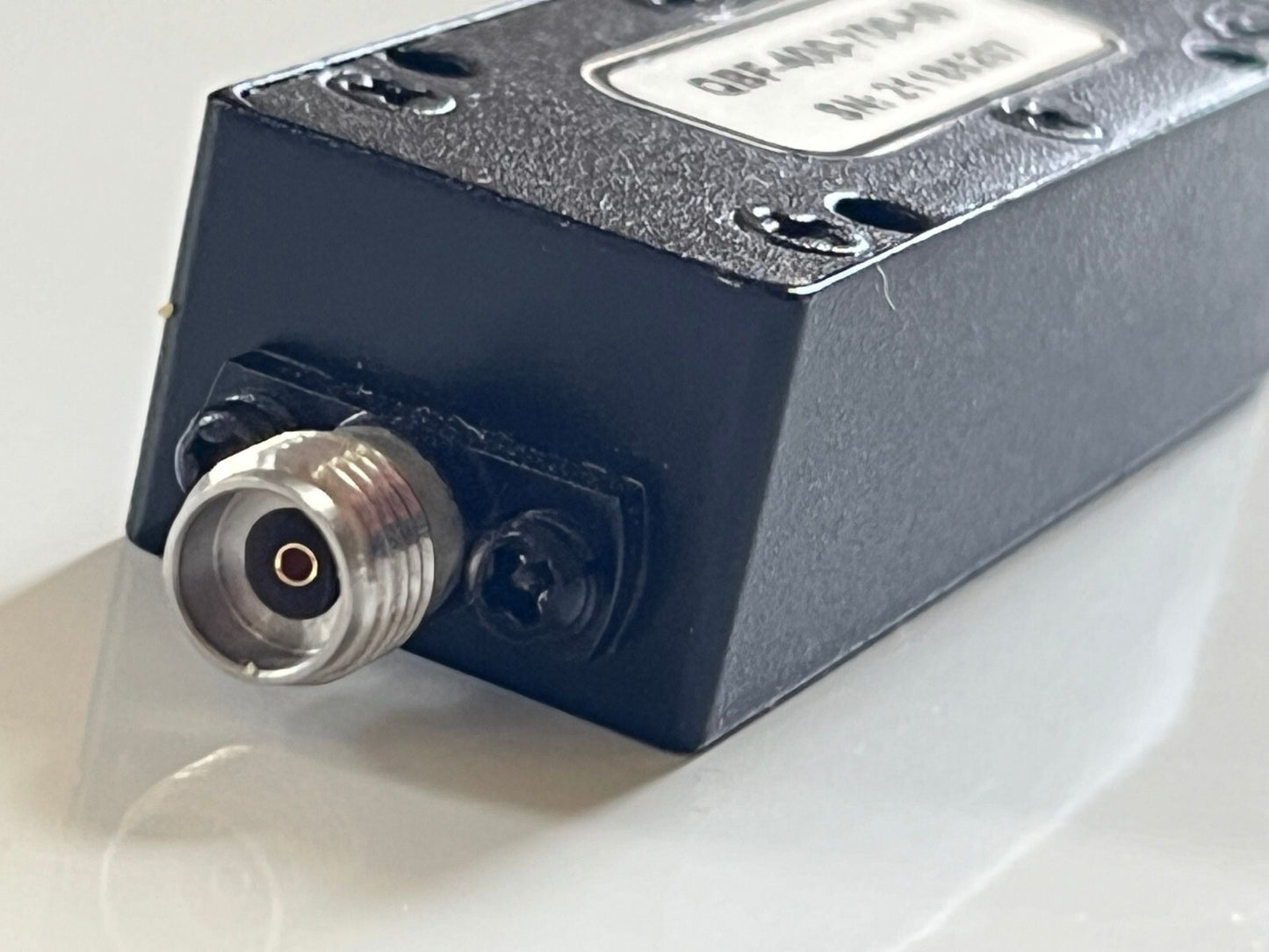

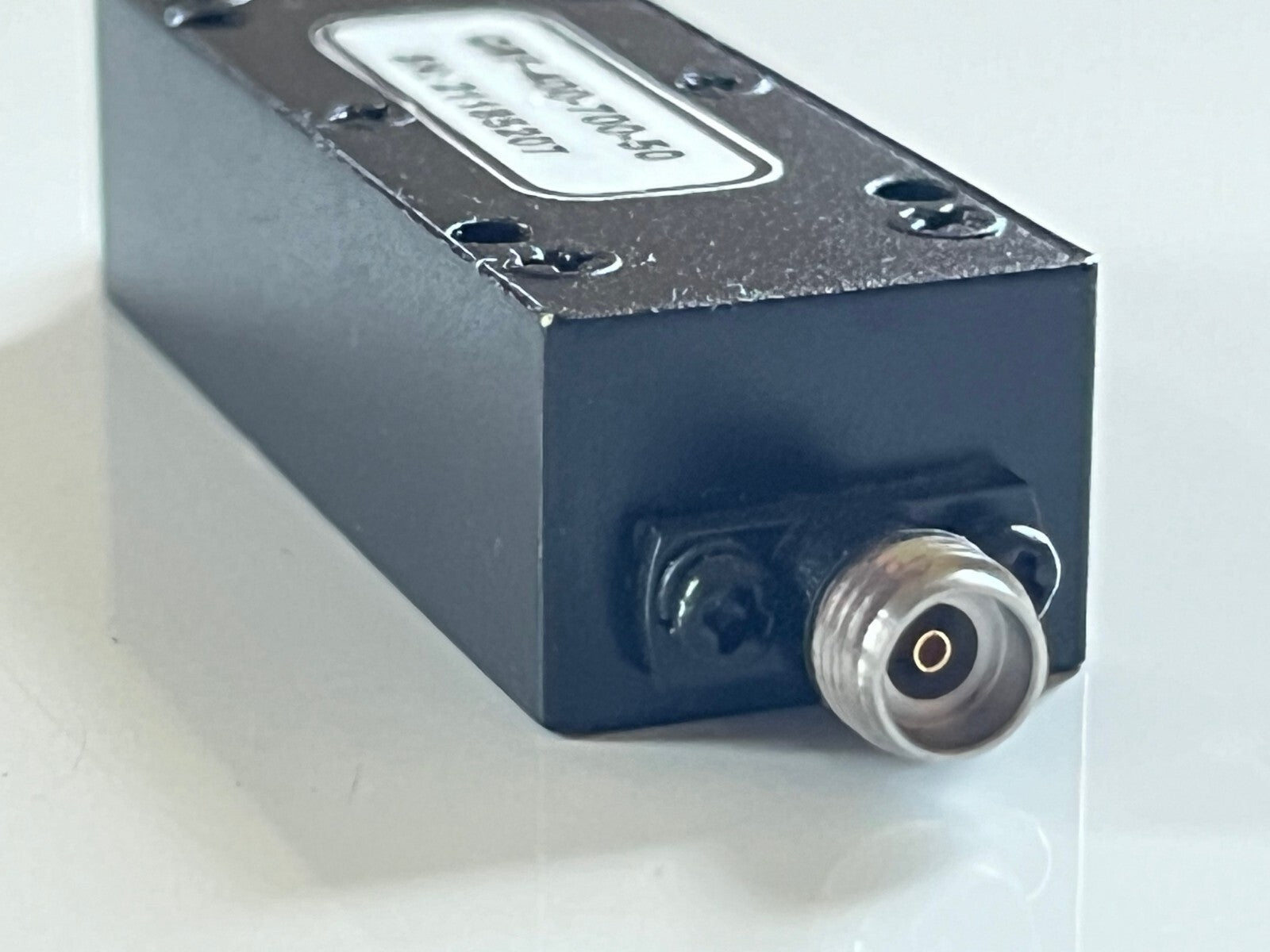

RF input power 1W with 2.92mm female connections.

Application Type - Telecom, Laboratory Test, Receivers & Instrumentation
Frequency 400 to 700 MHz
Bandwidth 300 MHz
Center Frequency 550 MHz
Insertion Loss 2.5 dB
Upper Rejection 50 dB@0.85 to 1 GHz
Lower Rejection 50 dB@DC to 0.3 GHz
Power 1 W
Ripple 1.5 dB
VSWR 1.50:1
Impedance 50 Ohms

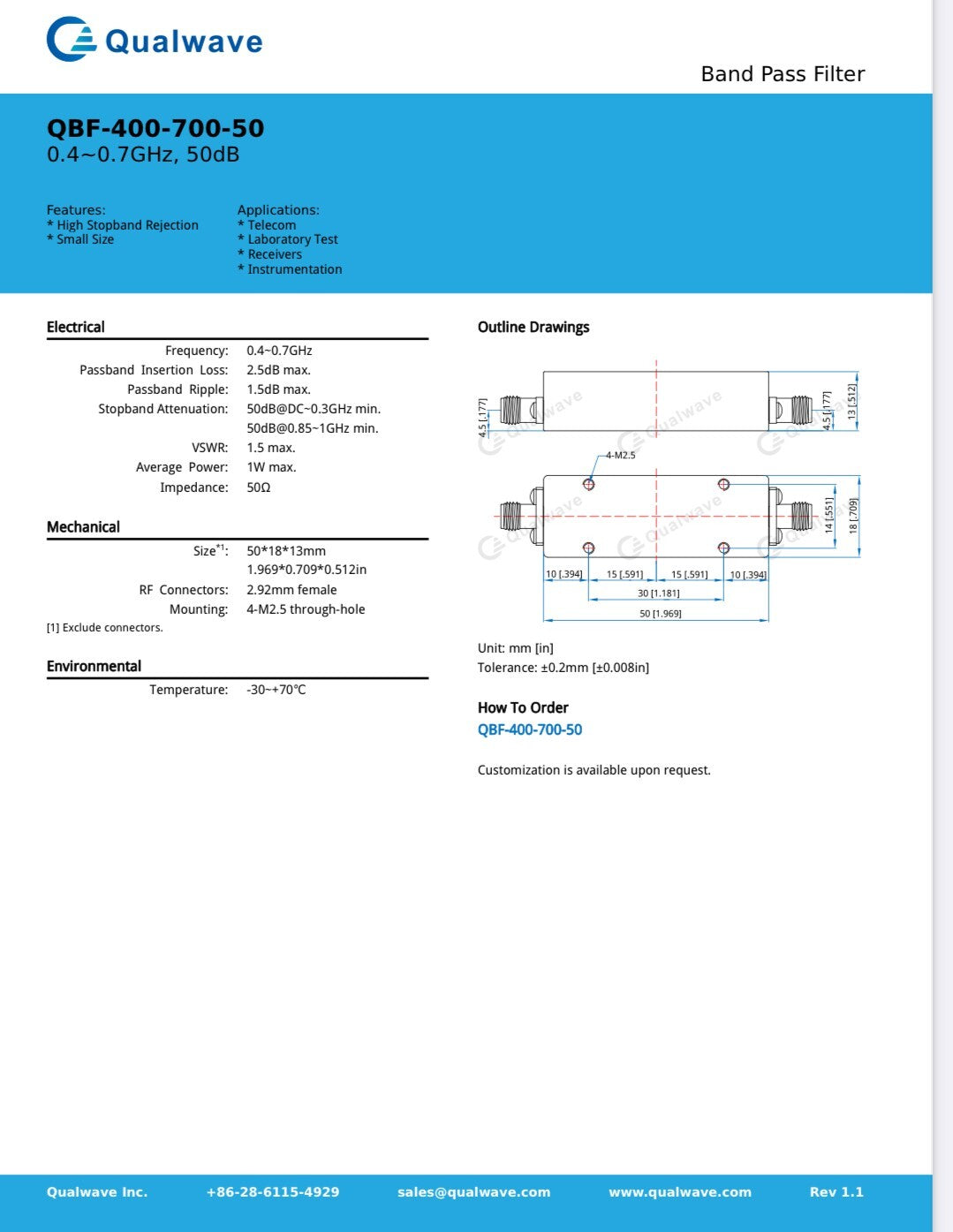

Manufacturers datasheet with full specifications can in the photos above

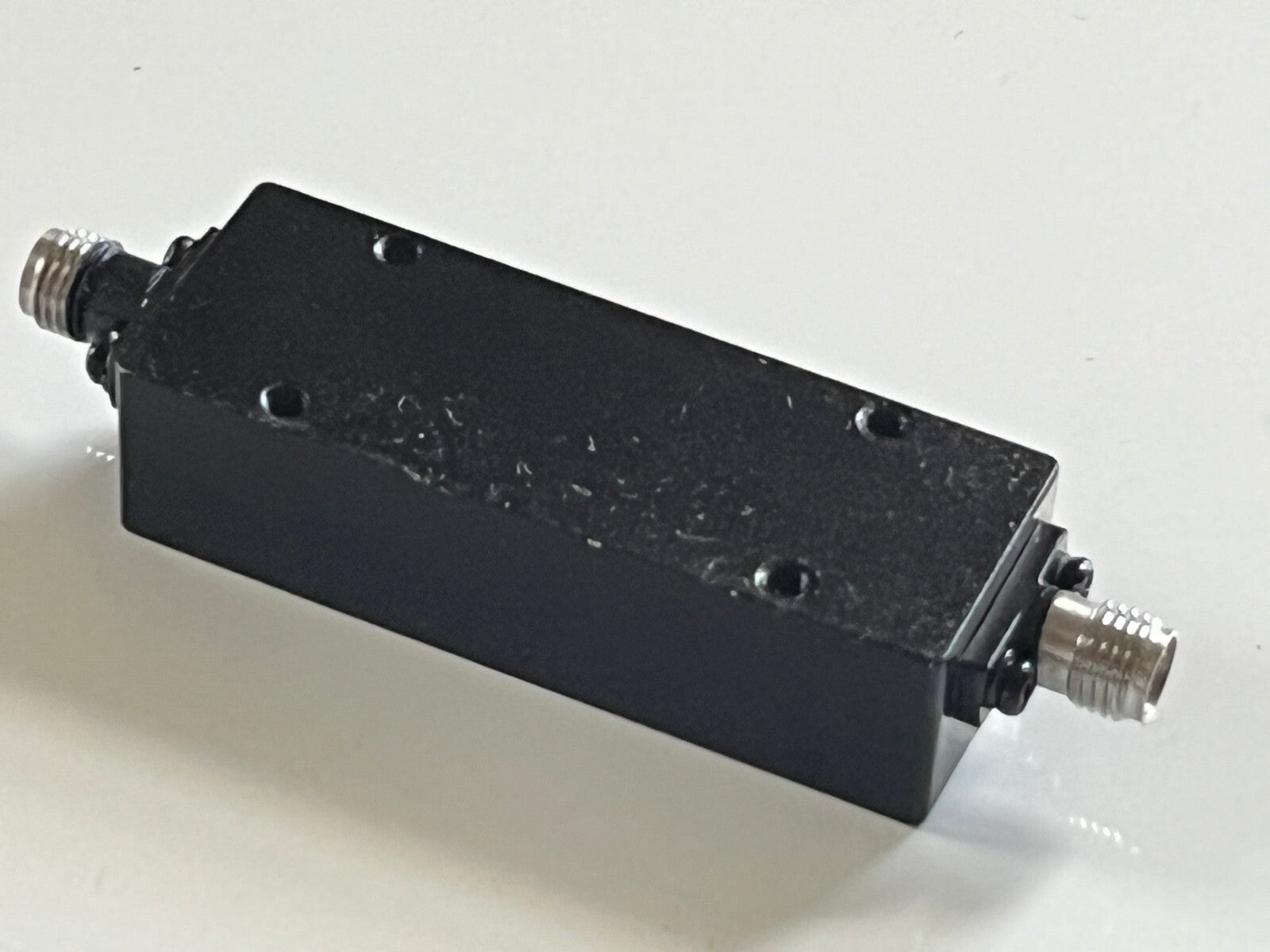

This came to us from a closed OEM companies test laboratory where it had little or no use, supplied in perfect condition at a fraction of the list price.
.  PRICED AND SUPPLIED EACH - X1.
