QUALWAVE 4.3GHZ - 8.2GHZ 2W BAND PASS FILTER 2.92MM CONNECTORS AE1W85

QUALWAVE 4.3GHZ - 8.2GHZ 2W BAND PASS FILTER 2.92MM CONNECTORS AE1W85

£110.00
£110.00
Sale Sold out
Taxes included.

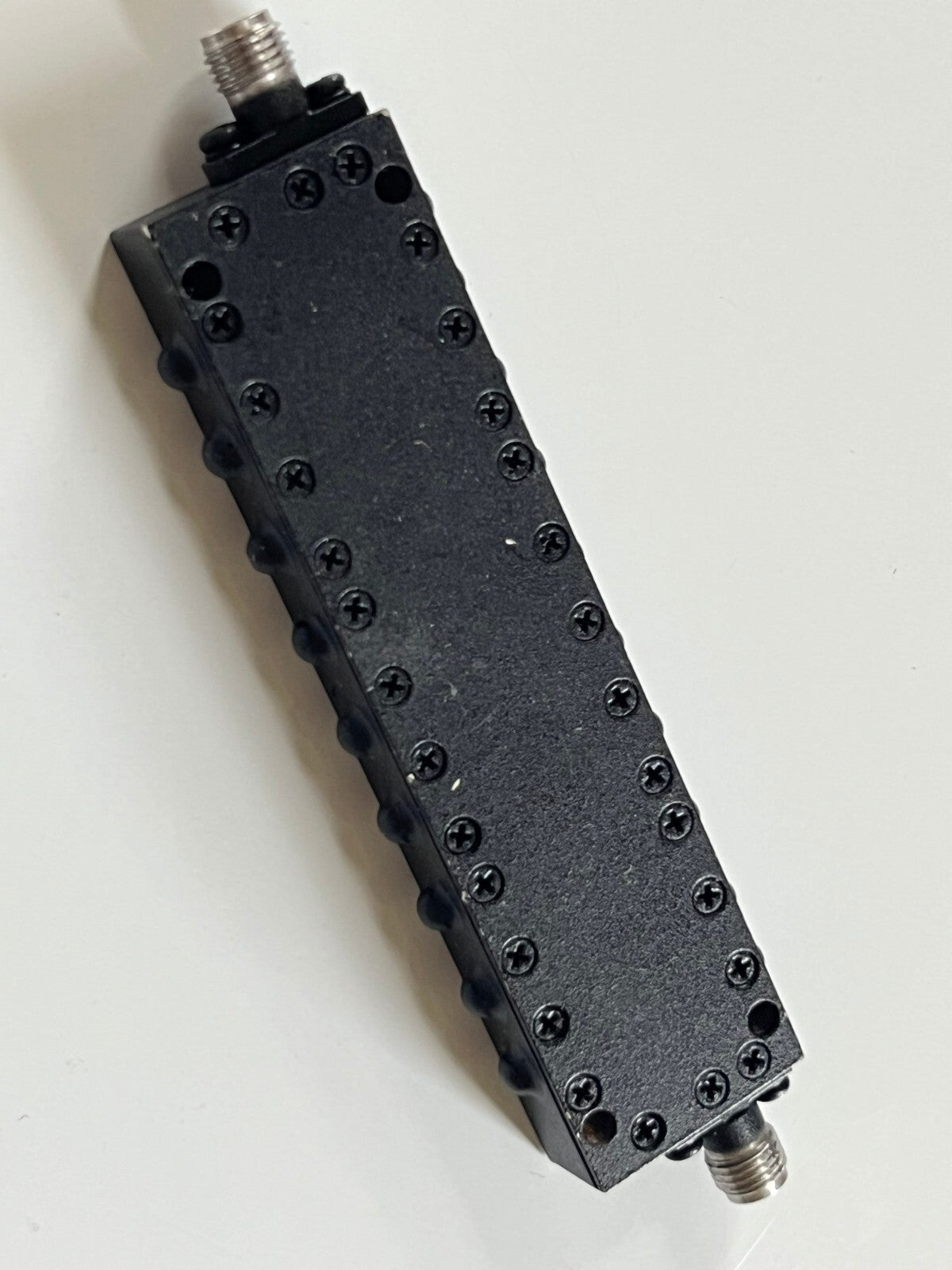

QUALWAVE BANDPASS FILTER 4.3 GHz - 8.2 GHz

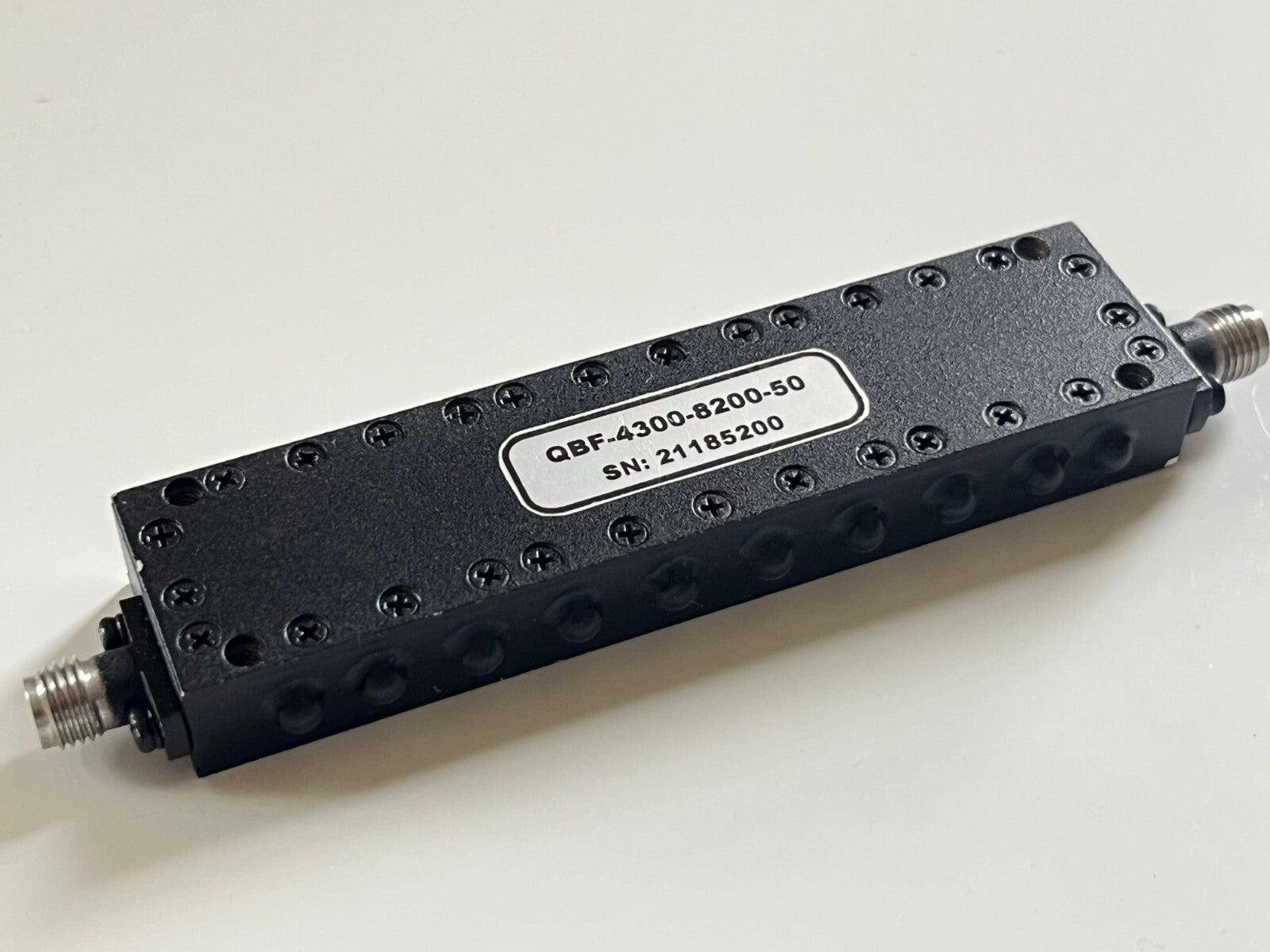

Manufactured by Qualwave as their part number  QBF-4300-8200-50, this is a laboratory standard 50 Ohm band pass filter 4.3 to 8.2 GHz, Bandwidth 3900 MHz, Center Frequency 6250 MHz, Insertion Loss 1.5 dB, Upper Rejection 50 dB@8.8 to 10 GHz.

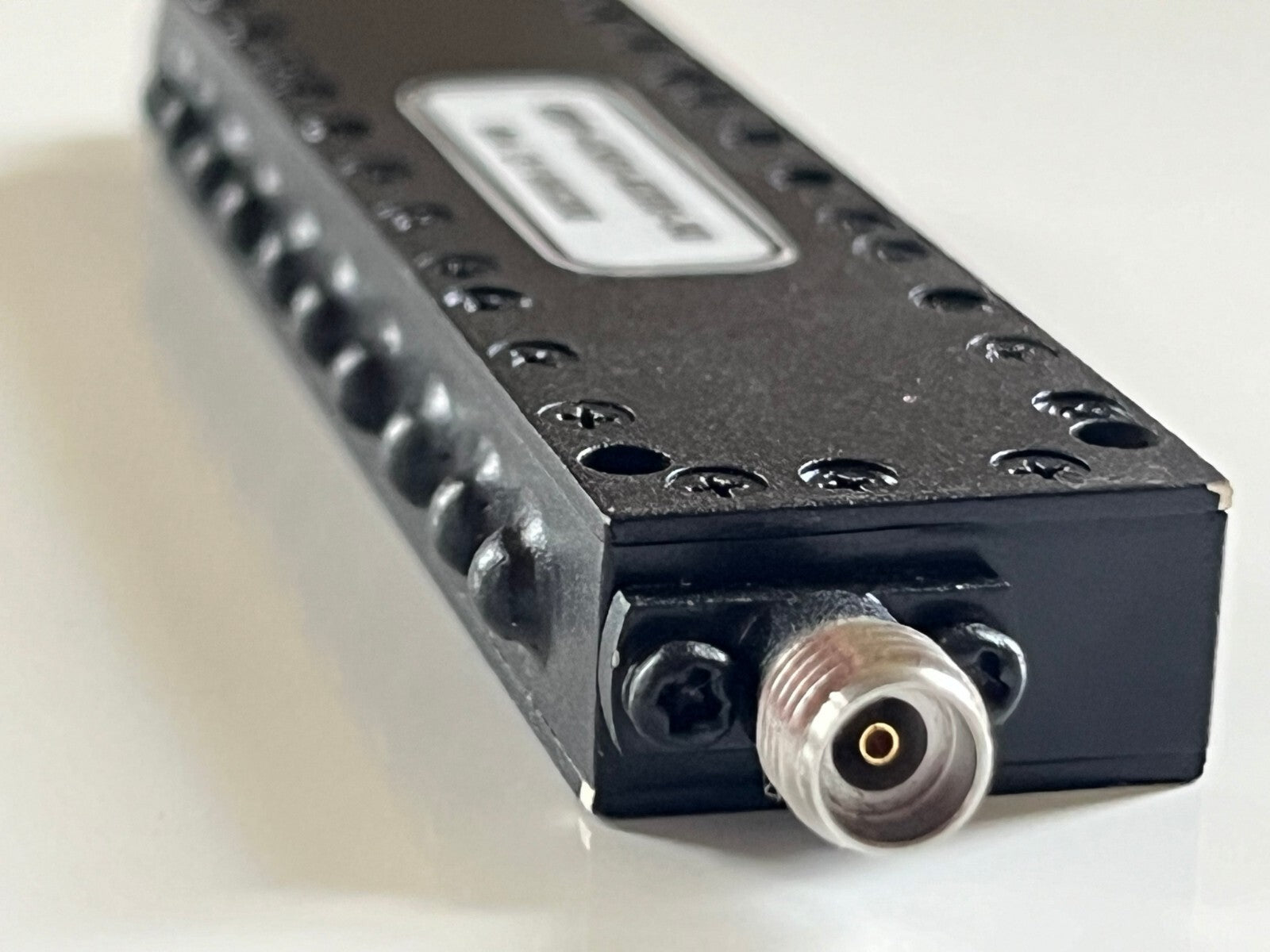

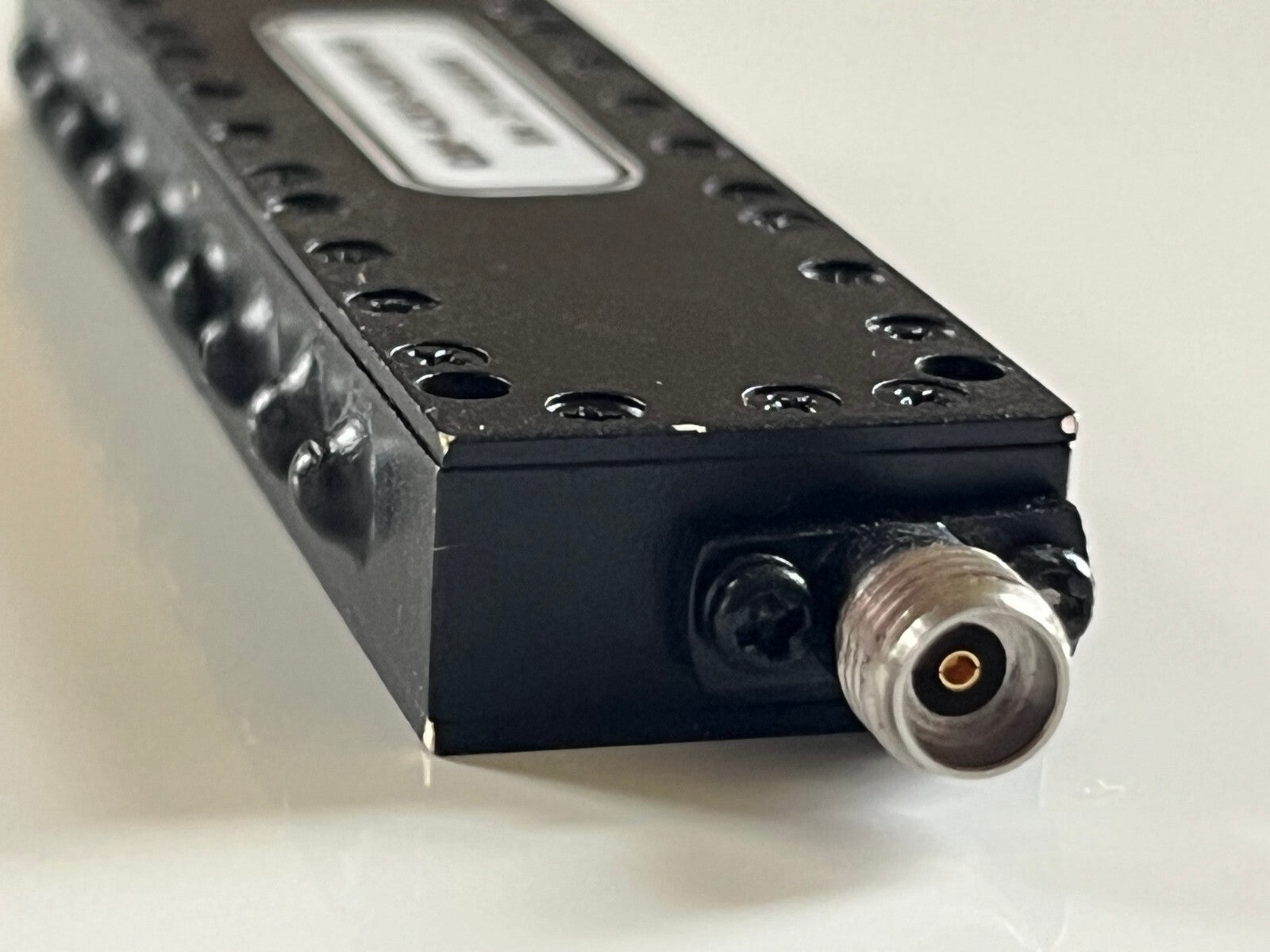

RF input power 2W with 2.92mm female connections.

Application Type - Telecom, Laboratory Test, Receivers & Instrumentation
Frequency 4.3 to 8.2 GHz
Bandwidth 3900 MHz
Center Frequency 6250 MHz
Insertion Loss 1.5 dB
Upper Rejection 50 dB@8.8 to 10 GHz
Lower Rejection 50 dB@DC to 3.7 GHz
Power 2 W
Ripple 0.7 dB
VSWR 1.70:1
Impedance 50 Ohms.

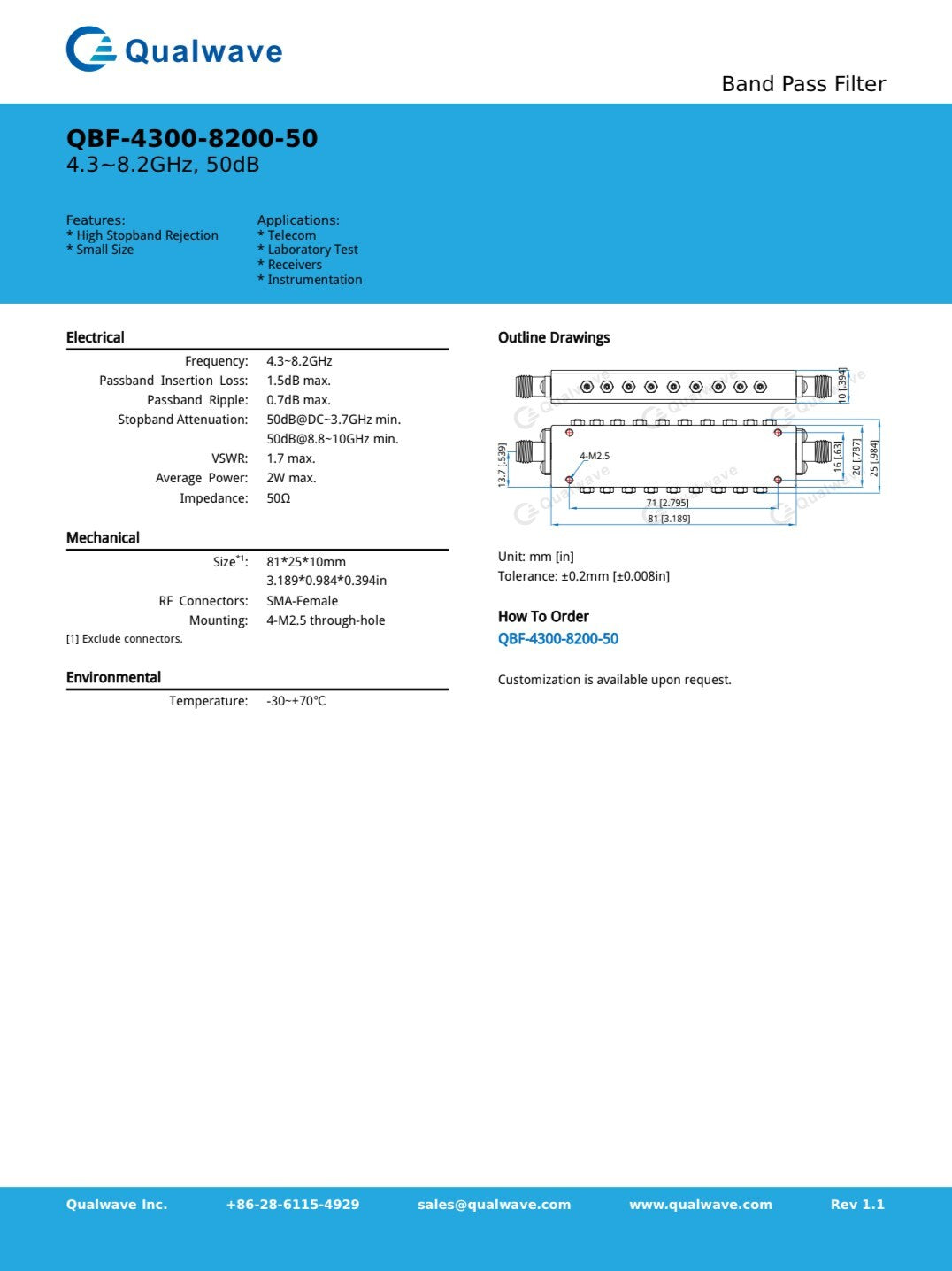

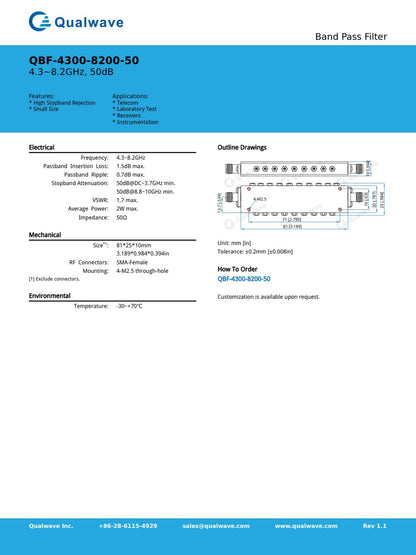

Manufacturers datasheet with full specifications can in the photos above

This came to us from a closed OEM companies test laboratory where it had little or no use, supplied in perfect condition at a fraction of the list price.
.  PRICED AND SUPPLIED EACH - X1.
