QUALWAVE 2GHZ - 3.8GHZ 2W BAND PASS FILTER 2.92MM CONNECTORS AE1W89

QUALWAVE 2GHZ - 3.8GHZ 2W BAND PASS FILTER 2.92MM CONNECTORS AE1W89

£165.00
£165.00
Sale Sold out
Taxes included.


QUALWAVE BANDPASS FILTER 2000 MHz - 3800 MHz

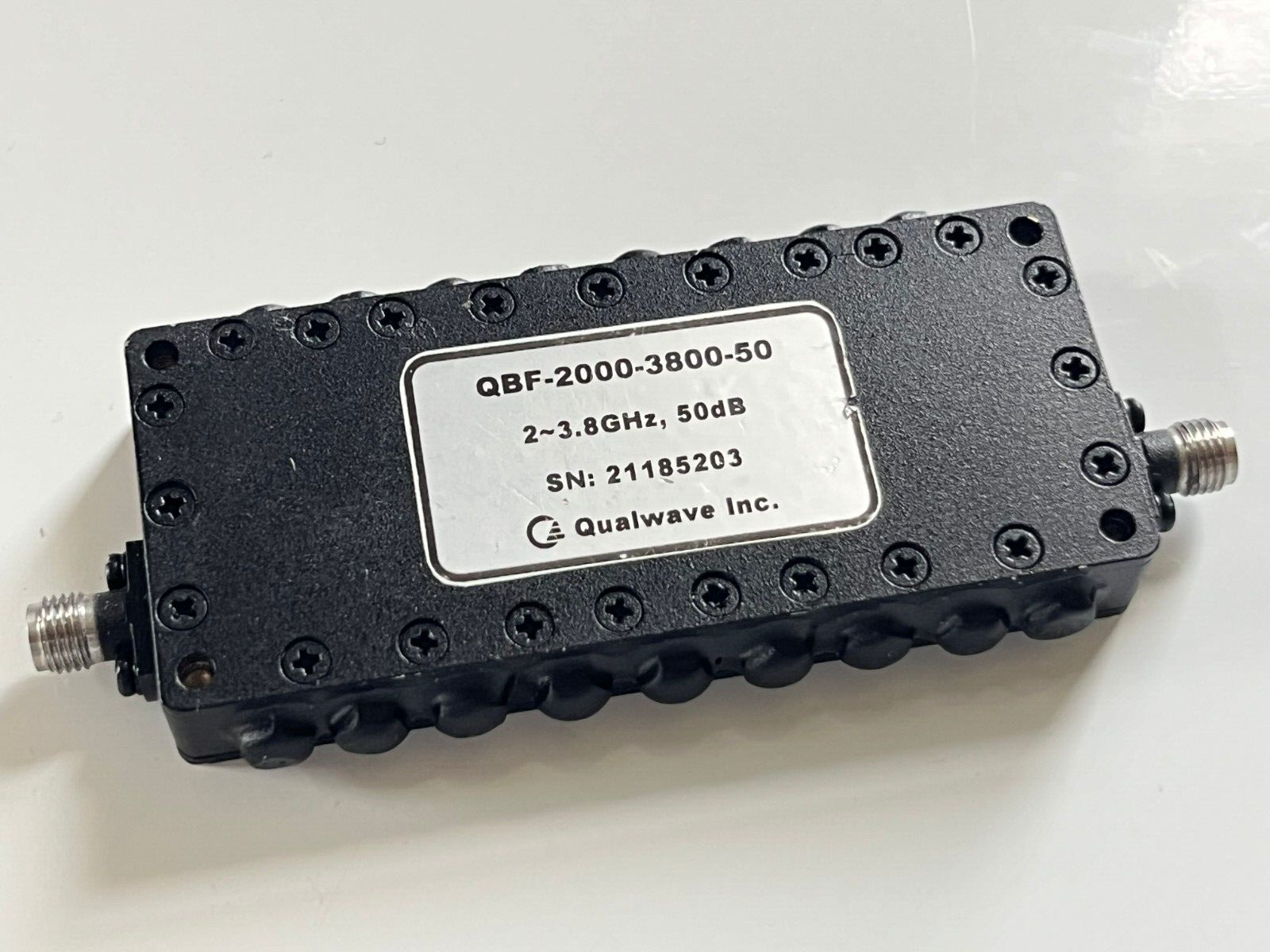

Manufactured by Qualwave as their part number  QBF-2000-3800-50, this is a laboratory standard 50 Ohm band pass filter Frequency 2 to 3.8 GHz, Bandwidth 1800 MHz, Center Frequency 2900 MHz, Insertion Loss 1.7 dB, Upper Rejection 50 dB@4.1 to 5 GHz.

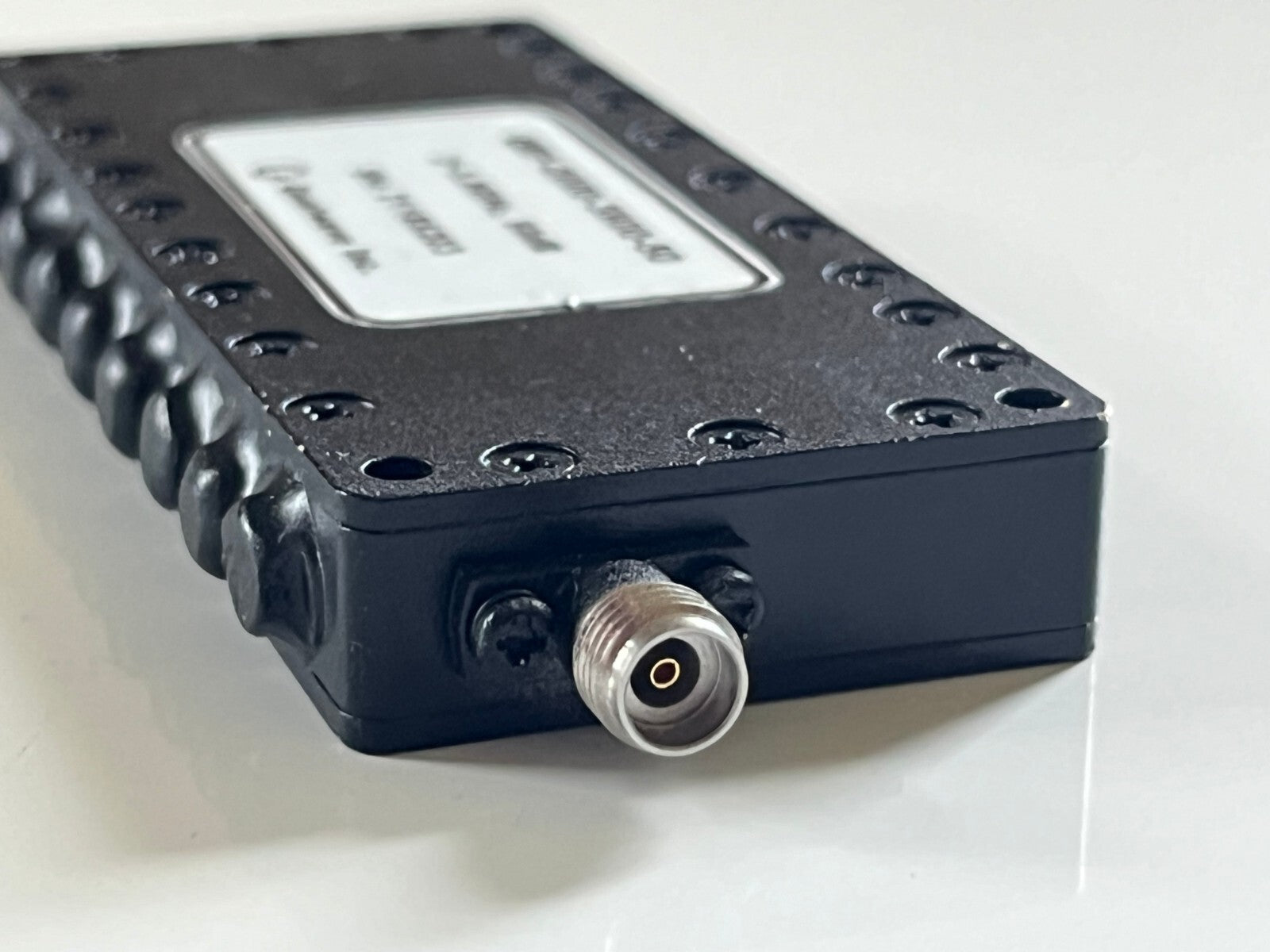

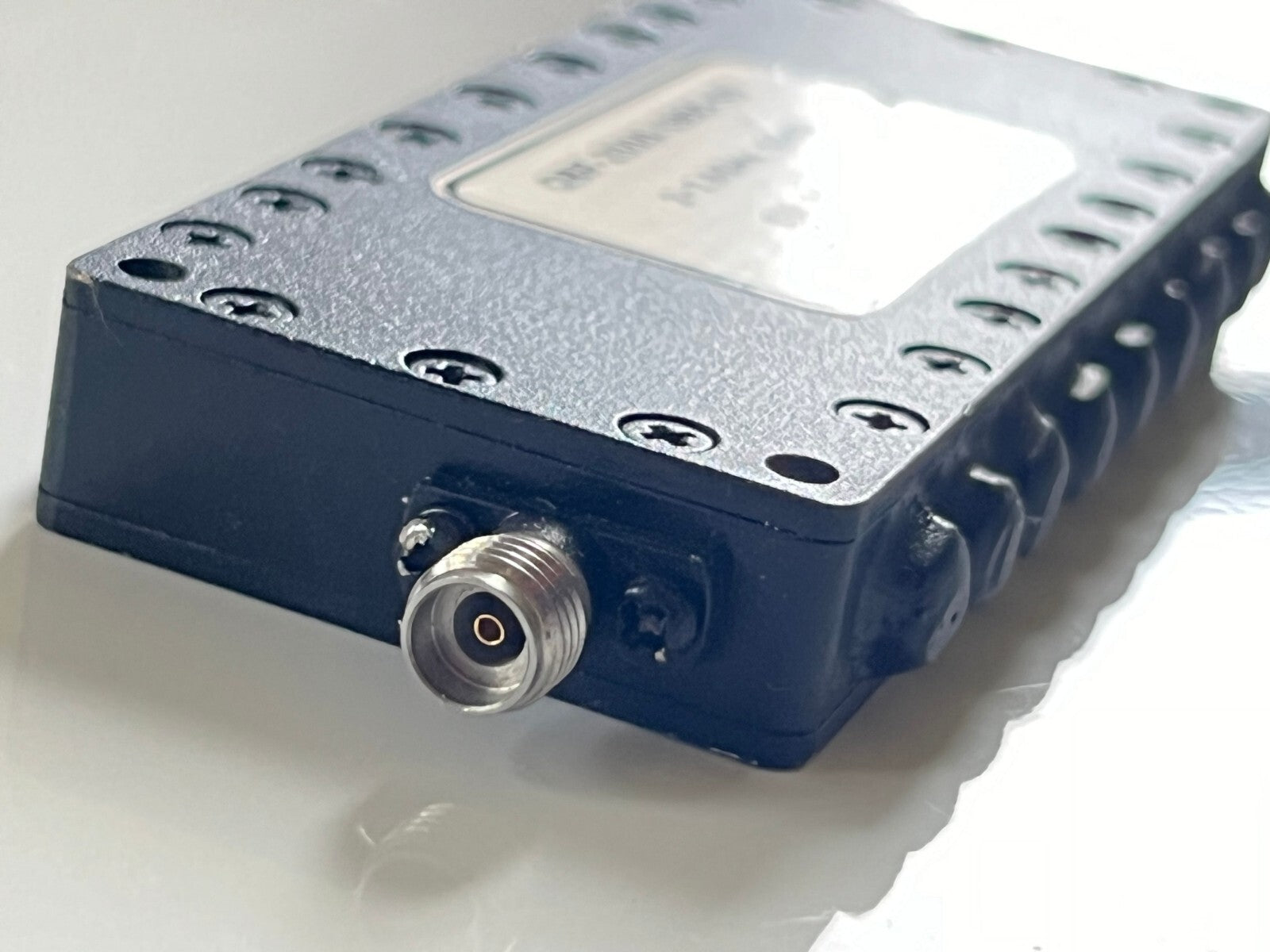

RF input power 2W with 2.92mm female connections.

Application Type - Telecom, Laboratory Test, Receivers & Instrumentation
Frequency 2 to 3.8 GHz
Bandwidth 1800 MHz
Center Frequency 2900 MHz
Insertion Loss 1.7 dB
Upper Rejection 50 dB@4.1 to 5 GHz
Lower Rejection 50 dB@DC to 1.7 GHz
Power 2 W
Ripple 1 dB
VSWR 1.701
Impedance 50 Ohms

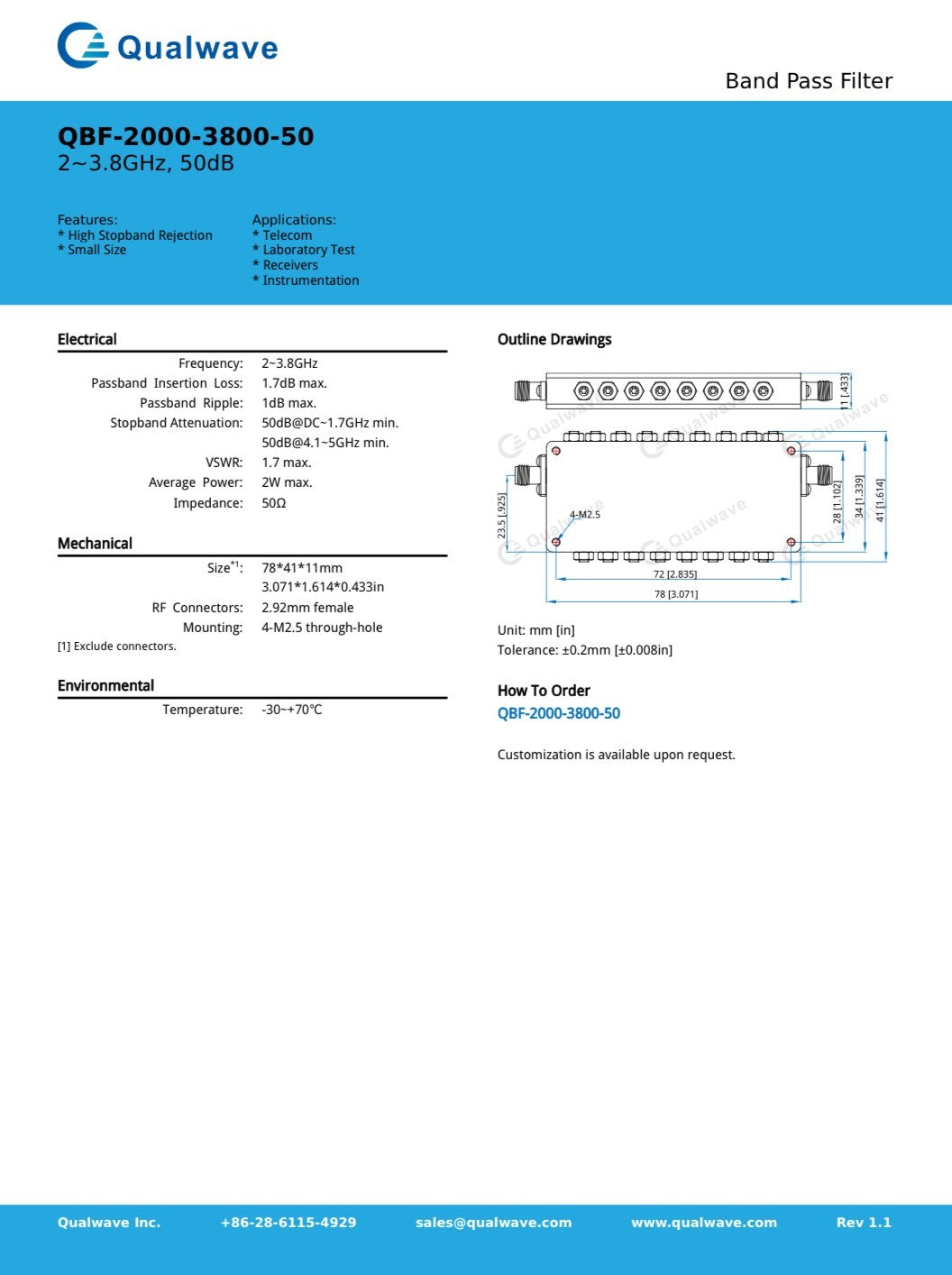

Manufacturers datasheet with full specifications can in the photos above

This came to us from a closed OEM companies test laboratory where it had little or no use, supplied in perfect condition at a fraction of the list price.
.  PRICED AND SUPPLIED EACH - X1.
