PLESSEY 500K OHM 2W CARBON VINTAGE POTENTIOMETER fd5g2

PLESSEY 500K OHM 2W CARBON VINTAGE POTENTIOMETER fd5g2

Regular price £12.00
Regular price Sale price £12.00
Sale Sold out
Taxes included.

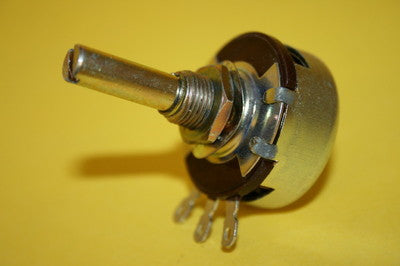

PLESSEY 500K OHM 2W CARBON VINTAGE POTENTIOMETER

Manufactured to military standards by Plessey in the 1960's these are best quality Type E vintage carbon bush mounting potentiometers, 500K Ohm linear and high 2 Watt rated, to 500Vdc.

Standard Plessey pots were used in many high end audio applications, these mil-spec versions are even better !

We took one to pieces to see how they are constructed, and they are superb. A wide carbon track laid down on a really thick moulded bakelite body. The wiper is a 3mm carbon block in a beryllium copper mount which ensures low noise and long life. Connections are heavy solder eye tags.

Body dimensions are 30mm diameter x 15mm deep, plus the shaft which has a 8mm diameter threaded through panel part which is 10mm in length, plus the control spindle which is 20mm long and the standard 6.3mm (1/4") in diameter. Electrical rotation is 280 degrees and mechanical is 316.

The actual pots given that they are in the region of 40 years old are in excellant condition, some of the panel locking nuts however do have very slight surface corrosion.
