PICOSECOND LABS HIGH VOLTAGE SMA POWER DIVIDER

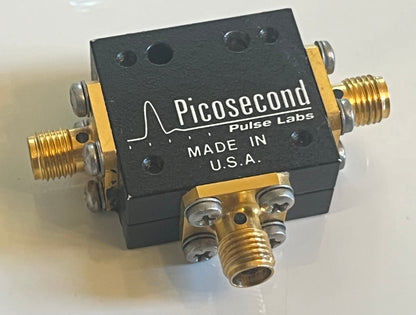

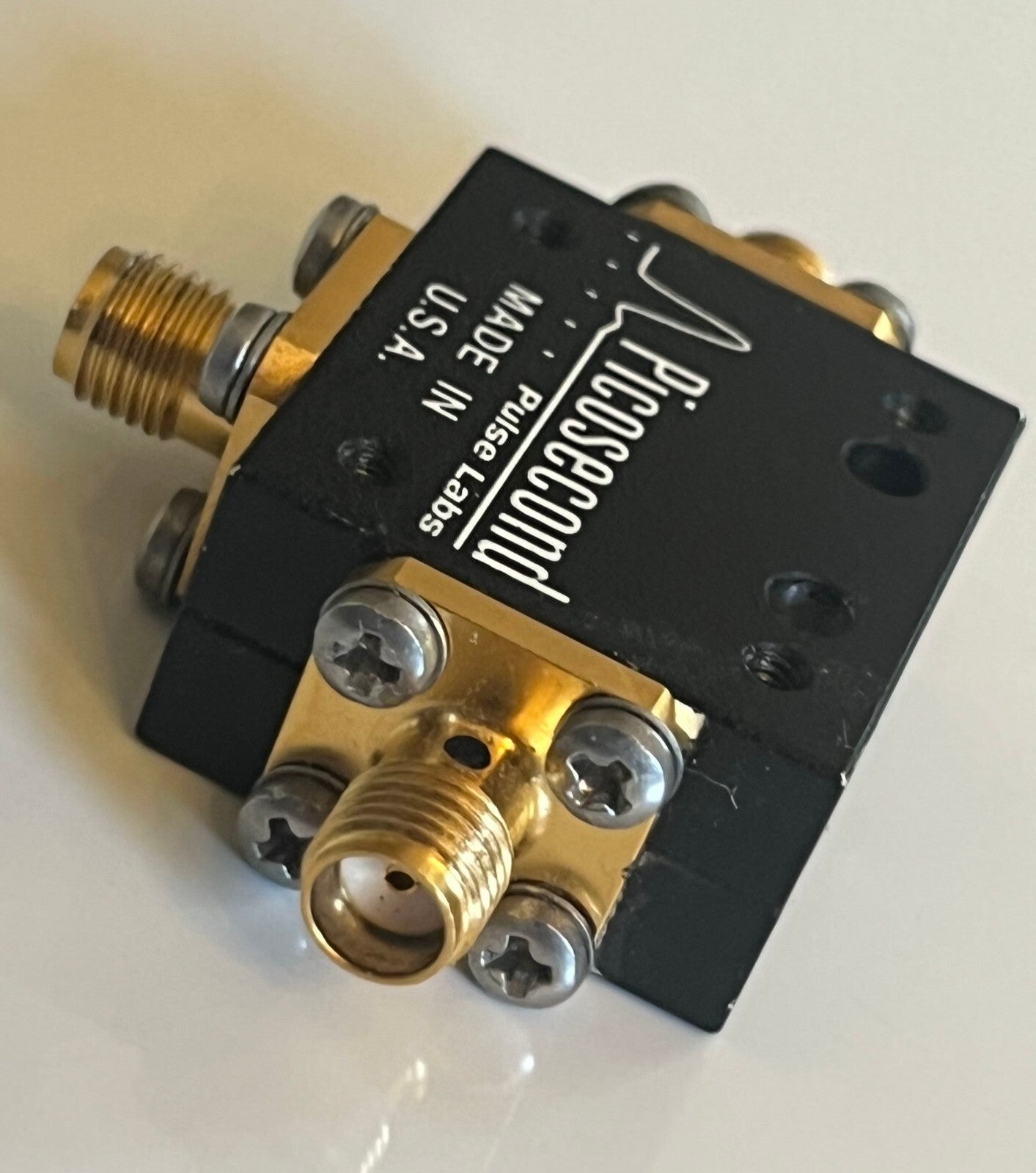

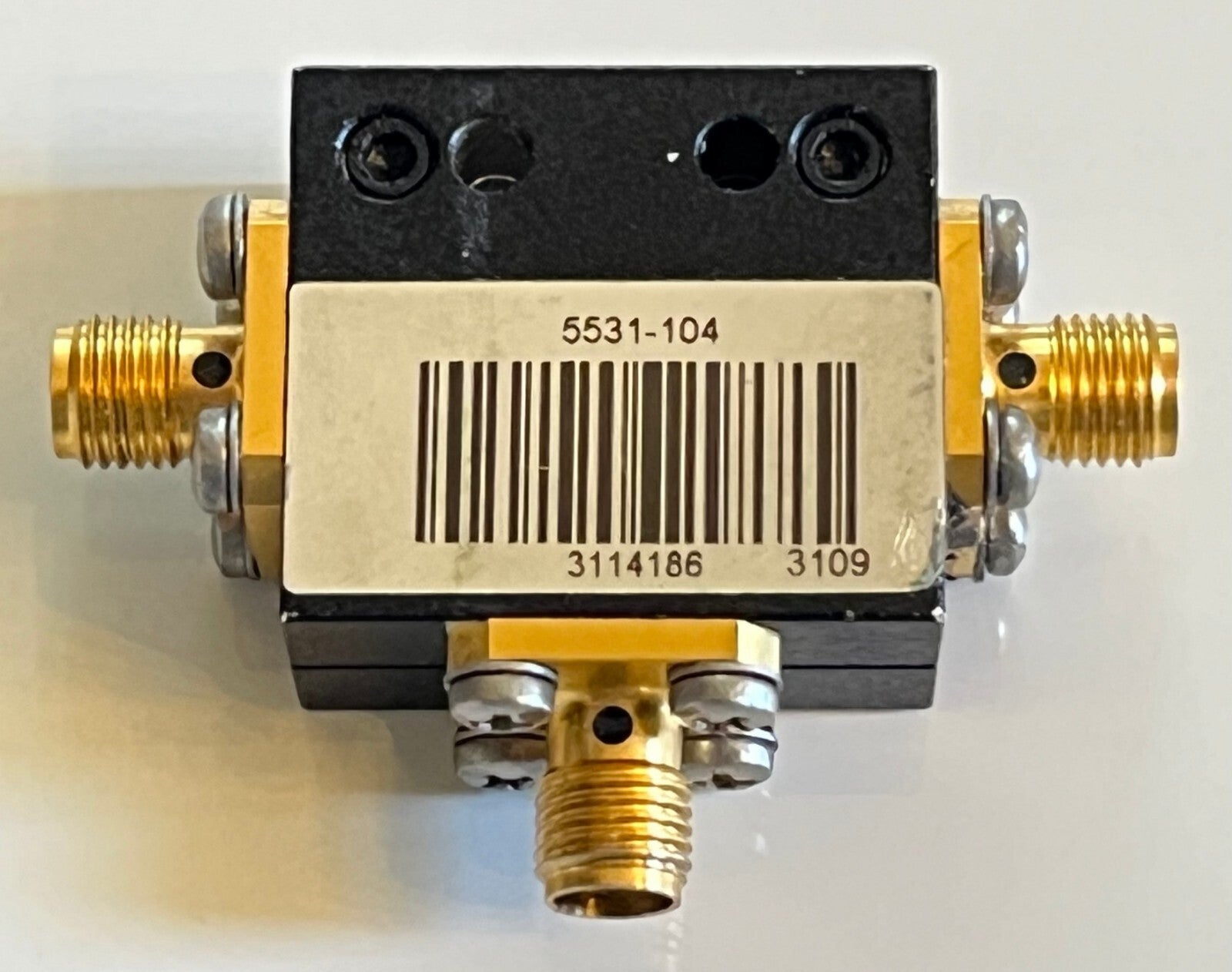

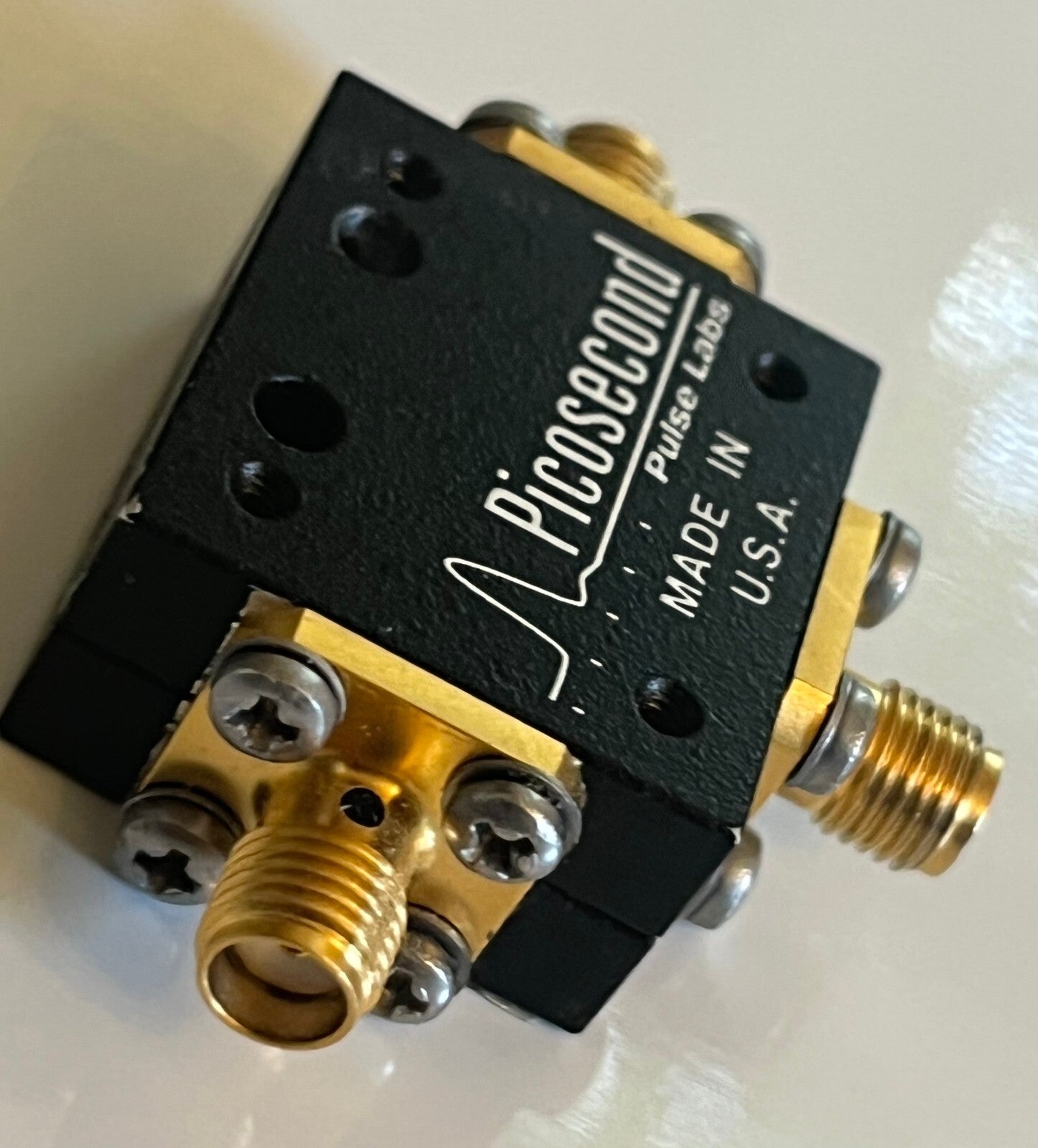

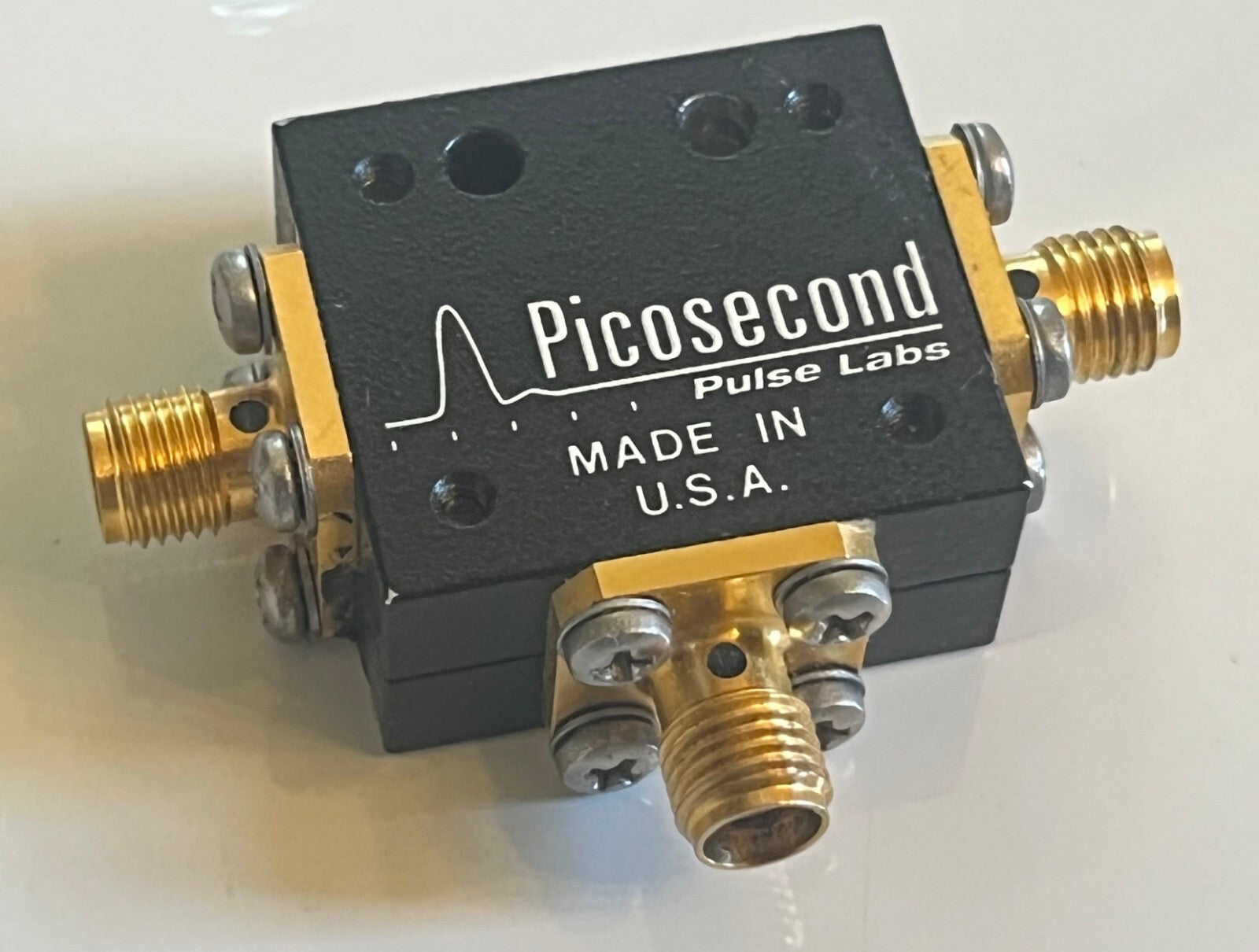

Manufactured by Picosecond Pulse Labs in the USA as their part number 5531-104, this is a rare type, laboratory standard DC - 10GHz,  20mA 1.5kV  RF power divider tee.

With gold plated SMA male - female connections.

The Picosecond 5531-104 Power Divider is a very broadband bias tee, used to supply an active device like an amplifier, laser diode, photodiode, or optical modulator with a bias current or bias voltage while allowing high speed, ultra-broadband signals to pass through with minimum signal degradation. These bias tees have low insertion loss, very broad frequency response, and exceptional time domain performance. resistive tee. It is useful for splitting a signal into two identical signals or for combining two signals.

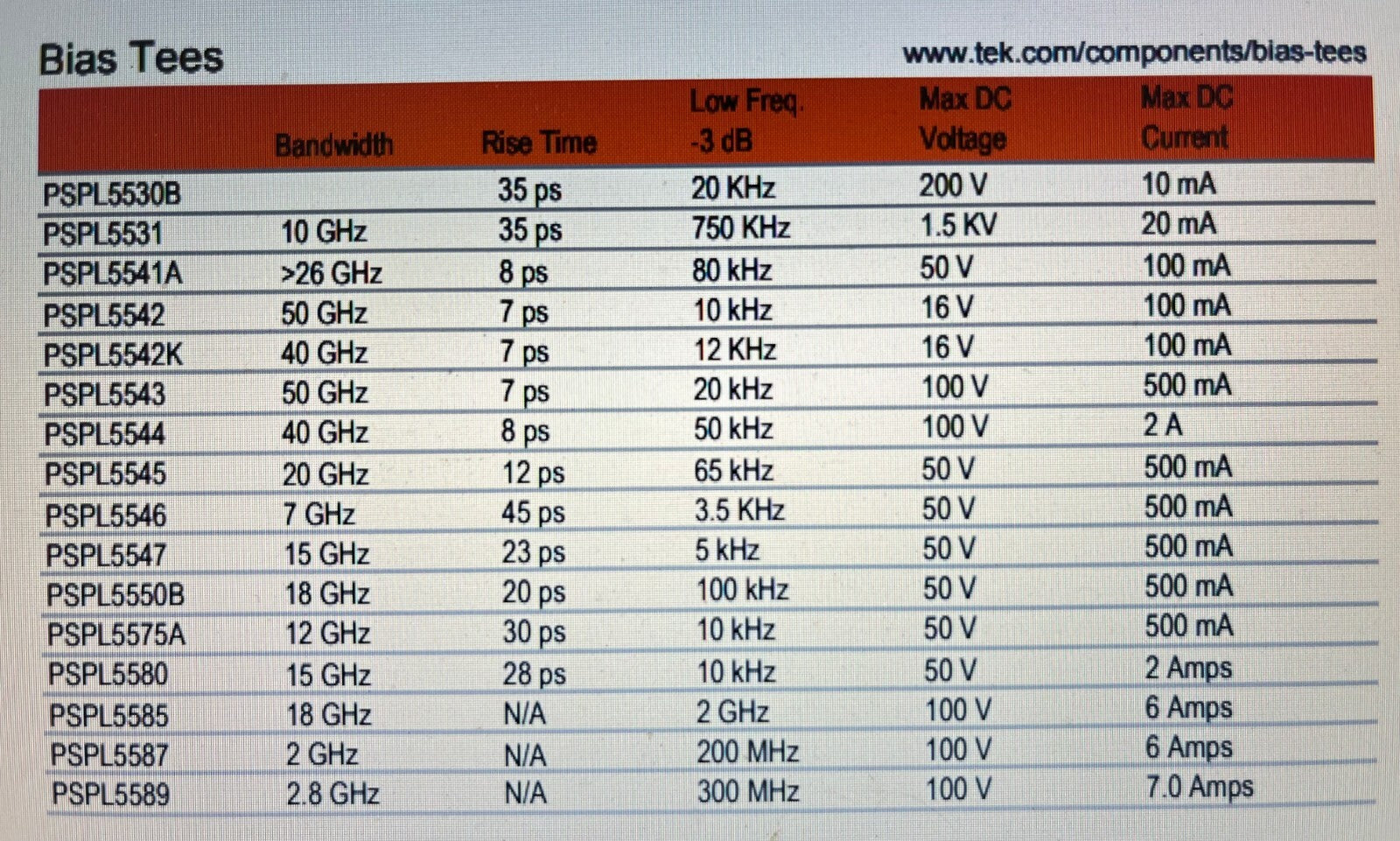

The Data sheet with full specifications can be seen in the photos above

Perfect condition, it came to us from a now closed major OEMs UK R&D lab where it had little or no use whatsoever.
