PICOSECOND PULSE LABS

PICOSECOND 5331-104 18GHz SMA 6dB 0.75W RF POWER DIVIDER TEE ae1w33

PICOSECOND 5331-104 18GHz SMA 6dB 0.75W RF POWER DIVIDER TEE ae1w33

£195.00
£195.00
Sale Sold out
Taxes included.

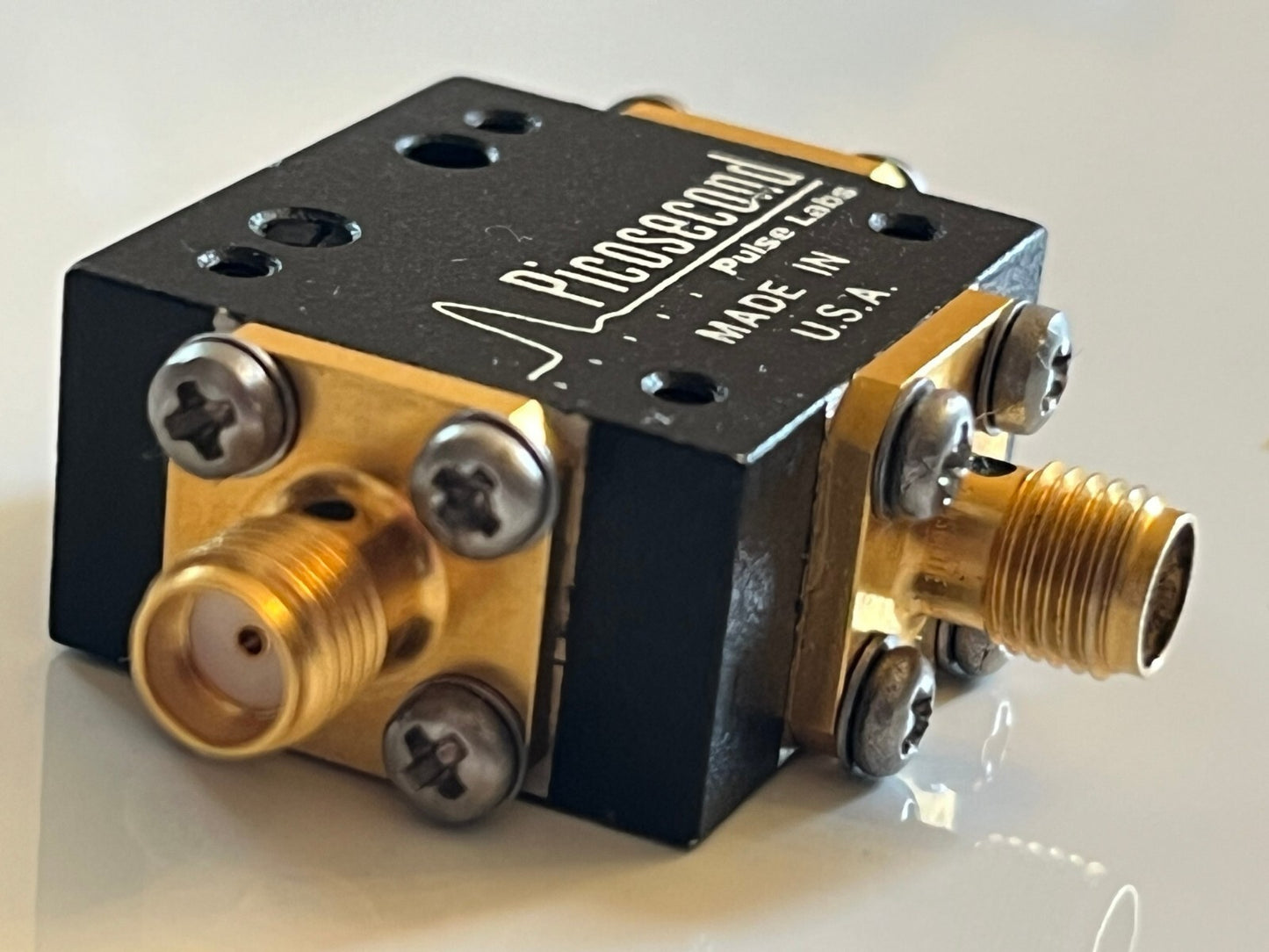

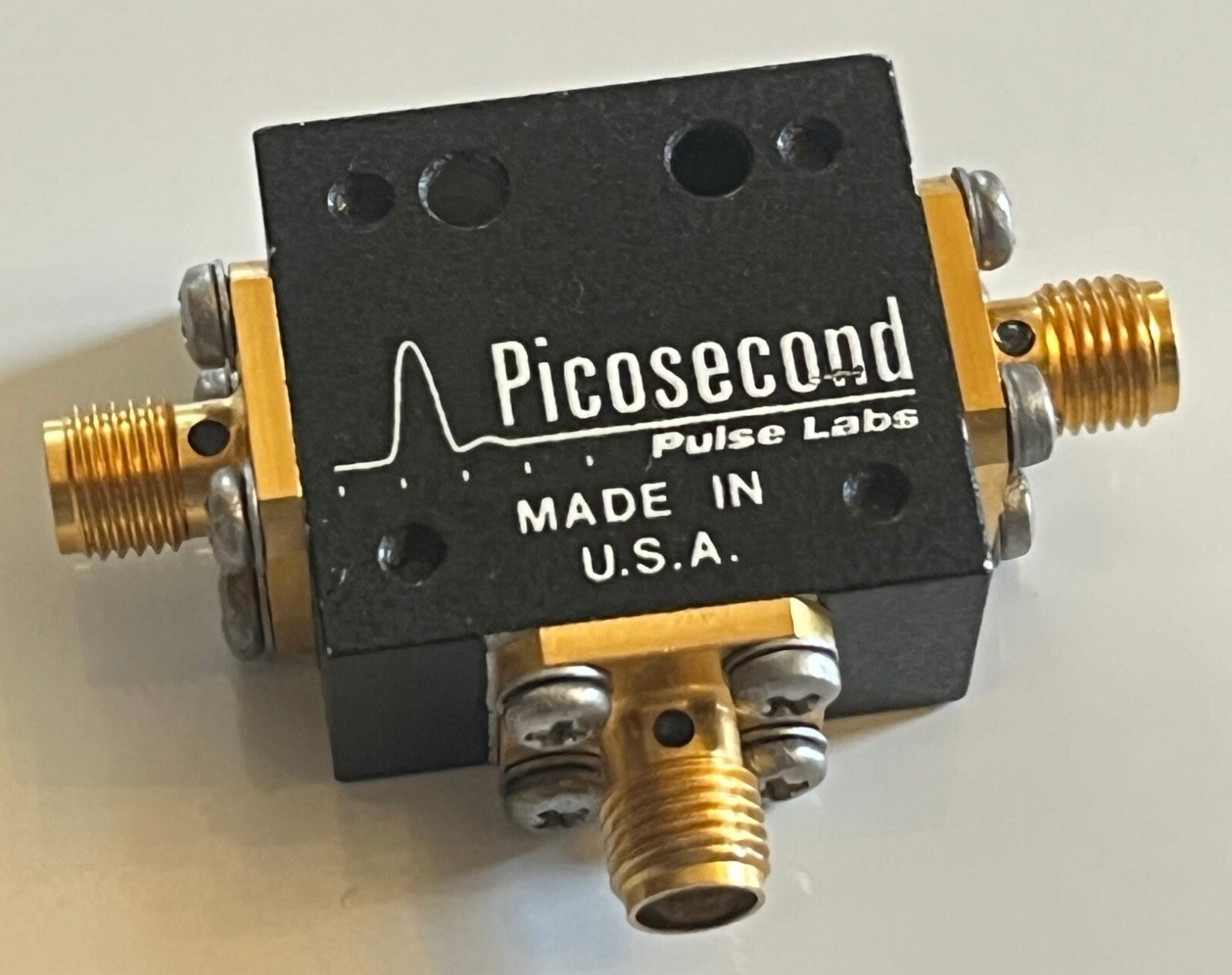

PICOSECOND LABS SMA POWER DIVIDER

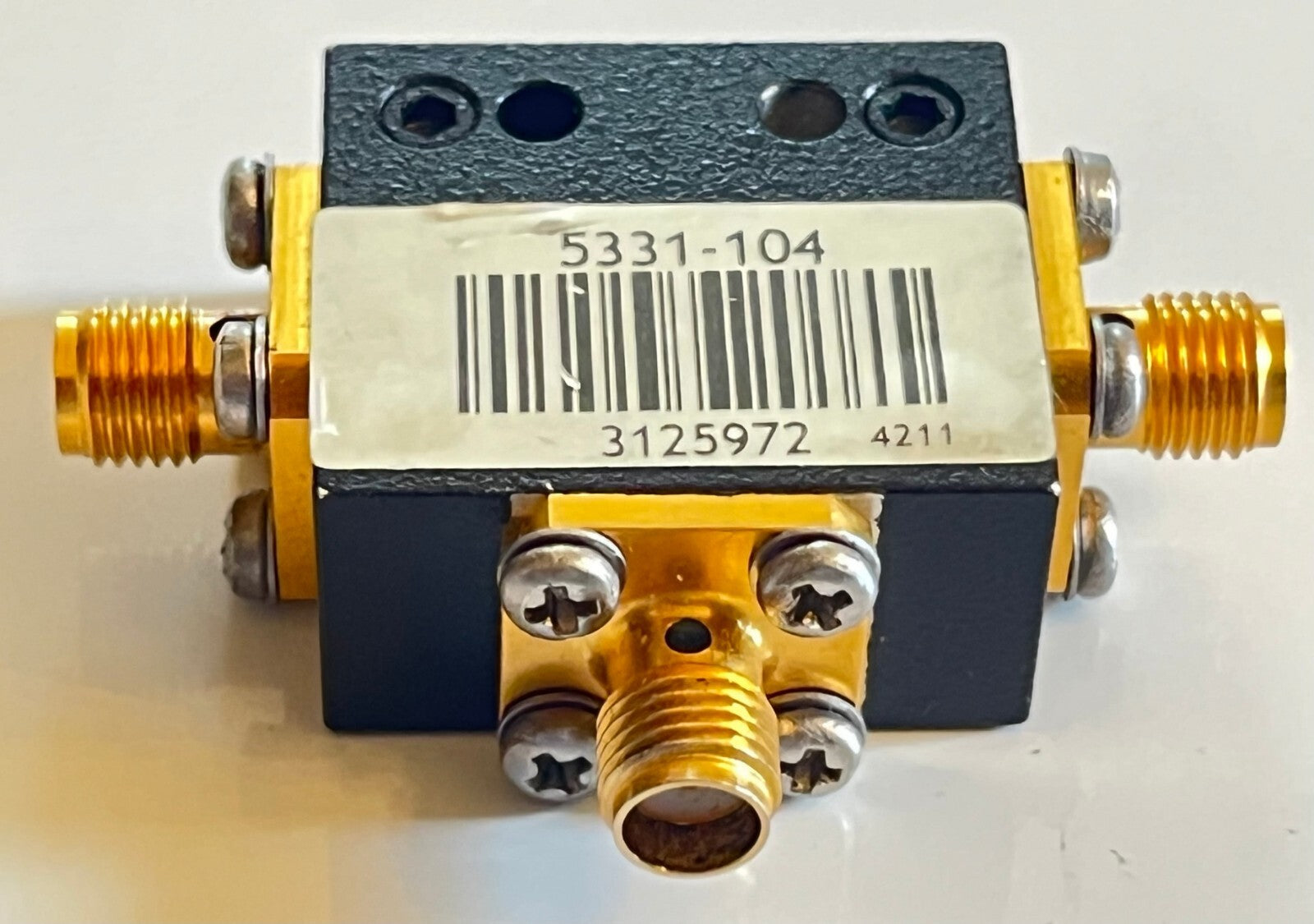

Manufactured by Picosecond Pulse Labs in the USA as their part number 5331-104, this is a laboratory standard DC - 18GHz,  0.75W RF power divider tee, with 6dB attenuated outputs.

With gold plated SMA male - female connections.

The Picosecond 5331-104 6 dB Power Divider is a very broadband, resistive tee. It is useful for splitting a signal into two identical signals or for combining two signals. The output is attenuated by 6 dB. These are impedance-matched tees that present a 50 Ω input impedance when both outputs are terminated in 50 Ω. Power Divider tees are built using three 16.7 Ω resistors and thus present a 50 Ω impedance at any port. The resistors in this tee have 1% tolerances and thus this tee has excellent symmetry and very close impedance match to 50 Ω. It has a rise time of 17 ps and bandwidth from DC to >18 GHz.

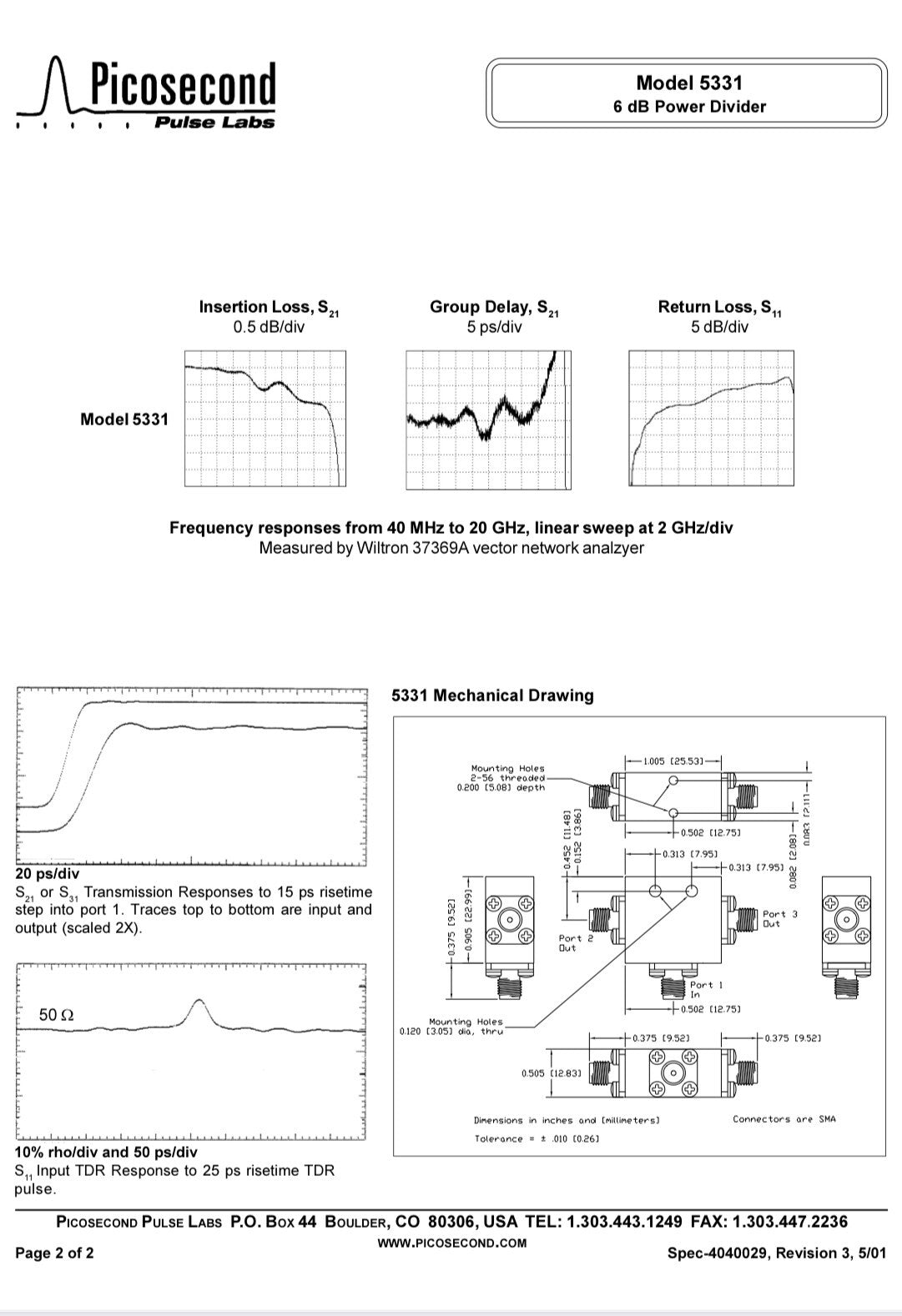

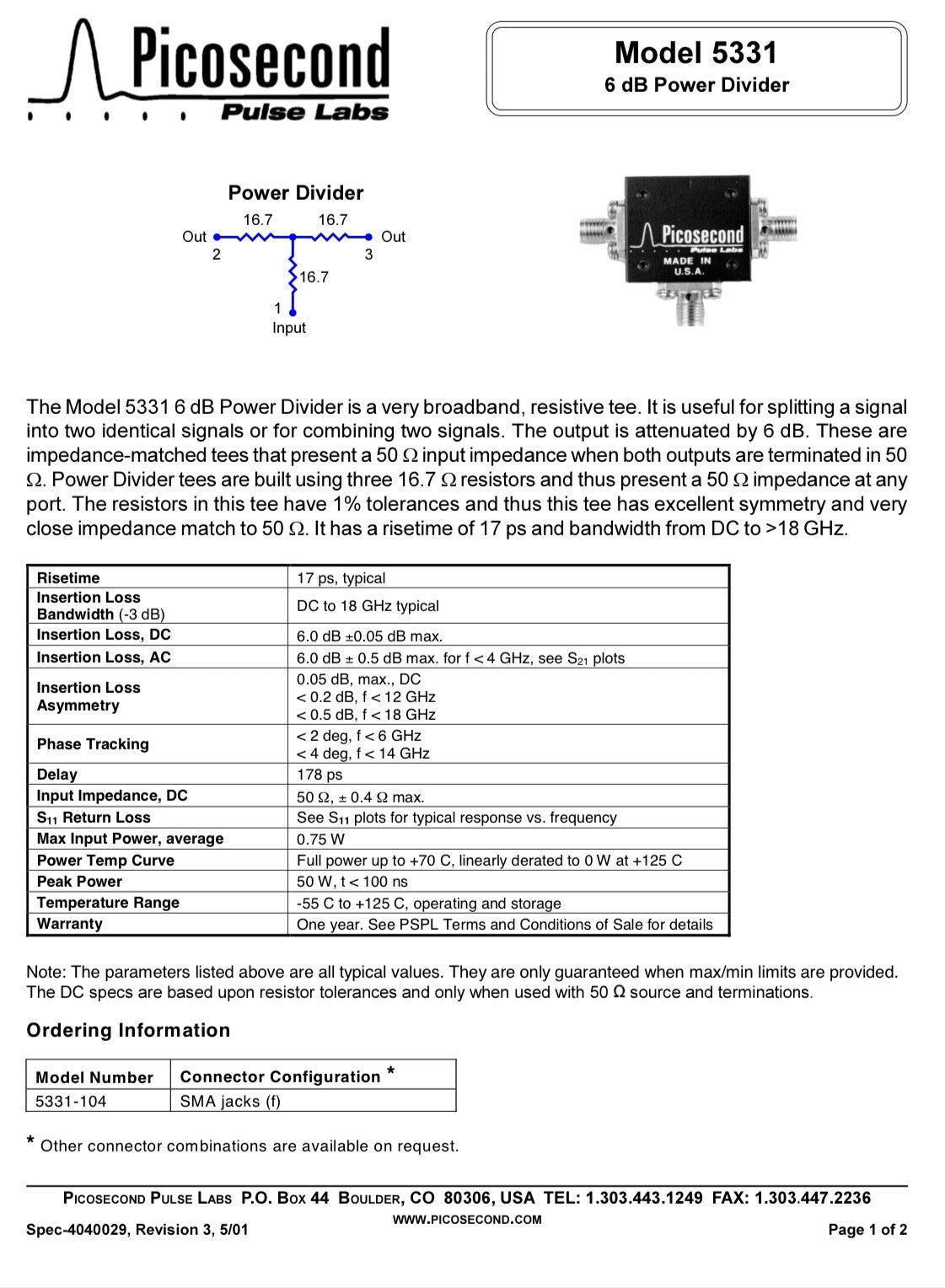

The Data sheet with full specifications can be seen in the photos above

Perfect condition, it came to us from a now closed major OEMs UK R&D lab where it had little or no use whatsoever.
