PHILIPS PROFESSIONAL TRIMMER CAPACITOR 3 - 18pF 250Vdc PTFE & GOLD (X5) bda14

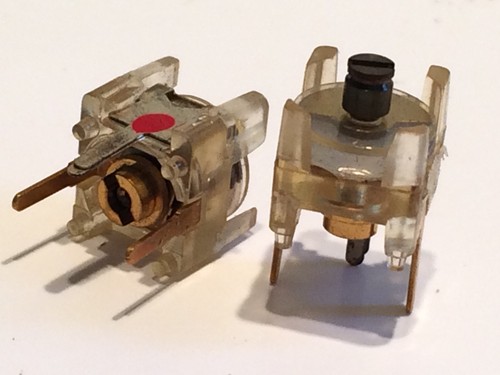

PHILIPS  MINIATURE  FILM  TRIMMER  CAPACITOR  3 - 18pF

For fine adjustment professional applications. The trimmers consist of a polysulphone housing, brass rotor and

gold plated brass stator with PTFE film as the dielectric. The stator plate tags are heat sealed to the housing.

The rotor contact surfaces are gold plated to ensure a long life and a stable contact even under severe climatic conditions.

Dimensions are 8 mm × 9 mm × 10 mm

For the full datasheet see this:   www.datasheetarchive.com/dl/Datasheet-046/DSA0053011.pdf

 Priced and supplied  in a pack of 5 pieces - x5.  For smaller quantities see our other listing of this part.
