PHILIPS PROFESSIONAL TRIMMER CAPACITOR 3 - 18pF 250Vdc PTFE & GOLD (X1) bda14

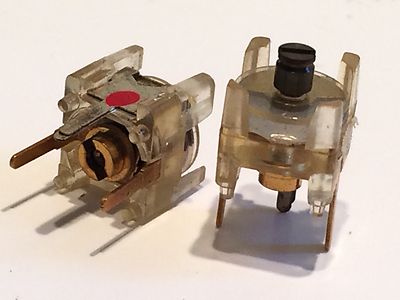

PHILIPS  MINIATURE  FILM  TRIMMER  CAPACITOR  3 - 18pF

Manufactured to military specifications by Philips in the 1980's (part number 2222-809-09003)

For fine adjustment professional applications. The trimmers consist of a polysulphone housing, brass rotor and

gold plated brass stator with PTFE film as the dielectric. The stator plate tags are heat sealed to the housing.

The rotor contact surfaces are gold plated to ensure a long life and a stable contact even under severe climatic conditions.

Dimensions are 8 mm × 9 mm × 10 mm

For the full datasheet see this:   www.datasheetarchive.com/dl/Datasheet-046/DSA0053011.pdf

 Priced and supplied each  - x1 with quantity discounts available.

 For larger quantities see our other listing of this part.
