NEW HAMPSHIRE BALL BEARINGS

NEW HAMPSHIRE BALL BEARINGS ANNULAR MATCHED SET 901819-1C 38.1MM fd7d43

Name: NEW HAMPSHIRE BALL BEARINGS ANNULAR MATCHED SET 901819-1C 38.1MM fd7d43
Brand: NEW HAMPSHIRE BALL BEARINGS
Price: 80.00 GBP
Availability: InStock

£80.00

Sale Sold out

Taxes included.

Quantity

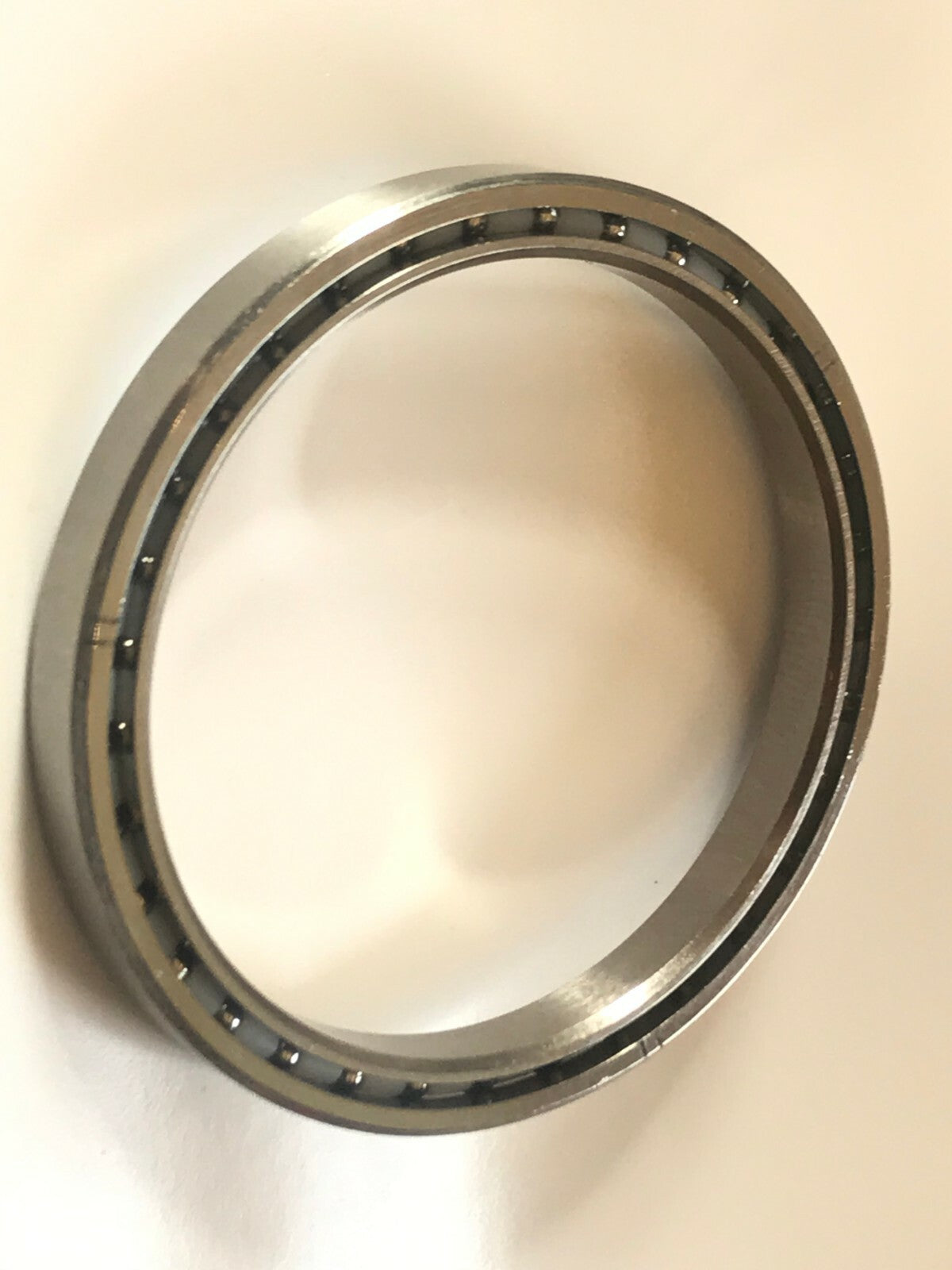

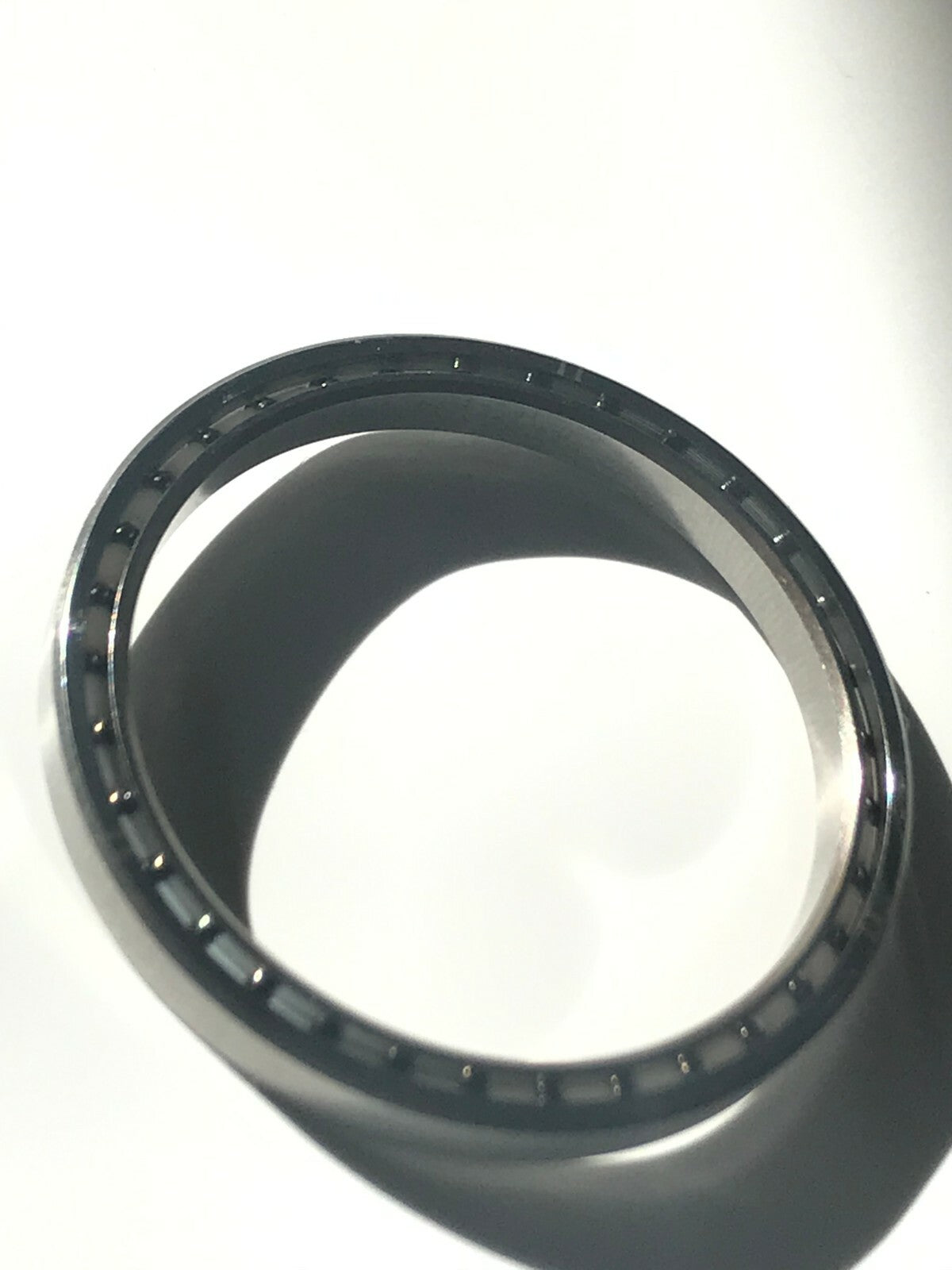

Manufactured to military specifications for the RAF, (NSN 1430-99-656-5941) by New Hampshire Ball Bearings, these are a matched pair of quality annular ball bearings, manufactured from 440A stainless.

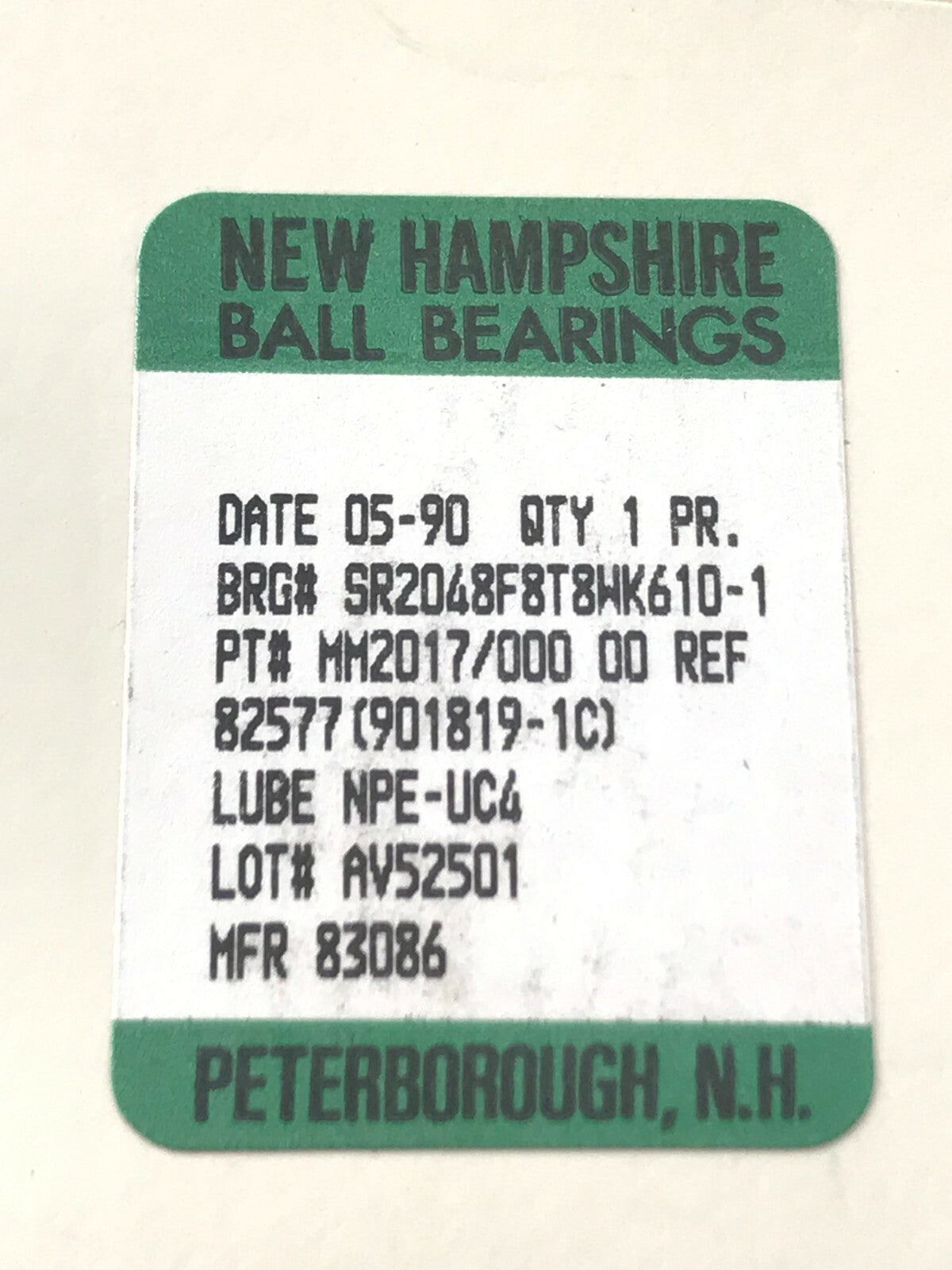

See photo label for the full part numbers.

Overall Width: 0.1560 inches nominal

Bore Diameter: 1.2500 inches nominal

Overall Outside Diameter: 1.5000 inches nominal

Surface Finish: Ground

Retainer Fabrication Method: Machined

Load Direction: Radial

Bore Shape: Straight

Internal Clearance: 0.0005 inches minimum radial and 0.0011 inches maximum radial

New and perfect surplus stock, offered at a fraction of the original price.

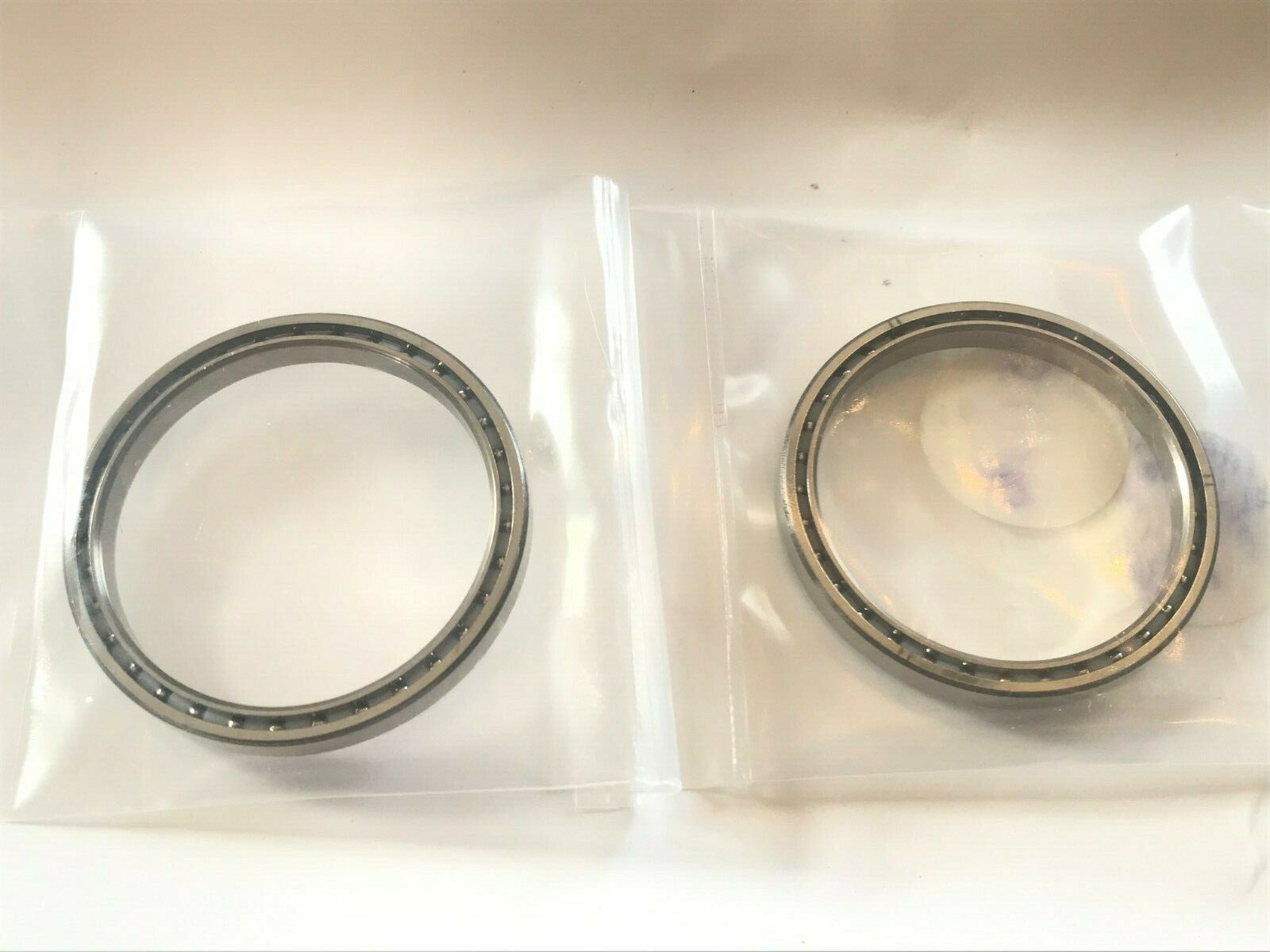

Priced and supplied as 1 matched pair.
