N TYPE MALE - MALE RG142 SHORT LINK CABLE BEST MILITARY QUALITY fba21b

N TYPE MALE - MALE RG142 SHORT LINK CABLE BEST MILITARY QUALITY fba21b

£9.00
£9.00
Sale Sold out
Taxes included.

N TYPE MALE - MALE RG142 SHORT LINK CABLE

Manufactured using military spec RG142 PTFE and Silver plated copper coaxial cable, these are useful short length and best quality low loss 50 Ohm N type male to male link cables.

The connectors used are CPE Nickel and gold plated high power low profile right angle N types and the cable is Radiall M17/60-RG142-MIL/C-17 best quality coaxial.

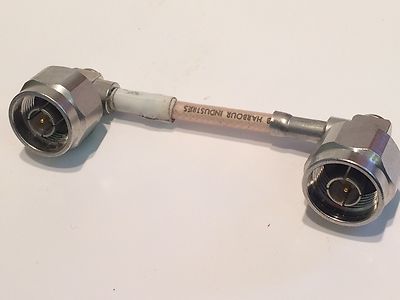

When straight as shown in the photo the distance between the centre pins is 80mm, or in old money 3.1/8th inches.

Diameter of the cable is about 5.5mm. The maximum depth or height of the connector for those with space restrictions is 26mm

Maximum useful frequency is 12GHz, and power handling is about 2.4kW at 100Mhz and 600W at 1.0Ghz.

We used to list these a few years ago and they were very popular, all cables are manufactured to exactly the same length, customers were buying them in sets of 4 we presume for inter-conneting analyzers, similar cables for which cost a fortune.

Priced and supplied individually.
