RADIALL

N TYPE CHASSIS FEMALE - BENT INSULATED PIN BEST QUALITY PANEL SOCKET blb83

N TYPE CHASSIS FEMALE - BENT INSULATED PIN BEST QUALITY PANEL SOCKET blb83

£3.50
£3.50
Sale Sold out
Taxes included.

N TYPE CHASSIS FEMALE - BENT INSULATED PIN

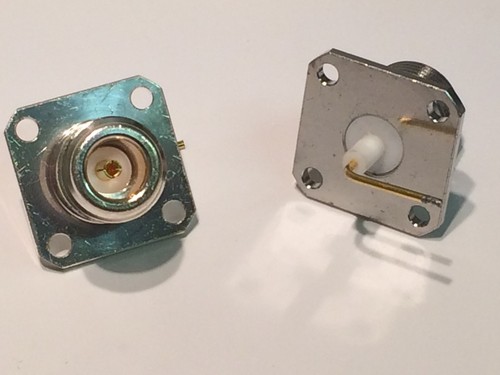

Manufactured by Radiall, these are a top quality 50 Ohm chassis N type female, 4 hole mount with a long center pin connection at the rear which is formed at 90 degrees and partly shrouded in PTFE.

Construction is of bright white bronze with Teflon insulation and a heavily gold plated centre pin.

 The connector is completely flat at the rear except for the 1mm diameter center pin which protrudes from the rear by about 11mm with 7mm of that been shrouded in Teflon insulation (approxiamatly 4mm diameter), the pin is then bent at right angle and continues for another 15mm.

 Mounting flange is standard 25mm square with fixing centres at roughly 18mm.

PRICED AND SUPPLIED EACH X1
