MYLEX DAC960PD-3A PCI 3 CHANNEL SCSI CONTROLLER fd1L17

New and unused, this was a spare field part for an international blue chip company.

Other information from labels on the reverse of the board which may be important to some users is:

W.O.APL91302-1, D040375-0-SNI, REV. C and S26361-D1035-V1, MYL:DAC960PD-3A, GS:05  &  the firmware eeproms have a label on which says: 615190-F03,V3.51-0-12, U34, SNI.

Mylex's DAC960PD PCI RAID Disk Array Controller is for true hardware implementation of fault tolerant disk storage.

The DAC960PD is available in 1, 2, and 3 channel versions supporting RAID levels 0, 1, 5, 0+1 and JBOD. The 32-bit Intel i960 microprocessor and up to 32 Mbytes of intelligent read/write cache efficiently handle all disk storage management functions. Up to 3 Fast/Wide SCSI-2 channels, PCI bus mastering with up to 132 MB/s burst data rates.

Advanced RAID features include: Cabinet Management (AEMI), Hot swap disk support, Transparent disk drive rebuild, Automatic error recovery, Variable stripe width. Advanced SCSI-2 features include: Disconnect/Reconnect, Tag Command Queuing.

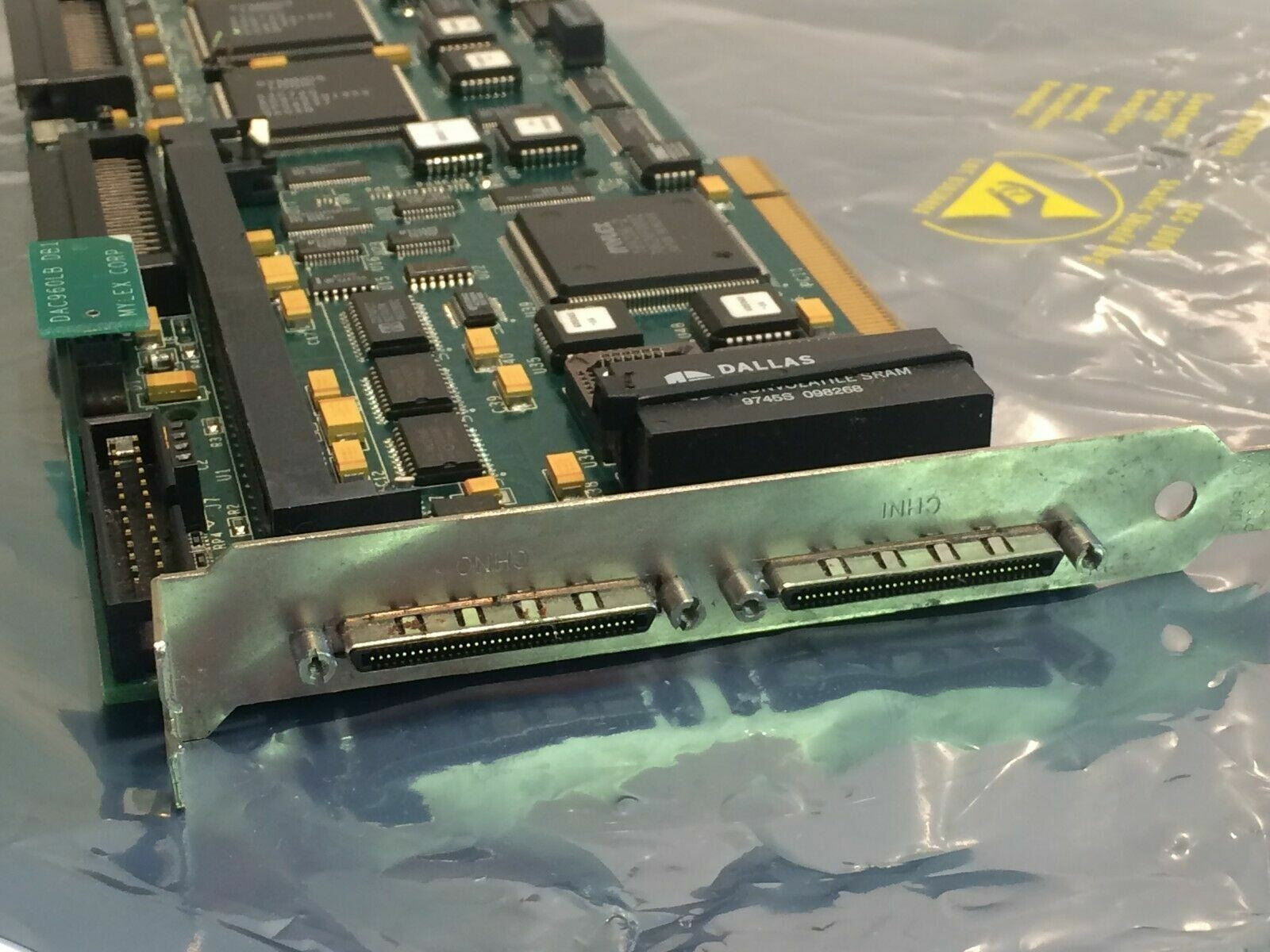

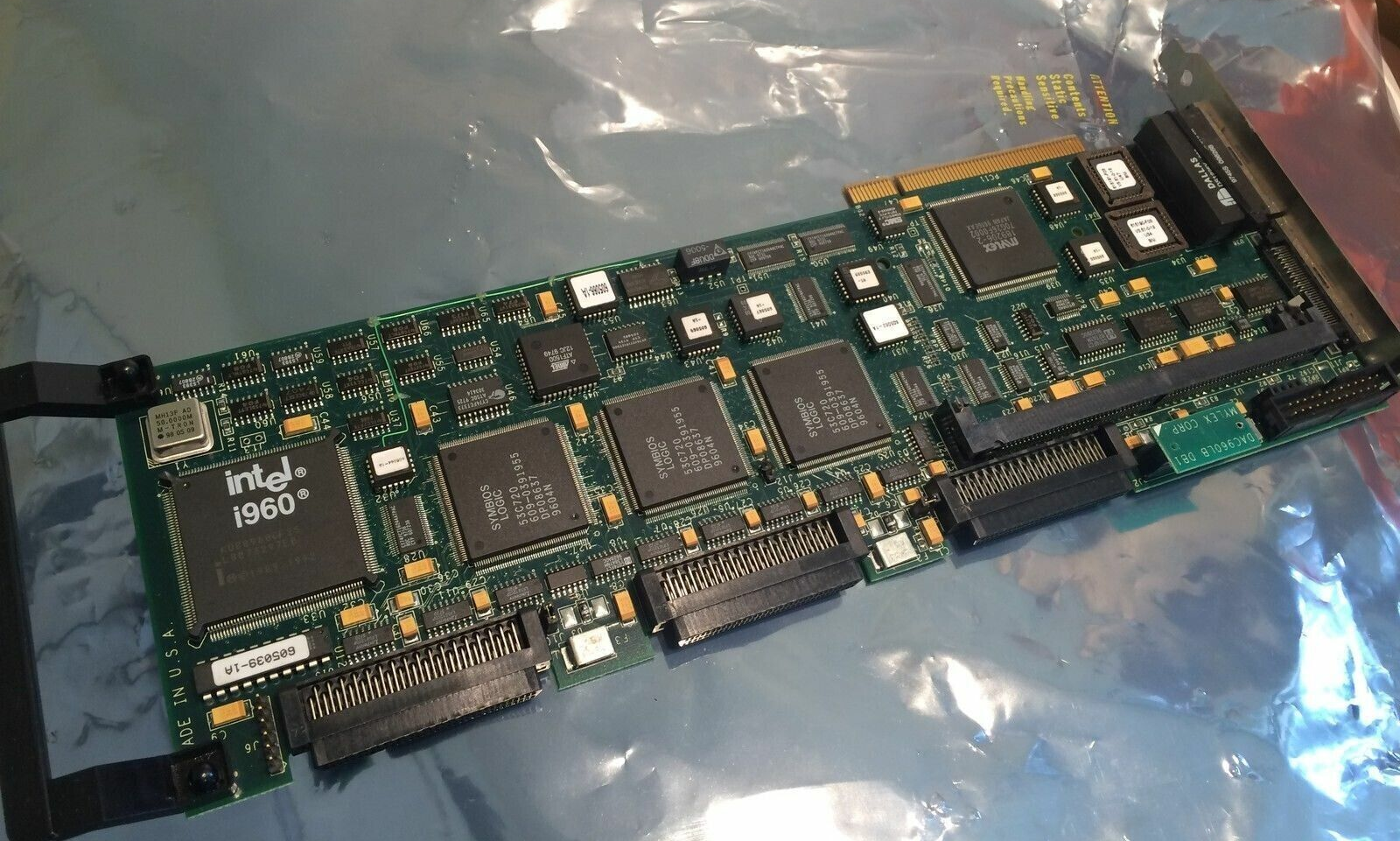

SUPPLIED AS SHOWN IN THE PHOTO.
