Cherry

MINIATURE MICRO SWITCH WITH LEVER bsa2a

MINIATURE MICRO SWITCH WITH LEVER bsa2a

£3.00
£3.00
Sale Sold out
Taxes included.

MINIATURE MICRO SWITCH WITH LEVER

Manufactured by Cherry as part of their E63 range, these are a miniature micro switch with a steel activation lever. SPST - so a single pole change over switch with solder tag contacts.

Quite a sensitive switch, the type that may be used on equipment cover alarms etc.

Dimensions of the body are approximately 19mm x 11mm plus connections, mounting holes are at 10mm centres.

If the activator part of the steel lever were to be straightened out, it would be approximately 25mm in length, and it is 4mm across.

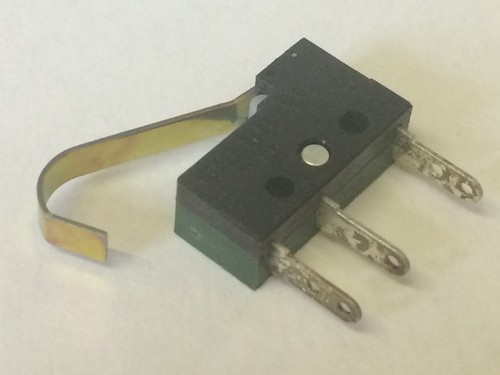

SUPPLIED AS SHOWN IN THE PHOTO.
