NSF CONTROLS

MINI PANEL MOUNT SINGLE POLE DOUBLE THROW TOGGLE SWITCH MILITARY QUALITY fd7d86

MINI PANEL MOUNT SINGLE POLE DOUBLE THROW TOGGLE SWITCH MILITARY QUALITY fd7d86

£10.00
£10.00
Sale Sold out
Taxes included.

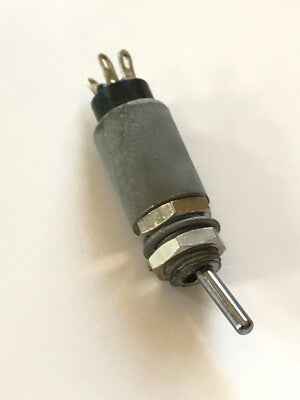

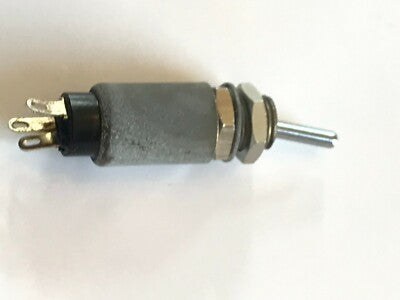

MILITARY QUALITY MINI SINGLE POLE TOGGLE SWITCH

Manufactured and hand finished to full military specifications in the UK by NFS Controls, these are a premium quality miniature toggle switch.

Unusual circular design with an attractive stainless steel toggle and whole body. Were used in missile launch systems.

One normally open and one normally closed contact, so a single pole changeover switch with gold plated contacts, rated at 5A  125VAC and 28VDC.

These are a premium quality switch, not to be confused with cheaper switches made nowadays, the switch action is very positive, this a switch  to use when quality, reliability and rugged durability is required in your application. Offered here at a fraction of the original cost.

Designed for panel mounting through about a 6.5mm hole, overall behind panel  dimensions are about 25mm of depth including the solder connection tags, and a body diameter of 9mm. Above panel to the tip of the toggle is roughly 14mm, making the overall length from connections to end of toggle about 38mm. Supplied with stainless steel lock nut and spring washer.

PRICED AND SUPPLIED EACH  X1
