MINI PANEL MOUNT DOUBLE POLE ON OFF TOGGLE SWITCH BEST MILITARY QUALITY fbb22s

MINI PANEL MOUNT DOUBLE POLE ON OFF TOGGLE SWITCH BEST MILITARY QUALITY fbb22s

£10.00
£10.00
Sale Sold out
Taxes included.

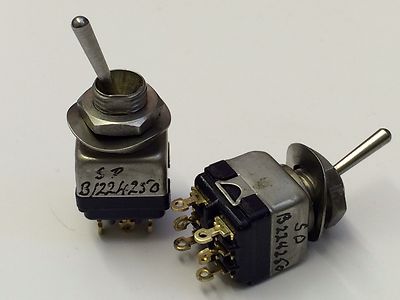

MILITARY QUALITY MINI DOUBLE POLE TOGGLE SWITCH

Manufactured and hand finished to full military specifications in the UK by NFS Controls, these are a premium quality miniature toggle switch, with an attractive heavy duty stainless steel toggle and upper body.

Twin normally open and normally closed contacts, so a double pole changeover switch with gold plated contacts, rated at 5A  125VAC and 28VDC.

Nato NSN is 5930-99-198-5611

These are a premium quality switch, not to be confused with cheaper switches made nowadays, the switch action is very positive, this a switch  to use when quality, reliability and rugged durability is required in your application. Offered here at a fraction of the original cost.

Designed for panel mounting through about a 8mm hole, overall behind panel  dimensions are about 13mm square with a depth including the solder connection tags of 17mm. Above panel to the tip of the toggle is roughly 18mm, making the overall length from connections to end of toggle about 35mm. Supplied with stainless steel lock nut and spring washer.

PRICED AND SUPPLIED EACH  X1
