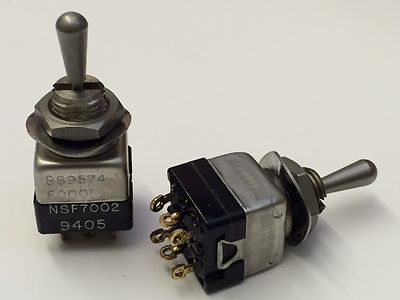

MILITARY QUALITY MINI DOUBLE POLE CENTER OFF BIASED TOGGLE SWITCH

Manufactured and hand finished to full military specifications in the UK by NFS Controls, these are a premium quality miniature toggle switch, with an attractive heavy duty 'pear drop' stainless steel toggle and upper body.

A biased switch, that means it has a center off position and spring return positions up and down.
So twin normally open and normally closed contacts with a momentary sprung make contact action with center (switch resting position) off - a double pole changeover switch with gold plated contacts, rated at 5A  125VAC and 28VDC.

These type of switches are used when a momentary connection is required - like in an ignition or speech circuit.


Nato NSN is 5930-99-198-5611

These are a premium quality switch, not to be confused with cheaper switches made nowadays, the switch action is very positive - quite stiff on the spring (there is no chance of  'accidental' operation), this a switch  to use when quality, reliability and rugged durability is required in your application. Offered here at a fraction of the original cost.

Designed for panel mounting through about a 8mm hole, overall behind panel dimensions are about 13mm square with a depth including the solder connection tags of 17mm. Above panel to the tip of the toggle is roughly 18mm, making the overall length from connections to end of toggle about 35mm. Supplied with stainless steel lock nut and spring washer.

PRICED AND SUPPLIED EACH  X1
