MINI MICROSWITCH 5A 250V WITH LONG LEVER fd1c1

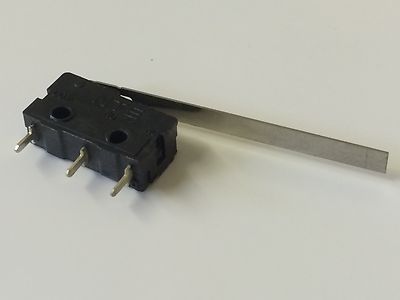

Manufactured by NTE as their model number CSM3580C, these are a subminiature micro switch with an unusually long steel activation lever.

5A 250V rating SPDT - so a single pole change over switch with solder tag contacts, 5A contacts in a switch of this physical size is quite high.

Quite a sensitive switch, only requires 15g force to operate. Often used as equipment cover alarm switches etc.

Lever is 43mm long, 4mm wide
Max operating force: 15g
Max pre-travel distance before actuation: 7.5mm
Max over-travel distance after actuation: 5mm


Dimemsions of the body are approxiamatly 20mm x 11mm plus connections, 3mm mounting holes are at 10mm centres.
