MINI-CIRCUITS ZX75BP-770-S+ CERAMIC BAND PASS FILTER 760 - 780MHz AE1W55

MINI-CIRCUITS ZX75BP-770-S+ CERAMIC BAND PASS FILTER 760 - 780MHz AE1W55

£70.00
£70.00
Sale Sold out
Taxes included.


MINI-CIRCUITS  ZX75BP-770-S+ CERAMIC RESONATOR BANDPASS FILTER

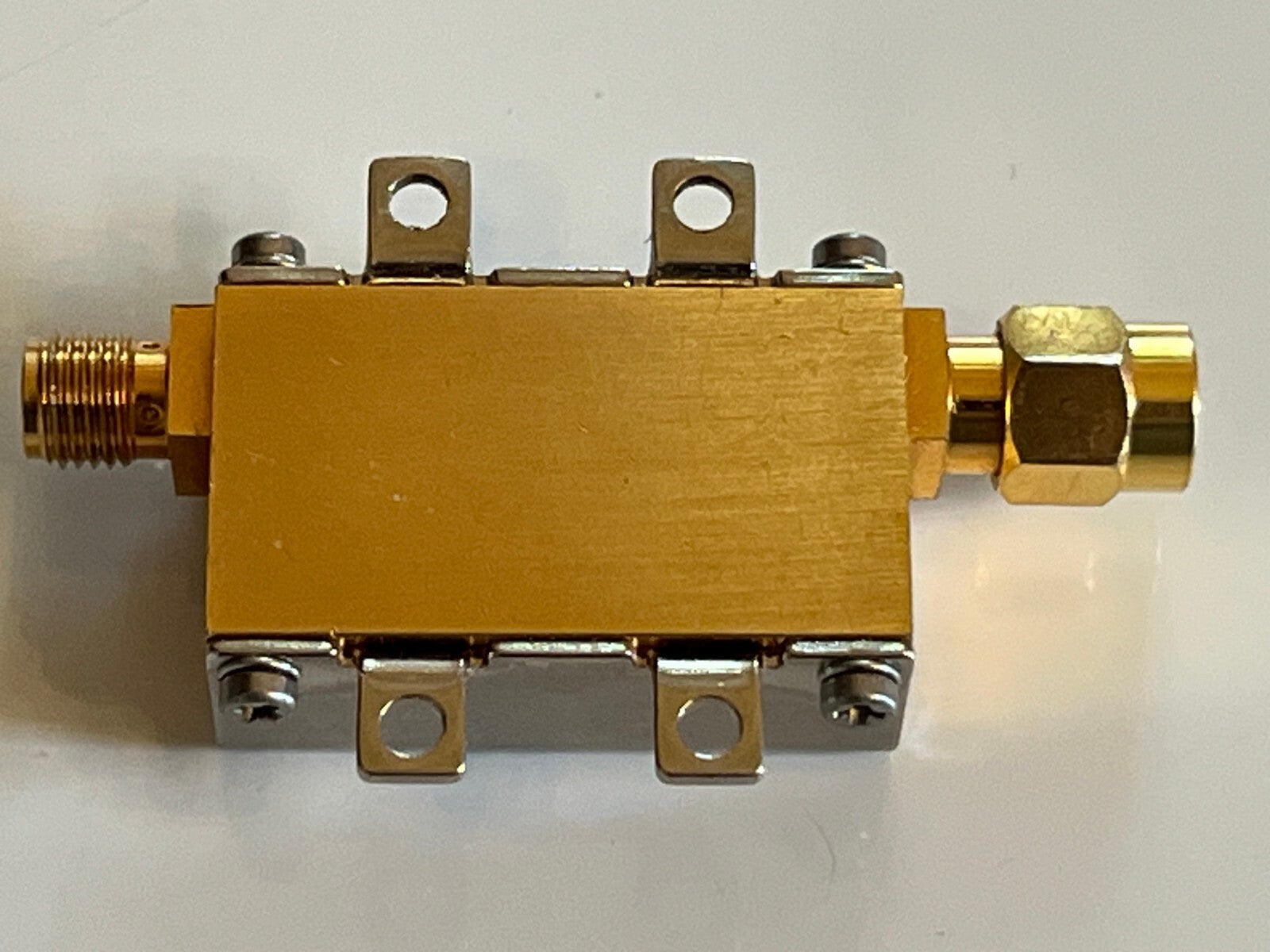

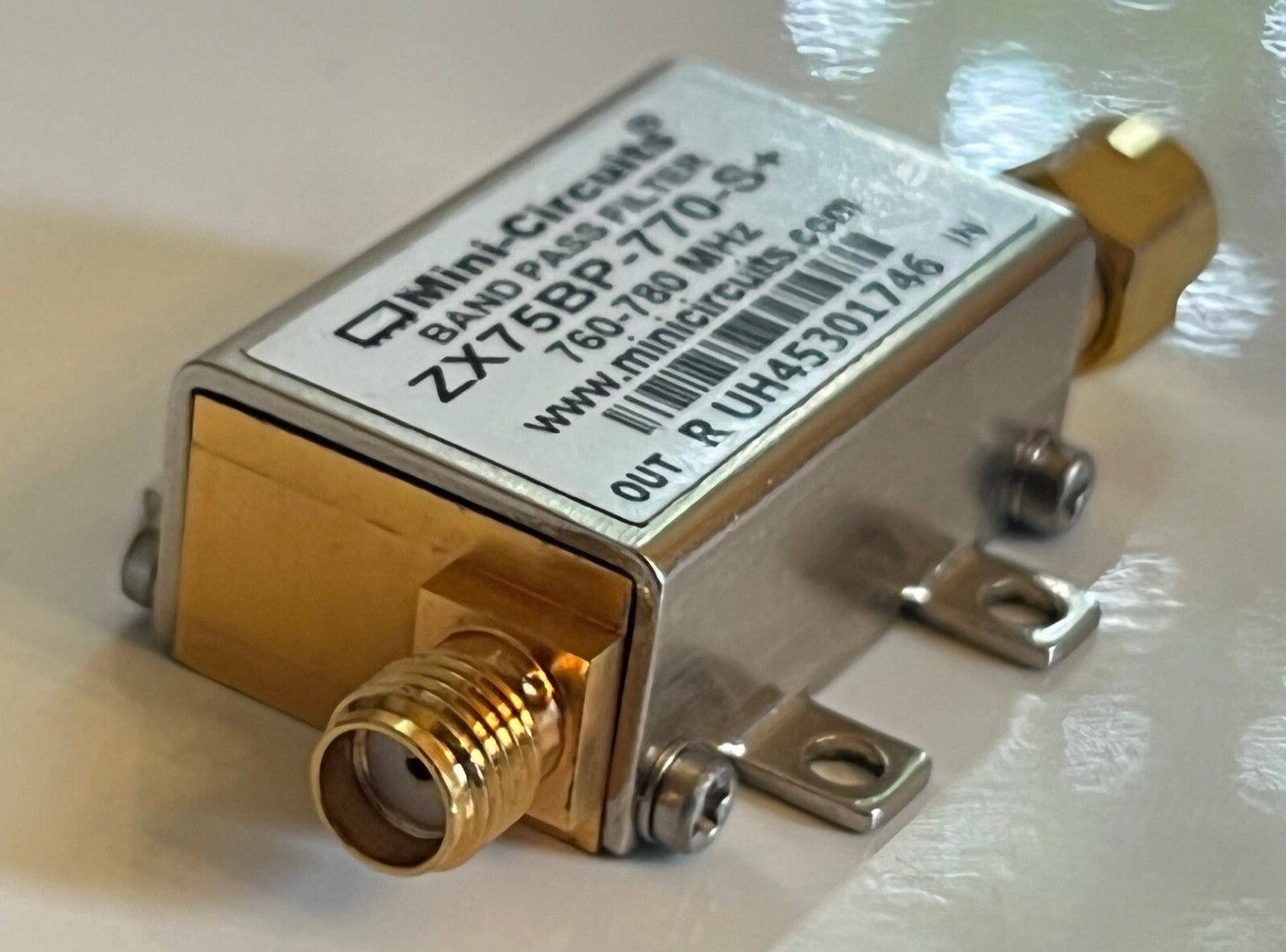

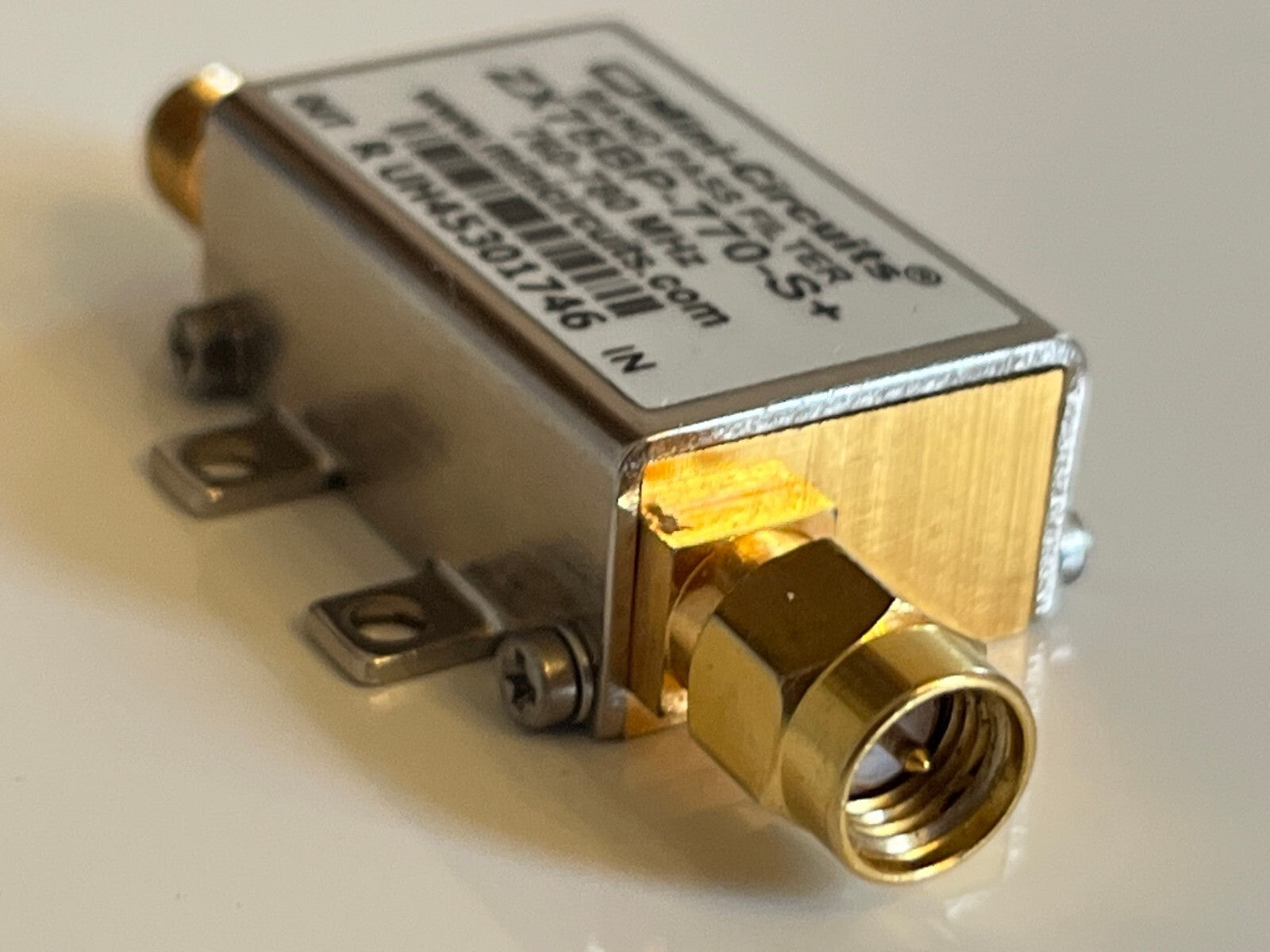

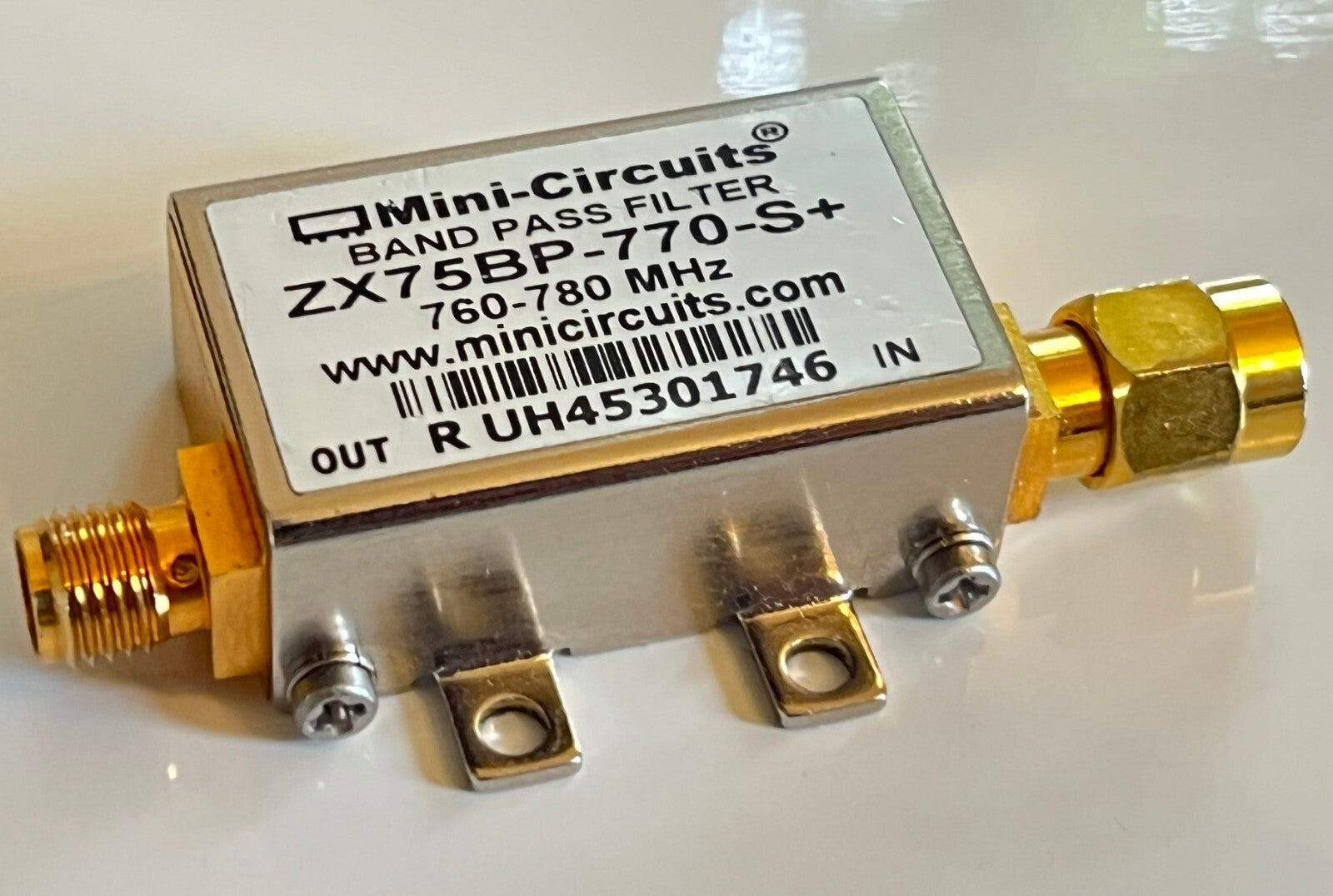

Manufactured by Mini-Circuits as their part number  ZX75BP-770-S+, this is an industry standard 50 Ohm Ceramic Resonator band pass filter 760 to 780MHz, 10W RF input power with SMA female connections.

Frequency range is 760Mhz - 780Mhz
Input power is 10W max, low insertion loss.

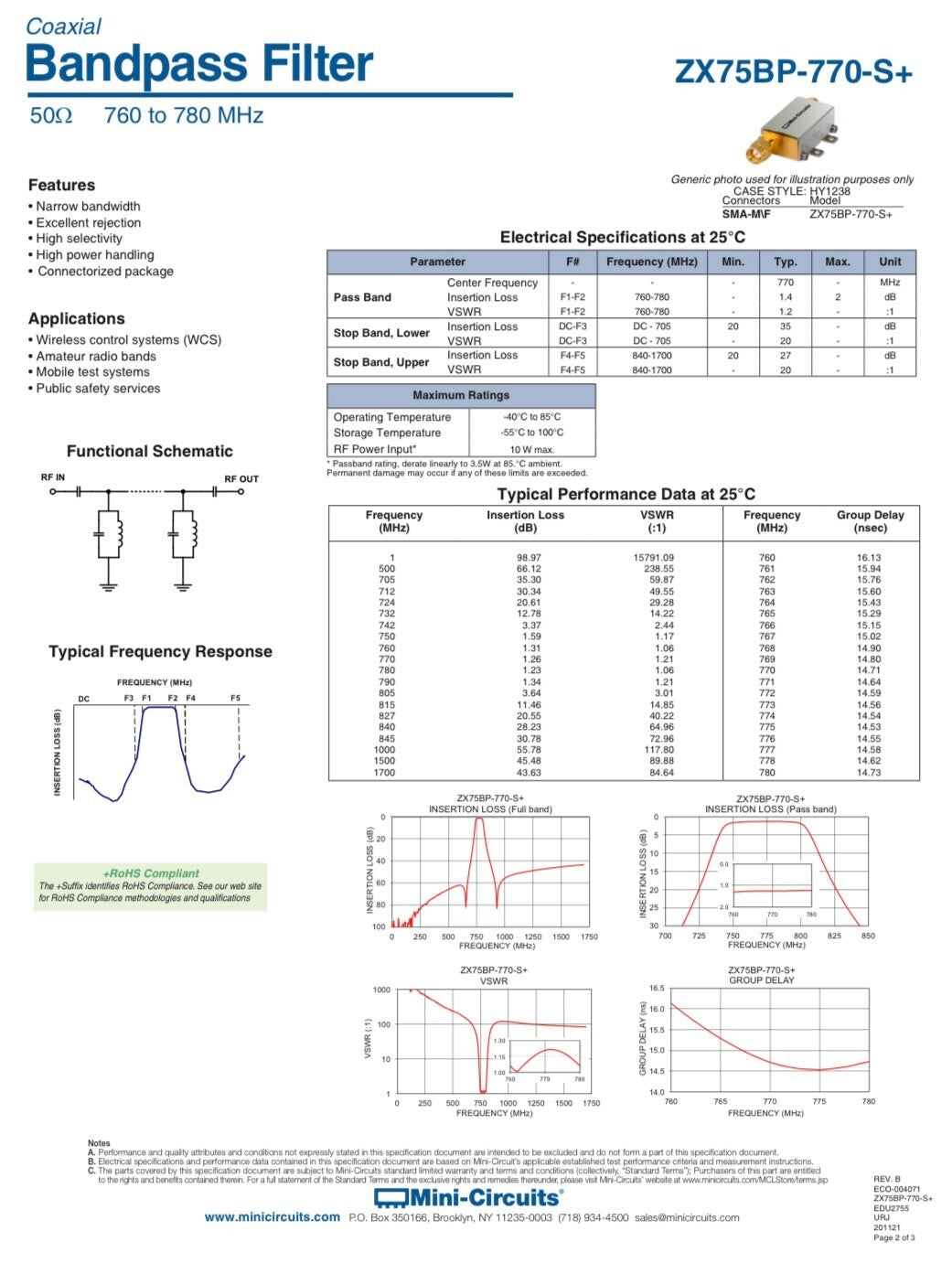

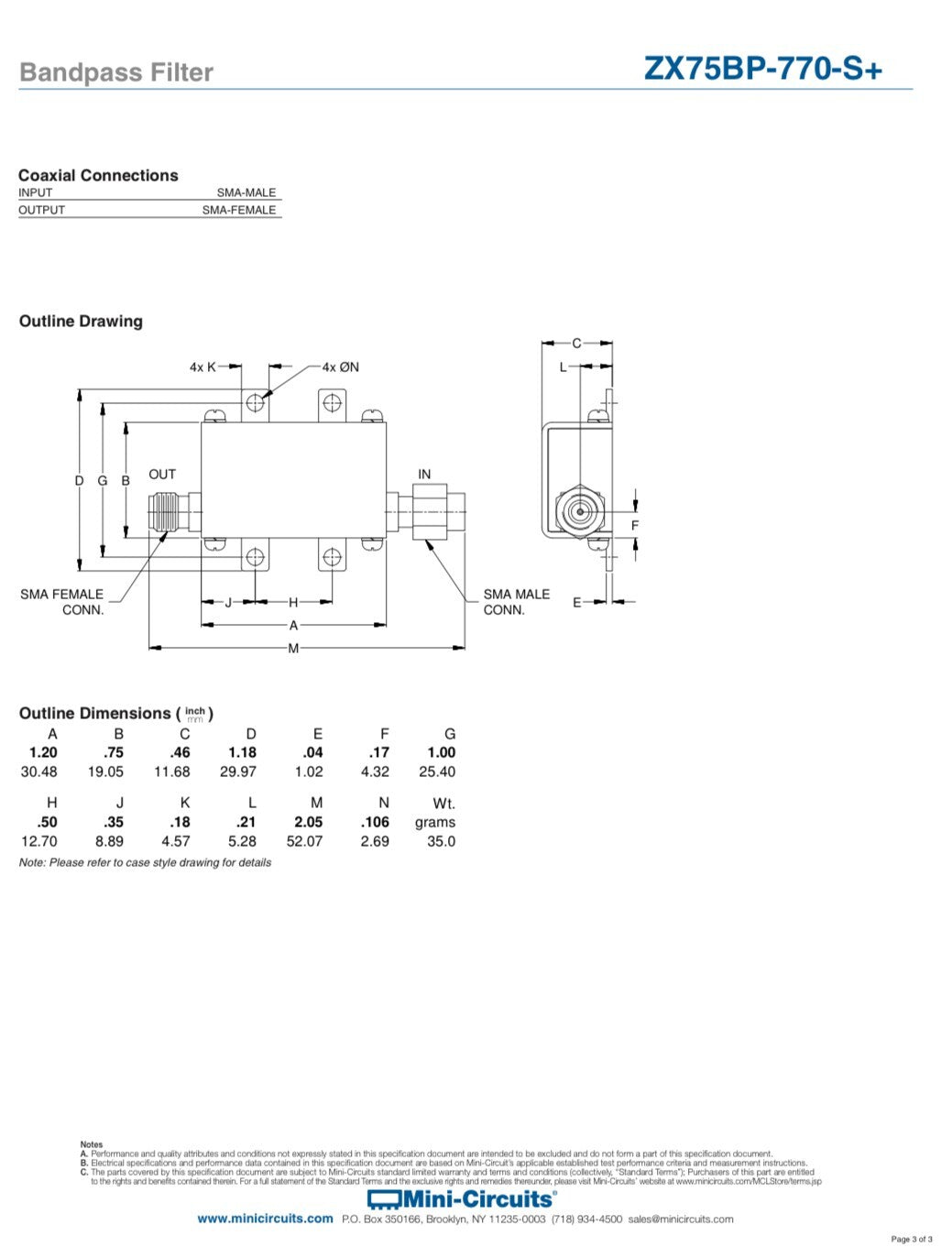

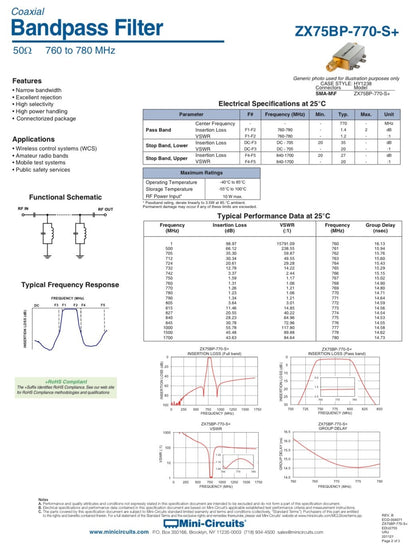

Manufacturers datasheet with full specifications can in the photos above

This came to us from a closed OEM companies test laboratory where it had little or no use, supplied in perfect condition.
.  PRICED AND SUPPLIED EACH - X1.
