MINI-CIRCUITS TB-695+ BPF-F100+ BAND PASS FILTER EVALUATION BOARD ae1w59

MINI-CIRCUITS TB-695+ BPF-F100+ BAND PASS FILTER EVALUATION BOARD ae1w59

£65.00
£65.00
Sale Sold out
Taxes included.

MINI-CIRCUITS TB-695S+ BANDPASS FILTER

Mini-Circuits - the world renown RF components company, made a series of 'Test Beds' for their range of components, where a component is built up into a working circuit block which could be used by equipment manufacturers to evaluate and build around the component to design their desired system.

 From a European OEMS research and development laboratory we have procured quite a range of these 'TB' Test bed evaluation modules.

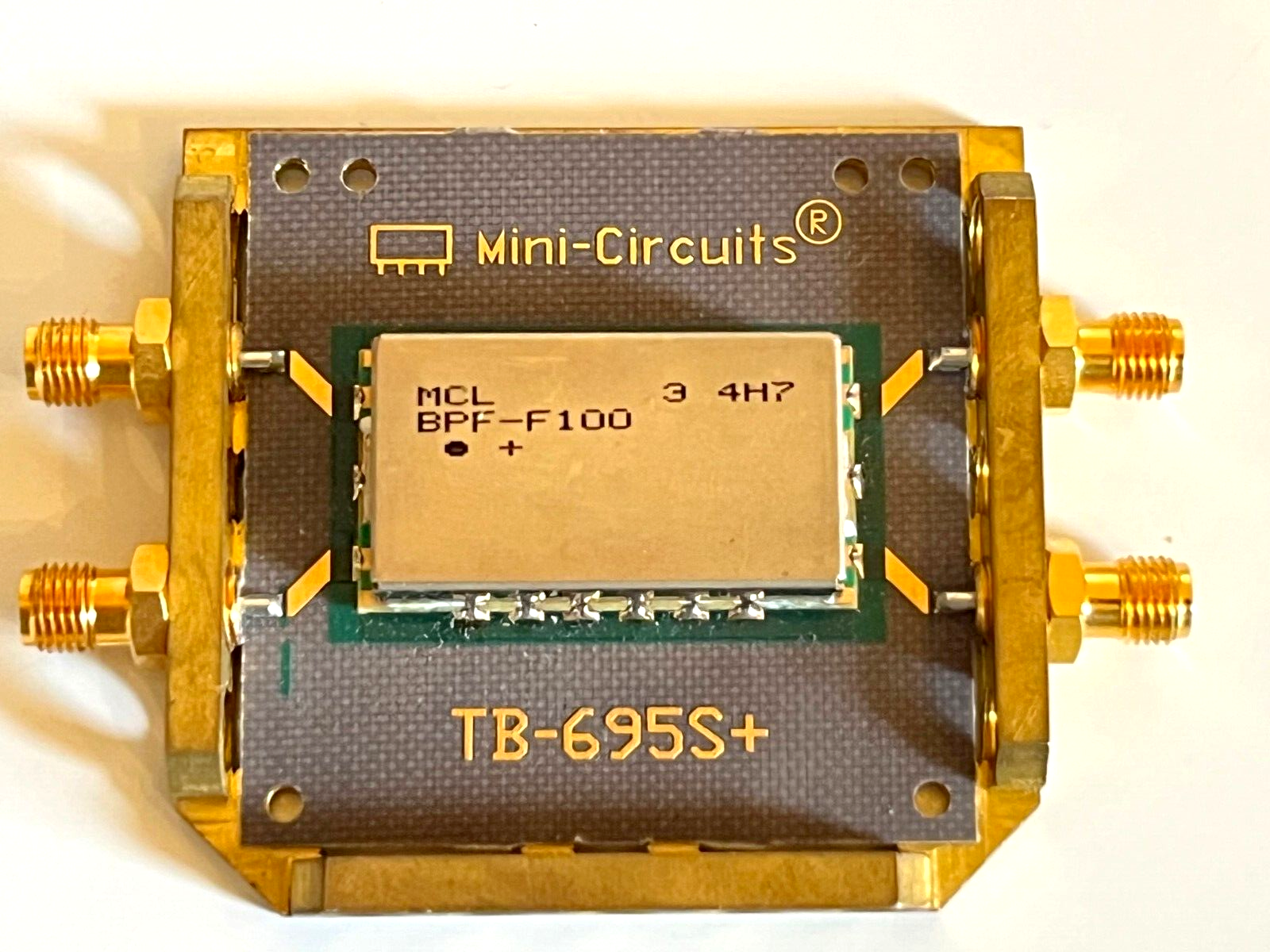

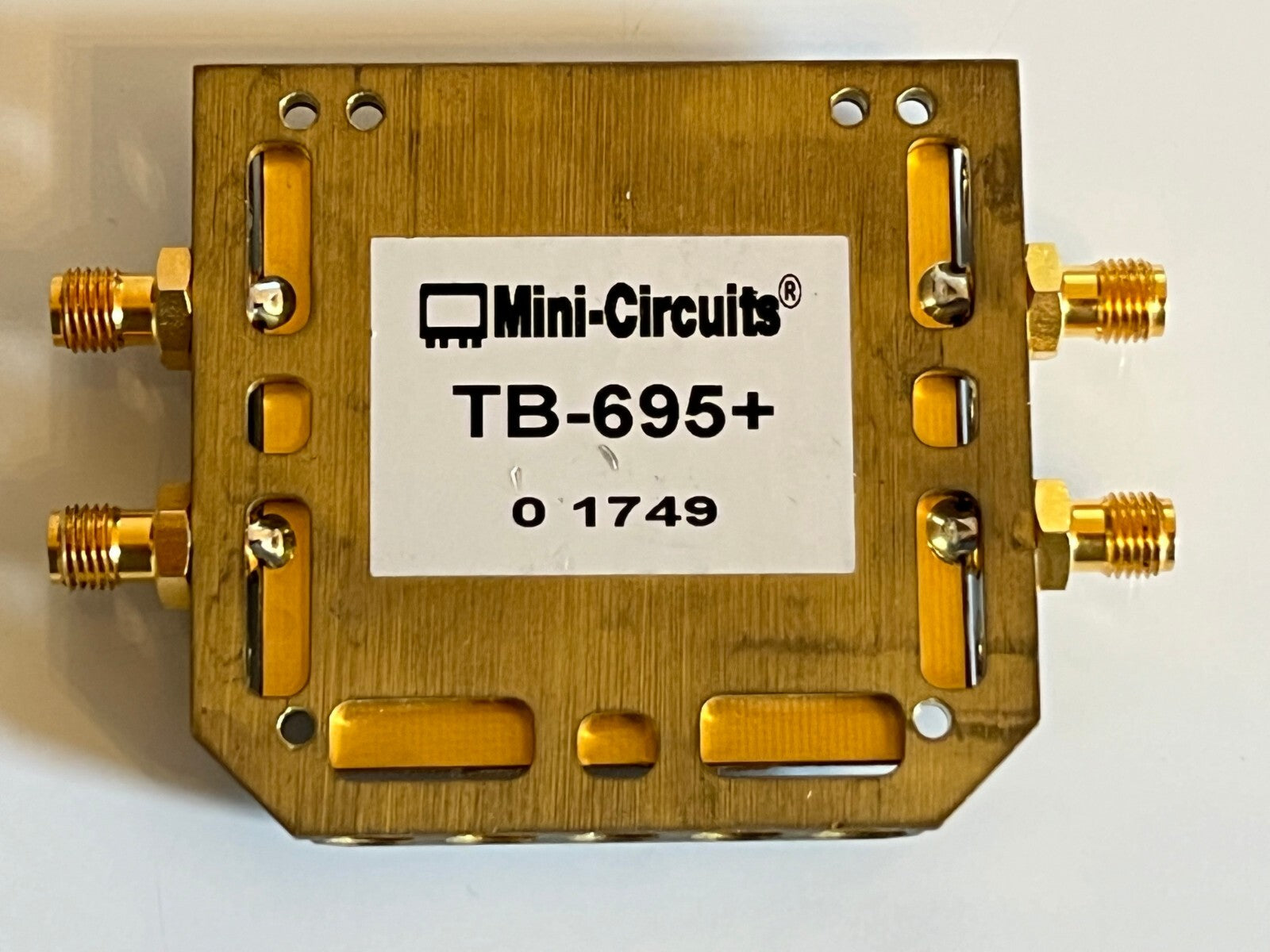

This one, is Mini Circuits model number TB-695S+, which is an evaluation circuit for their part number BPF-F100+, the bandpass filter.

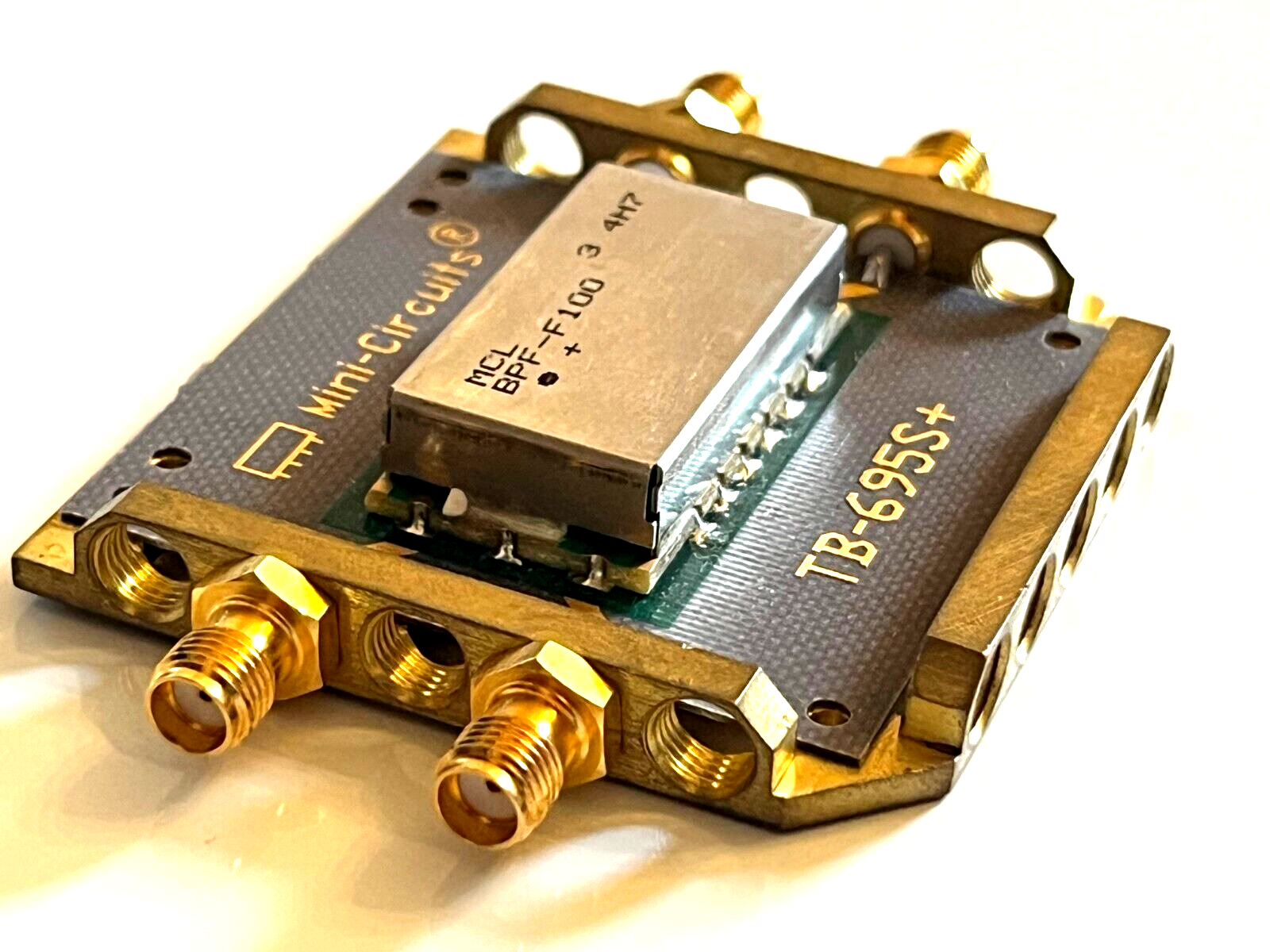

The TB-695S+  is a complete 95MHz to 105MHz  50 Ohm 1W lump L-C bandpass filter module, with SMA female connections.

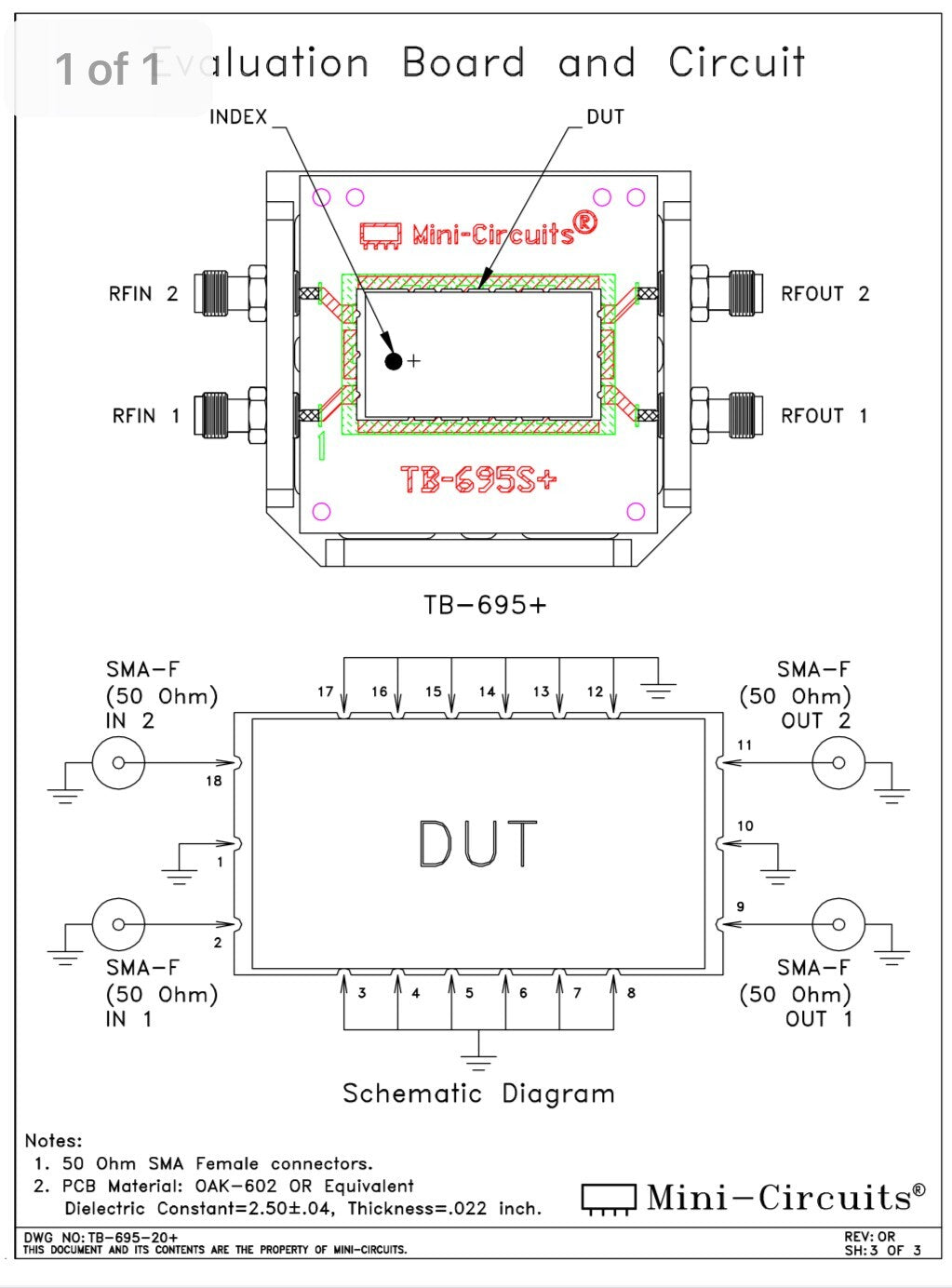

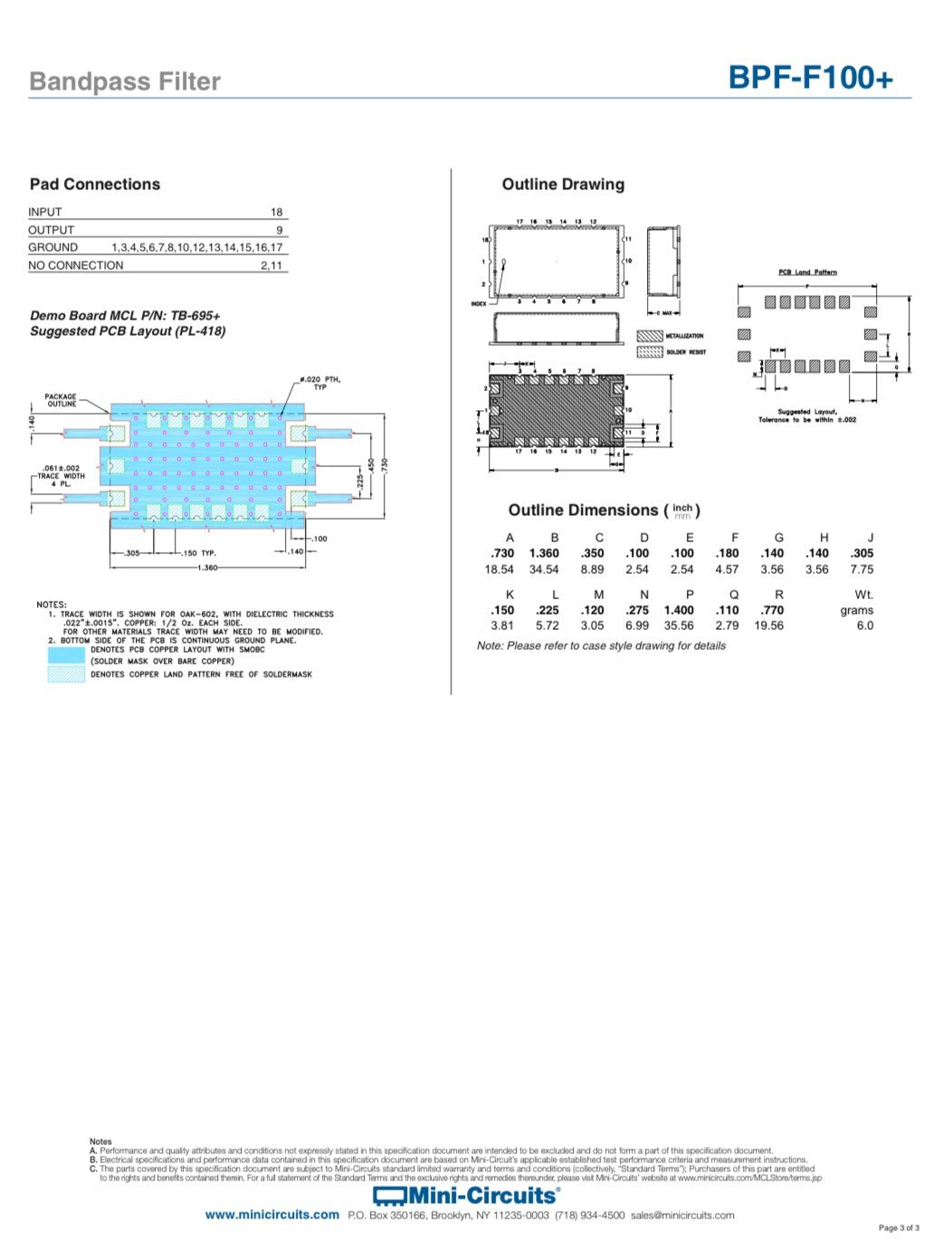

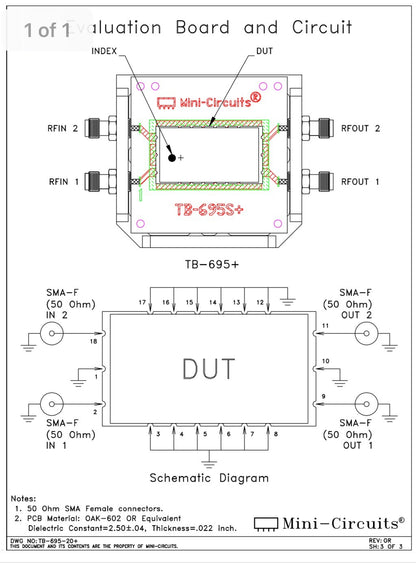

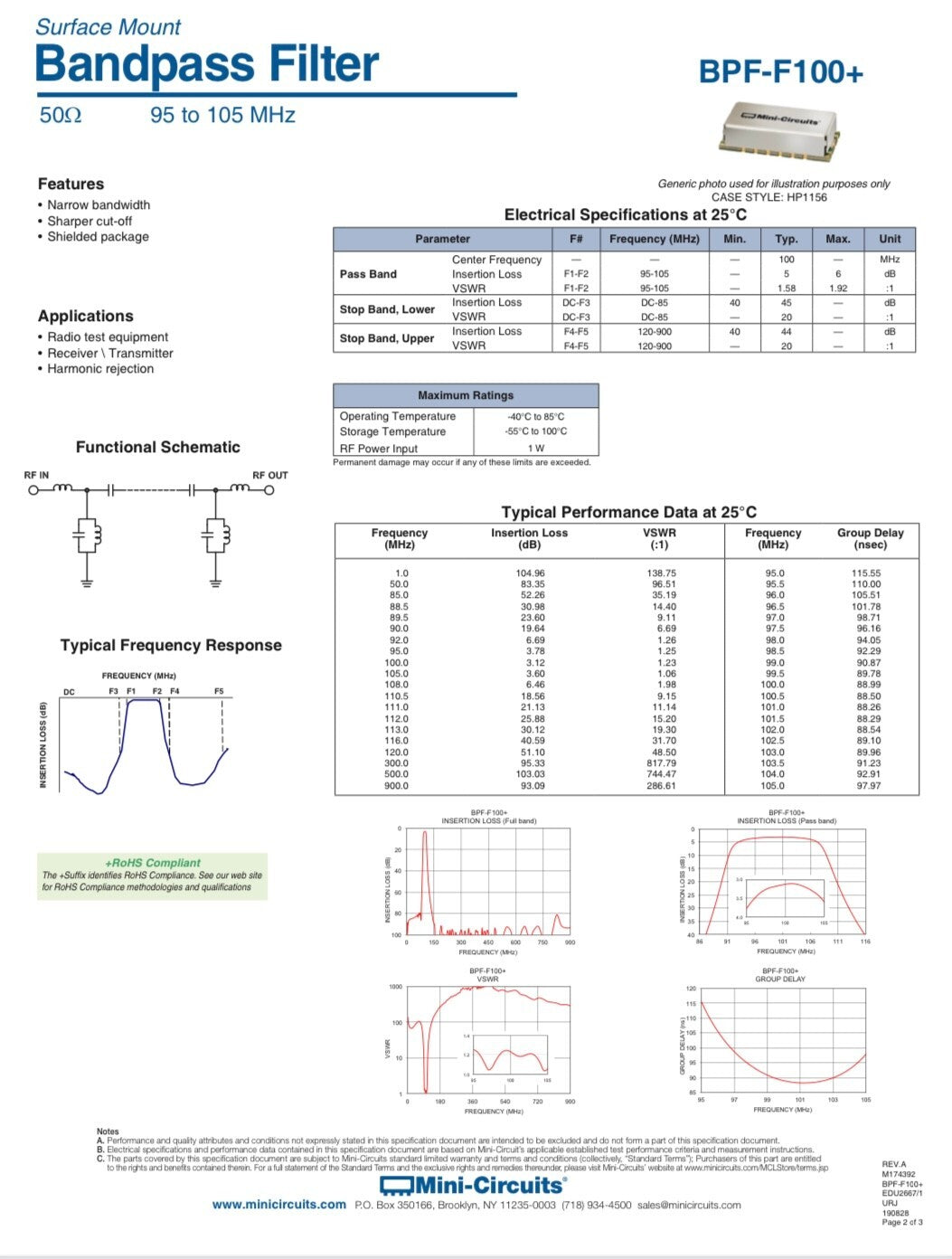

Full manufacturers datasheet with all specifications can be seen at in the photos above.

These came to us from a now closed Europeans UK R&D laboratory where they had had little use. Offered here at a fraction to the distributors list price, in perfect used condition.

  PRICED AND SUPPLIED EACH - X1.
